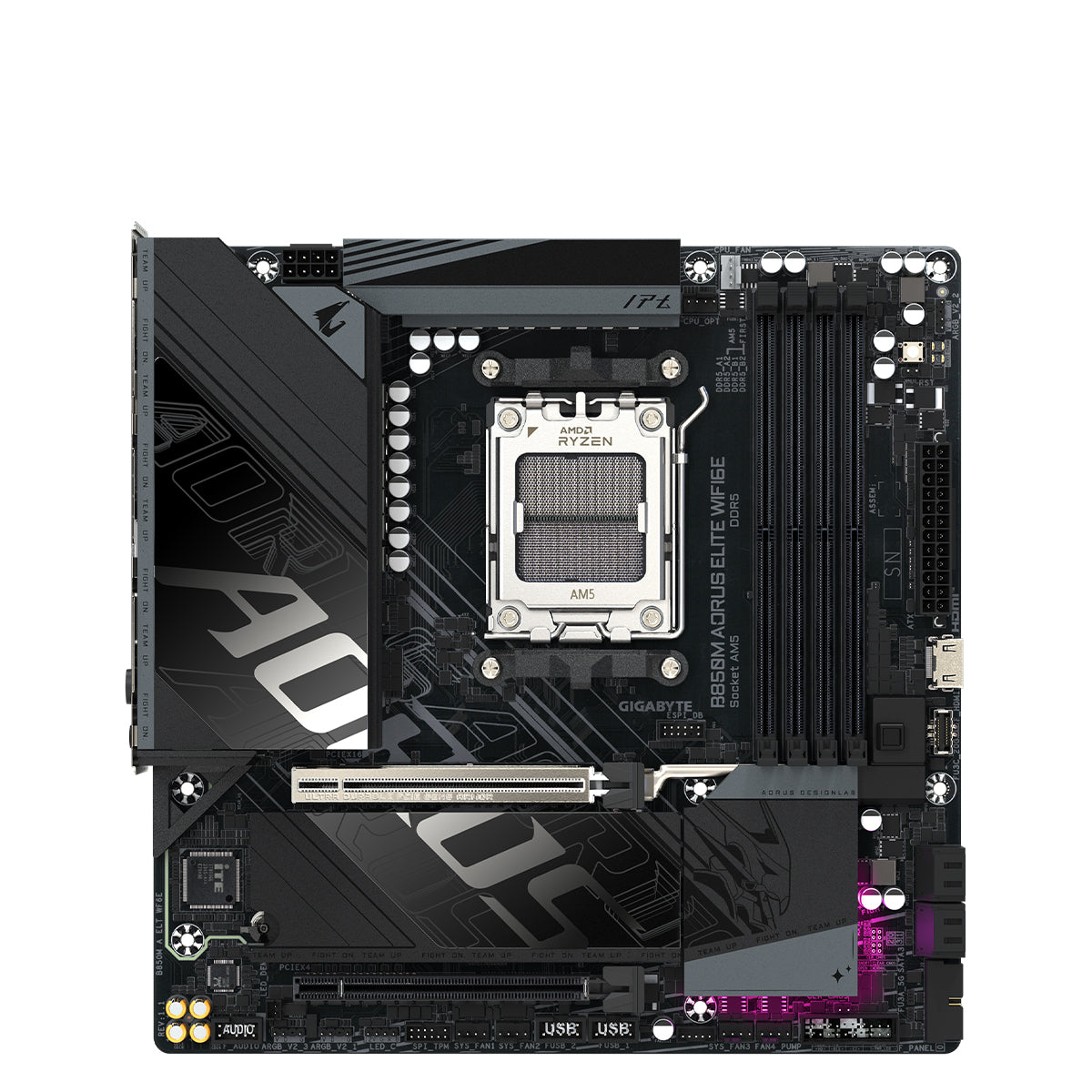

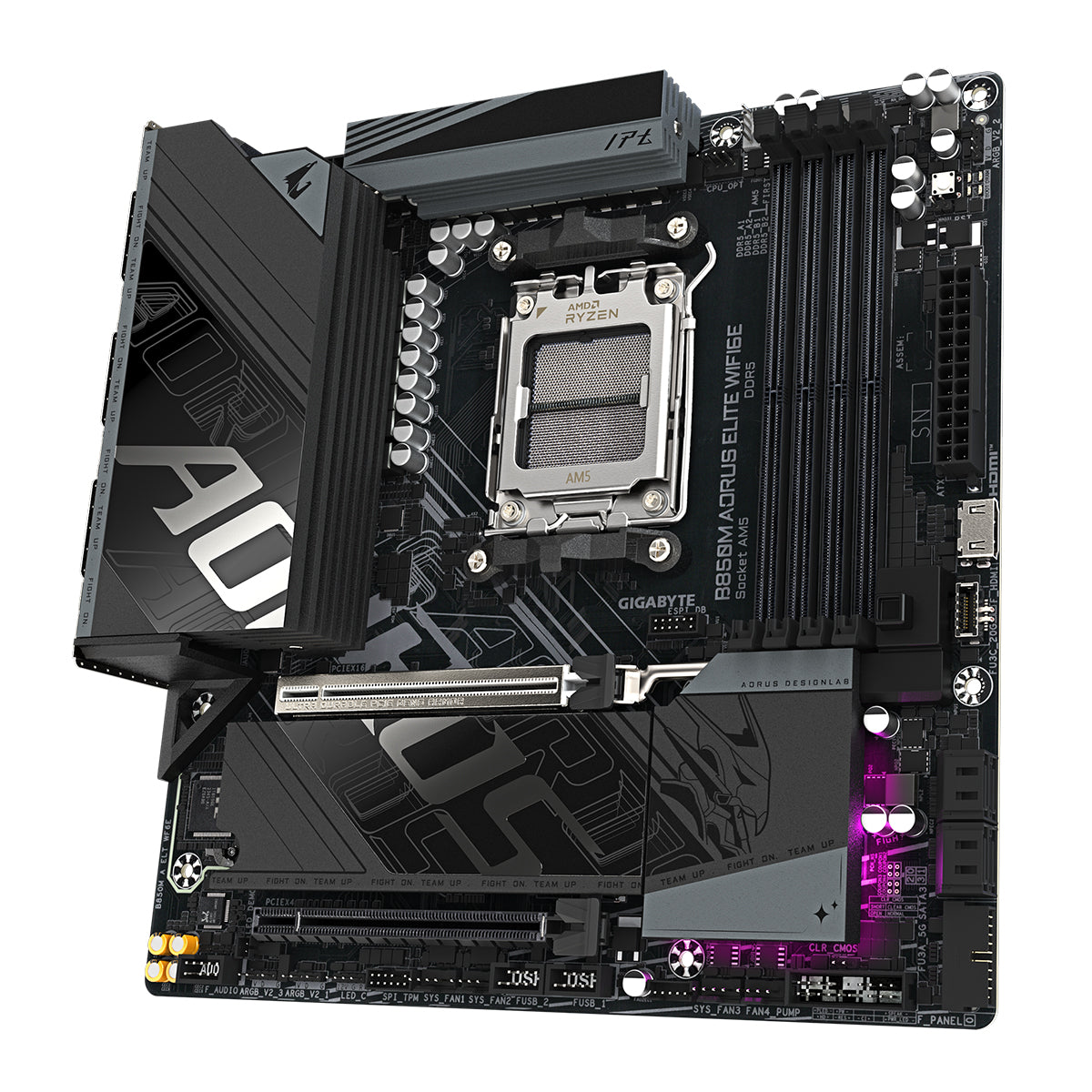

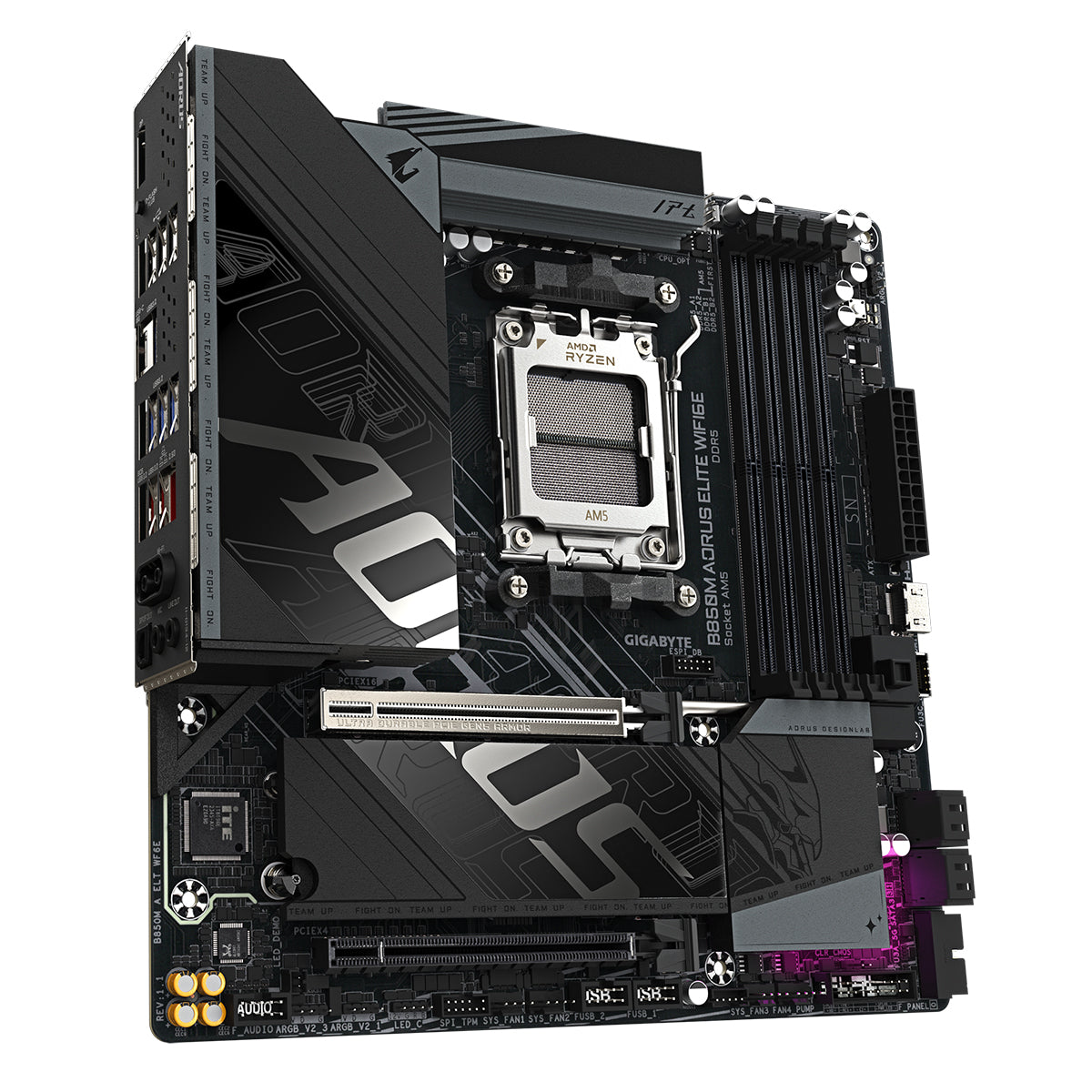

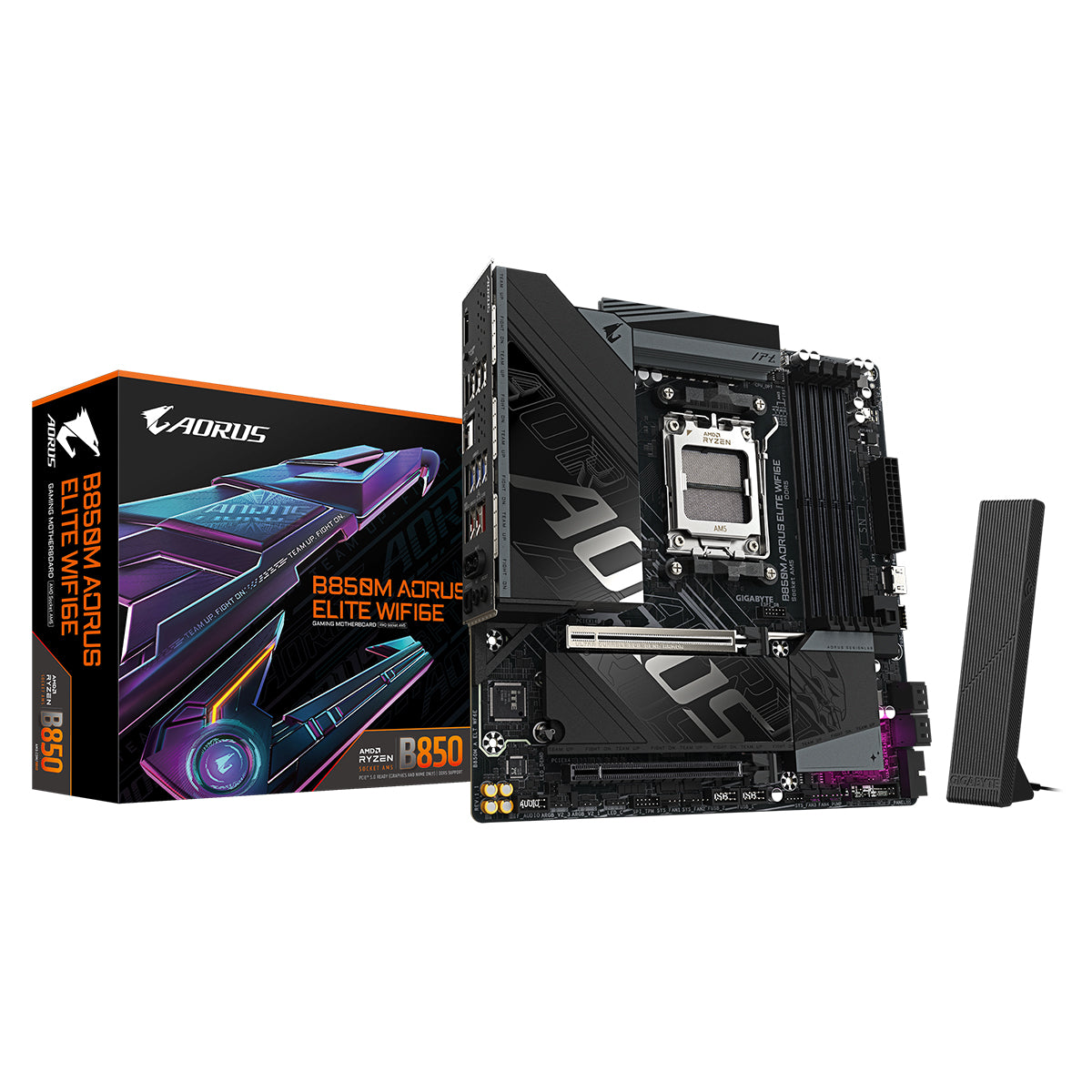

Gigabyte B850M AORUS ELITE WIFI6E mATX Motherboard
Gigabyte
| SKU
83850
$50.00 off
$449.00
$499.00
Unit price
/
Unavailable
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Key Features
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : HDMI,Displayport
- PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Specifications
Specifications
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B850 |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect supported memory types, speed, and DRAM modules. Please refer to GIGABYTE's "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, max resolution 3840x2160@144 Hz (DP 1.4 with HDR) - 1 x Front HDMI port, max resolution 1920x1080@30 Hz (HDMI 1.4) (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC (Rev. 1.0) / Realtek® ALC1220 CODEC (Rev. 1.1) High Definition Audio 2/4/5.1/7.1-channel (configurable via software) Support for S/PDIF Out DSD audio supported on Rev. 1.1 (line out jack) |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Realtek® Wi-Fi 6E RTL8852CE - WIFI a/b/g/n/ac/ax, 2.4/5/6 GHz bands - Bluetooth 5.3 - 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16, CPU) - Ryzen™ 9000/7000 support PCIe 5.0 x16 - Ryzen™ 8000 Phoenix 1 support PCIe 4.0 x8 - Ryzen™ 8000 Phoenix 2 support PCIe 4.0 x4 (Only graphics card or NVMe SSD supported in PCIEX16 slot) Chipset: - 1 x PCI Express x16 slot (PCIEX4), PCIe 3.0 x4 |
| Storage | 1 x M.2 (M2A_CPU), CPU controlled, type 25110/22110/2580/2280 SSDs - Ryzen™ 9000/7000: PCIe 5.0 x4/x2 - Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2 - Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4/x2 1 x M.2 (M2B_CPU), CPU controlled, type 22110/2280 SSDs - Ryzen™ 9000/7000: PCIe 4.0 x4/x2 - Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2 - Ryzen™ 8000 Phoenix 2: PCIe 4.0 x2 4 x SATA 6Gb/s connectors NVMe RAID 0/1/5/10 support (RAID 5 only on Ryzen™ 9000) SATA RAID 0/1/10 support |
| USB | CPU: - 1 x USB Type-C® (rear, USB 3.2 Gen 2) - 2 x USB 3.2 Gen 2 Type-A (rear, red) CPU + USB 2.0 Hub: - 4 x USB 2.0/1.1 (rear) Chipset + USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 (rear) Chipset: - 1 x USB Type-C® (internal, USB 3.2 Gen 2x2) - 3 x USB 3.2 Gen 1 (1 rear, 2 internal) - 4 x USB 2.0/1.1 (internal) |
| Internal I/O | 1 x 24-pin ATX main power 1 x 8-pin ATX 12V power 1 x CPU fan 1 x CPU fan/water pump 3 x system fans 1 x system fan/water pump 3 x ARGB Gen2 headers 1 x RGB header 2 x M.2 connectors 4 x SATA 6Gb/s 1 x front panel 1 x front audio 1 x USB Type-C® (USB 3.2 Gen 2x2) 1 x USB 3.2 Gen 1 2 x USB 2.0/1.1 1 x TPM header 1 x HDMI port 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |

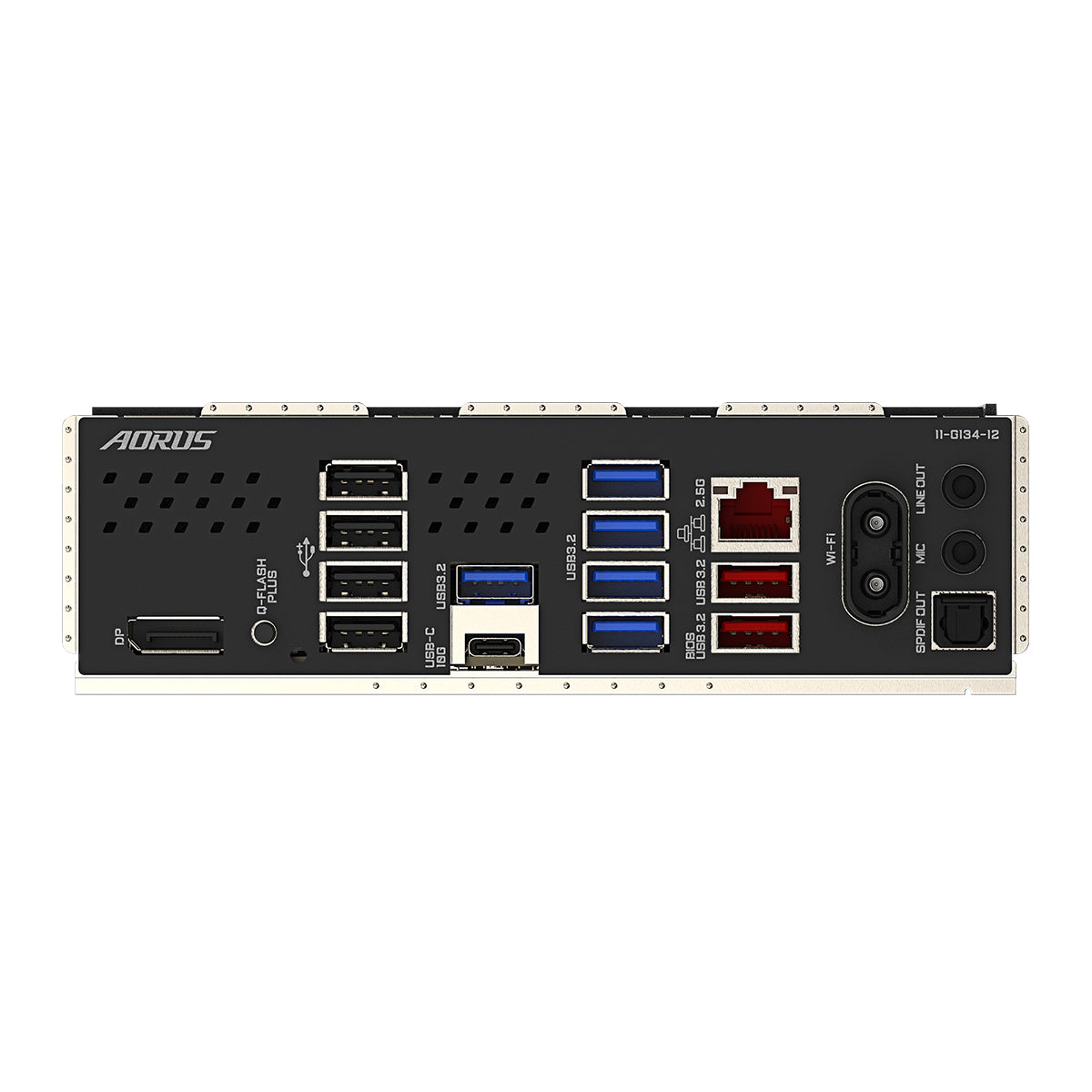

| Back Panel | 1 x DisplayPort 1 x Q-Flash Plus button 4 x USB 2.0/1.1 5 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 Type-A (red) 1 x USB Type-C® (USB 3.2 Gen 2) 1 x RJ-45 2 x antenna connectors 2 x audio jacks 1 x optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control (depends on fan/pump) |
| BIOS | 1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows® 11 64-bit Support for Windows® 10 64-bit |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
