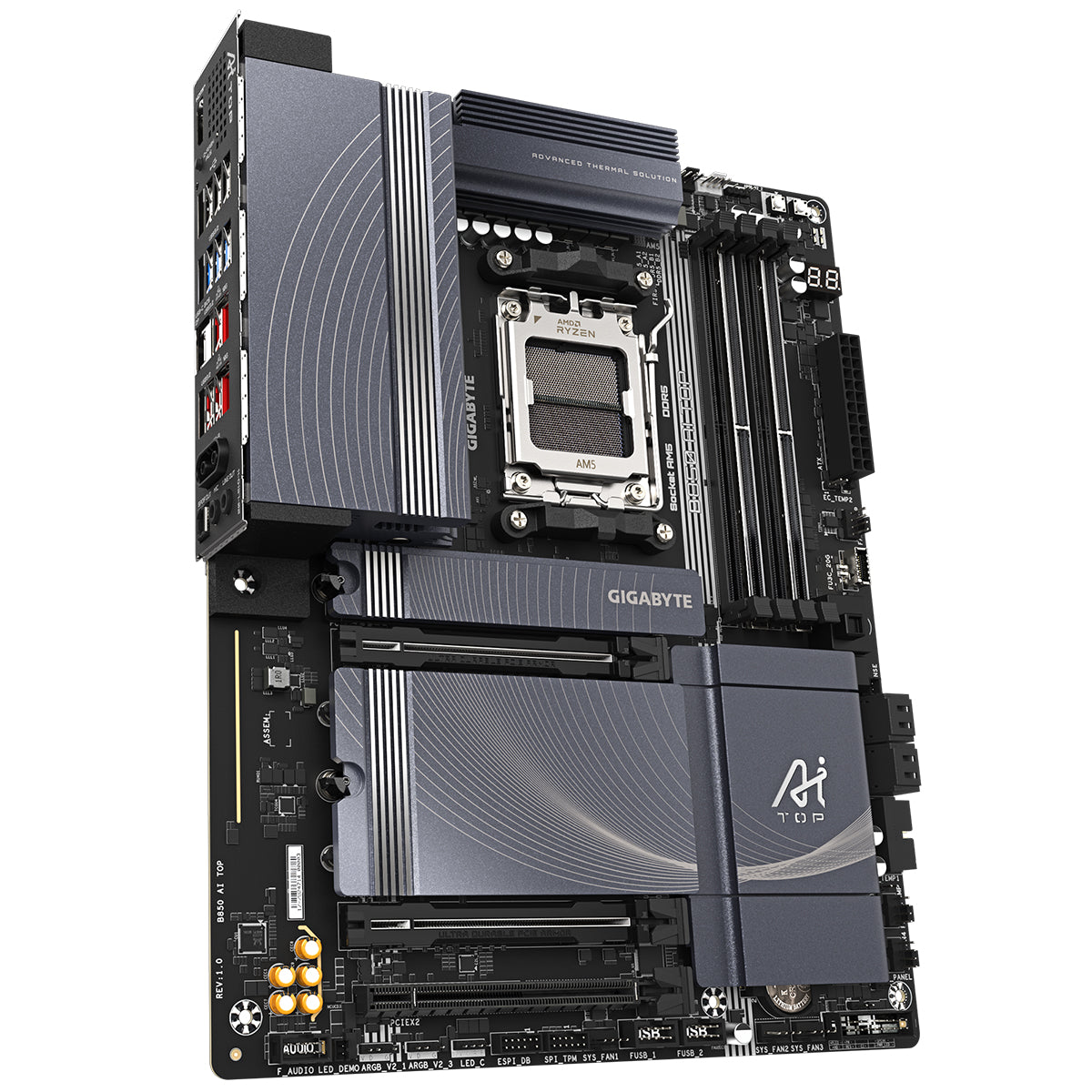

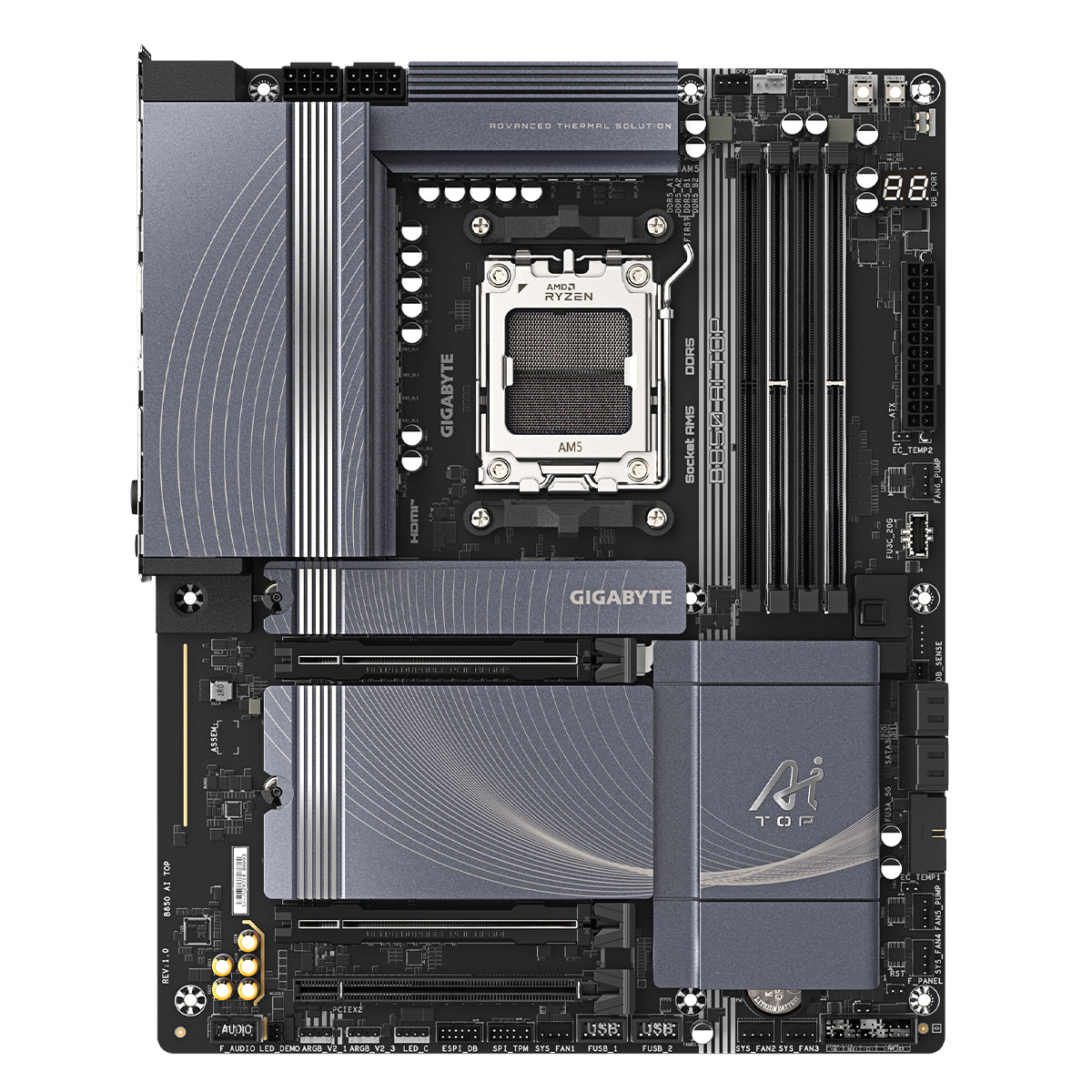

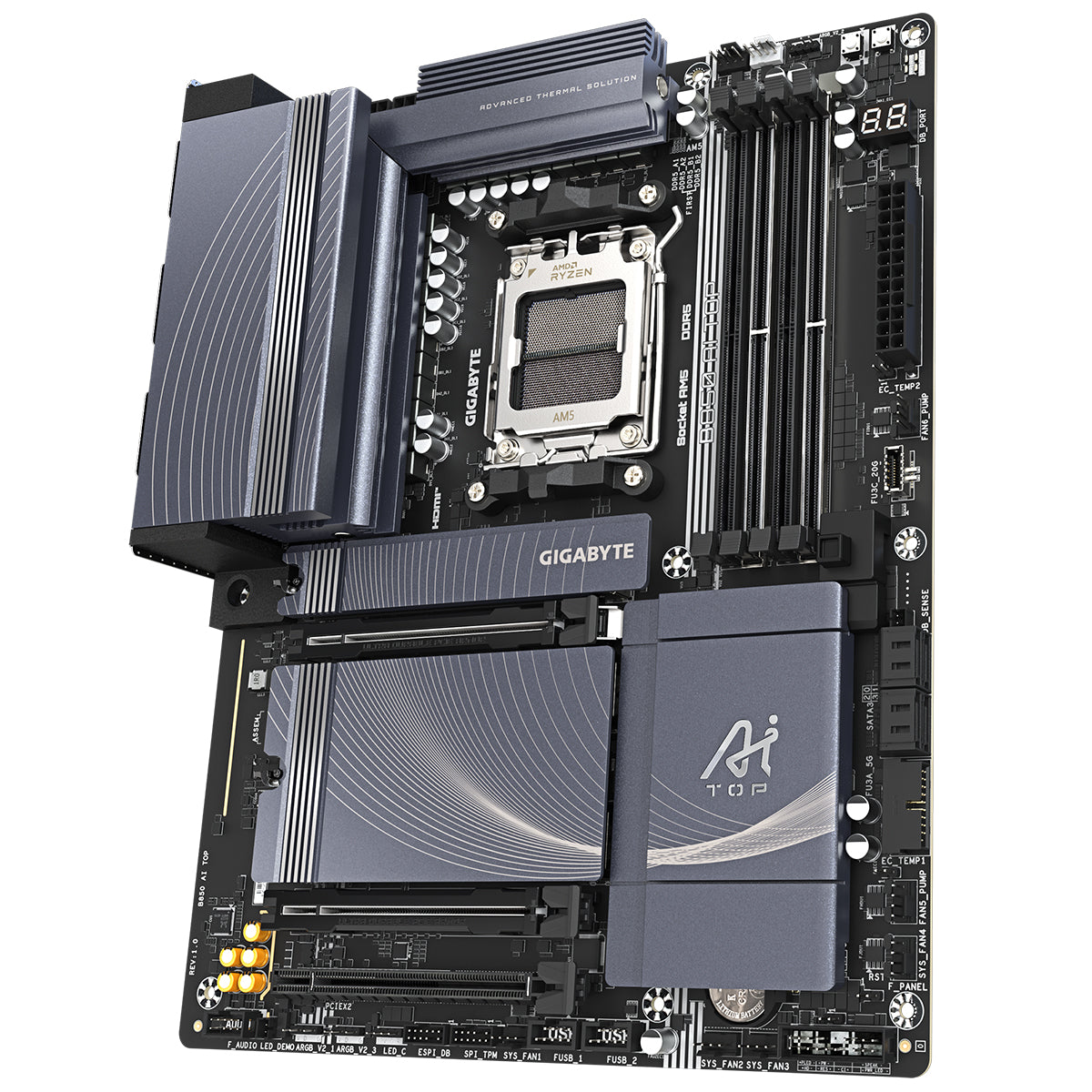

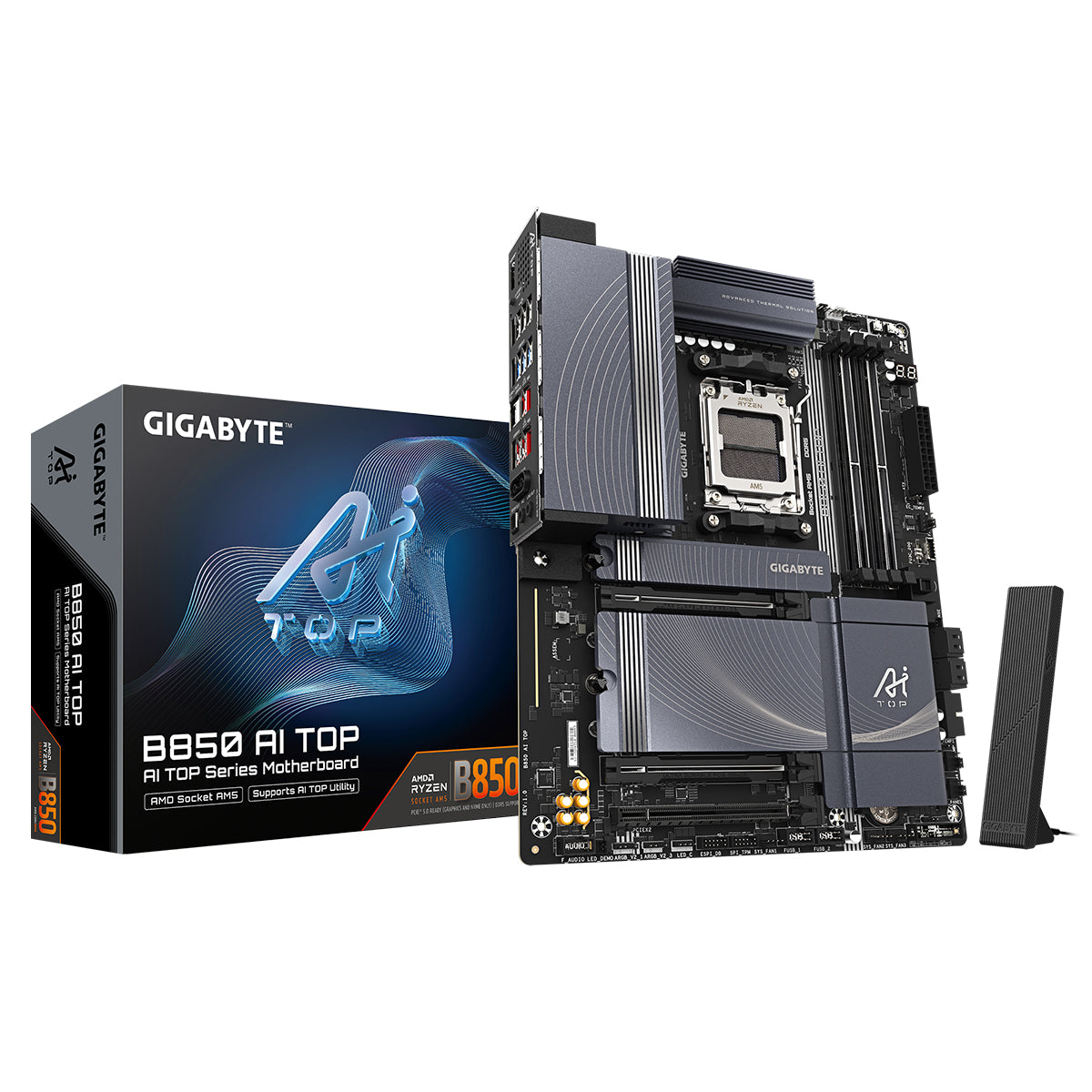

Gigabyte B850 AI TOP Motherboard

Gigabyte  |  SKU 83849  |  MPN B850 AI TOP
$748.99

In stock at Computer Lounge

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Key Features

  • Training your own AI on your desk
  • DDR5 OC up to 8600MT/s
  • AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
  • New Power Monitor in HWinfo for real-time monitoring on CPU power phases
  • Ultra-Fast Storage : 3*M.2 slots, including 2*PCIe 5.0 x4
  • Efficient Thermal : VRM Thermal Armor Advanced with M.2 Thermal Guard
  • Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
  • Extended Connectivity : Rear USB-C® support up to 40Gb/s, Front USB-C® 20Gb/s, HDMI
  • High-Res Audio : ALC1220 and High-End Audio Capacitor
  • Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
  • PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card


Train your own AI on your desk

In the age of local AI, GIGABYTE AI TOP is the all-round solution to win advantages ahead of traditional AI training methods. It features a variety of groundbreaking technologies that can be easily adapted by beginners or experts, for most common open-source LLMs, in anyplace even on your desk.

  • Supports 236B LLM Local Training
  • Intuitive Set-up
  • Flexbility & Upgradability
  • Privacy & Security
  • Suitable for Home Use


Reinventing AI Training

The all-new AI TOP Utility 2.0 brings enhanced features and broader model support, empowering users from novices to experts to unlock AI's potential right at their desks.

Enhanced Performance for AI Training

The AI TOP Hardware features a series of GIGABYTE AI TOP products that are optimized in power efficiency and durability for AI training workloads. It includes upgradeable components and is easy to build at home.

Future Connectivity

Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

  • Dual 10GbE LAN
  • Wi-Fi 7
  • Directional Ultra-high Gain Antenna
  • More Connectivity info.


True High-Fidelity Music

Dive into enveloping surround sound and enjoy DSD audio playback with the Realtek ALC1220 Codec.

X3D Turbo Mode

X3D Turbo Mode's unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.

Infinite Memory Performance

AI TOP motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Exclusive BIOS Design

Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.

AMD EXPO™ Settings

Optimize memory with AMD's user-friendly profiles.

Get the most out of your system's memory.

Elevate your gaming with our state-of-the-art technology for a superior experience.

  • Shielded Memory Routing
  • Daisy-Chained Routing
  • 8-Layer Server-Grade PCB
  • Check Out Our Revolutionary DDR5 Technology


Comprehensive Thermal

Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience.

WIFI EZ-Plug

The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AI TOP series motherboards are engineered to endure and excel.

PCIe UD Slot X

The latest PCIe UD Slot X offers unparalleled robustness, delivering superior protection for your graphics card.

  • 10X load-bearing capacity
  • integrated, single-piece design anchored to a exclusive backplate
  • Inner Lining Rubber Strip
  • Safeguards your graphics card's PCB against potential damage
  • Zinc Alloy
  • Provides effective EMI shielding for high-frequency signals


RGB Fusion

Personalize the RGB illumination on your motherboard and connected peripherals.

Learn more

Dual PCIe x 16 slots for Multi-GPU

Dual PCIe 5.0 x16 slots (run x16 or x8, x8) to deliver premium graphics performance for superior rendering capabilities, more immersive gaming experience, and AI trainings.

3X PCIe 5.0/4.0 M.2 slots

The fast storage of 3 PCIe 5.0/4.0 M.2 support enables local computations to be completed in the shortest possible time.

Future Connectivity

Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Infinite Memory Performance

AI TOP motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Digital Twin VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

Specifications

CPU AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)
Chipset AMD B850
Memory Support for DDR5 8600(OC)/ 8400(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC and non-ECC Un-buffered DIMM memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x USB Type-C® port (Note) with DisplayPort video output, supporting a maximum resolution of 3840x2160@144 Hz.
* Support for DisplayPort 1.4 version and HDR.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3, and HDR.
** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

(Note) This USB Type-C® port supports up to 40 Gbps when using AMD Ryzen™ 8000 series processors, and up to 10 Gbps when using AMD Ryzen™ 9000/7000 series processors.

Audio Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.

High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out
LAN 2 x Marvell® AQtion AQC113C 10GbE LAN chips
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Realtek® Wi-Fi 7 RTL8922AE
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode
* The PCIEX8 slot become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/ Phoenix 2 processor is used.

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2)
* The PCIEX2 slot shares bandwidth with the M2C_SB connector. The PCIEX2 slot becomes unavailable when a device is installed in the M2C_SB connector.

Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB CPU:
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 1 x USB Type-C® port (Note) on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel

Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel

(Note) This USB Type-C® port supports up to 40 Gbps when using AMD Ryzen™ 8000 series processors, and up to 10 Gbps when using AMD Ryzen™ 9000/7000 series processors.

Internal I/O Connectors 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
2 x temperature sensor headers

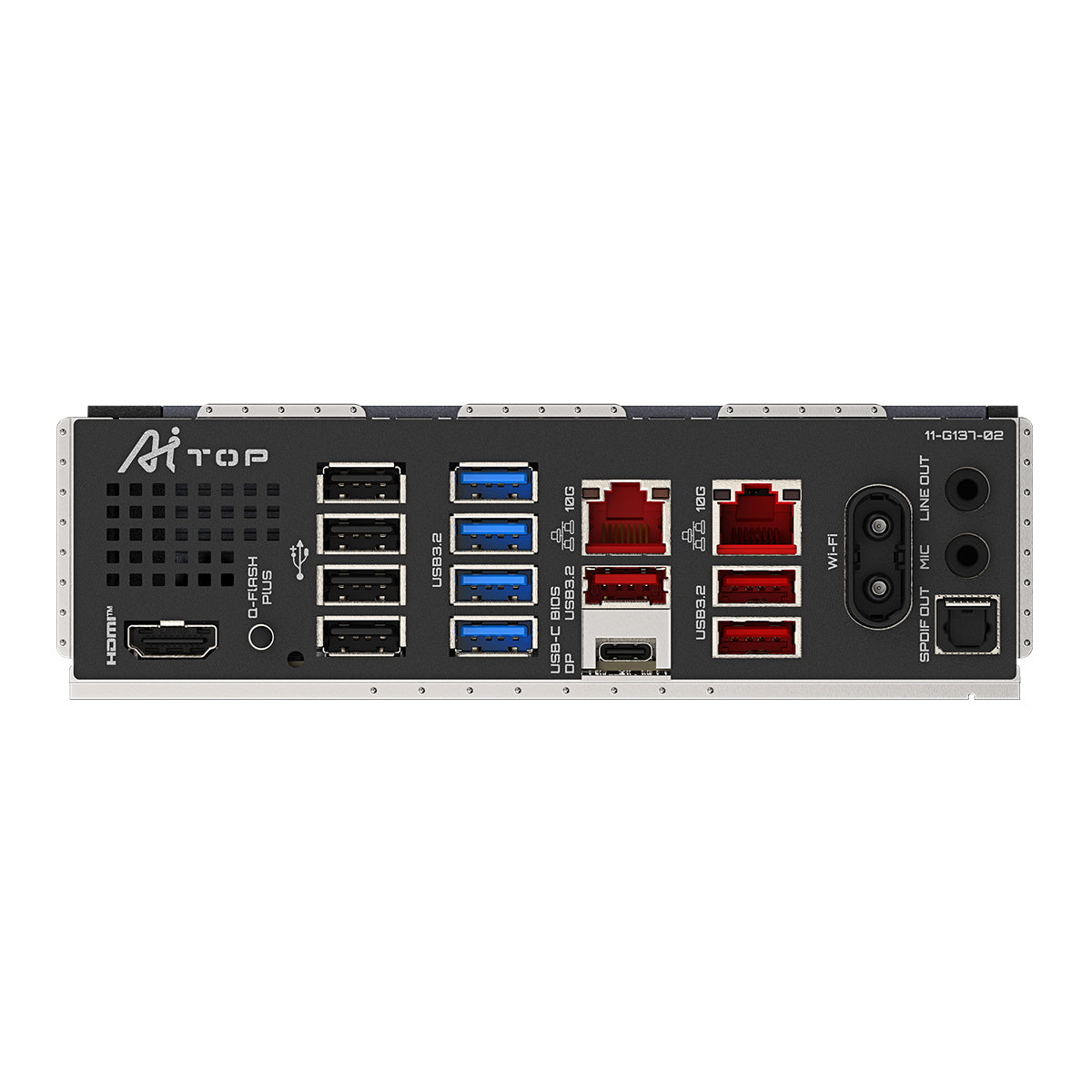

Back Panel Connectors 1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port (Note 1)
1 x USB Type-C® port (Note 2) (DisplayPort (Note 1))
3 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
2 x audio jacks

(Note 1) Actual support may vary by CPU.
(Note 2) This USB Type-C® port supports up to 40 Gbps when using AMD Ryzen™ 8000 series processors, and up to 10 Gbps when using AMD Ryzen™ 9000/7000 series processors.

I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

Noise detection
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
* Service discontinued as a result of contract termination by the software provider.
Operating System Support for Windows 11 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
