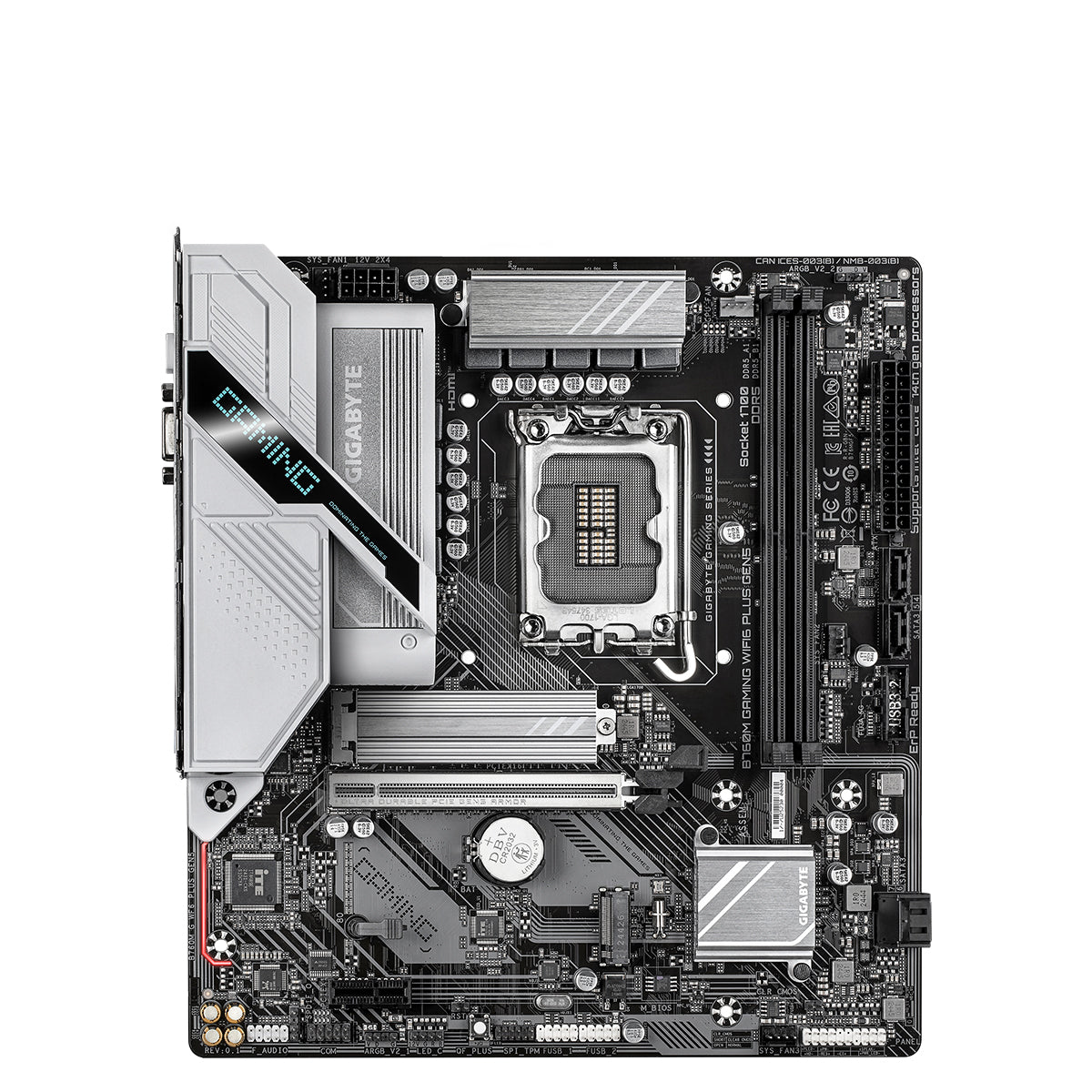

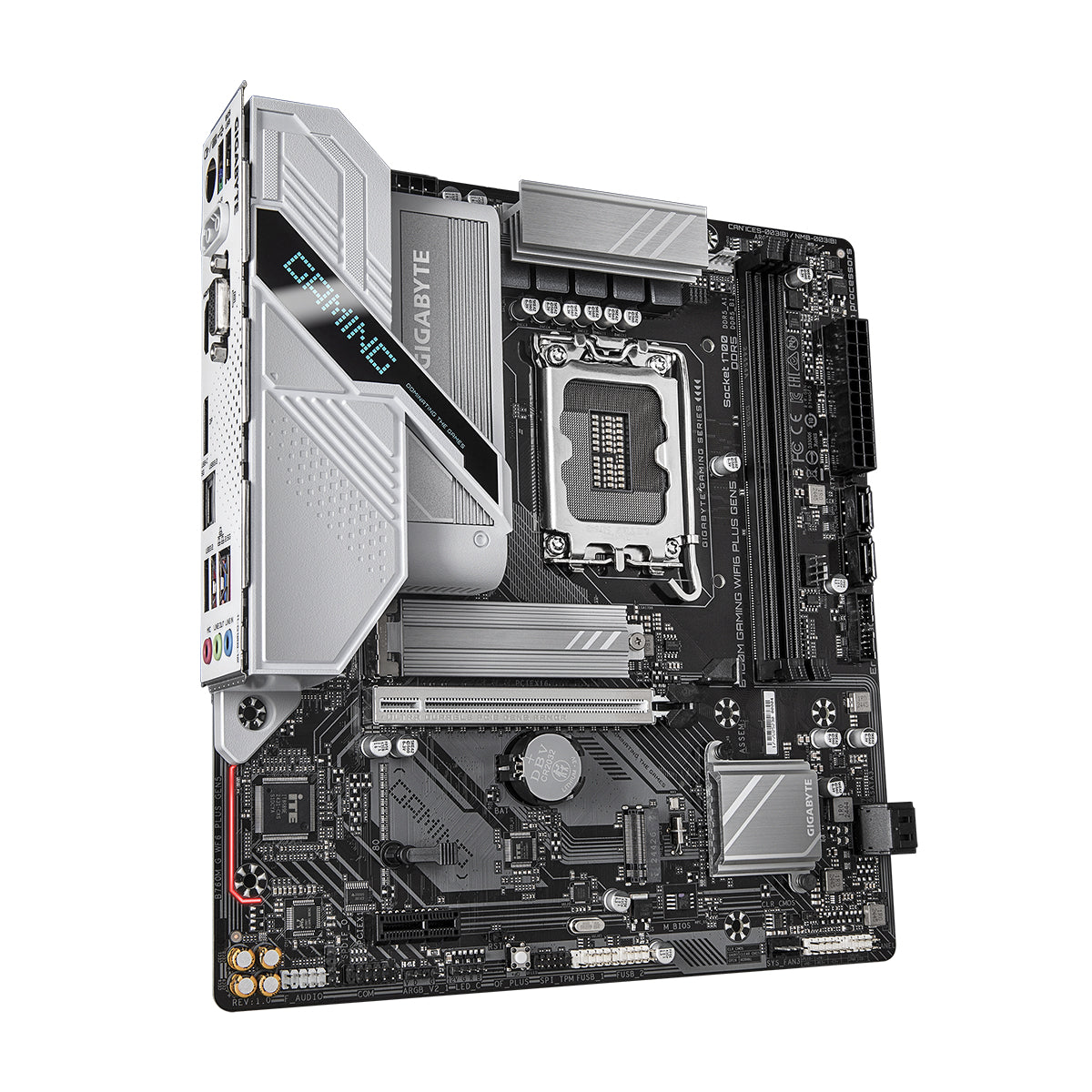

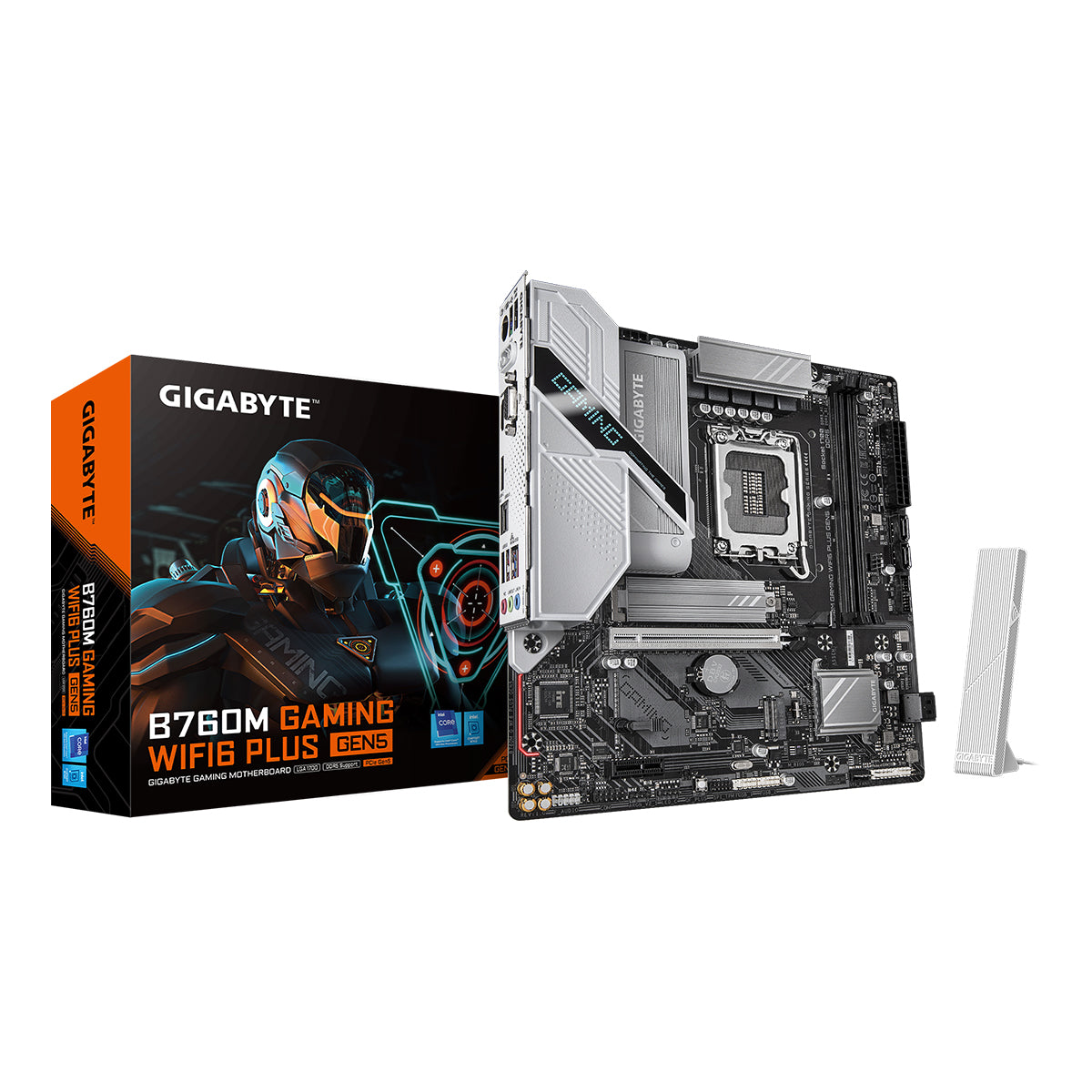

Gigabyte B760M GAMING WIFI6 PLUS GEN5 DDR5 mATX Motherboard
Gigabyte
| SKU
82804
$239.00
Unit price
/
Unavailable
Order now and it ships in 2-3 working days.
In-stock at Supplier
Pickup available at Computer Lounge
Usually ready in 2-3 working days.
Warranty and Support
Warranty and Support
Warranty: 7 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Key Features
- PCIe Gen5 Performance: Perfect Sync to Win
- Supports Intel® Core™ 14th/13th/12th processors
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- WIFI Compass: Auto detects the best antenna position for strongest Wi-Fi signal
- EZ-Latch: PCIe 5.0 x16 Slot with Quick Release Design
- PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance: Hybrid 6+2+1 Phases VRM Solution
- Dual Channel DDR5: 2*DIMMs XMP Memory Module Support
- Fast Networks: 2.5GbE LAN & Wi-Fi 802.11ax
- Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity: USB-C® 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications
Specifications
| CPU | LGA1700 socket, supports 14th/13th/12th Gen Intel® Core™, Pentium® Gold, Celeron® (check GIGABYTE website for latest support list), L3 cache varies by CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory | 2 x DDR5 DIMM sockets, up to 128 GB (64 GB per DIMM), DDR5 5600/5200/4800/4400 MT/s (varies by CPU), Dual channel, Supports ECC (non-ECC mode), Supports XMP |
| Onboard Graphics | Intel® HD Graphics, 1 x D-Sub (1920x1200@60Hz), 1 x HDMI (4096x2160@60Hz, HDMI 2.1/HDCP 2.3), 1 x DisplayPort (4096x2304@60Hz, DP 1.2), Supports triple-display |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Configurable via software, Supports S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5/1/0.1 Gbps) |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE, 2.4/5 GHz, Bluetooth 5.3, 11ax 80MHz |
| Expansion Slots | CPU: 1 x PCIe x16 (PCIe 5.0 x16) Chipset: 1 x PCIe x1 (PCIe 3.0 x1) |
| Storage Interface | M2A_CPU (CPU) PCIe 4.0 x4/x2, M2P_SB (Chipset) PCIe 4.0 x4/x2, 4 x SATA 6Gb/s, RAID 0/1/5/10 for SATA devices |
| USB | Chipset: 1 x USB-C 3.2 Gen1, 5 x USB-A 3.2 Gen1 (3 back, 2 internal), 2 x USB 2.0/1.1 (back) Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 (internal) |
| Internal I/O | 24-pin ATX, 8-pin ATX 12V, CPU fan header, 3 system fan headers, 2 x addressable RGB Gen2 headers, 1 RGB header, 2 x M.2 connectors, 4 x SATA 6Gb/s, front panel headers, S/PDIF Out header, USB headers, TPM header, serial port header, Q-Flash Plus button, Reset/Clear CMOS jumpers |

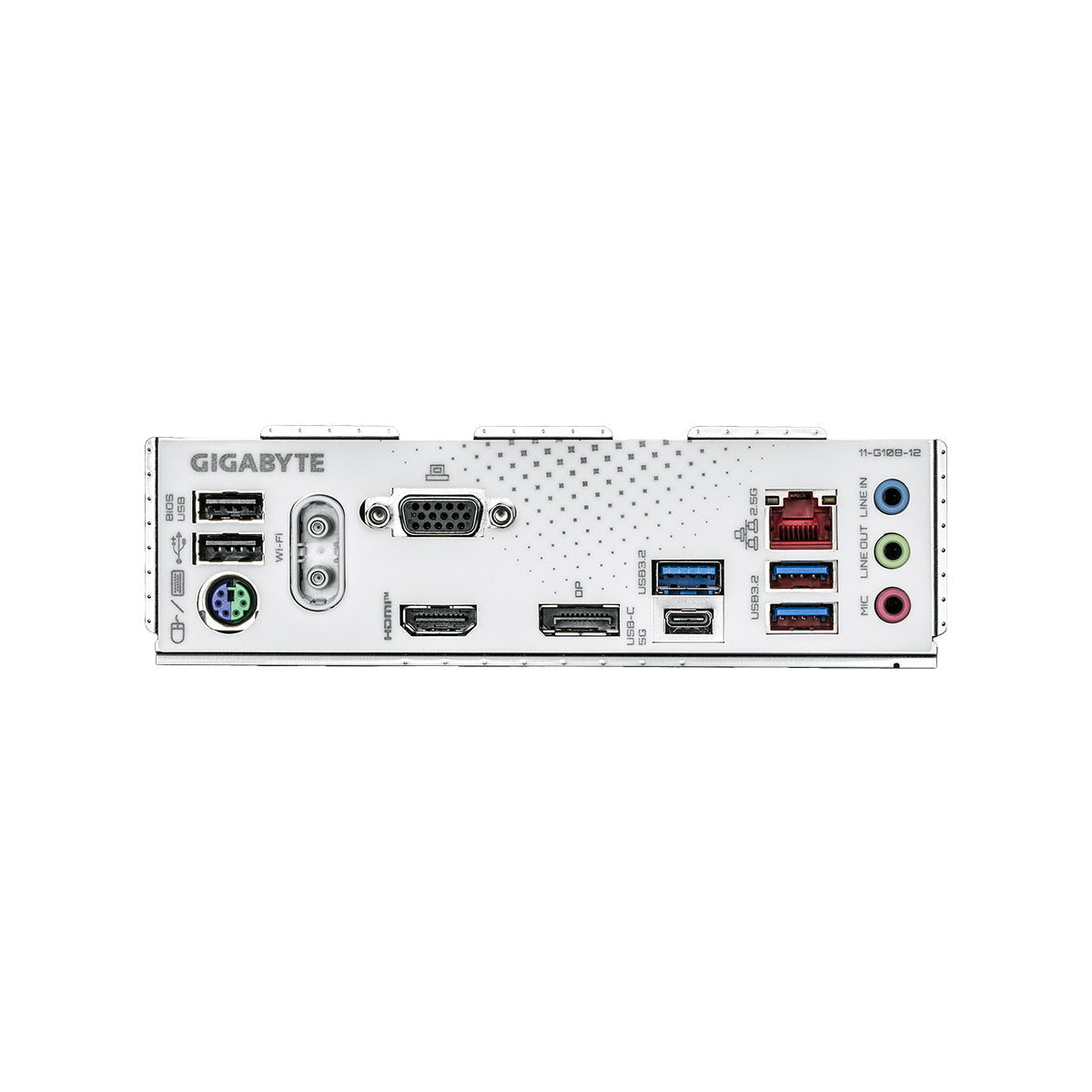

| Back Panel Connectors | 2 x USB 2.0/1.1, PS/2 port, 2 x antenna connectors (1T1R), D-Sub, HDMI, DisplayPort, 3 x USB 3.2 Gen1, 1 x USB-C 3.2 Gen1, RJ-45, 3 audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow, Fan fail warning, Fan speed control |
| BIOS | 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX; 24.4cm x 22.5cm |
