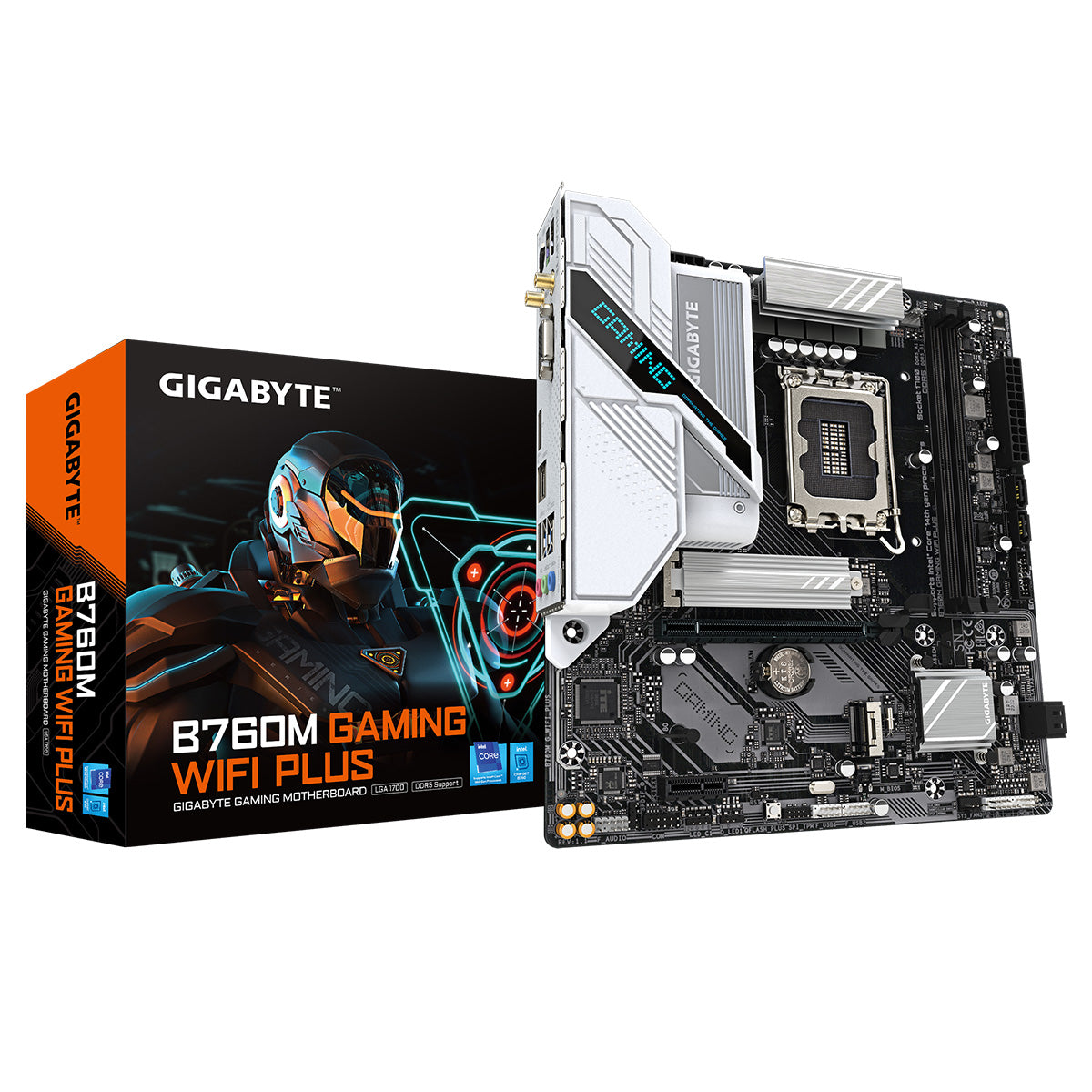

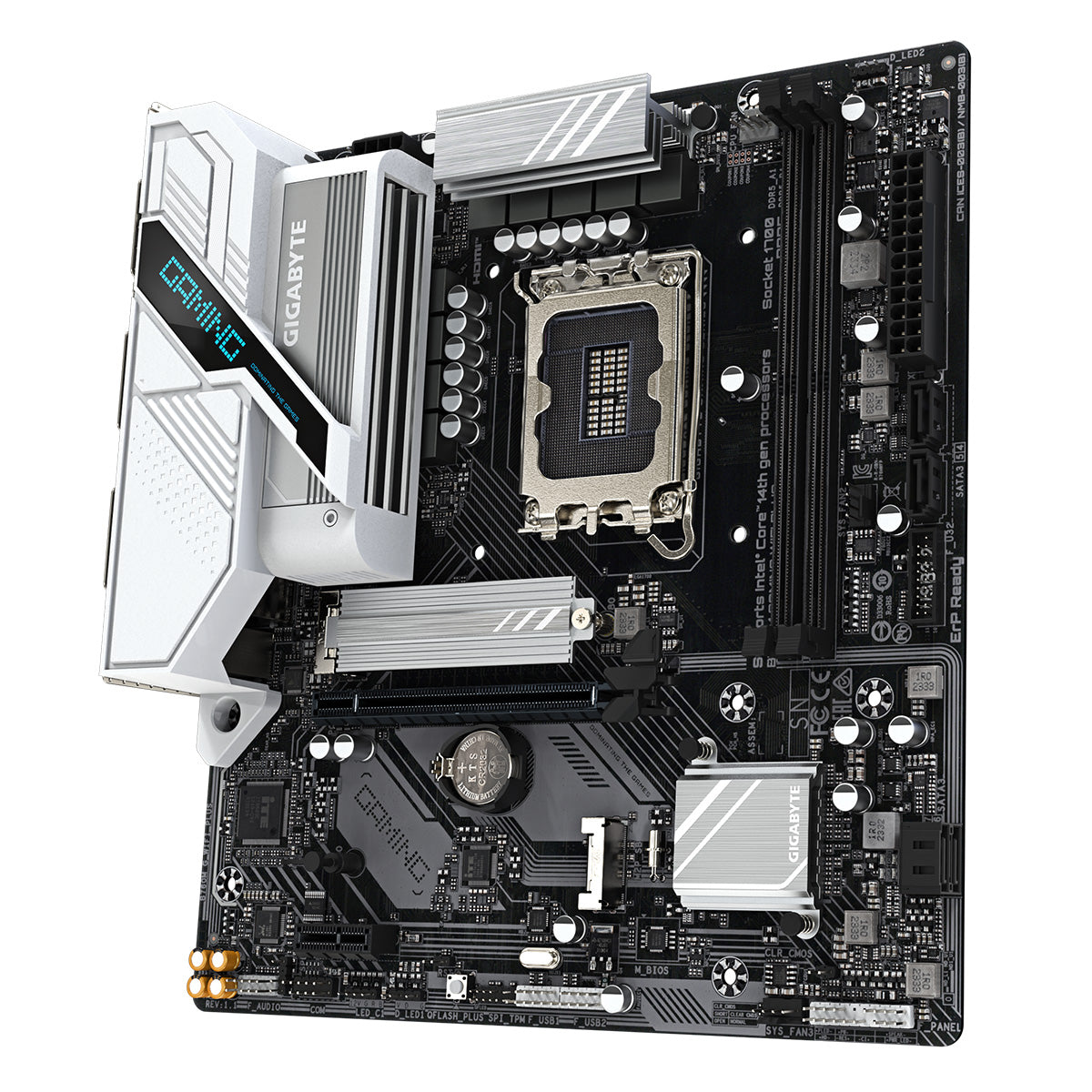

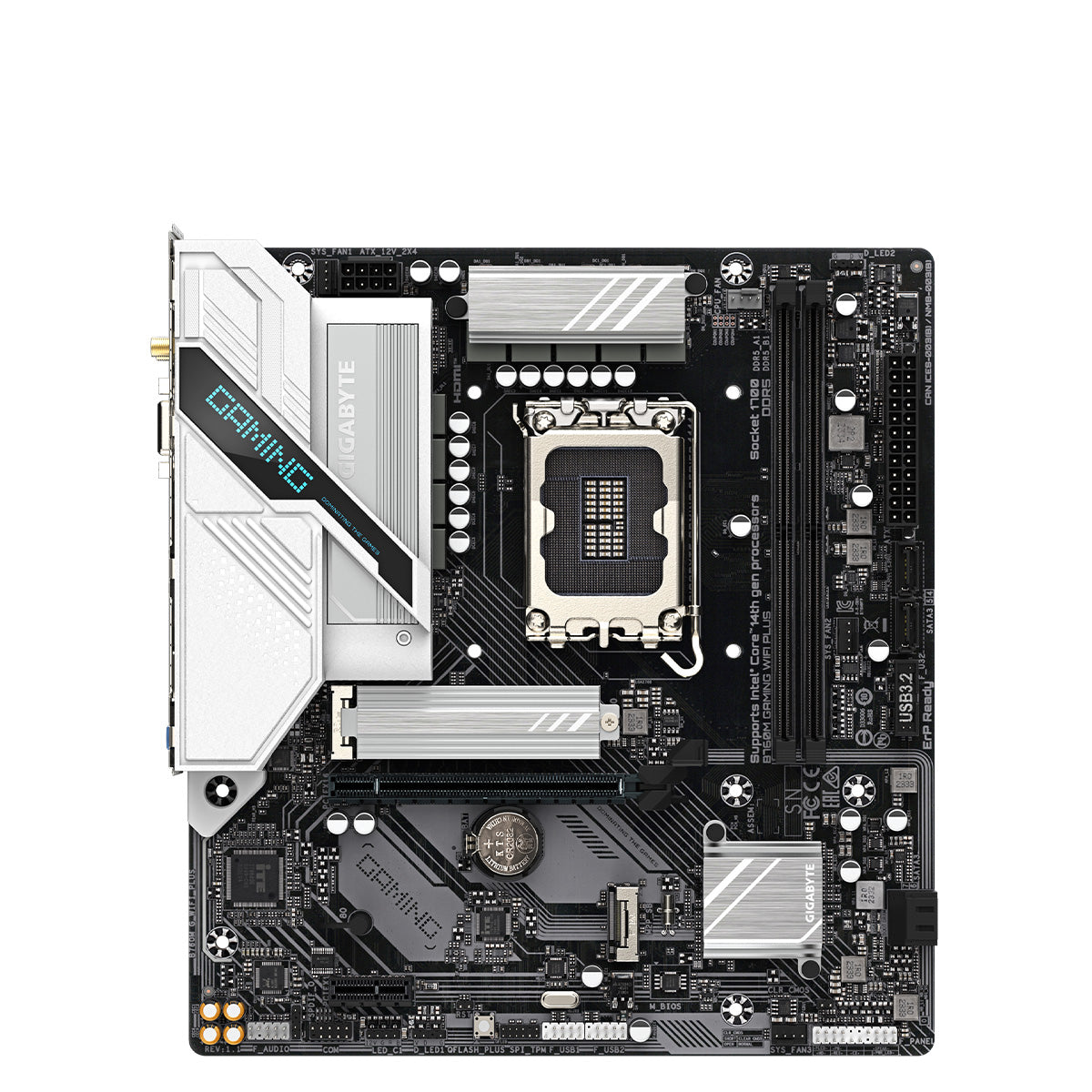

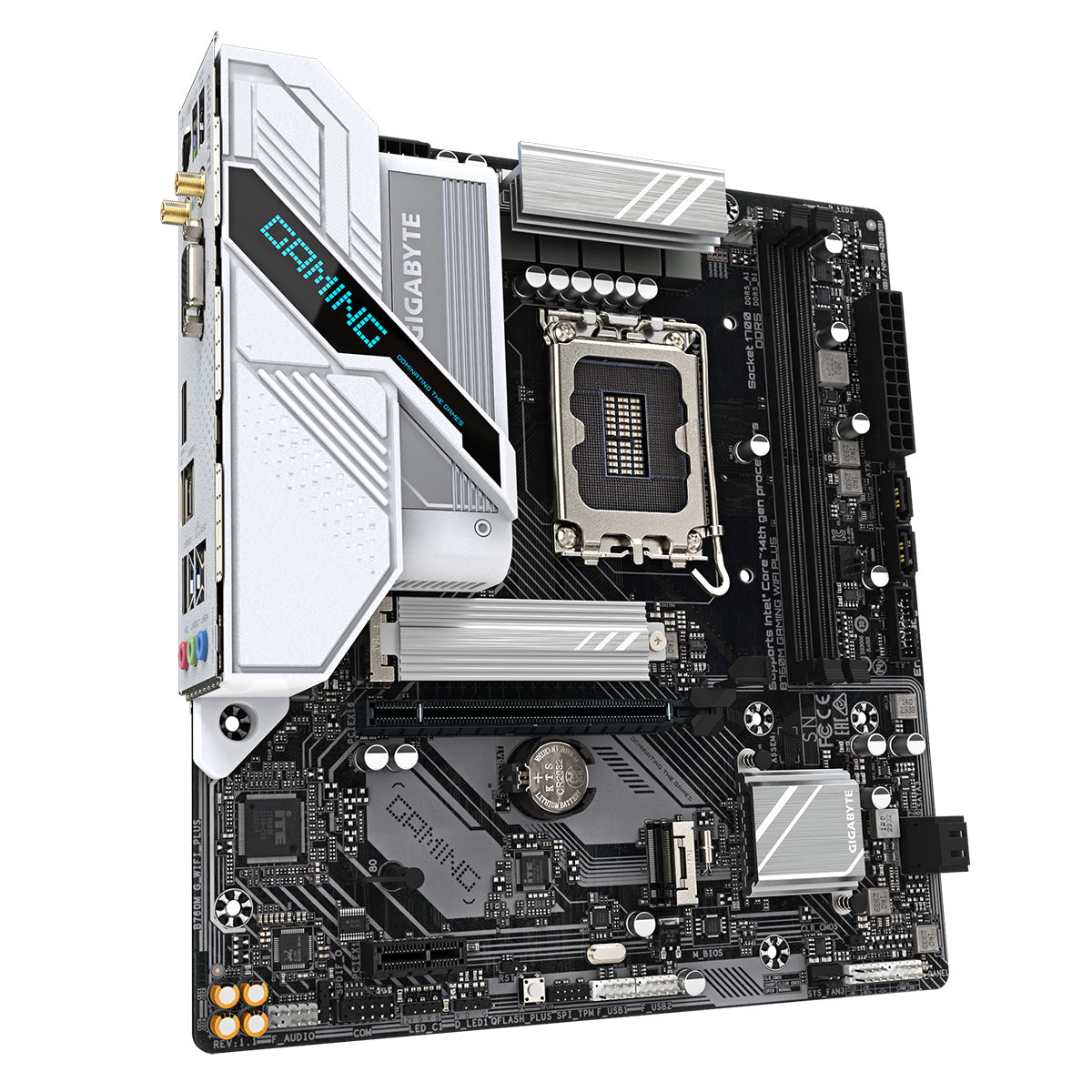

Gigabyte B760M GAMING WIFI PLUS mATX Motherboard

aB760M GAMING WIFI PLUS

• Supports Intel® Core™ 14th/ 13th /12th processors
• Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
• Dual Channel DDR5：2*DIMMs XMP Memory Module Support
• Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
• EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks：2.5GbE LAN & Wi-Fi 802.11ac

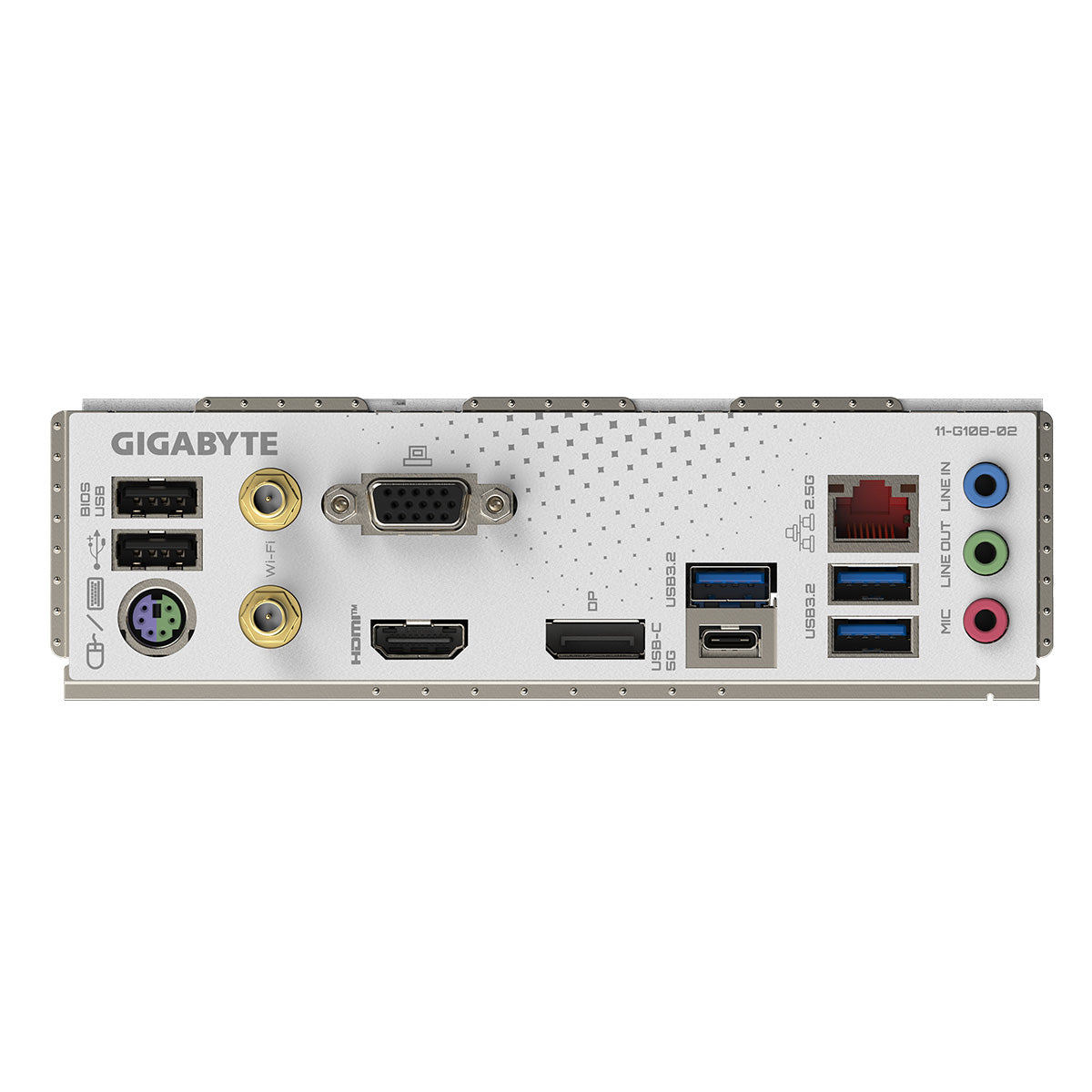

• Extended Connectivity：Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

The best VRM design ever built with the highest quality components.

• 6+2+1 Phases digital PWM + Low RDS(on) MOSFETs

• Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.

Thermal

• The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

• Enlarged MOSFET Heatsink

DDR5 Overclocking Up to 7600 and Beyond*

GIGABYTE is offering a tested and proven platform with extreme memory performance boost.

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

Impedance Optimized Topology

By optimizing memory trace width, length and style from HPC simulation to actual implementation, overall impedance is lowered between CPU memory controller and memory modules to achieve higher DDR5 speed.

Low Signal Loss PCB

Server grade mid-loss or low-loss PCB material is chosen to lower signal loss inside PCB and maintain DDR5 high speed signal transmission.

802.11ac Wi-Fi

The onboard 802.11ac Wi-Fi module supports Dual Band and up to 1.73Gbps, 5x faster Wi-Fi speed than 802.11n and also supports BLUETOOTH 4.2 and above.

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 4.0 Hardware Design

Featuring one or multiple PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

Hi-Fi Audio

• High-End Audio Capacitors

  These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

• Audio Noise Guard

  Essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Smart Fan 6

ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.

• High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.
• Precision Control: Multiple temperature/fan speed control points for precise fan curve.
• Dual Curve Mode: Slope/Stair dual mode for different user scenario.
• Fan Stop: Fan can stop completely below users' specified temperature point.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory, and graphics card.

GIGABYTE Control Center

Unified software platform for all Gigabyte supported products.
