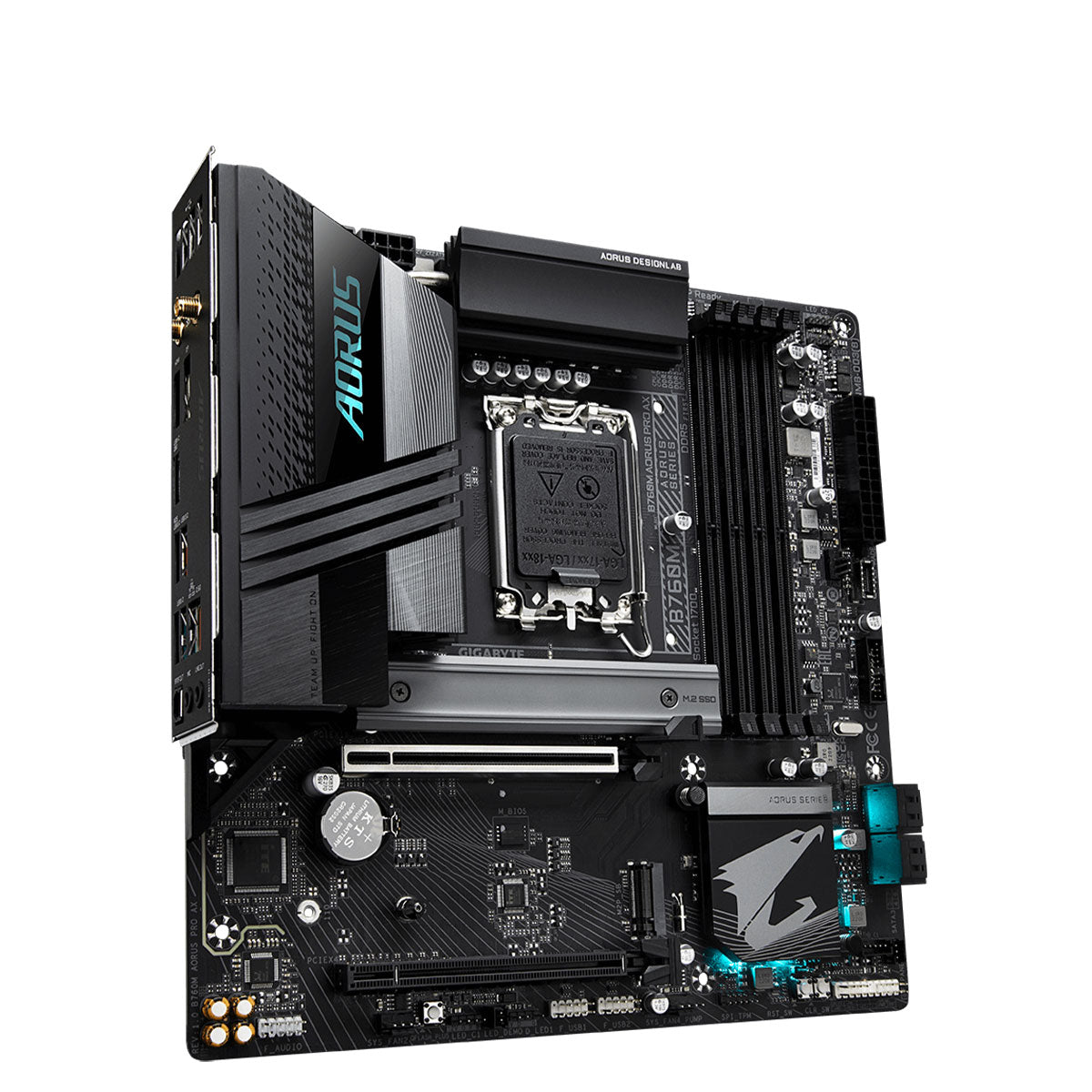

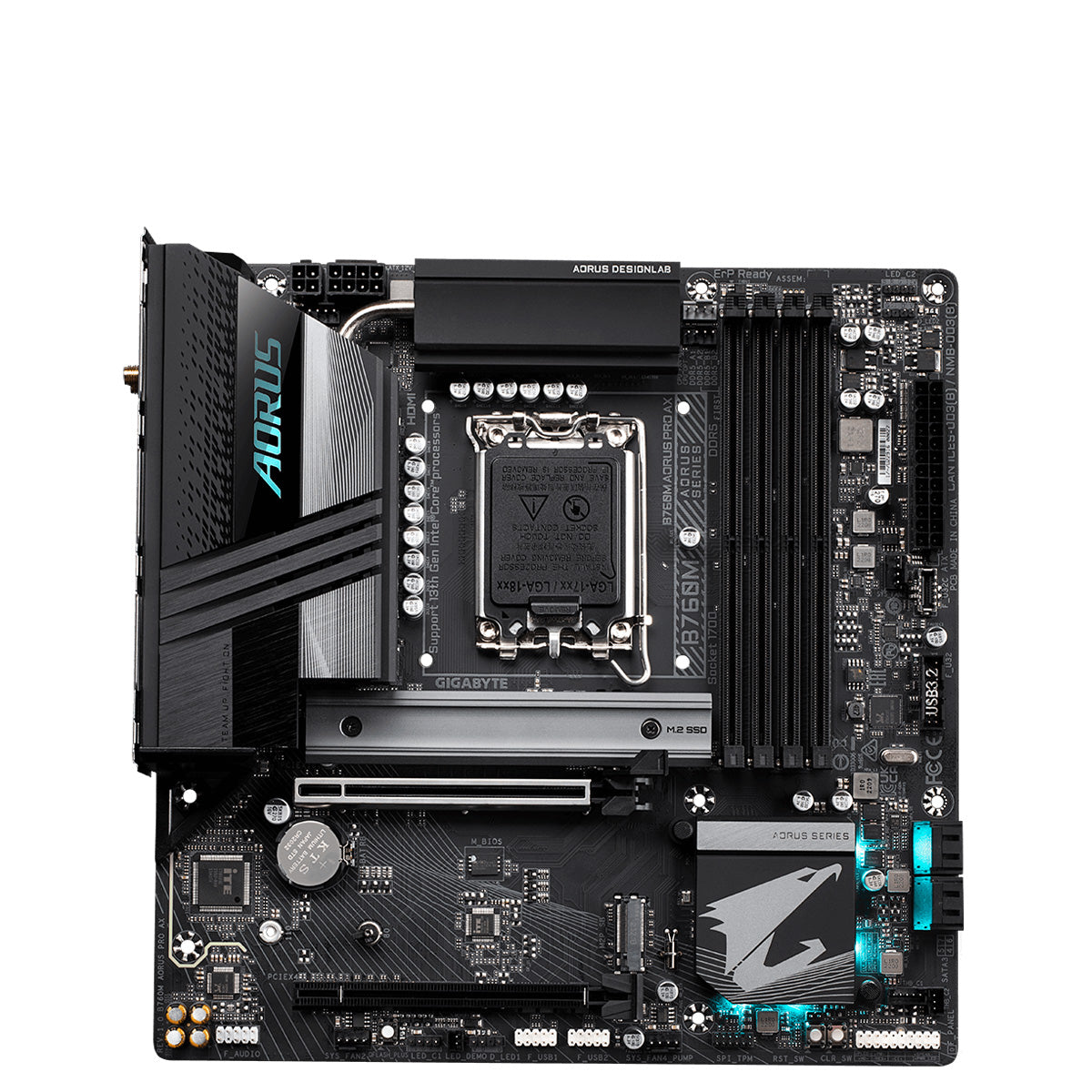

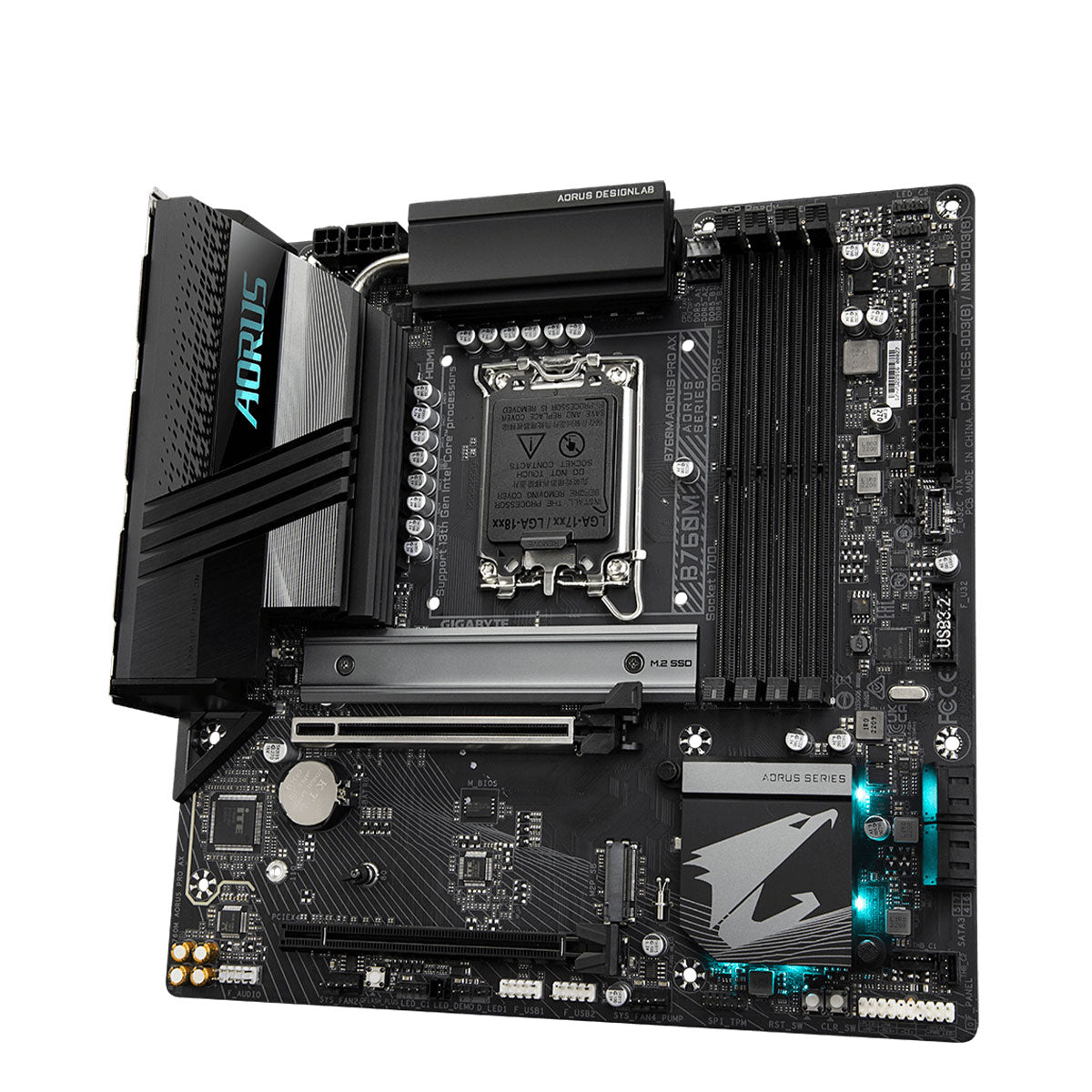

Gigabyte B760M AORUS PRO AX DDR5 Gaming mATX Motherboard
Out of Stock
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Description
Description
NPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
- To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.
- To unleash full potential of multi-cores CPU performance
- For CPU integrated GPU performance
- Provide stable power for CPU integrated PCIe & Memory controller
- Reinforced PCIe 4.0 x16/x4 with lower impedance.
- M.2 PCIe 4.0 x4 slot with lower impedance.
- 3.3X higher slot signal stability
Unlock DDR5
2 x PCIe 4.0x4 M.2
- High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
- 6mm Heatpipe
- 2X Copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.
- The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
- 5 W/mK Thermal Pad
- 3X Large Surface: Increased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
- Real One-piece Build: TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.
- Multi-Cut Design: TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
3% Cooler by implementing 2X copper PCB Design
By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.
SMART FAN 6
- High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control: Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode: Slope/Stair dual mode for different user scenario
- Fan Stop: Fan can stop completely below users' specified temperature point
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
802.11ax Wi-Fi 6E
Latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Wi-Fi 6 Bring You to Ultimate VR Experience!
Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.
Wi-Fi 6E Advantage
First adopter on 2.5GbE LAN onboard
- Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
- Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet
- High-End Audio Capacitors: GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
- Audio Noise Guard: GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
- Friendly User Interface: The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
- My Favorites: Add constantly used items into the favorite menu for quick access.
- Storage Information: Show all kinds of storage information including SATA, PCIE and M.2 interface.
- Changelog: List all changes before saving and exiting bios. Quickly review overall settings modification.
- Intuitive Load Line Curve: Clearly show each loadline calibration setting in an intuitive curve graph.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
- PCIe EZ-Latch: Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
- Q-Flash Plus: Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
