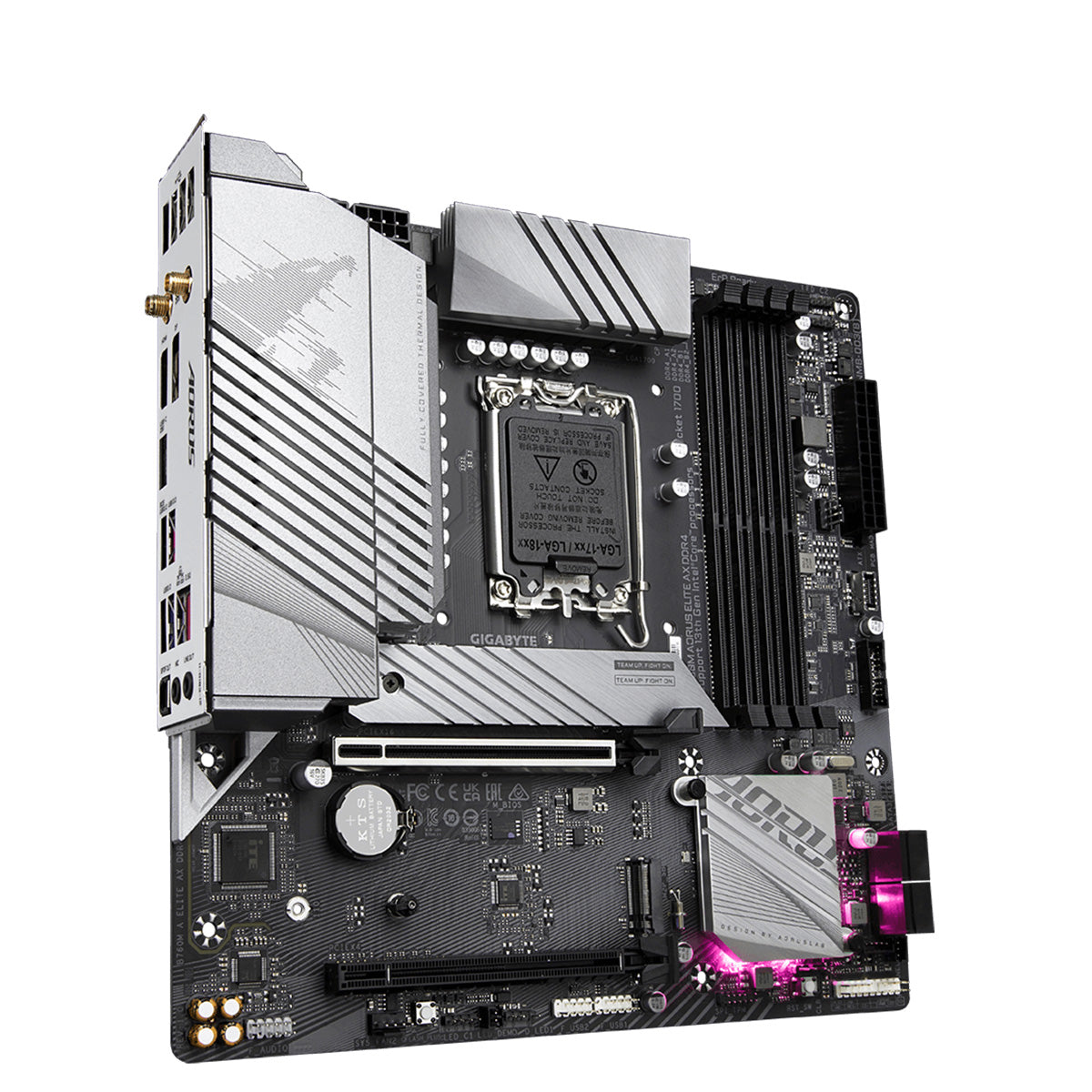

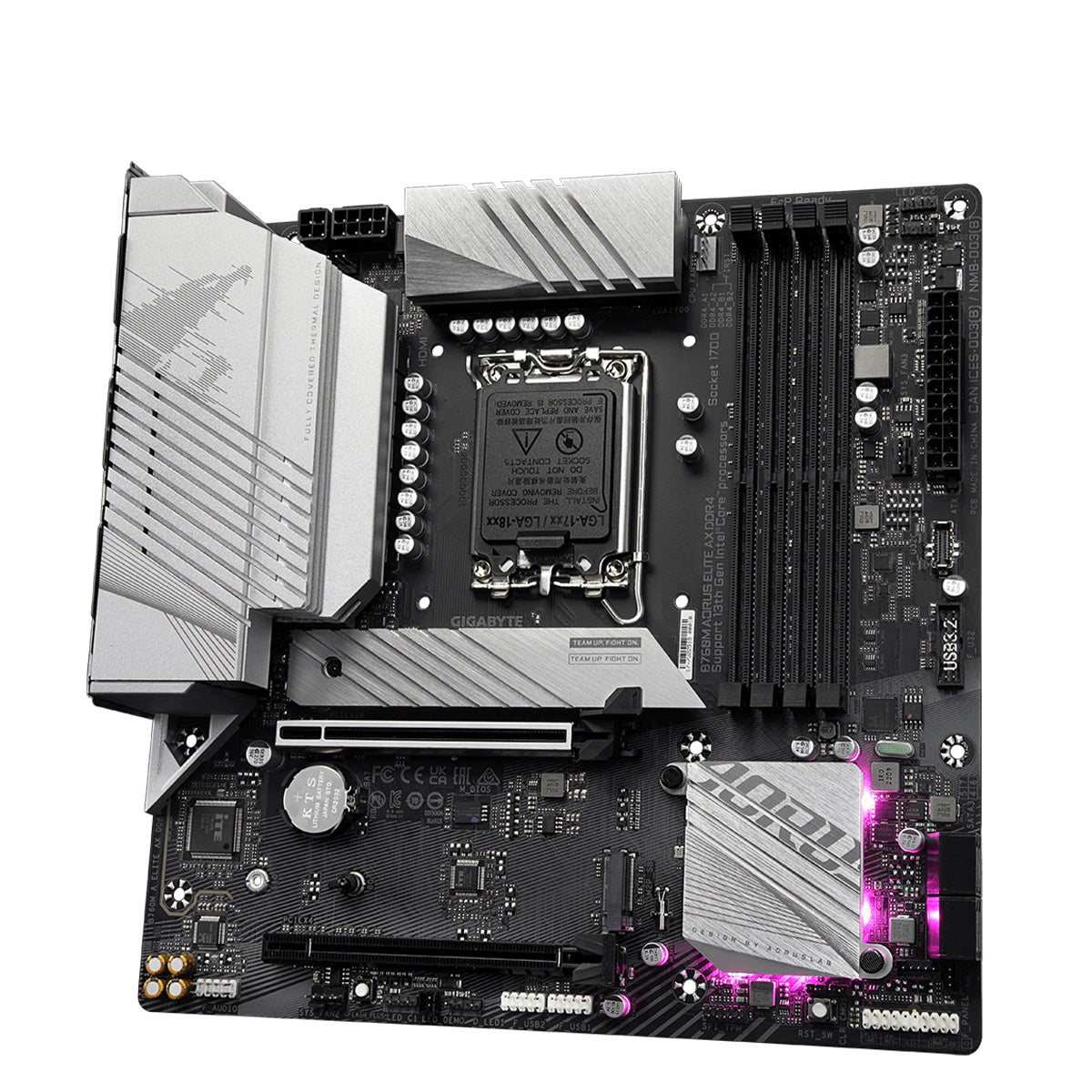

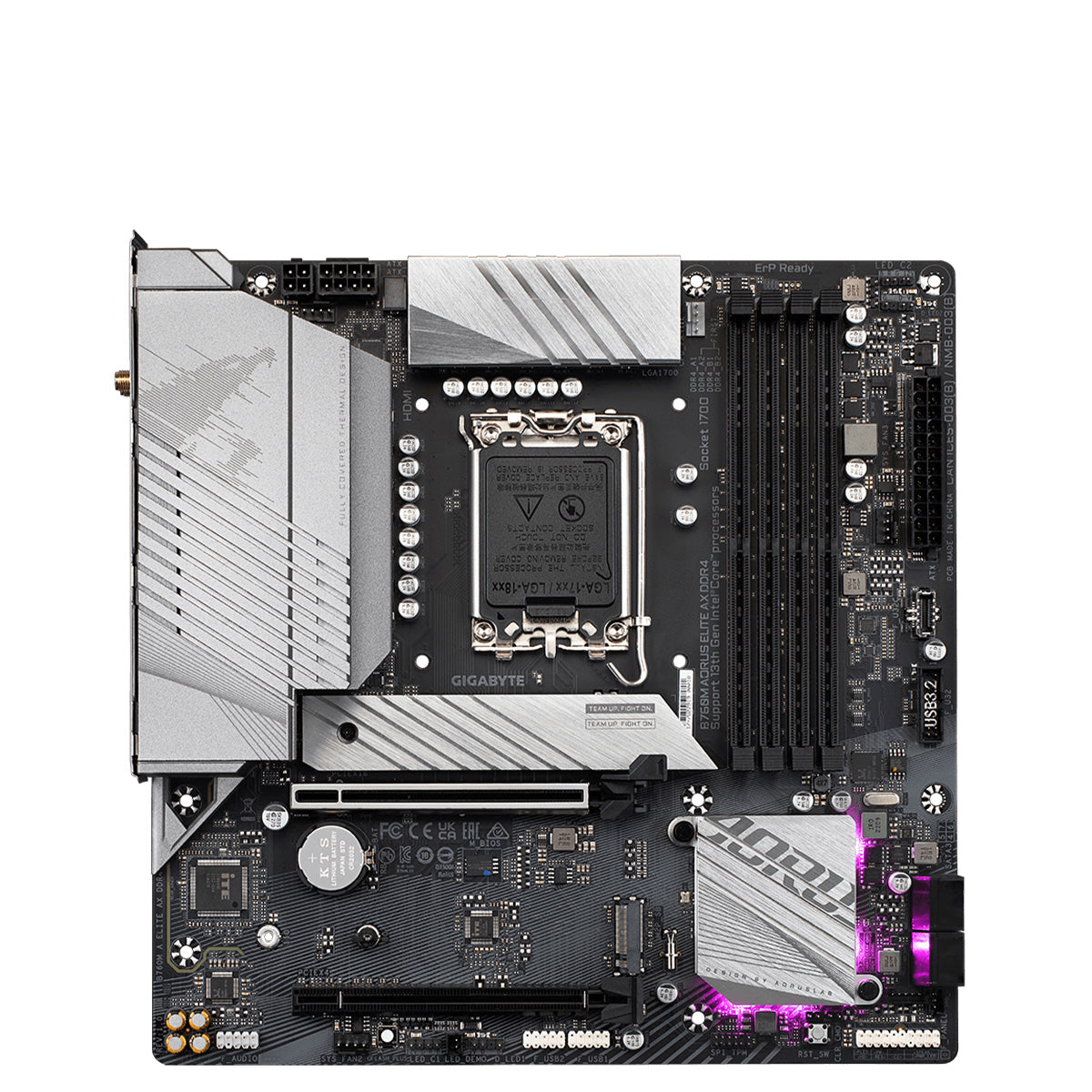

Gigabyte B760M AORUS ELITE AX DDR4 Gaming mATX Motherboard

Gigabyte  |  SKU 43844  |  MPN B760M AORUS ELITE AX DDR4

Out of Stock

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Description

NPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.


Twin Digital VRM Design
  • To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.
  • To unleash full potential of multi-cores CPU performance
  • For CPU integrated GPU performance
  • Provide stable power for CPU integrated PCIe & Memory controller

PCIe 4.0 Design
  • Reinforced PCIe 4.0 x16/x4 with lower impedance.
  • M.2 PCIe 4.0 x4 slot with lower impedance.
  • 3.3X higher slot signal stability


DDR4 XMP

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

Dual PCIe 4.0 x4 M.2

AORUS Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.


Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.


GIGABYTE PerfDrive

PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.

OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

Thermal Design
  • High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
  • 5 W/mK Thermal Pad
  • 6-Layer & 2X Copper PCB
  • M.2 Thermal Guard

Fully Covered MOSFET Heatsink

  • 2X Large Surface: Increased surface area up to 2X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
  • Real One-piece Build: TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.
  • Multi-Cut Design: TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.

M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

3% Cooler by implementing 2X copper PCB Design
By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.

SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

  • High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
  • Precision Control: Multiple temperature/fan speed control points for precise fan curve
  • Dual Curve Mode: Slope/Stair dual mode for different user scenario
  • Fan Stop: Fan can stop completely below users' specified temperature point


CONNECTIVITY

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.


802.11ax Wi-Fi 6E

Latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.


Wi-Fi 6 Bring You to Ultimate VR Experience!

Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.

Wi-Fi 6E Advantage

Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.


First adopter on 2.5GbE LAN onboard

  • Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.

  • Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

Connecting the Future - USB 3.2 Gen 2x2 Type-C®
Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.

Connecting the Future - Front USB3.2 Gen 2 Type-C®
USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

Hi-Fi Audio
  • High-End Audio Capacitors: GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
  • Audio Noise Guard: GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

UEFI BIOS
  • Friendly User Interface: The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
  • My Favorites: Add constantly used items into the favorite menu for quick access.
  • Storage Information: Show all kinds of storage information including SATA, PCIE and M.2 interface.
  • Changelog: List all changes before saving and exiting bios. Quickly review overall settings modification.
  • Intuitive Load Line Curve: Clearly show each loadline calibration setting in an intuitive curve graph.

GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
  • Unified software platform for all Gigabyte supported products
  • Intuitive user interface for an eased experience
  • Modularized control components only for installed hardware
  • Auto update function to keep system up to date and support future products

Multi-key
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.


ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
  • PCIe EZ-Latch: Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
  • Q-Flash Plus: Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
