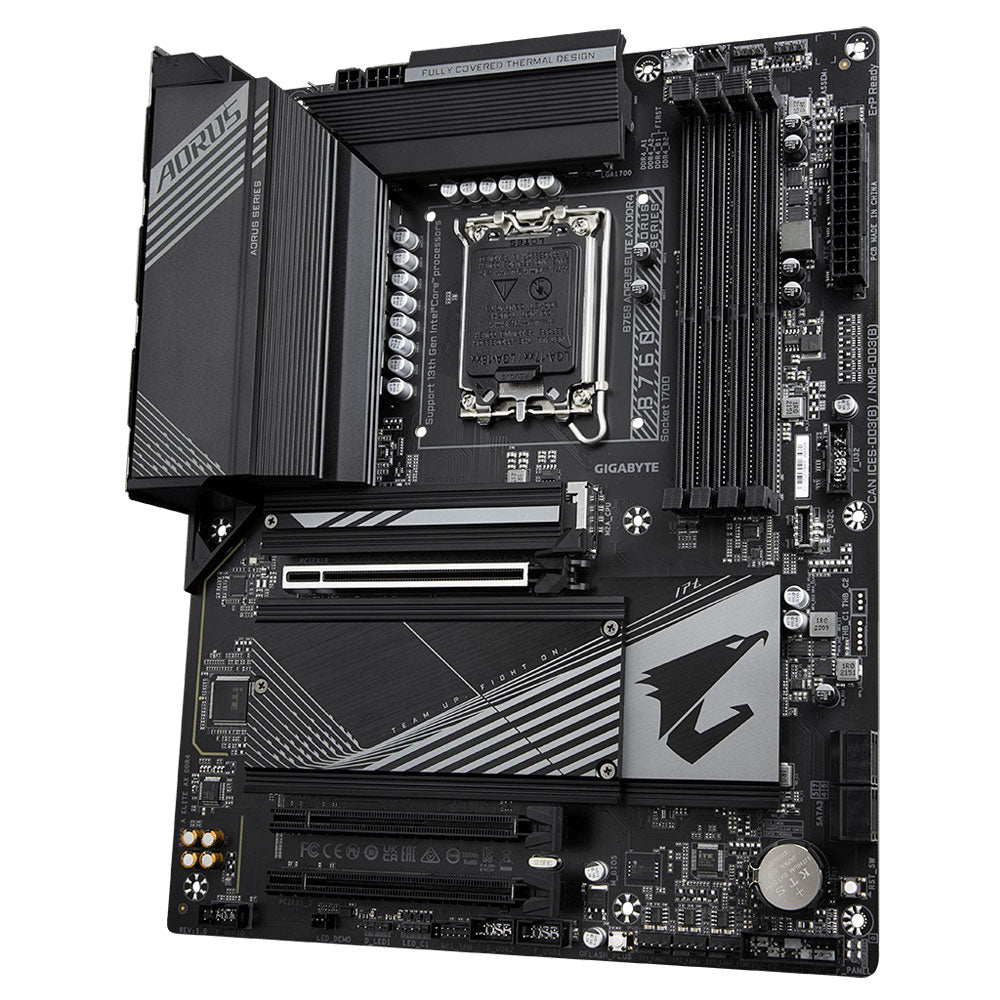

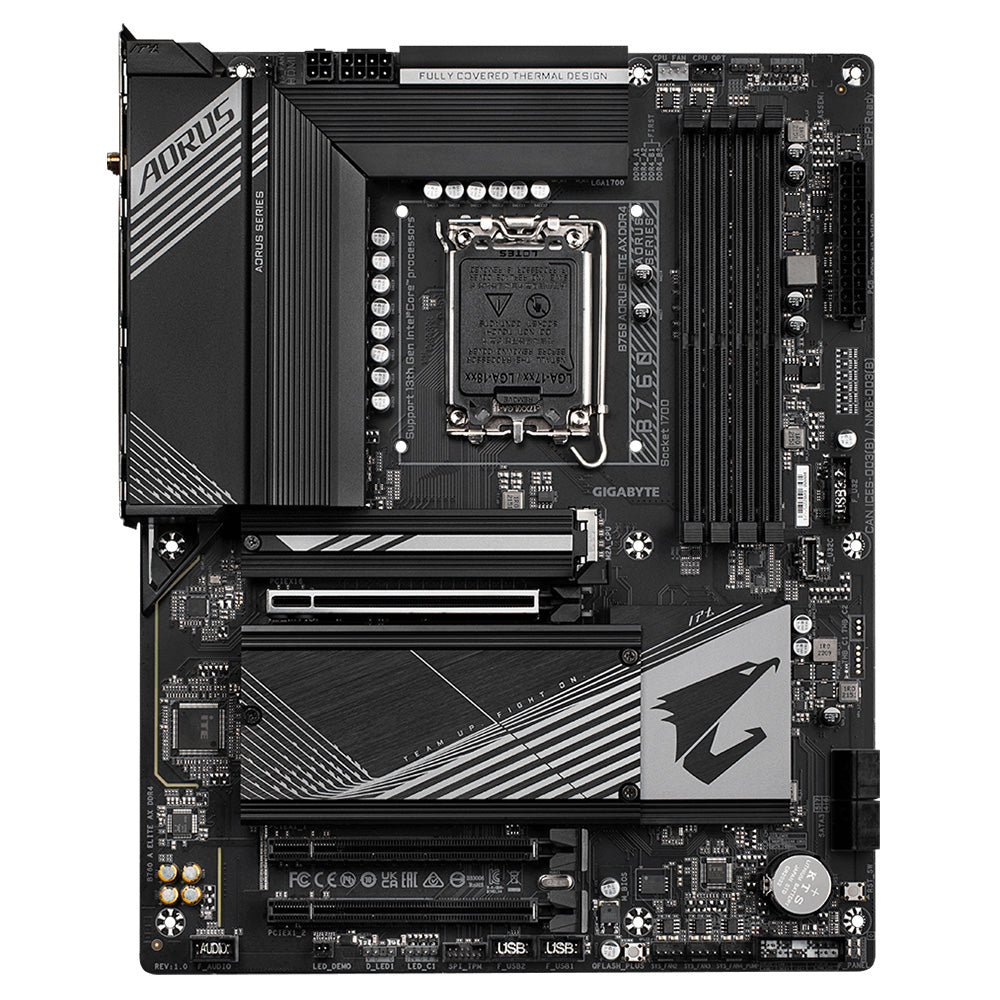

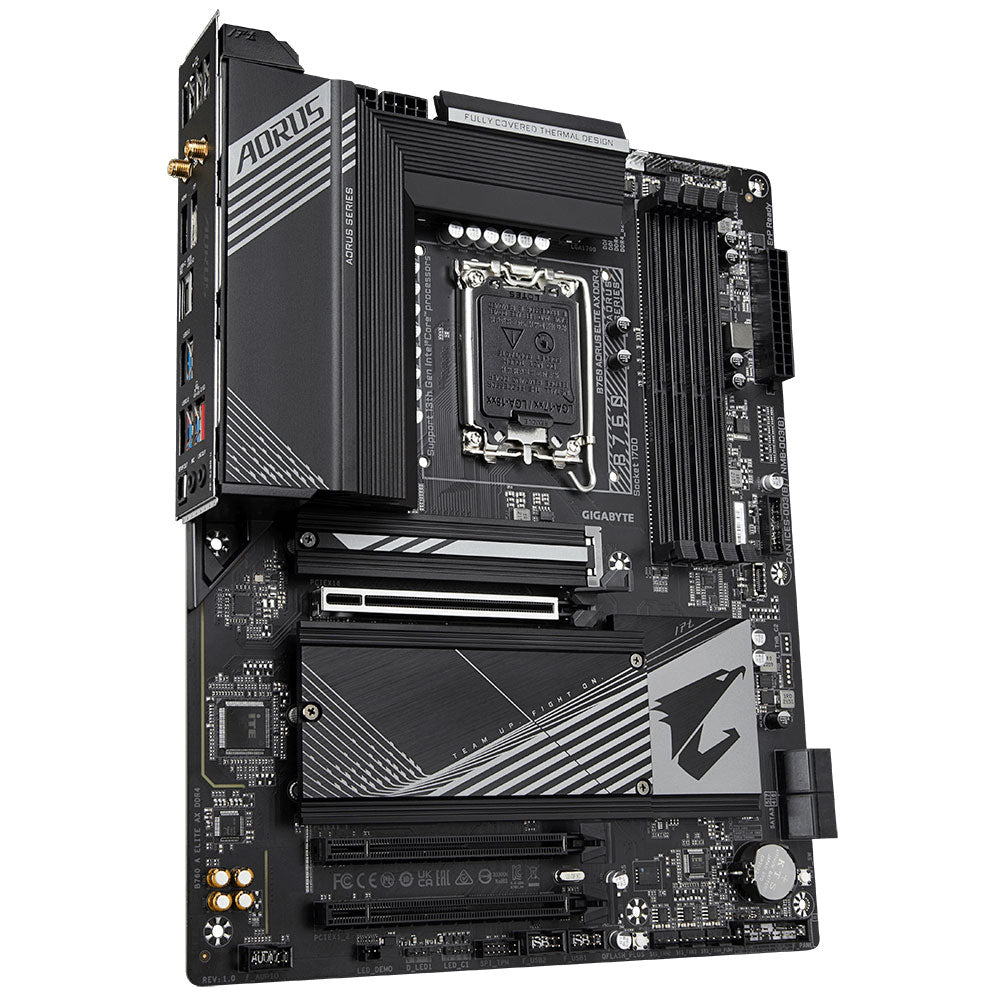

Gigabyte B760 AORUS ELITE AX DDR4 Gaming Motherboard
Out of Stock
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Description
Description
UNPARALLELED PERFORMANCE
- To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.
- To unleash full potential of multi-cores CPU performance
- For CPU integrated GPU performance
- Provide stable power for CPU integrated PCIe & Memory controller
- Reinforced PCIe 4.0 x16 with lower impedance.
- M.2 PCIe 4.0 x4 slot with lower impedance.
- 3.3x higher Slot Signal Stability
Triple PCIe 4.0 x4 M.2 Connectors with Thermal Guard
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems' potential.
GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.
OUTSTANDING THERMAL DESIGN
- The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
- High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
- Enlarged M.2 heatsink prevents high-speed, large-capacity PCIe 4.0/3.0 SSDs flash from throttling due to overheating.
- 2X Copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.
- 5 W/mK Thermal Pad
Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.
Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
3% Cooler by implementing 2X copper PCB Design
By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.
SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
- High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control: Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode: Slope/Stair dual mode for different user scenario
- Fan Stop:Fan can stop completely below users' specified temperature point

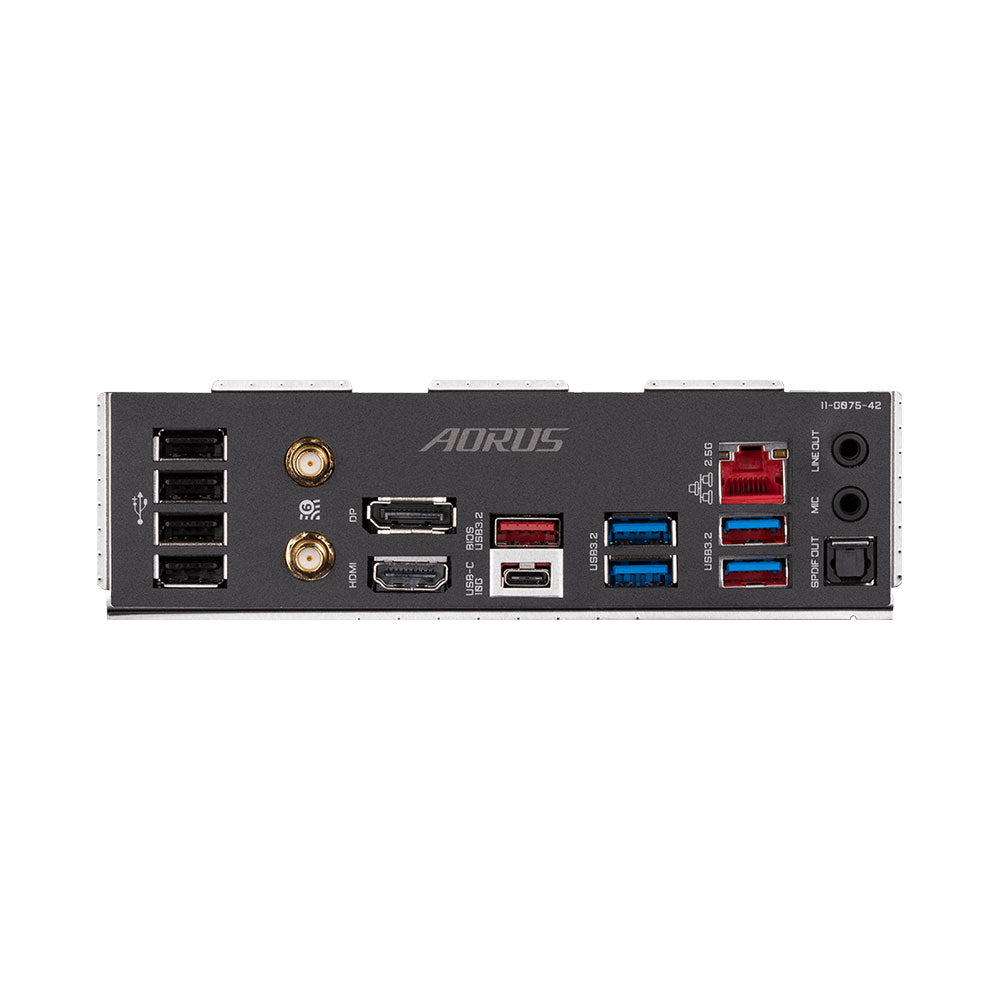

CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
- The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
- Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.
- Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
- Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.
- Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet.
- USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
- AORUS motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
- AORUS motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
USB BIOS
- Friendly User Interface: The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
- My Favorites: Add constantly used items into the favorite menu for quick access.
- Storage Information: Show all kinds of storage information including SATA, PCIE and M.2 interface.
- Changelog: List all changes before saving and exiting bios. Quickly review overall settings modification.
- Intuitive Load Line Curve: Clearly show each loadline calibration setting in an intuitive curve graph.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
- RGB Switch: Turn off all lighting effect on motherboard.
- Direct-To-BIOS: Boot into BIOS menu directly without pressing any keyboard button.
- Safe Mode: Boot into BIOS safe mode to change specific option without losing other BIOS settings.
- EZ-Latch: With GIGABYTE EZ-Latch, you can DIY your PC in no time, quick and easy.
- PCIe EZ-Latch: Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
- Q-Flash Plus: With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
