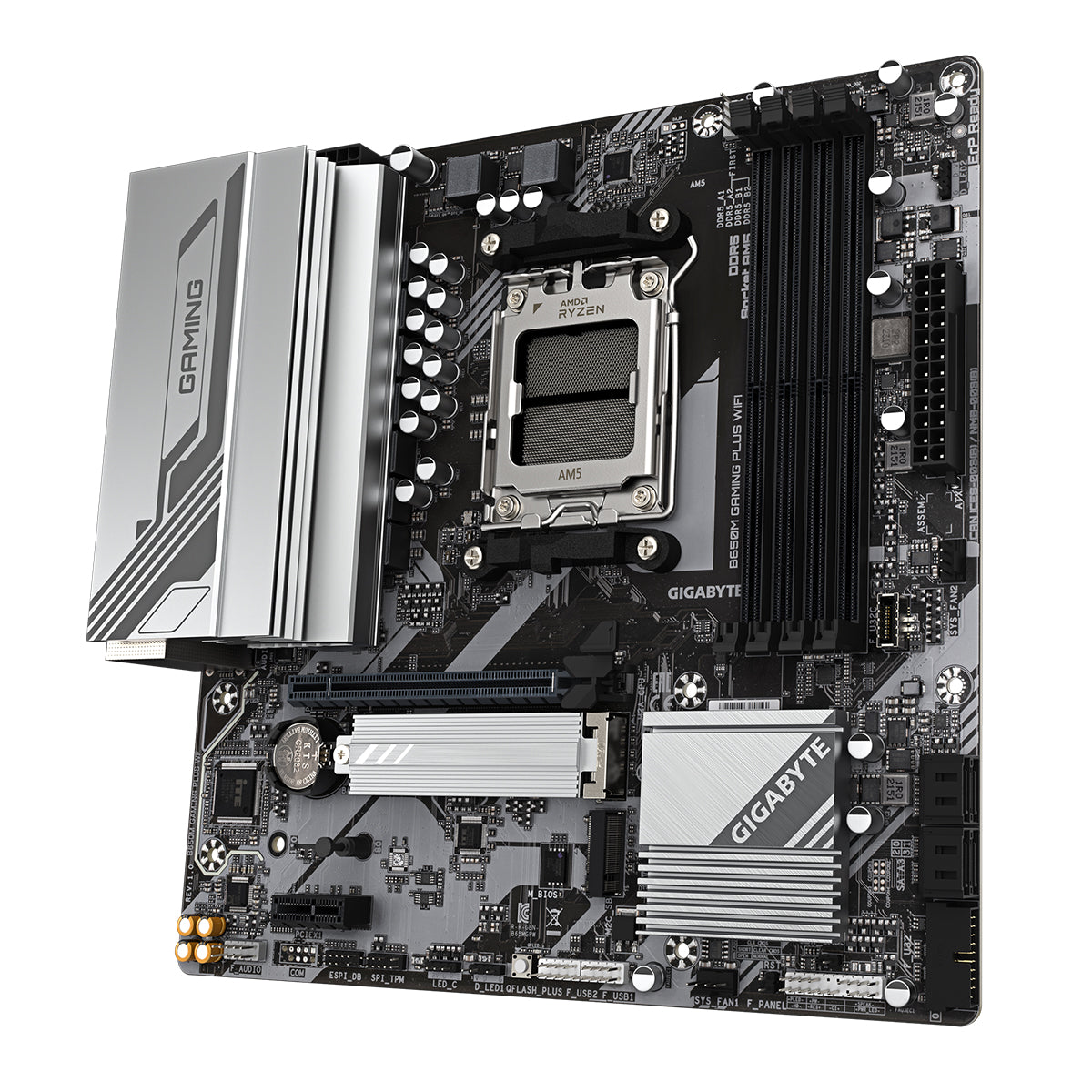

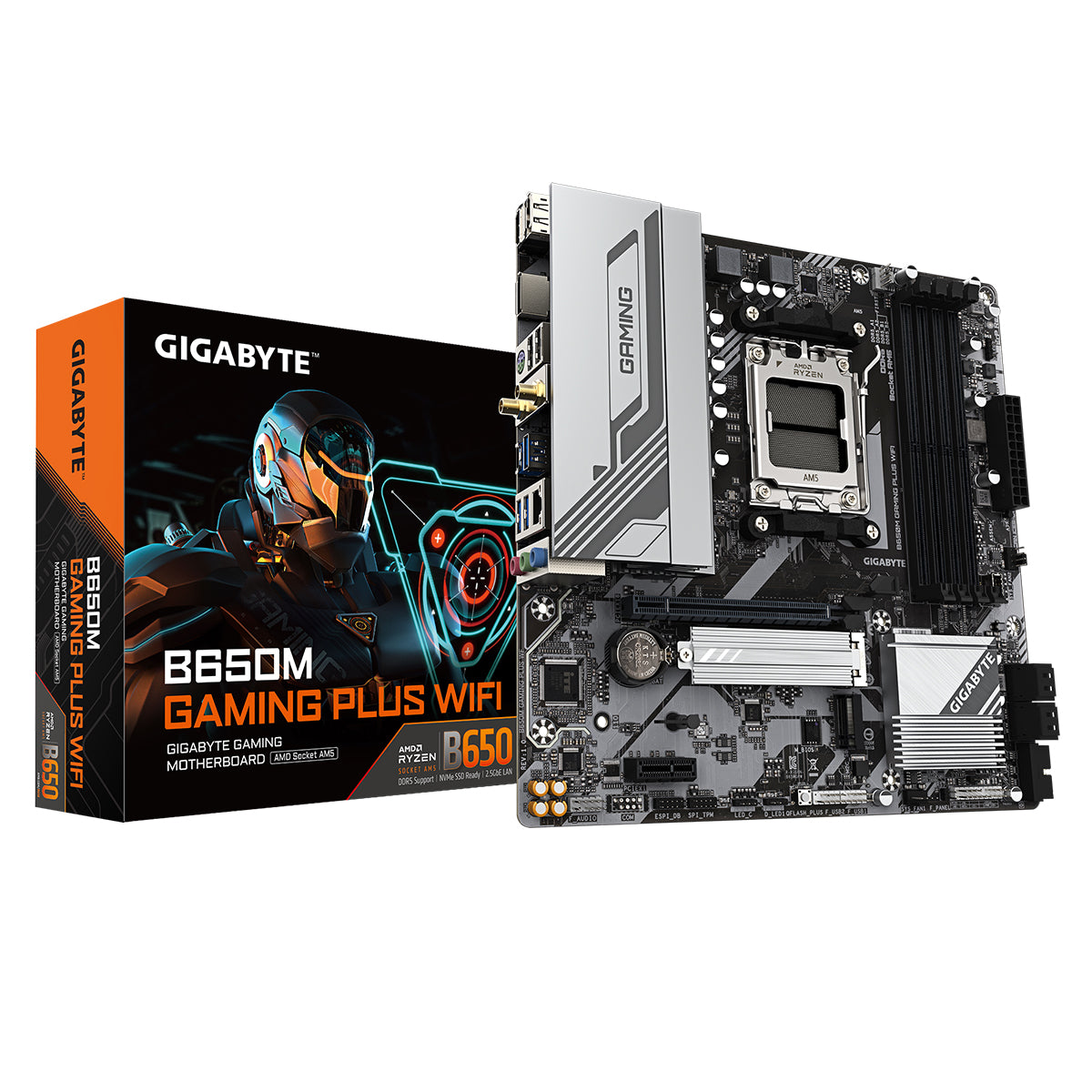

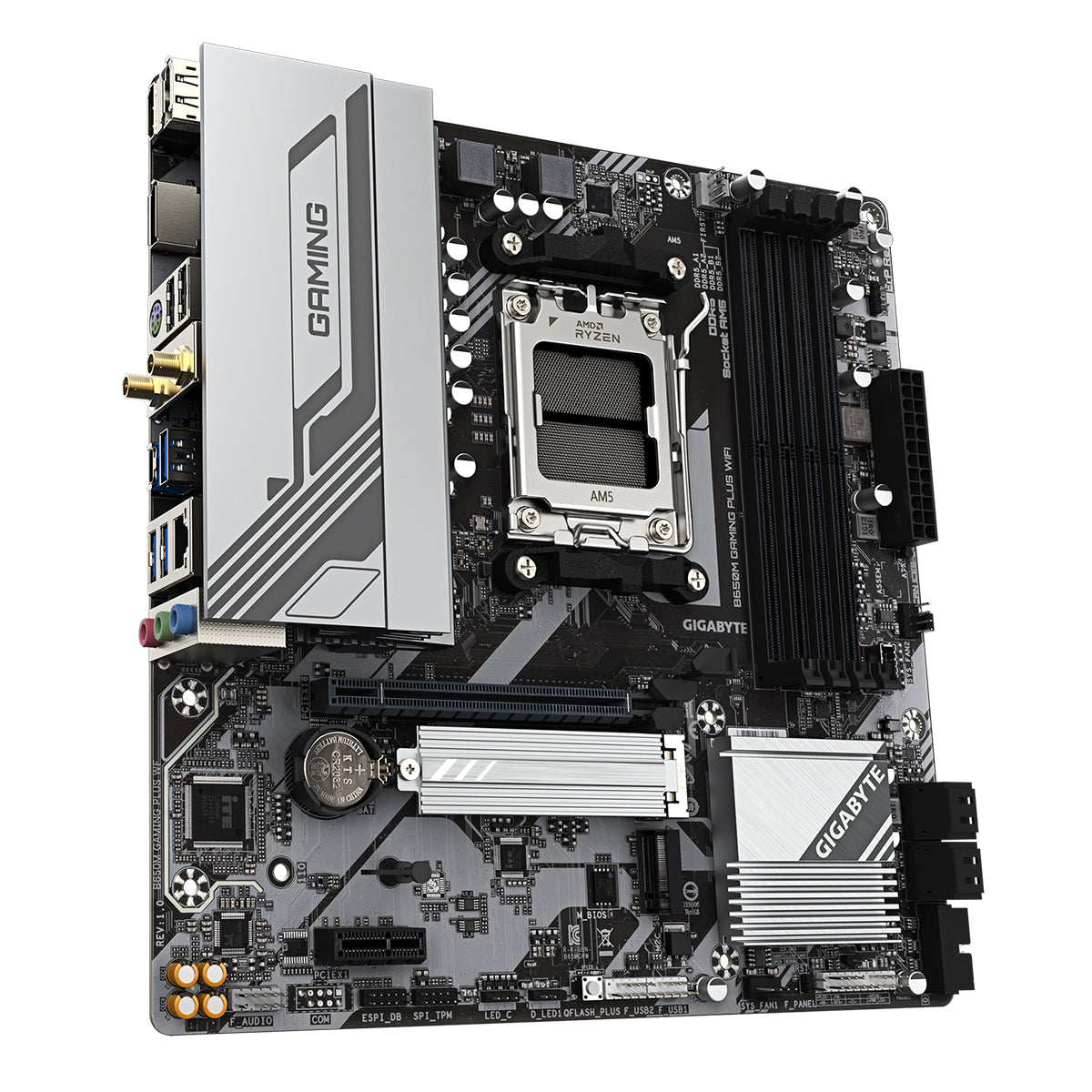

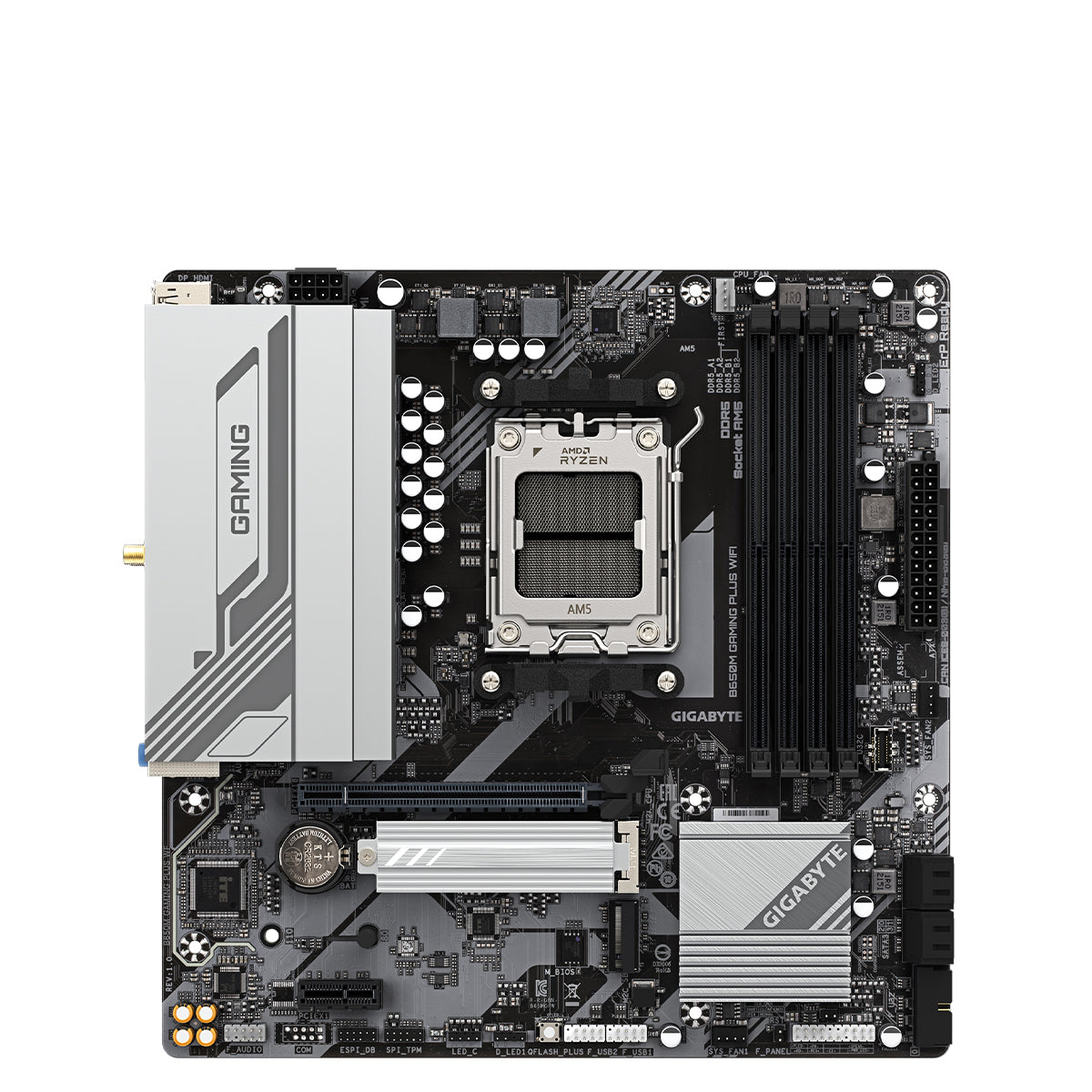

Gigabyte B650M GAMING PLUS WIFI mATX Motherboard
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
B650M GAMING PLUS WIFI
AMD Socket AM5 motherboard designed to support AMD Ryzen™ 7000, 8000, and 9000 Series processors, delivering reliable performance and versatile connectivity options for gamers and creators alike.
Key Features
- AMD Socket AM5: Supports AMD Ryzen™ 7000 / 8000 / 9000 Series Processors
- Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Fast Networks: Wi-Fi 802.11ax & 2.5GbE LAN
- Extended Connectivity: 2*DisplayPort, HDMI
- Smart Fan 6: Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Digital VRM Design
The 5+2+2 phases digital VRM design with Low RDS(on) MOSFETs ensures power delivery precision and efficiency for the latest AMD processors. This results in enhanced system stability and scalability for high-performance setups.
* Photo for reference only.
EXPO & XMP Support
Overclock DDR5 memory with AMD EXPO™ and Intel® XMP up to 8000 MT/s and beyond. Simply enable the profile in BIOS to unleash the full potential of high-performance memory modules on GIGABYTE motherboards.
Future Connectivity
- Wi-Fi 6 (802.11ax): Enjoy gigabit wireless with smooth streaming, low latency gaming, and speeds up to 2.4Gbps
- Bluetooth 5: Offers 4X range and improved speed over BT 4.2
- 2.5GbE LAN: Lightning-fast wired network with reduced lag and enhanced gaming performance
Easy-Friendly Features
- EZ-Latch: Easily unlock the PCIe slot for quick graphics card removal
- Q-Flash Plus: Update BIOS without CPU, memory, or GPU by using a USB flash drive and pressing the dedicated button
Smart Fan 6
Advanced fan controls ensure your system stays cool and quiet under load. Customize each fan curve based on board-wide temperature sensors using a user-friendly interface. Hybrid headers support both PWM and DC fans or pumps for flexible cooling options.
GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software suite for managing all supported GIGABYTE products. Featuring a modular interface, it allows real-time control over installed components, firmware updates, and personalization tools—all in one place.
Specifications
Specifications
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B650 |
| Memory | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s 4 x DDR5 DIMM sockets, up to 256 GB Dual channel architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Support for AMD EXPO™ and XMP memory (CPU/memory config may affect speed and module support.) |
| Onboard Graphics | Integrated AMD Radeon™ Graphics 2 x DisplayPorts (max 3840x2160@144 Hz, DP 1.4) 1 x HDMI port (max 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3) Supports up to triple-display (varies by CPU) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * Configurable via audio software |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Realtek® Wi-Fi 6E RTL8852CE (rev. 1.0): Wi-Fi 6E + BT 5.3, 2.4/5/6GHz, 160MHz Realtek® Wi-Fi 6 RTL8851BE (rev. 1.1): Wi-Fi 6 + BT 5.3, 2.4/5GHz, 80MHz |
| Expansion Slots | 1 x PCIe x16 (from CPU) - Ryzen 7000/9000: PCIe 4.0 x16 - Ryzen 8000 Phoenix 1: PCIe 4.0 x8 - Ryzen 8000 Phoenix 2: PCIe 4.0 x4 * Supports GPU or NVMe SSD only 1 x PCIe x1 (PCIe 3.0 from chipset) |
| Storage | 1 x M.2 (M2A_CPU, PCIe 4.0 x4/x2, 2580) 1 x M.2 (M2C_SB, PCIe 4.0 x4/x2, 22110/2280) 4 x SATA 6Gb/s |
| RAID | RAID 0/1/10 support for NVMe & SATA SSDs |
| USB |
From CPU: - 1 x USB Type-C (rear, Gen 1) - 1 x USB 3.2 Gen 1 (rear) - 1 x USB 2.0/1.1 (rear) From Chipset: - 2 x USB 3.2 Gen 1 (rear) - 1 x USB Type-C header (Gen 1) - 2 x USB 3.2 Gen 1 (internal header) - 5 x USB 2.0/1.1 (1 rear, 4 internal) |
| Internal I/O | 1 x 24-pin ATX 1 x 8-pin 12V ATX 1 x CPU fan header 2 x system fan headers 2 x ARGB headers 1 x RGB header 2 x M.2 connectors 4 x SATA 1 x front panel header 1 x front panel audio 1 x USB Type-C header 1 x USB 3.2 Gen 1 header 2 x USB 2.0 headers 1 x TPM header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |

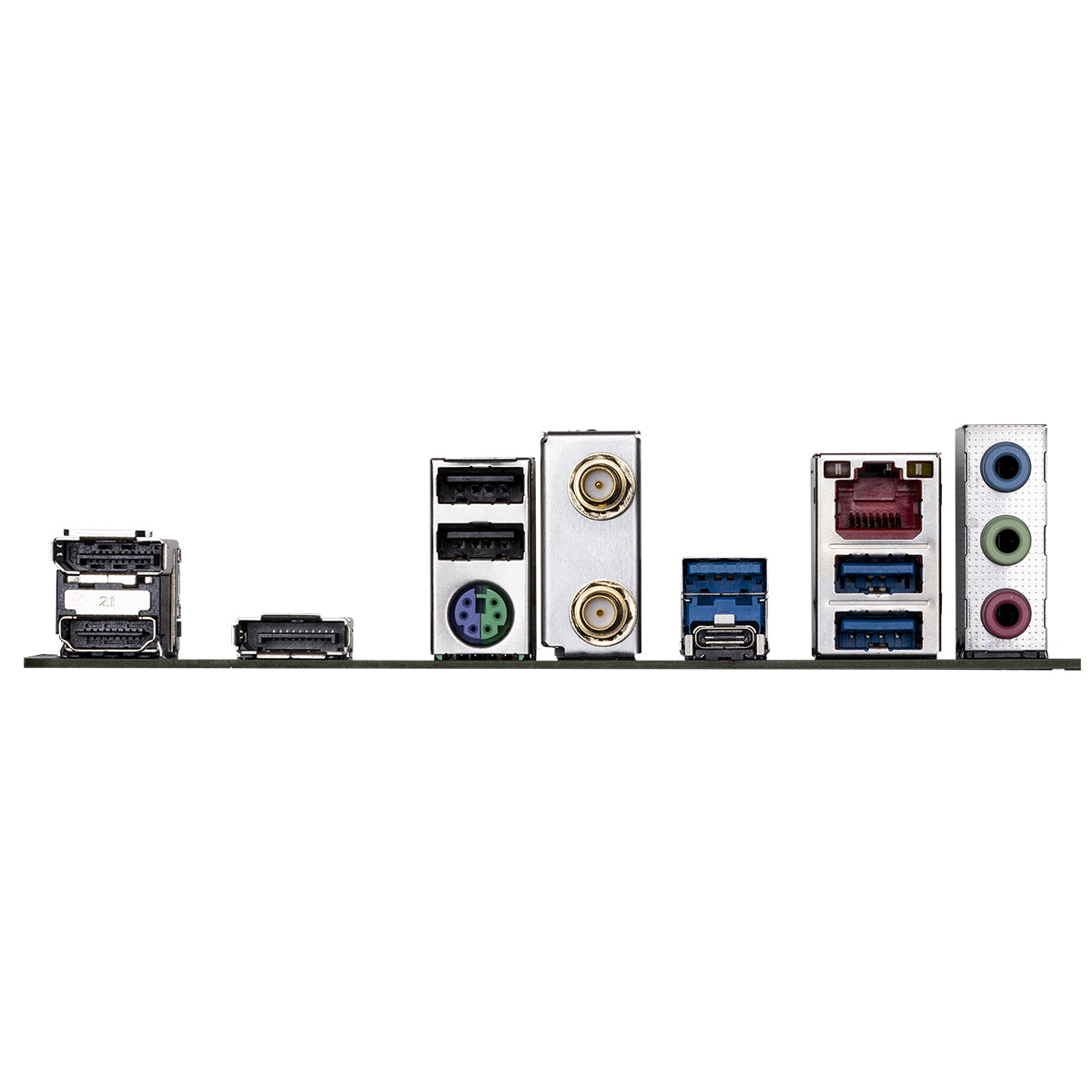

| Back Panel | 1 x PS/2 1 x USB Type-C (Gen 1) 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x HDMI 2 x DisplayPort 2 x SMA antenna connectors (for RTL8851BE) 1 x RJ-45 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Monitoring | Voltage/Temperature/Fan speed detection Fan fail warning Fan speed control (depends on fan) |
| BIOS | 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Features | GIGABYTE Control Center support (GCC) Q-Flash & Q-Flash Plus support |
| Software | Norton® Internet Security (OEM) LAN bandwidth management |
| OS Support | Windows 11 64-bit Windows 10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 24.4cm |
