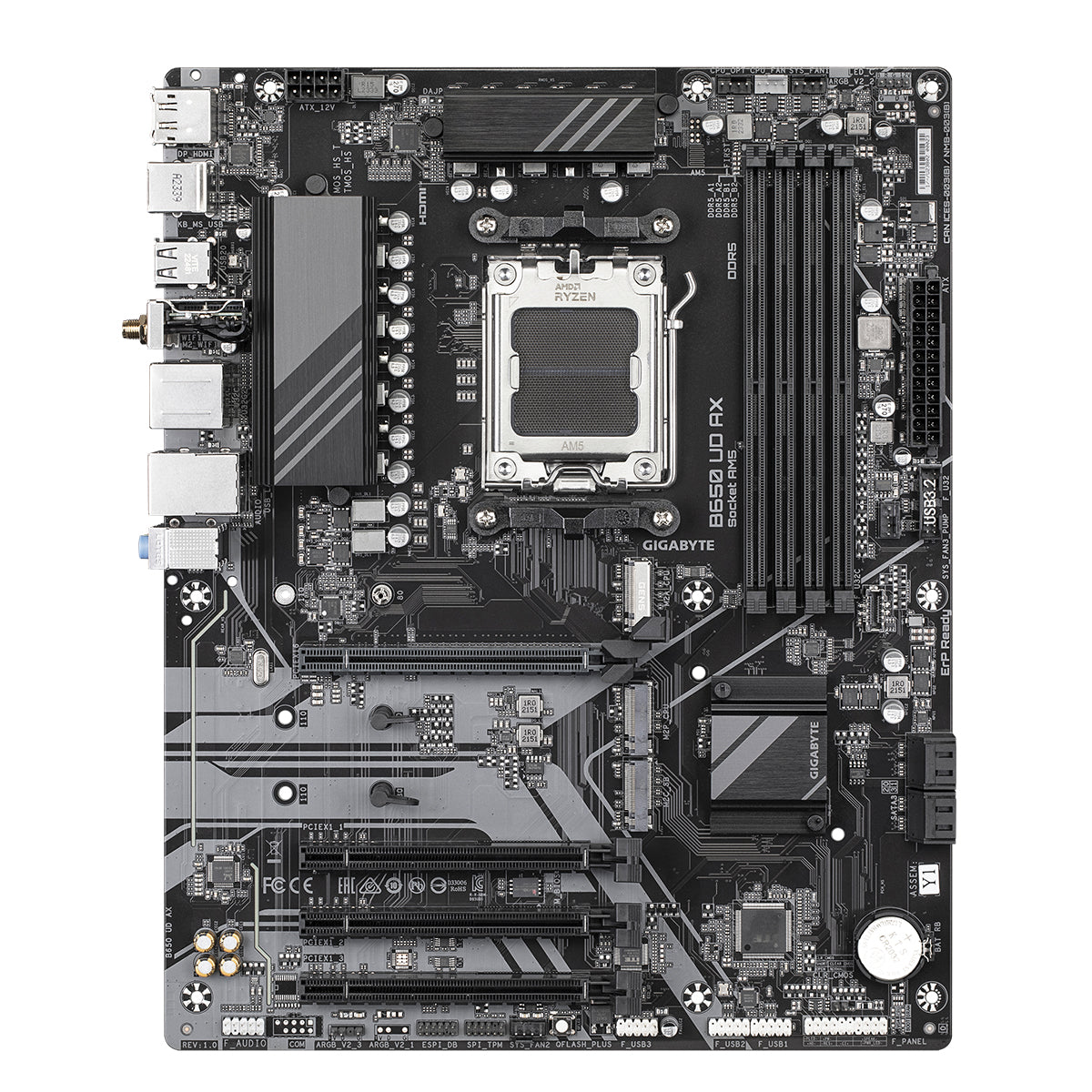

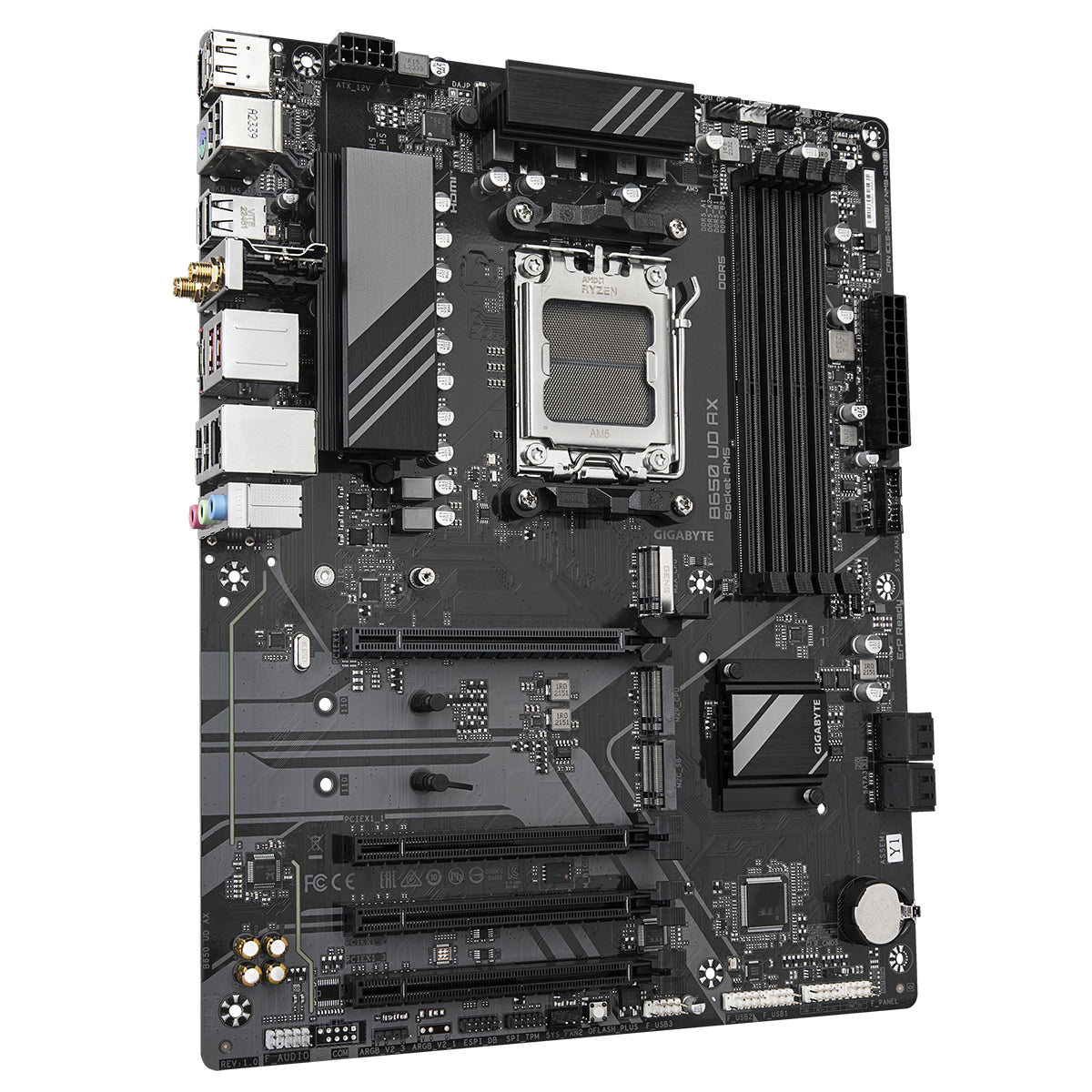

Gigabyte B650 UD AX Motherboard

B650 UD AX

AMD Socket AM5: Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors

Unparalleled Performance: 6+2+2 Phases Digital VRM Solution

Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support

SuperSpeed Storage: 1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors

EZ-Latch: PCIe x16 Slot with Quick Release Design

Fast Networks: Wi-Fi 6 802.11ax & GbE LAN

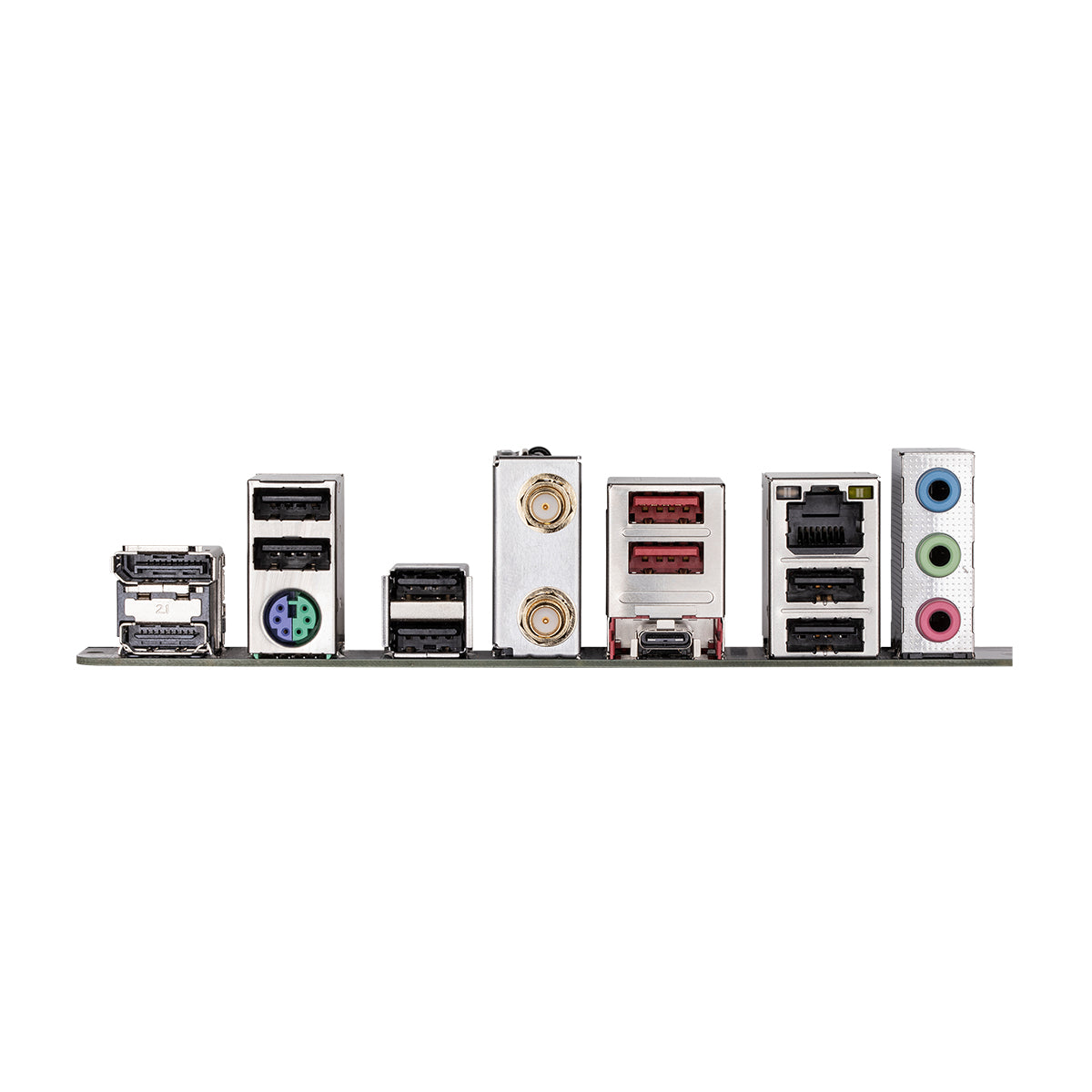

Extended Connectivity: DP, HDMI, Rear USB® 10Gb/s

Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus: Update BIOS Without Installing the CPU, Memory, and Graphics Card

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design

The best VRM design ever built with the highest quality components.

6+2+2 Phases Digital PWM + Low RDS(on) MOSFETs

Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability. *Photo for reference only.

EXPO & XMP Support

DDR5 EXPO & XMP Overclocking Up to 8000 and Beyond* GIGABYTE is offering a tested and proven platform with extreme memory performance boost.

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

Unlock DDR5 Voltage

GIGABYTE Exclusive DDR5 Circuit Design Increases DDR5 memory overclocking performance and capability by transforming Native DDR5 memory module to Overclocked DDR5 memory.

Secure Mode

MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC. Unlocks Native DDR5 PMIC secure mode into programmable mode and controls Native DDR5 voltage with wide range. Supports all PMIC vendors for maximum compatibility. *Memory overclocking capability will vary based on users' hardware configuration.

Maximum Compatibility for Memory O.C

GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.

DDR5 Auto Booster

Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.

AMD EXPO™ and Intel® XMP 3.0 User Profile

Easily create overclocked memory performance by defining and creating your own SPD profile into Native and XMP 3.0 memory modules, or applying the pre-tuned profiles to XMP 3.0 User Profile.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

802.11ax Wi-Fi

The Wireless solution 802.11ax Wi-Fi enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections, and speeds up to 2.4Gbps. Moreover, Bluetooth 5.3 provides 4X range over BT 4.2 and with faster transmission.

GbE LAN with Bandwidth Management

Helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

PCIe 4.0 Hardware Design

Featuring one or multiple PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide superior performance. *The picture is for reference and may vary by model.

Hi-Fi Audio

High-End Audio Capacitors: These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise Guard: Essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. *Photo for reference only.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch

Unlock the latch of the PCIe slot easily when removing the graphics card in the PCIe slot.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory, and graphics card.

Smart Fan 6

Ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.

High Current Support: Each fan header supports PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection.

Precision Control: Multiple temperature/fan speed control points for precise fan curve.

Dual Curve Mode: Slope/Stair dual mode for different user scenarios.

Fan Stop: Fan can stop completely below users' specified temperature point.

Smart Fan 6 BIOS UI

Enhance Fan Curve UI: Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.

Slope/Stair Dual Graph Mode: Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.

Manual Input: For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.

EZ Tuning: Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.

Fan Curve Profile: Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

OC GUIDE

UC BIOS: Redesigned UI and UX an intuitive operation interface with an aesthetically pleasing design.

Quick Access: 9 customizable option slots for effortless access in Easy Mode.

PerfDrive: Exclusive BIOS settings that optimize performance based on the cooling configuration.

GIGABYTE Control Center

Unified software platform for all Gigabyte supported products.

• Intuitive user interface
• Modularized control
• Auto update
