Geometric Future Model 5 Vent ATX Mid Tower Mesh Case - Black

POWERFUL COOLING SYSTEM – SUPPORTS UP TO 13 FANS

The Model 5 easily handles high-power hardware with a robust cooling layout that supports up to 13 fans.

• Top Supports: Up to 420/360 water cooling or 3 × 120/140mm fans
• Front Supports: Up to 2 × 140mm fans or 3 × 120mm fans
• Bottom Supports: Up to 3 × 120/140mm fans
• Side Supports: 1 × 120/140/160mm fan (reverse fan recommended)
• Rear Supports: 1 × 120/140mm fan
• Back Supports: Up to 2 × 120mm fans

420MM TOP MOUNT WATER COOLING

This chassis is designed to accommodate a 420mm radiator, ensuring highly efficient cooling capabilities within a compact form factor.

BUILT FOR THE LATEST PERFORMANCE HARDWARE

Designed to meet the demands of high-performance builds with large GPUs and E-ATX motherboards in mind.

SUPPORTS E-ATX MOTHERBOARDS AND GRAPHICS CARDS UP TO 430MM

Accommodates high-end components including RTX 40 series GPUs up to 430mm in length, with vertical mounting support.

120MM OR 140MM FAN SUPPORT

All mounting locations in the main chamber are compatible with both 120mm and 140mm fans, giving you the flexibility to fine-tune noise and airflow.

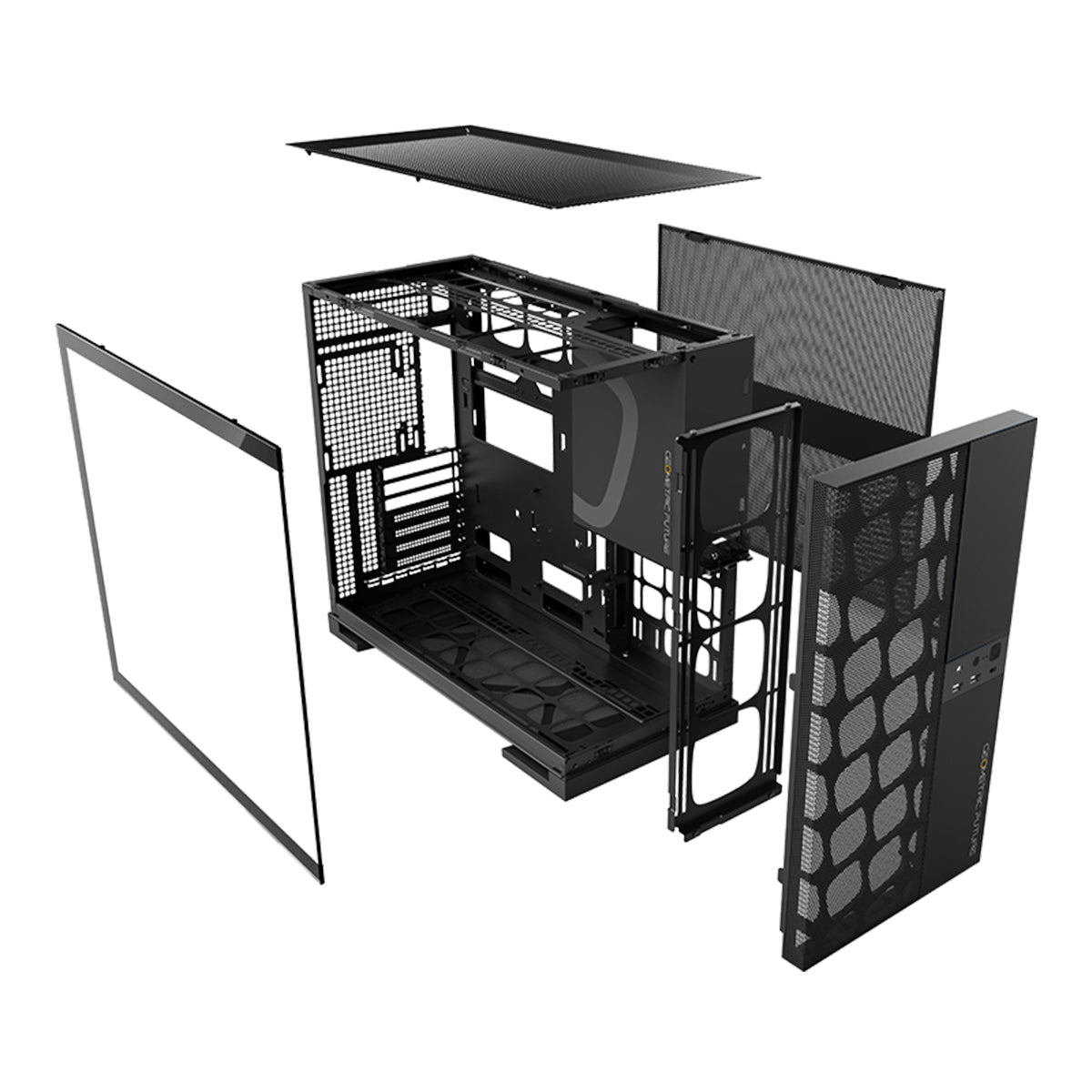

TOOLLESS PANEL REMOVAL DESIGN

Panels are easy to detach for simplified access and a smooth building process—saving time and reducing setup hassle.

FUN AND FUNCTIONAL BUILT-IN DISPLAY PLATFORM

The Model 5 Mesh display platform provides a unique way to showcase your build while directing airflow to your GPU for peak thermal performance.

0.8–1.2MM CHASSIS

Constructed from durable steel material with panel thickness ranging from 0.8mm to 1.2mm for improved strength and rigidity.

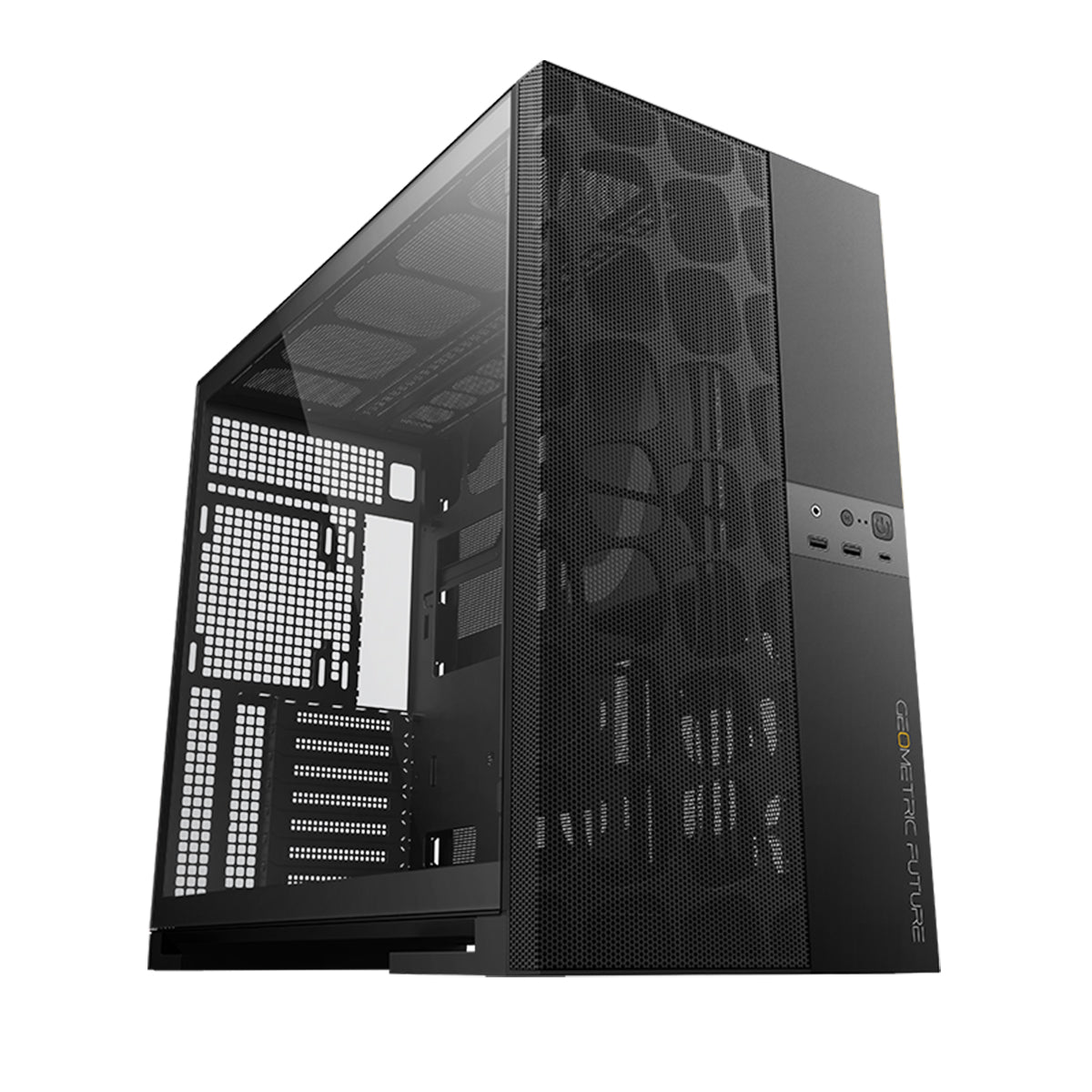

SIMPLE ELEGANCE

The side tempered glass panel lets your hardware shine, while the front and top mesh panels enhance airflow. A perfect combination of form and function.

VERTICAL AIRFLOW FOR MAXIMIZED COOLING

The Model 5 is designed to optimize cooling efficiency with a powerful bottom-to-top airflow system. This design enhances the natural movement of hot air, effectively expelling heat from your components and maintaining optimal temperatures.

MESH SIDE PANEL WITH DUAL ZONE

The mesh side panel design effectively divides the airflow into two distinct zones within the secondary chamber. This leads to a distinctive look and improved performance for your setup.

PERFECT LOCATION FOR THE PSU

The power supply unit is strategically situated in a dedicated cooling zone at the top front of the second chamber. This design reduces cable runs to connect with the hardware, optimizing efficiency and performance.

OPTIMIZED CABLE MANAGEMENT

With a width of 37mm, the cable management becomes more convenient and efficient.

GPU SAG SUPPORT

The Model 5 incorporates support for larger GPUs to mitigate the issue of sagging.

MULTI-FUNCTIONAL SUPPORT BRACKET

The support bracket serves multiple purposes:

• Accommodates an additional fan in typically inaccessible areas
• Reinforces the case structure when positioned under the PSU
• Adds a color accent to enhance visual appeal

DUST FILTER

Easy installation and removal of the side dust filter helps your system run smoothly by preventing dust from entering the interior.

MODEL 5 – COMPACT FORMAT, HIGH COMPATIBILITY

• Supports 420mm radiator at top
• Supports up to 13 × 120mm fans
• Front mesh design for airflow
• Tool-free panel removal
• Platform for your favorite accessories
• Supports up to E-ATX motherboards
• Supports RTX 40 Series graphics cards (430mm), vertical mounting ready
• Constructed with 0.8–1.2mm thick steel panels
