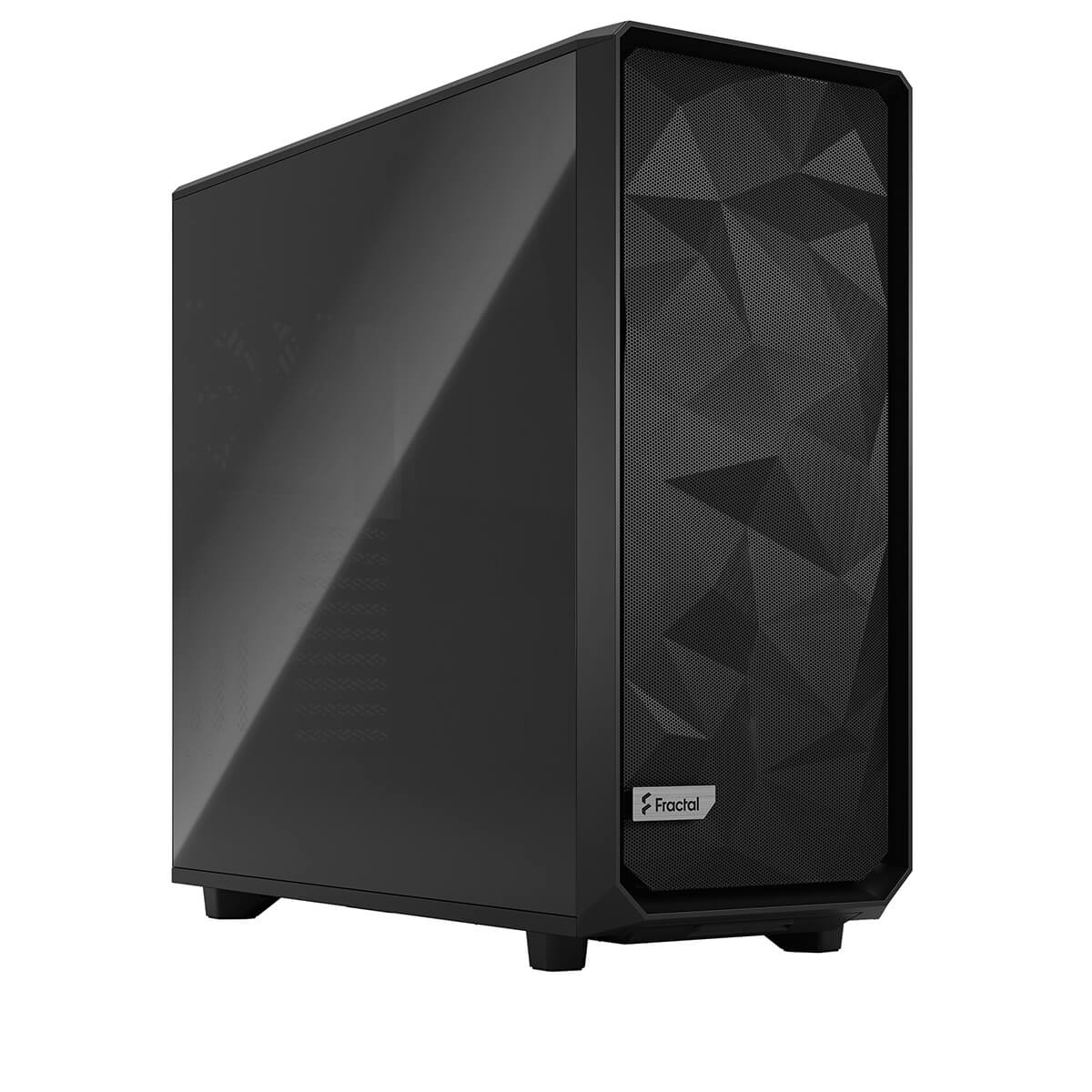

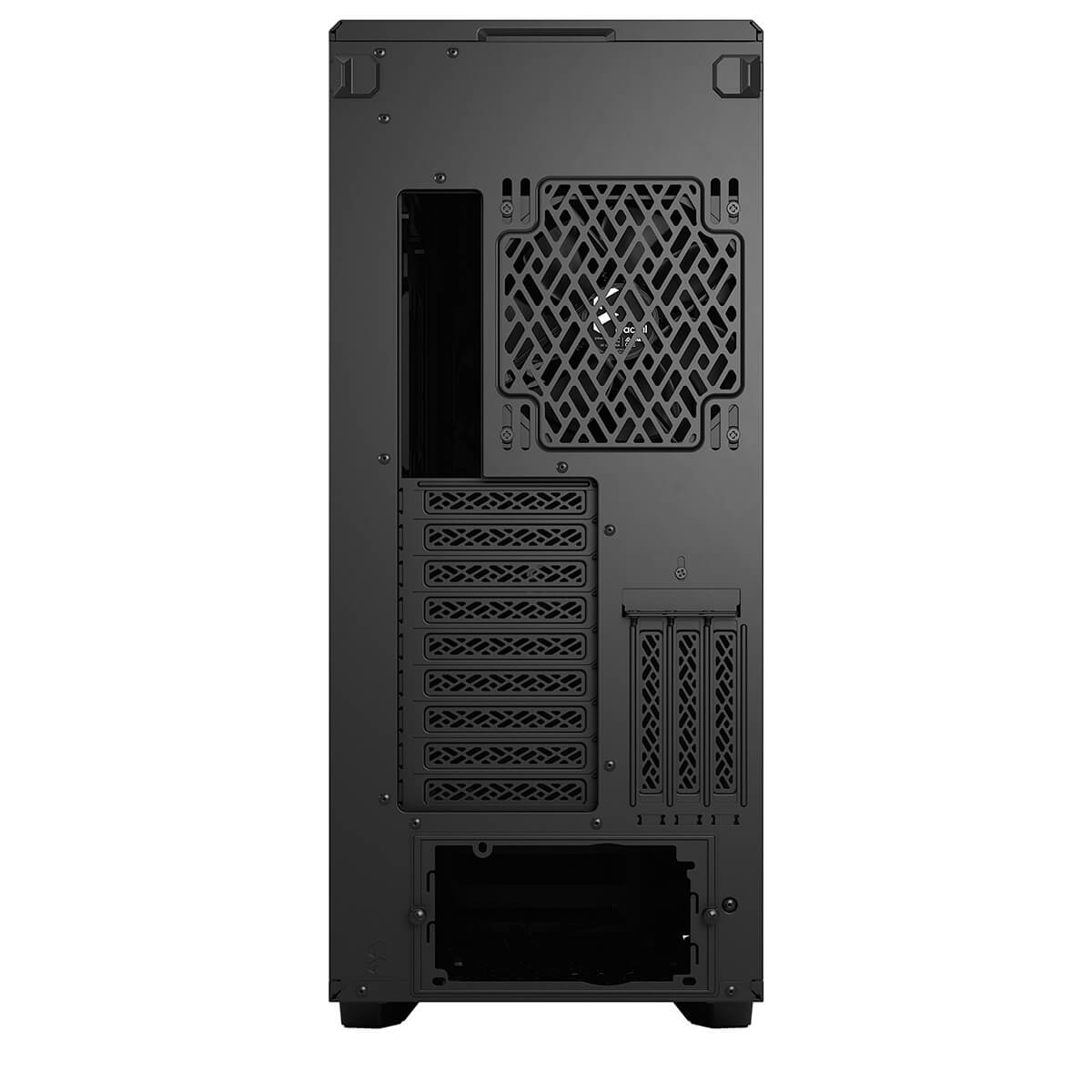

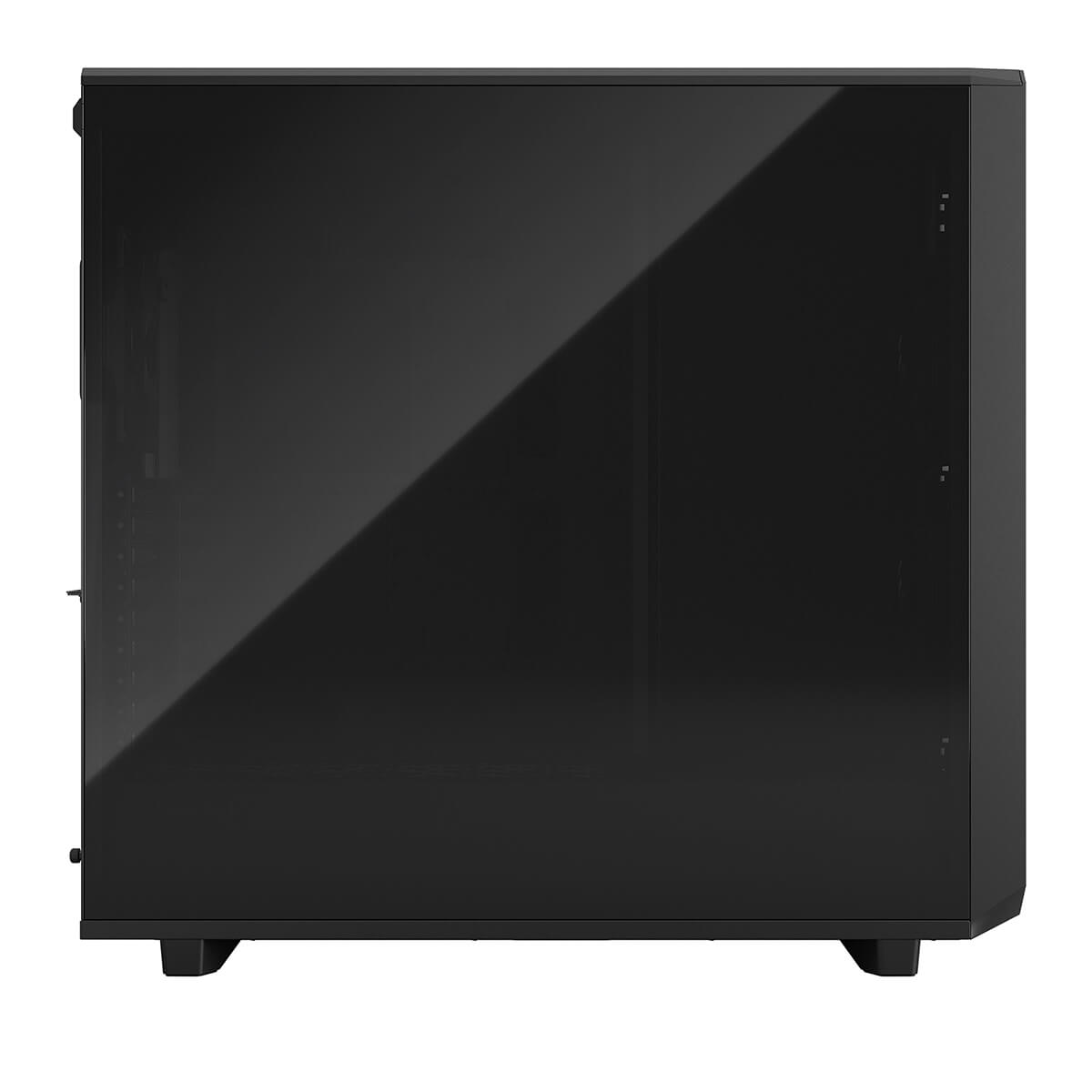

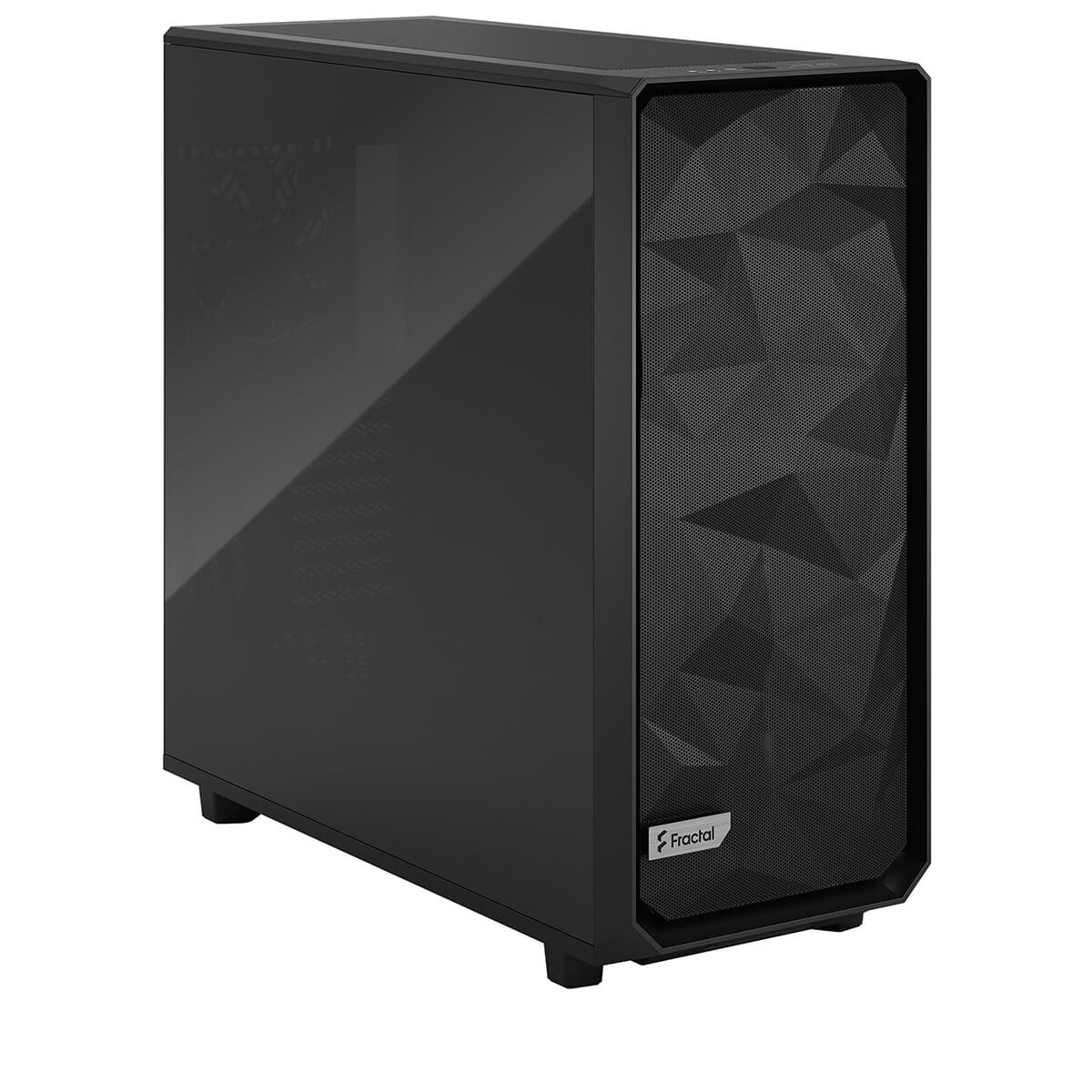

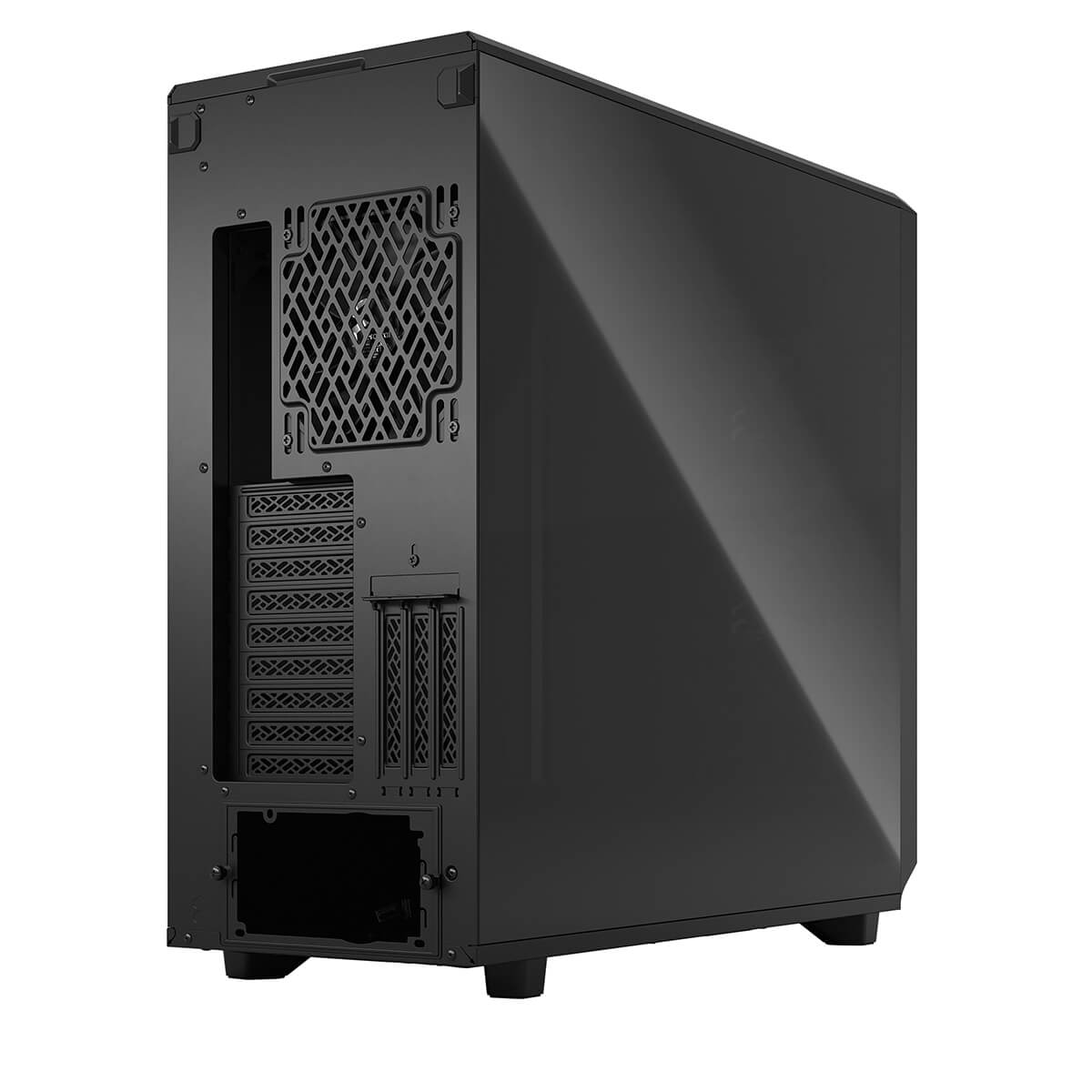

Fractal Design Meshify 2 XL Full Tower Case - Black TG Dark Tint
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Superlative storage
- Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout
- The included Multibrackets lets you convert any unused fan positions to HDD, SSD or pump mounts
- Tool-less, top-latching panels allow quick access while preventing accidental drops
Detachable front filter
- The nylon filter is easily removed from the hinged mesh panel for increased airflow
- Tether-free bezel for easier access to front fan mounts
- Three pre-installed Dynamic X2 GP-14 fans and room for more (max 9x 140 mm / 11x 120 mm)
Versatile multibrackets
The included Multibrackets lets you convert unused fan positions to HDD, SSD
or pump mounts
Flexible dual-layout design
- Convert to Open Layout and get more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm
- Support for radiators up to 480/420 mm (front), 480/420 mm (top) and 280/240 mm (base)
- An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB
Open and interchangeable
Remove the entire top to build and route with zero hindrance.
Type-C interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10Gbps
Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects 3x PWM fans and 6x 3-pin fans
Easy cable management
Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
Specifications
Specifications
3.5"/2.5" Universal drive mounts | 6 included, 18 positions total + 2 Multibrackets |
Dedicated 2.5" drive mounts | 2 included, 5 positions total |
Expansion slots | 9 + 3 |
Front interface | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, Audio I/O, Power button, Reset button |
Total fan mounts | 11x 120 mm or 9x 140 mm |
Front fan | 4x 120 mm or 3x 140 mm, (2x Dynamic X2 GP-14 included) |
Top fan | 4x 120 mm or 3x 140 mm |
Rear fan | 1x 120/140 mm, (1x Dynamic X2 GP-14 included) |
Bottom fan | 2x 120/140 mm |
Dust filters | Top, front and bottom |
Fixed velcro straps | Yes |
Cable routing grommets | Yes |
Captive thumbscrews | HDD, SSD and PSU brackets |
Left side panel | Tempered glass dark tint |
Right side panel | Steel |
Motherboard compatibility | E-ATX / ATX / mATX / Mini-ITX / EE-ATX / SSI-CEB / SSI-EEB |
Power supply type | ATX |
PSU max length | 250 mm (both HDD cages installed) |
GPU max length | Storage layout: 340 mm Open layout: 530 mm (505 mm w/ front fan) |
CPU cooler max height | 185 mm |
Front radiator | Up to 480/420 mm |
Top radiator | Up to 480/420 mm |
Rear radiator | 120 mm |
Bottom radiator | Up to 240/280 mm |
Cable routing space | 30 mm |
Case dimensions (LxWxH) | 600 x 240 x 566 mm |
Case dimensions w/o feet/protrusions/screws | 588 x 240 x 547 mm |
Package dimensions (LxWxH) | 651 x 330 x 684 mm |
Net weight | 14.1 kg |
Gross weight | 16.4 kg |
Volume | 77.2 liters |
Package contents | Meshify 2 XL Case, user manual, accessory box, screw box |
