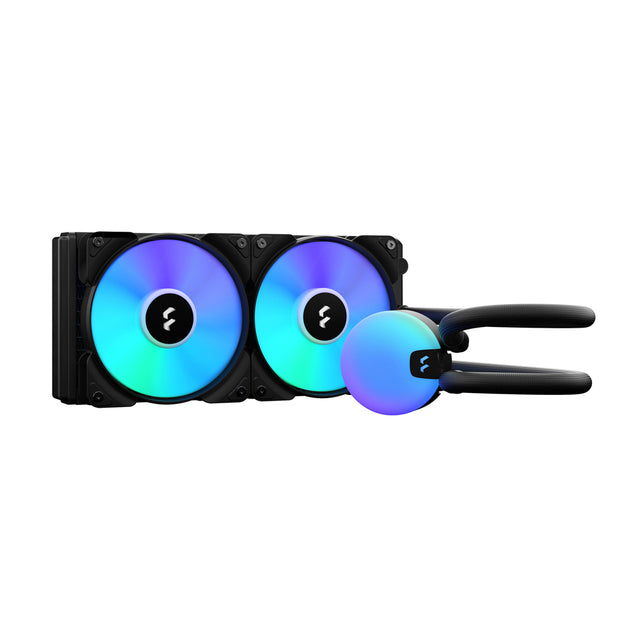

Fractal Design Lumen S24 v2 RGB 240mm AIO Liquid CPU Cooler
Fractal Design
| SKU
43940
$189.00
$239.00
Unit price
/
Unavailable
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 5 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
The right way up
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Low-permeability rubber tubes with braided nylon sleeves
From subtle to stunning
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller
Forget the thermal paste
- Thermal paste is pre-applied to ensure a proper and pain-free installation
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing
Common denominators
- Supports the most common sockets for both Intel and AMD
- Compatible with LGA 1700 and AM5
Powerful aspects
- Aspect fans for low turbulence and chaining support
Specifications
Specifications
| General specifications | |
| Sockets supported (Intel) | LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066 |
| Sockets supported (AMD) | AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2 |
| * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version | |
| Cold plate material | Copper |
| Thermal paste | Pre-applied |
| Tube length | 400mm |
| Tube material | Low-permeability rubber with braided nylon sleeve |
| Fittings, block side | Articulating 90-degree Elbow |
| Fittings, radiator side | Barbed fitting |
| Block height | 43mm |
| Block measurements (with fittings) | 79 x 67 mm |
| Block diameter (main block body) | 67 mm |
| Fan specifications | |
| Fan type | Aspect 12 RGB PWM |
| Rotational speed | 500–2000 RPM |
| Fan bearing | Rifle bearings |
| Fan PWM control | Yes |
| Fan acoustical noise | <10–33.2 dBA |
| Fan maximum air flow | 13-56 CFM |
| Fan maximum static pressure | 0.230–2.34 mm H2O |
| Fan input voltage | 12V |
| Fan maximum input current | 0.37A |
| Fan MTTF | 90,000 hours |
| Pump specifications | |
| Rotational speed | 4000 ± 10% RPM |
| Bearing type | Ceramic |
| PWM control | No |
| Acoustical noise (full speed) | 22 dBA |
| Maximum pressure | 1.8 mm H2O/ 17.6 kPa / 2.5 PSI |
| Input voltage | 12V DC |
| Input current (without fans) | 0.34 A |
| MTTF | 50 000 hours |
| Radiator specifications | |
| Radiator dimensions | 272 x 120 x 27 mm |
| Radiator housing material | Aluminum |
| Radiator fin material | Aluminum |
| Radiator fan screw threads | 6-32 |
| Other | |
| Package contents | CPU Cooler Assembly, 2x Aspect 12 RGB fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable |
| Package dimensions | 332 x 205 x 137 mm |
| Package weight | 1.77kg |
| EAN | 7340172705932 |
| UPC | 843276105938 |
| JAN | 4537694317610 |
| Product Code | FD-W-L1-S2412 |
