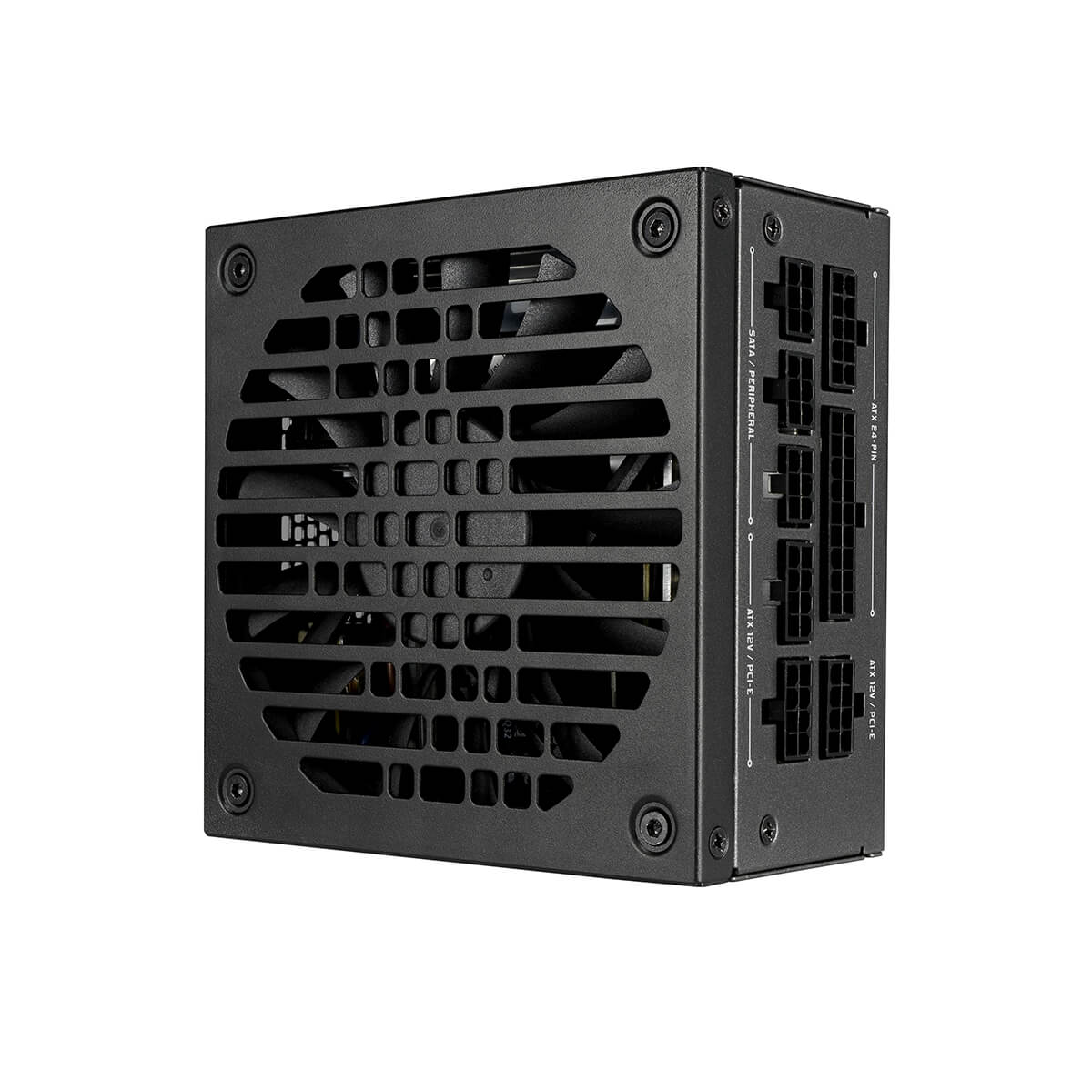

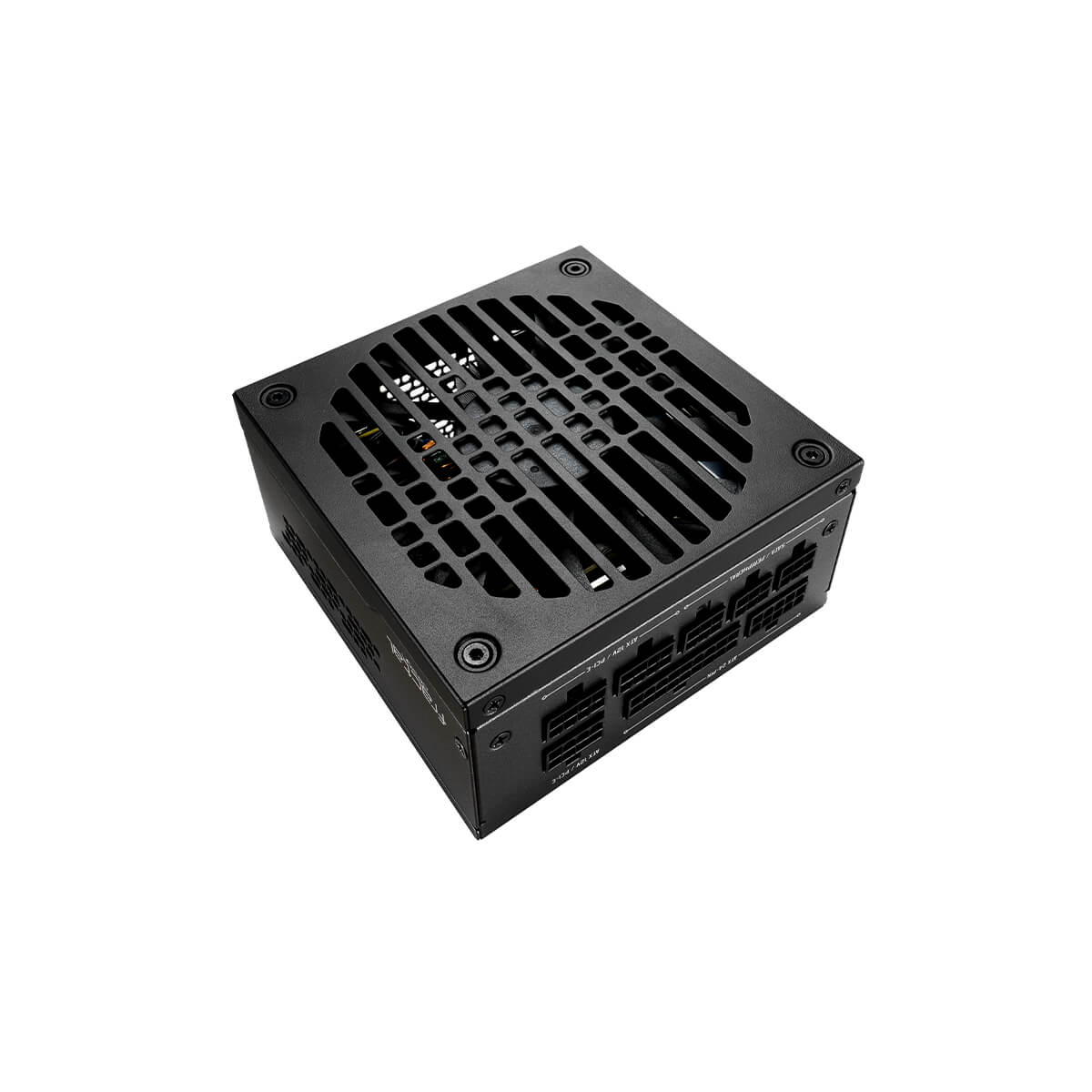

Fractal Design Ion SFX 650W 80Plus Gold Power Supply

Fractal Design  |  SKU 37108  |  MPN FD-PSU-ION-SFX-650G-BK-AU
$189.00

In stock at Computer Lounge

Warranty and Support

Warranty: 10 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Keeping it down

You'll rarely hear a sound from the Ion SFX-L Gold, mainly due to a semi-passive mode that only activates the fan when it's really necessary. Even then, the true FDB bearings will make sure it remains very discrete.


  • The semi-passive Zero RPM mode maintains total silence under light loads.
  • The custom-tailored 120 mm fan with FDB bearings ensures discrete operation even under heavy use.

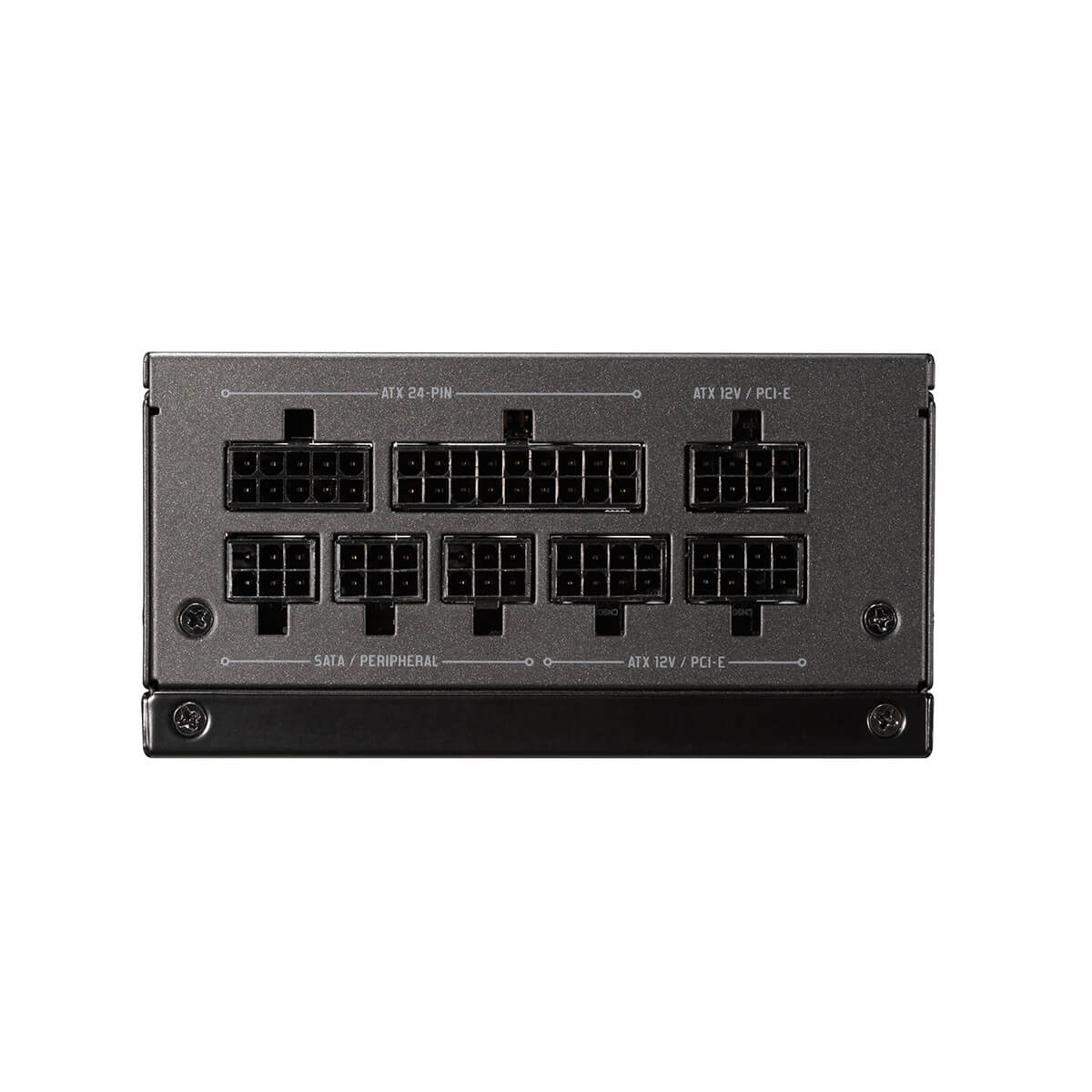

Full modular design

Reduced clutter results in a clean and simple installation


10 year warranty

All Ion SFX-L Gold power supplies are 80 PLUS® Gold Certified and backed with a 10-year warranty and full electrical protection suite for your peace of mind.

The power of flexibility

Thanks to an ultra-high strand count wire and special insulation, our UltraFlex DC wire bends and twists effortlessly to fit your installation instead of fighting it.

  • Combining an increased strand-count and reduced diameter of just 0.08 mm allows thinner, more flexible cables
  • Specially formulated insulation increases flexibility without impacting efficiency or current capacity
  • Cables flex and flow with ease for near-effortless routing and superior cable management opportunities
  • Cables bend and twist to make for easy connections in tight spaces with less resistance and strain.


Japanese capacitors

Premium Japanese 105°C capacitors provide enhanced reliability and durability


Fully protected

Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection


Mounting options

Includes SFX-to-ATX mounting bracket


Specifications

80PLUS® CertificationGold
Modular cablesFully modular
Fan typeSlim (15 mm) FDB bearing 120 mm fan
Maximum operating temperature (full load)40°C - Maximum 80% load at 50°C
Semi-passive operationYes (Zero RPM)
Capacitors105°C Japanese Polymer
Life expectancy (MTBF) at max output load100,000 hours
PSU form factorSFX-L*
Cable typeModular 24-pin: Braided sleeve UltraFlex™ wire - Others: Flat UltraFlex™ wire
PSU ColorBlack/Gunmetal
Cable ColorBlack
Protection featuresOver voltage protection - Under voltage protection - Over power protection - Short circuit protection - Over current protection - Over temperature protection
Input voltage100-240V AC
Input frequency50-60 Hz
Input current8A/4A (650G)
Number of 12V rails1
Standby efficiencyErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)
Sleep State ComplianceC6/C7
Approvals & CertificationsCE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Warranty10 Years
*NOTEIon SFX-L is not compatible with Node 202
ATX1
EPS/ATX12V1
PCIe4
SATA8
Peripheral2
ATX 24-pin350
EPS/ATX12V 4+4 pin400
PCIe 6+2 pin400+100 x2
SATA300+200+200+100 x2
Peripheral300+200
3.3V20A
5V20A
3.3V and 5V combined100W
12V54A
-12V0.3A
+5Vsb3A
Total Power650W

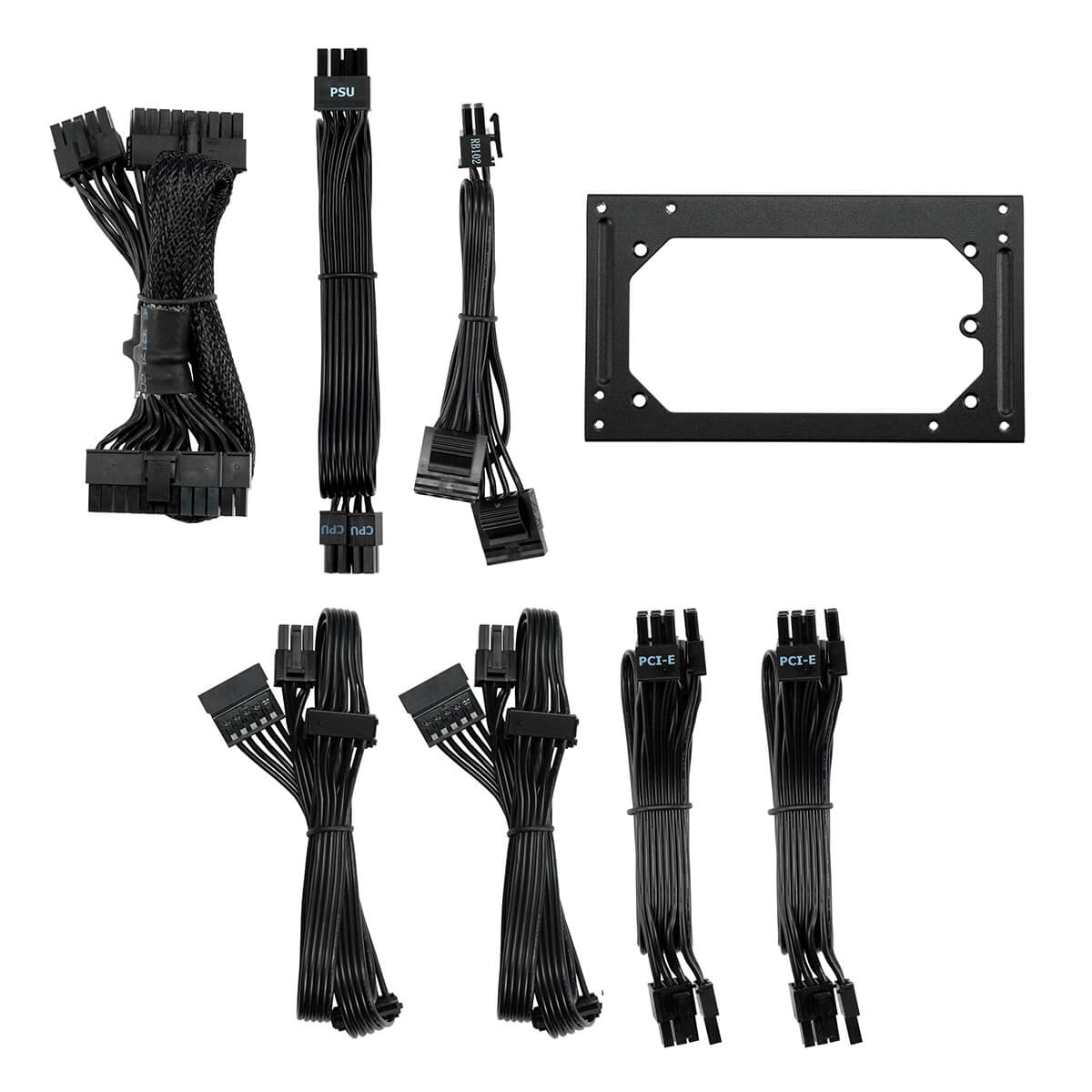

Package contents• Ion SFX-L PSU with protective bag • Modular cables in a convenient storage bag • Screw pack with Velcro cable ties • SFX-to-ATX bracket • AC power cord (localized) • User manual
Unit dimensions (LxWxH)125 x 125 x 63.5 mm
Net weight (unit only)1.15 kg
Package dimensions (LxWxH)260 x 170 x 95 mm
Package weight2.07 kg
EAN7340172702023
UPC843276102029
Product codeFD-PSU-ION-SFX-650G-BK
