Fractal Design Ion+ 2 660W 80Plus Platinum Fully Modular ATX Power Supply
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 10 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
The power of silence
The Ion+ 2 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality.
- 80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation
- Supports the latest ATX 2.52 standard with improved start-up time and transient load response
- Great electrical output quality with tight voltage regulation and low ripple and noise
Premium capacitors
Premium Japanese 105°C capacitors provide superior reliability and durability.
Fully modular design
- Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management
- All models include two 8-pin ATX12V/EPS cables, ensuring compatibility with new motherboards
- Premium storage bags for cables and PSU
Custom-tailored fan

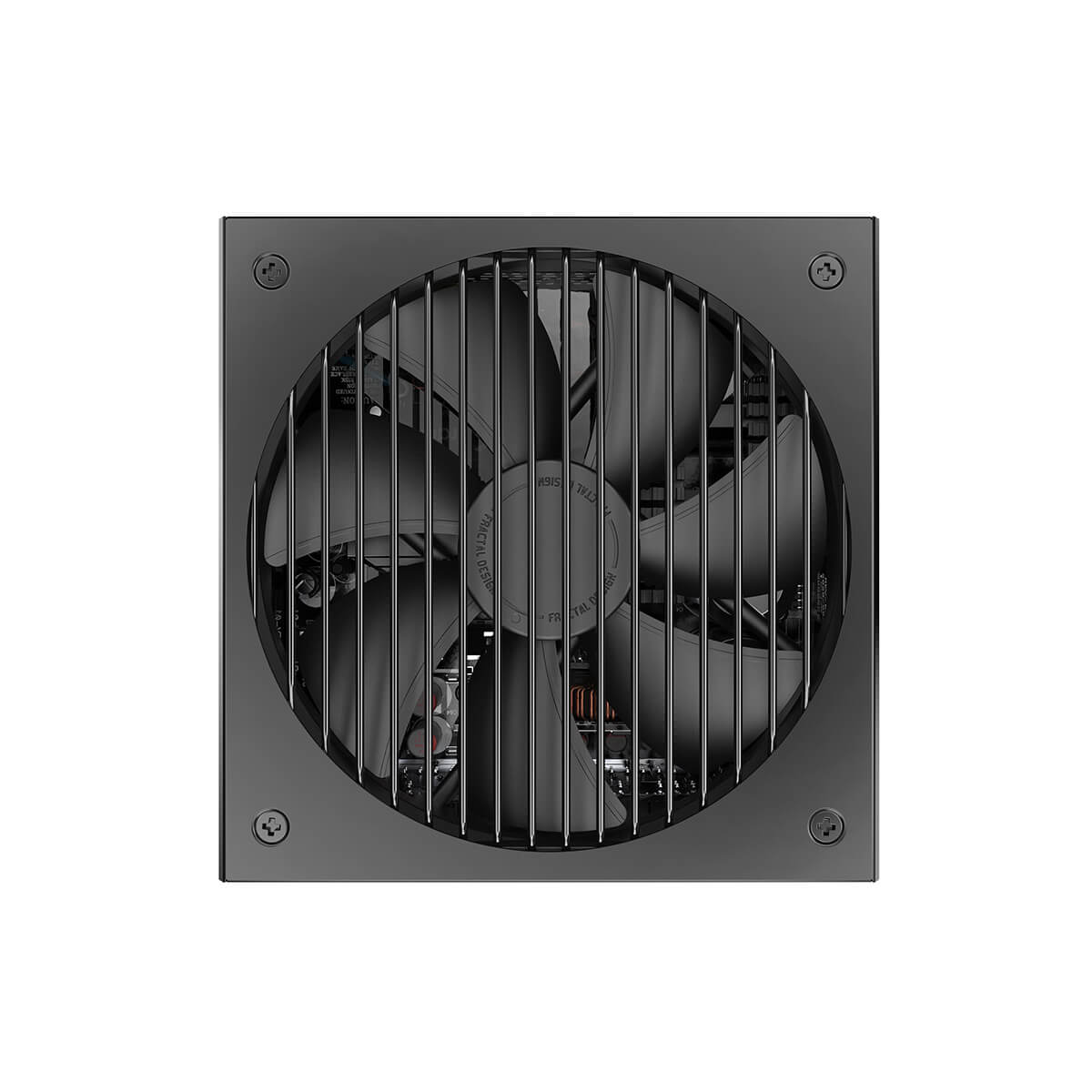

Equipped with a high-performance Dynamic GP-14 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed and a true long-life FDB bearing.
Compact advantages
- Compact 150 mm depth allows for installation in compact cases or provides additional cable management room in larger cases
- Extensive 10-year warranty and a full electrical protection suite provides peace of mind
Semi-passive mode

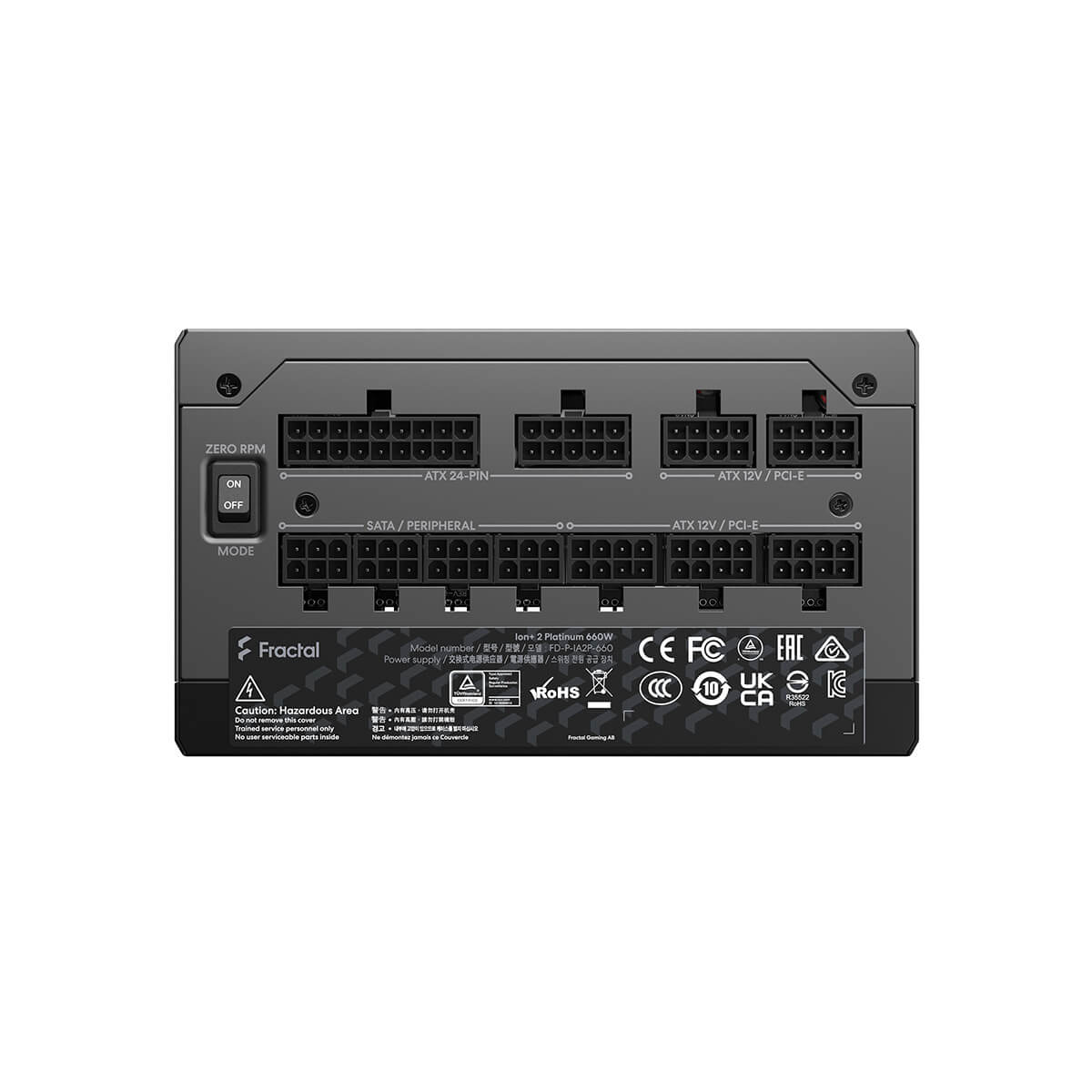

User selectable semi-passive operation allows for either passive operation in low load situations or continuous low speed fan operation for reduced component stress
Specifications
Specifications
| 80PLUS® certification | Platinum |
| Modular cables | Fully modular |
| Fan type | 140 mm FDB bearing Fractal Design Dynamic series fan |
| Maximum operating temperature (full load) | 50°C |
| Semi-passive operation | Yes, user selectable (Zero RPM) |
| Capacitors | Japanese |
| Life expectancy | 100,000 hours |
| PSU specification compliance | ATX12V 2.52; EPS12V 2.92 |
| Cable type | Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires |
| Input voltage | 100-240V C |
| Input frequency | 50-60 Hz |
| Input current | 10A/5A |
| Protection features | Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection |
| Standby efficiency | ErP 2013 (<0.45W @230. VAC, 45 mA load on +5Vsb) |
| Sleep state compliance | C6/C7 |
| Approvals & certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC |
| Warranty | 10 Years |
| ATX 24-pin | 1 |
| ATX12V 4+4 pin / EPS12V 8-pin | 2 |
| PCIe 6+2 pin | 4 |
| SATA | 10 |
| Peripheral | 4 |
| ATX 20+4 pin | 600 mm |
| ATX 12V 4+4 pin | 700 mm |
| EPS12V 8-pin | 600 mm |
| PCIe 6+2 pin | 550 + 120 mm |
| SATA | 400+150+150+150 mm & 650+150mm |
| Peripheral | 400+150+150+150 mm |
| 3.3V | 20A |
| 5V | 20A |
| 3.3V and 5V combined | 110W |
| 12V | 55A |
| -12V | 0.3A |
| +5Vsb | 3A |
| Total Power | 660W |

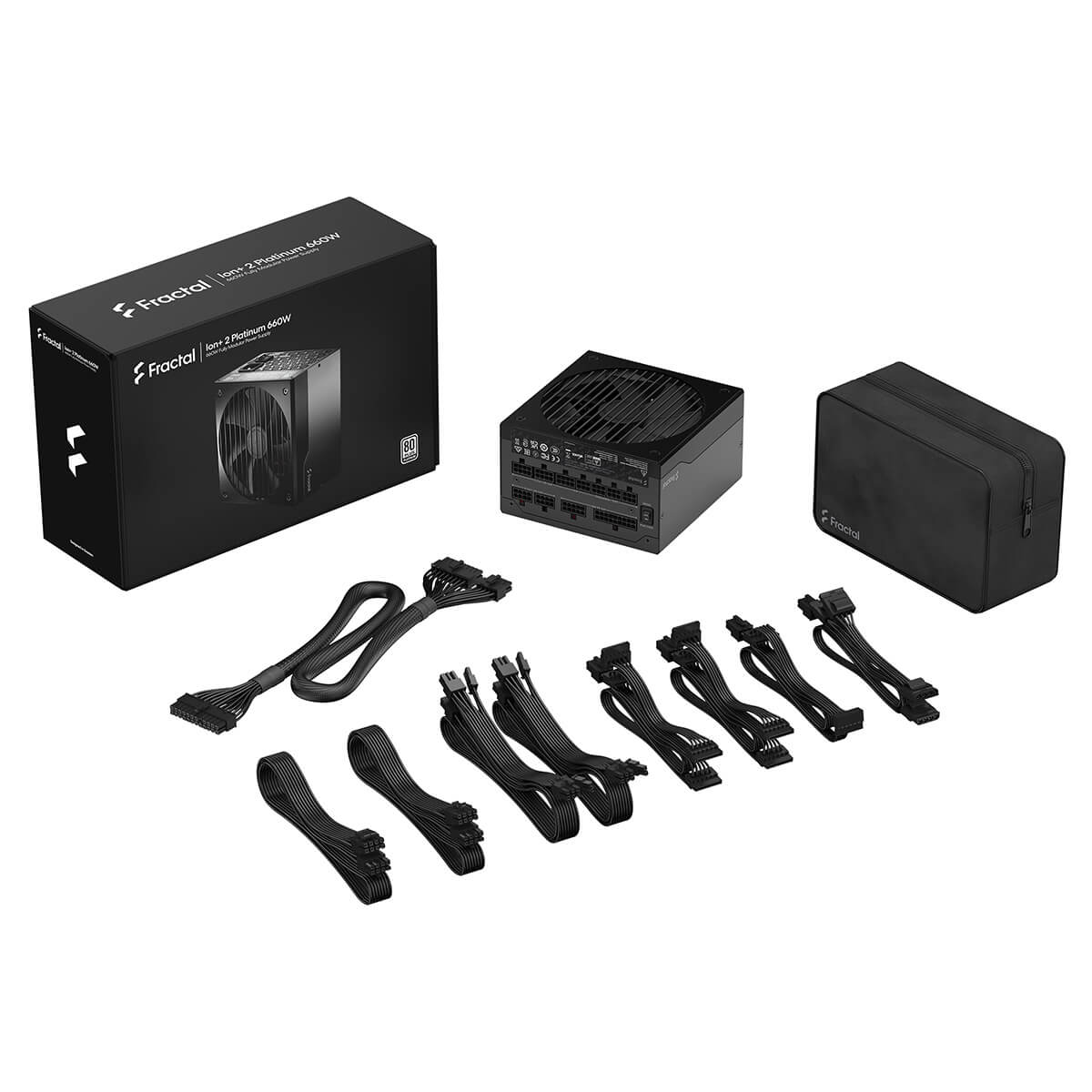

| Package contents | Power Supply, Power Supply storage bag, Modular cable kit in storage bag, User guide, AC Power cord, Velcro cable ties and mounting screw pack, Included in packaging is a red note as well |
| Unit dimensions (LxWxH) | 150 x 150 x 86 mm |
| Net weight (unit only) | 2.34 kg |
| Package dimensions (LxWxH) | 325 x 210 x 110 mm |
| Package weight | 2.86 kg |
| EAN | 7340172702863 |
| UPC | 843276102869 |
| JAN | 4537694282710 |
| Product code | FD-P-IA2P-660 |
