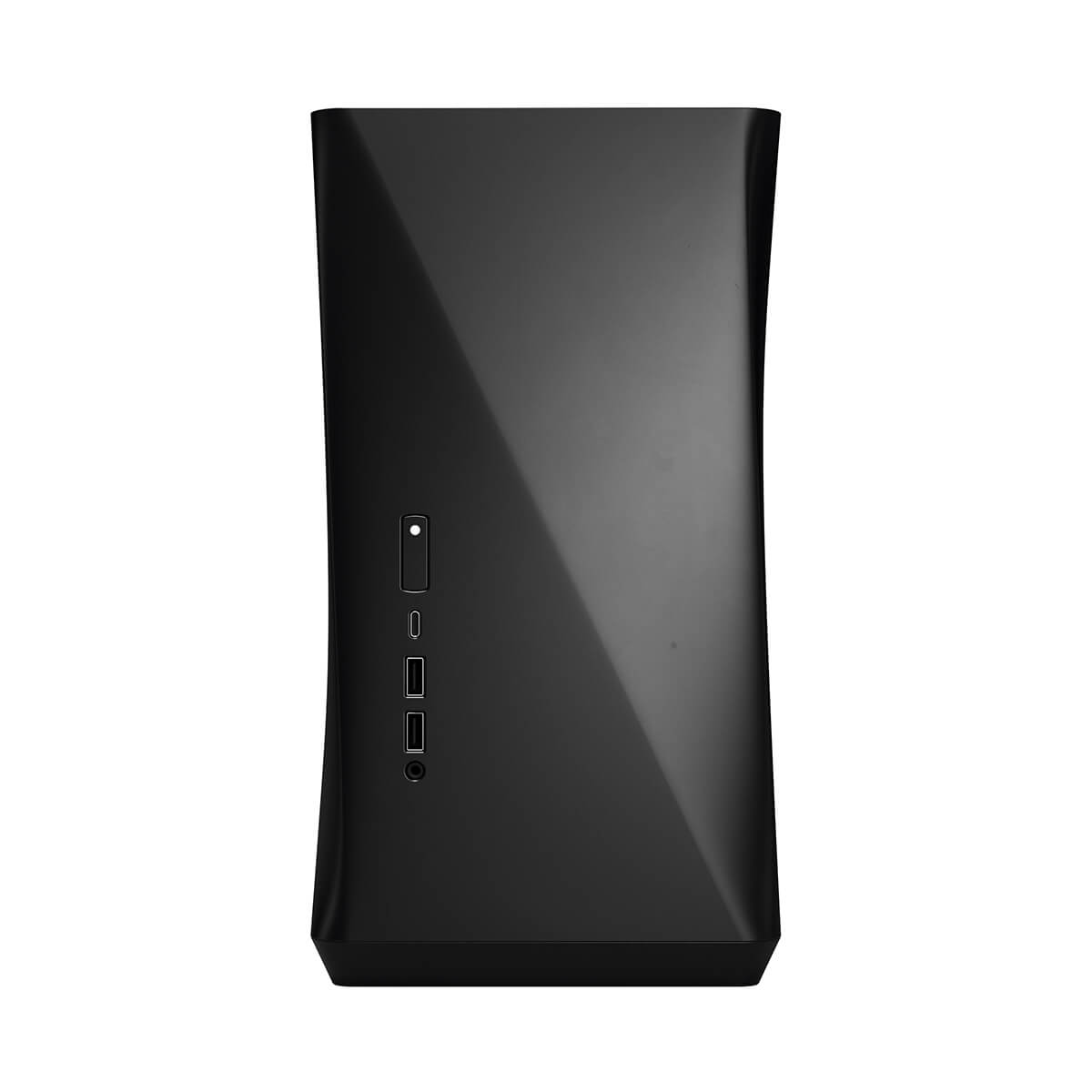

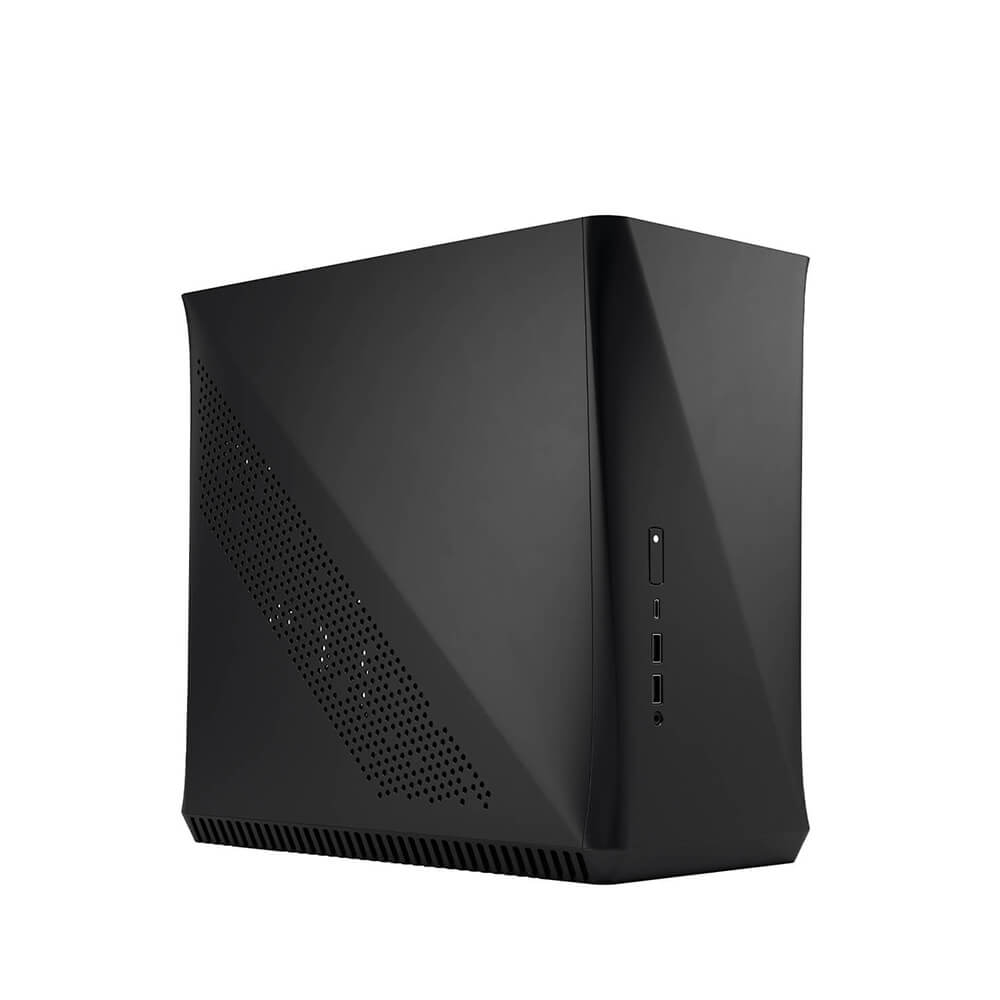

Fractal Design Era Mini ITX Case - Black
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Look closer
Don’t let the size fool you. This uniquely designed SFF case supports professional grade hardware thanks to a remarkably versatile interior. As space efficient as it is flexible, the Era comes with a sleek aluminum exterior and is available in five colors.
Just add water
The removable radiator bracket allows 240 mm or dual 120 mm radiators for robust liquid cooling.
Flexible storage
The two included storage brackets each support a single 3.5" HDD or two 2.5" SSDs.
Airflow and the Era
- Efficient chimney design optimizes airflow across five total fan positions
- Pre-installed 80 mm Fractal Design SSR3 fan exhausts heat silently and effectively
- Easy-to-clean, high airflow nylon filters on the top, sides and base
SFX or ATX? Yes.

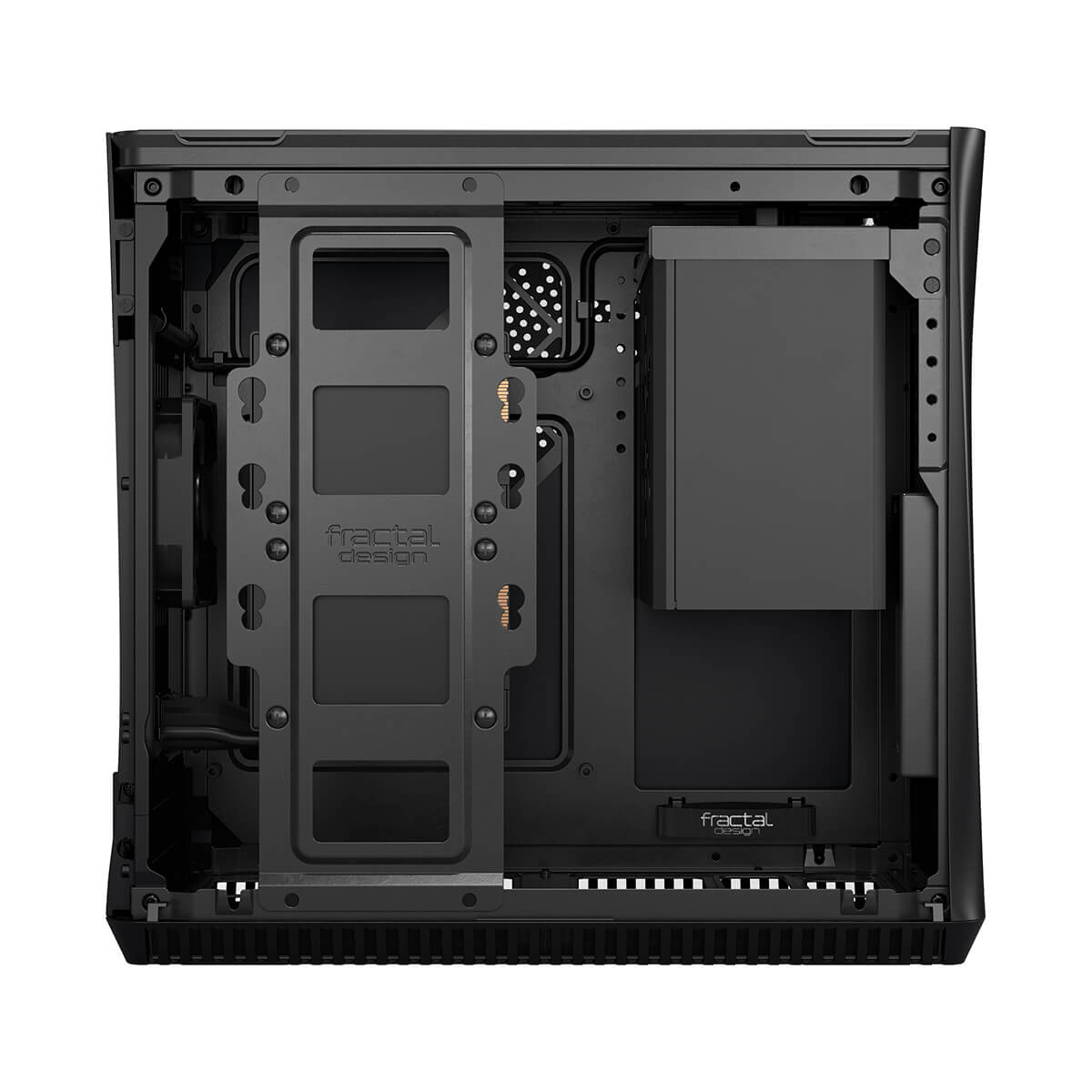

Our innovative adjustable brackets give you total flexibility with PSU mounting height in order to maximize effective use of interior space.
Need more air?
The color-coordinated wood and tempered glass top inserts are easily swappable with the included steel mesh panel for increased airflow.
Easy access
A magnetic top panel and tool-less latching side panels make for near-effortless maintenance
Tops of the line
The stylish top panels come in White Oak (Silver) or Tempered glass (Carbon, and Gold).
Front Type-C
USB 3.1 Gen 2 Type-C with support for fast charging and speeds up to 10Gbps
Large GPU Support
Allows dual slot graphics cards up to 295 mm in length
Imagined with Intel and realized by Fractal Design
The Era ITX readily accommodates Intel’s most powerful processors, and holds dual slot GPUs, AIO water cooling units (max. 240 mm), and up to four storage devices, all thanks to an innovative, flexible PSU mounting system in a 16 liter footprint.
Specifications
Specifications
| 3.5” drive support | SFX PSU: 2 HDDs or 1 HDD + 2 SSDs; ATX PSU: 1 HDD |
| 2.5” drive support | SFX PSU: 4 SSDs or 2 SSDs + 1 HDD; ATX PSU: 2 SSDs |
| Expansion slots | 2 |
| Front ports | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 3.5 mm CTIA combined audio/mic |
| Total fan mounts | 5 |
| Top fan | 2x 120 mm |
| Rear fan | 1x 80 mm (1 x SSR3 80 mm included) |
| Bottom fan | 2x 140 mm (without 2-slot GPU) |
| Dust filters | Bottom intake, Side intakes, Top exhaust |
| Fixed velcro straps | Yes |
| Tool-less push-to-lock | Both side panels |
| Left side panel | Aluminum |
| Right side panel | Aluminum |
| Motherboard compatibility | ITX |
| Power supply type | ATX, SFX-L, SFX |
| Top radiator | 120/240 mm or 2x 120 mm (max 125 mm width, 67 mm thickness w/ fans, dependent on PSU position/type) |
| PSU max length | 200 mm |
| GPU max length | 295 mm or 210/190 mm (with low-mounted SFX/ATX PSU) |
| CPU cooler max height | 120 mm (70 mm recommended with side-mounted 3.5” HDD) |
| Case dimensions (L x W x H) | 325 x 166 x 310 mm |
| Case dimensions w/o feet/protrusions/screws | 325 x 166 x 307 mm |
| Net weight | Carbon/Cobalt/Gold versions – 3.970 kg. Titanium Gray version – 4.090 kg. Silver version – 4.167 kg |
| Package dimensions (L x W x H) | 385 x 240 x 420 mm |
| Gross weight | Carbon/Cobalt/Gold versions – 4.930 kg. Titanium Gray version – 5.050 kg. Silver version – 5.127 kg |
| Volume | 16 liters |
| Package contents | Era ITX computer case, Top Insert accessory box, Top insert, Black mesh top insert, Screw accessory box, User manual |
