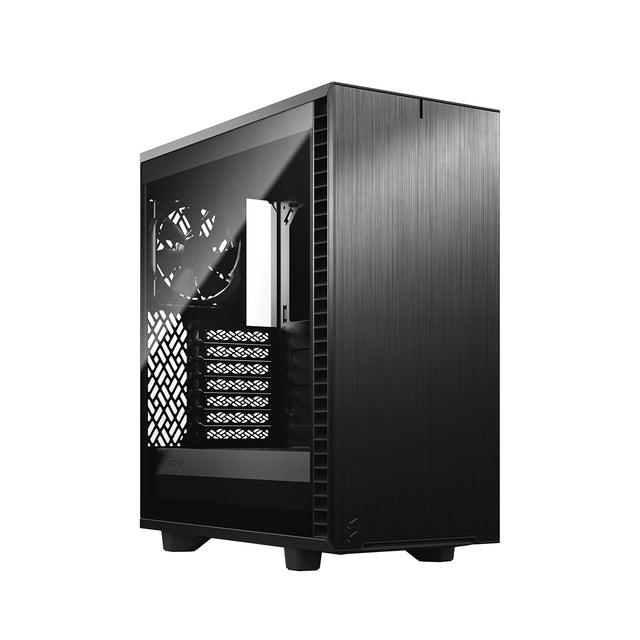

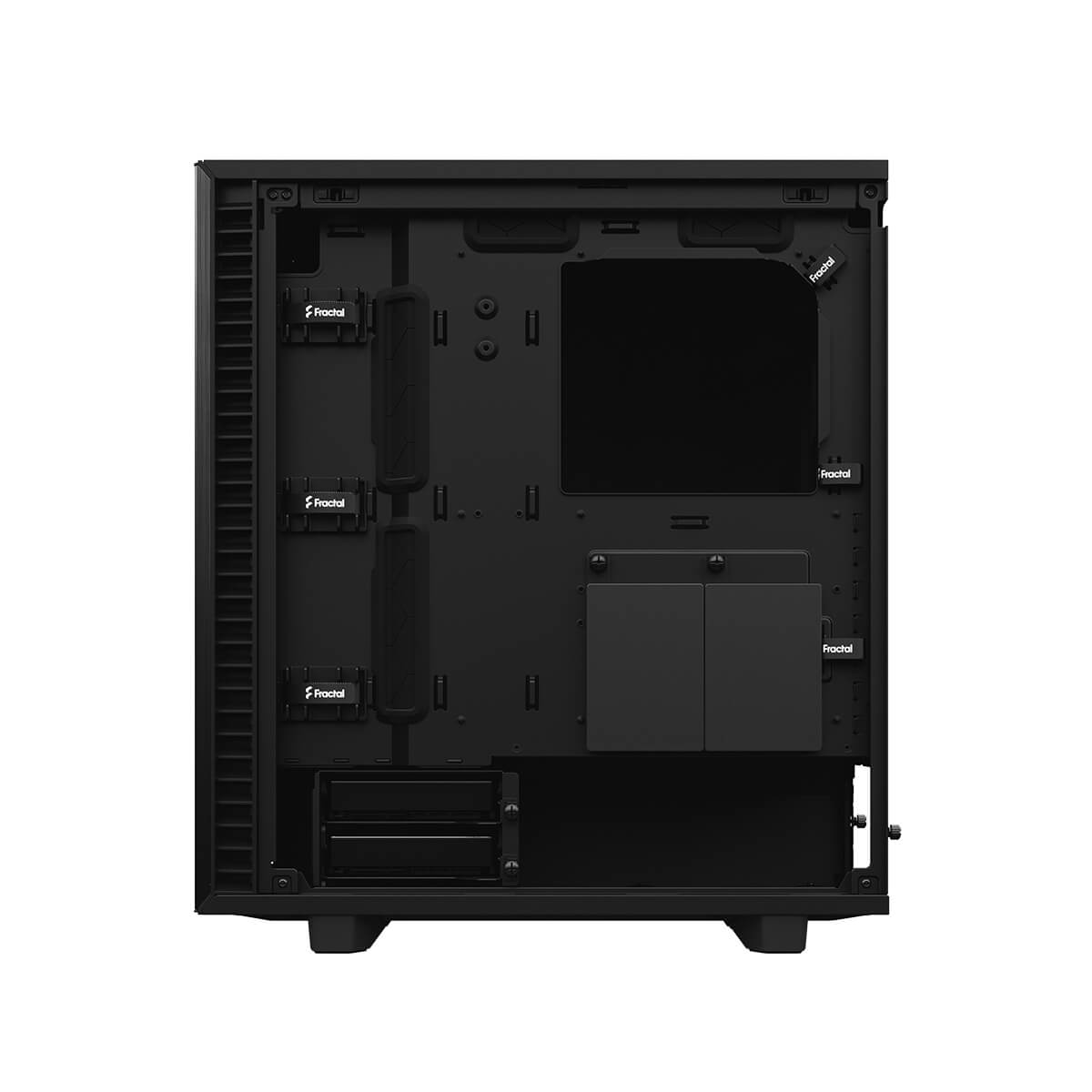

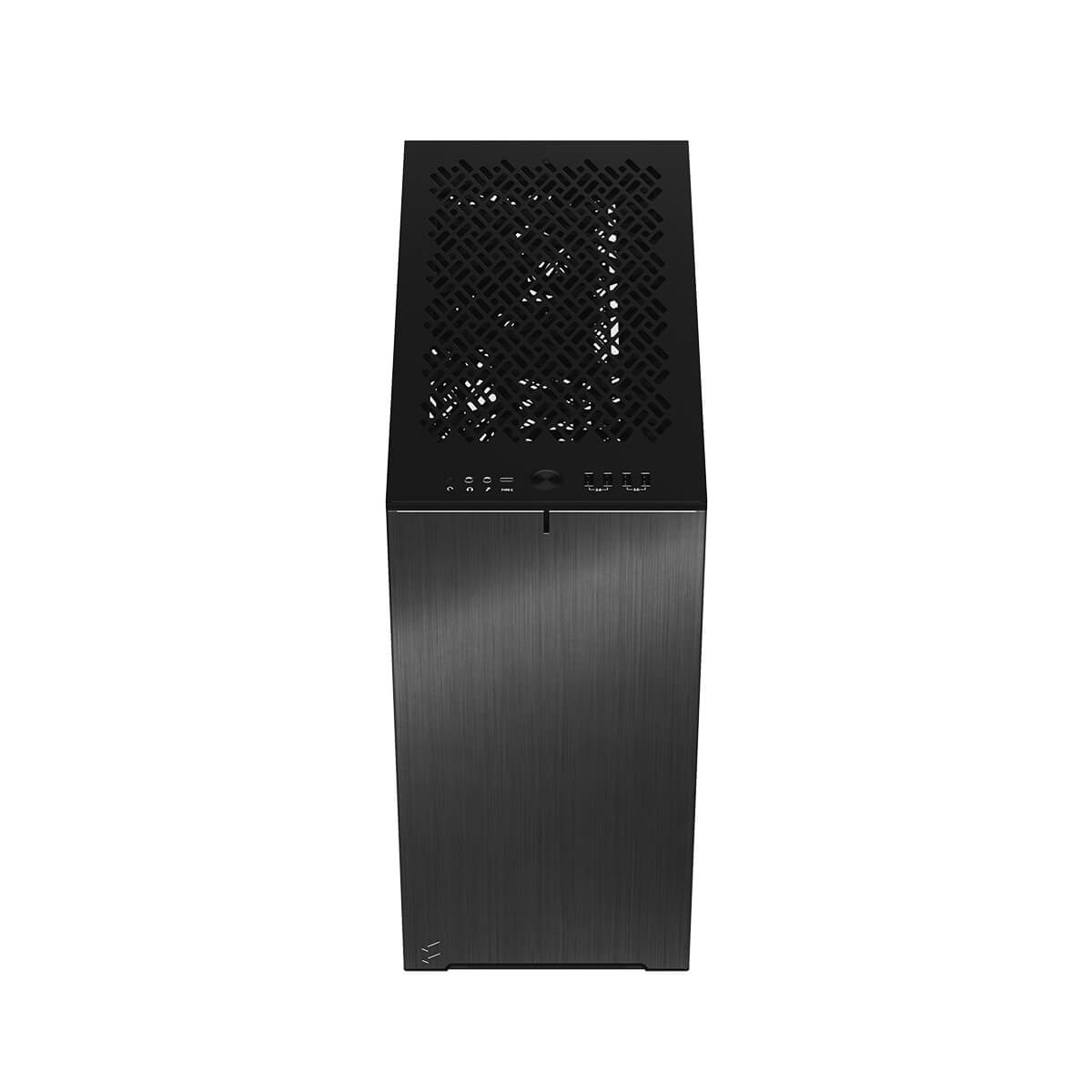

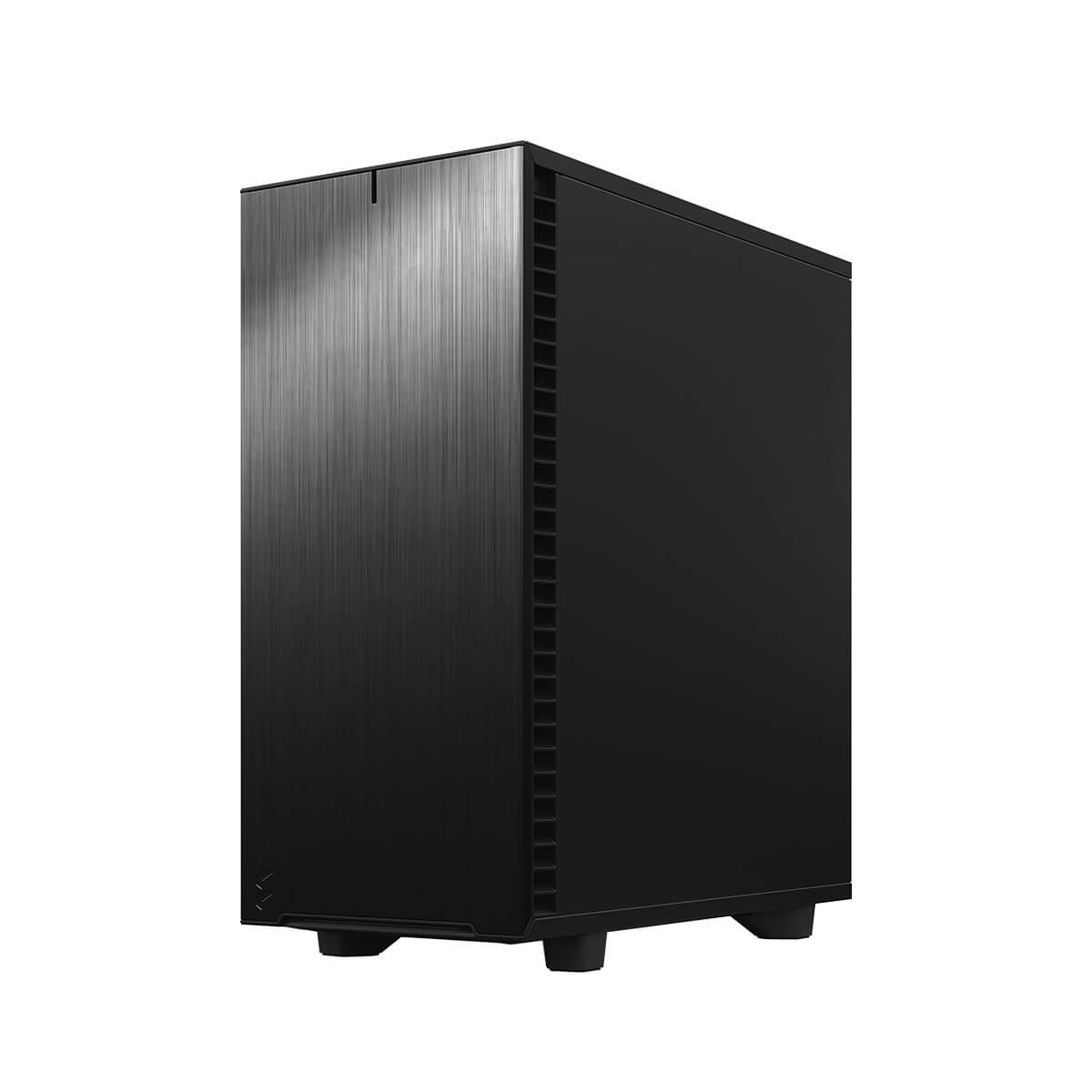

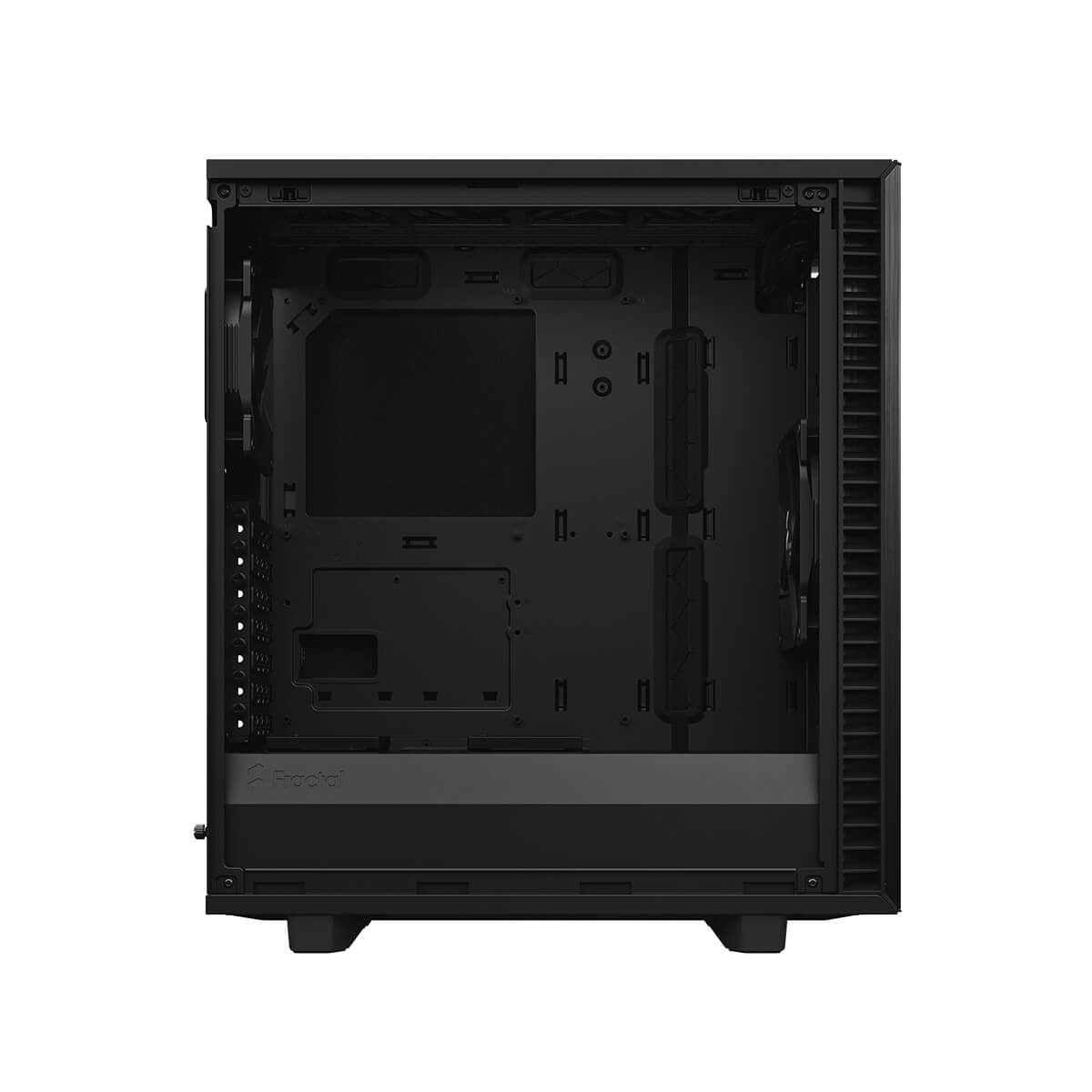

Fractal Design Define 7 Compact Mid Tower Case - Black Light Tint

Fractal Design  |  SKU 35137  |  MPN FD-C-DEF7C-03
$249.00

In stock at Computer Lounge

Warranty and Support

Warranty: 2 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Open and interchangeable

Swap in the ventilated panel to add three filtered fan positions; remove the entire top to build and route with zero hindrance.


Superior airflow by design

Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans. Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions. Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access.


Open layout for massive headroom

You’ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX.


Versatile new Multibracket

The included Multibracket lets you convert

any unused fan position to an HDD, SSD or pump mount.

Superlative storage

Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts.


Exceptionally silent

Silence optimized construction with industrial sound-damped front, top, and side panels.


Nexus+ 2 fan hub

Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans.


Cable management

Integrated cable guides with Velcro ties simplifies cable management behind the board.


Type-C interface

Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps.

Specifications

3.5"/2.5" drive mounts2
Dedicated 2.5" drive mounts2 trays included, 4 positions total
Expansion slots7
Front interface1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, 2x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts7x 120 or 4x 140 mm and 2x 120 mm
Front fan3x 120 or 2x 140 mm, (1x Dynamic X2 GP-14 included)
Top fan2x 120 or 2x 140 mm
Rear fan1x 120 mm, (1x Dynamic X2 GP-12 included)
Bottom fan1x 120 mm (requires removal of HDD cage)
Dust filtersTop, 2x front, full length bottom
Fixed velcro strapsYes
Cable routing grommetsYes
Captive thumbscrewsHDD brackets, SSD brackets, PSU bracket
Left side panelIndustrial sound-damped steel or Tempered Glass
Right side panelIndustrial sound-damped steel
Motherboard compatibilityATX / mATX / Mini-ITX
Power supply typeATX
PSU max length200 mm total (165 mm w/ HDD cage and front fan)
GPU max length341 mm (360 mm without front fan)
CPU cooler max height169 mm
Front radiatorUp to 360/280 mm (max 145 mm width)
Top radiatorUp to 240 mm
Rear radiator120 mm
Bottom radiator120 mm (requires removal of HDD cage)
Cable routing space17-28 mm
Case dimensions (LxWxH)427 x 210 x 474 mm
Case dimensions w/o feet/protrusions/screws415 x 210 x 451 mm
Package dimensions (LxWxH)536 x 310 x 521 mm
Net weightSolid version: 8.61 kg, TG Version: 8.76 kg
Package weightSolid version: 10.87 kg, TG Version: 11.04 kg
Volume39.3 liters
Package contentsDefine 7 Compact, Accessory box, User manual, Ventilated top panel
