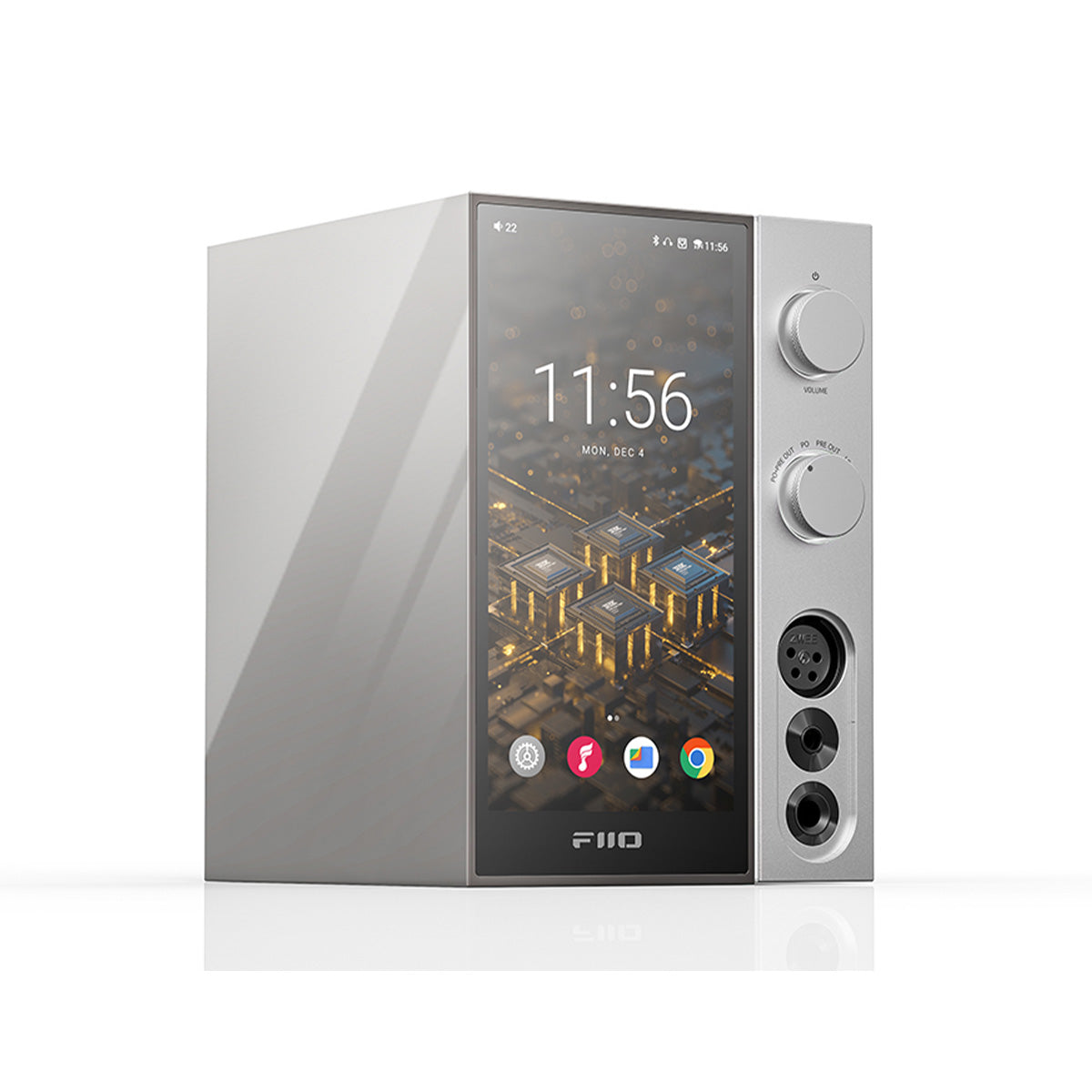

FiiO R9 Hi-Res Streaming Amplifier Desktop Music Player System

FIIO R9 flagship debut

• Flagship all-in-one digital media streamer R9
• Integrates flagship-level transmission/decoding/headphone amp/jukebox/preamp functionality into one device
• Equipped with an unimaginable level of inputs and outputs + ten operating modes
• Featuring Android open OS + 6-inch FHD + Portrait screen
• Using a classic metal bicolor design as in luxury cars
• Thoroughly upgraded inside and out, to take your desktop HiFi experience to the next level

8 - Channel ES9038PRO DAC x 2

With the ES9038PRO having been featured in the M17, Q7, K9 Pro SS and MS15S, we no w have much experience with the chip to enable it to push audio quality to new heights. The R9 employs two ES9038PRO DACs, one each for the left and right channels. Each DAC chip contains 8 independent D/A converters, and these 8 channels are connected in parallel for a fully differential output. The result is precise, clear yet full sound.

Next-gen THX AAA 788+ headphone amplifier

Inside the R9 is an 8-channel THX AAA 788+ headphone amplifier design. These headphone amps, feb by a high-voltage power supply, are connected in parallel via 2x2 groups for a four-way fully balanced design, greatly enhancing transient performance. The comb-shaped heat sinks and optimised circuit layout dissipate heat efficiently, ensuring the R9 is capable of continuous and stable high-power output. The result is that the R9 is capable of outputting 7300mW per channel at 32Ω, 102% higher than that of R7

Fully-connected HiFi Audio Architecture Five Gain Levels

The R9 boasts impressive audio performance thanks to its five-stage audio architecture with carefully-crafted IV, LPF, gain, pre-amplification, and current expansion stages. An important part of the audio circuit is the OPA2211 op-amps, which are made through the silicon-germanium (SiGe) CMOS manufacturing process that ensures the chip’s excellent performance. The variable gain and variable power supply voltage design result in 5 levels of gain, allowing you to exactly dial in your desired listening volume. No matter if you are using IEMs or hard-to-drive headphones, you will get a great listening experience.

Carefully-designed PCB Every Inch Considered

The R9’s internal power supply, digital portions, DAC, and headphone amplifier all reside on separate boards. Additionally, there are metal shields to fully isolate the DAC and THX headphone amp sections. THese four major parts of the audio circuit are separated into independent boards to avoid crosstalk, which further ensures that the audio signals being processed and their output are accurate, clean, and retain their dynamics.

Finely tuned power supply DC/AC dual power supplies

Built into the R9 is a new 40W low-noise, high-efficiency, long-lasting industrial-grade power supply, supporting an ultra-wide range of input voltages (85-305VAC) and capable of operating under a wide range of temperatures (-40°C~85°C) as well as rated for lasting 500,000 hours. The R9 can also be powered by an external DC power supply*, allowing you to pair the R9 with a high-performance linear power supply that offers its own sound. Additionally, when the R9 is paired with an external AC power supply, you can choose to enable the "Ground Lift” functionality to reduce crosstalk for purer sound.

Separate analog and digital power supplies

The R9 features separate power supplies for the digital and analog portions of the audio circuit, avoiding crosstalk between the digital/analog parts and achieving better isolation and shielding between the two portions.

Finely-divided analog portion

The analog portion of the audio circuit features a finely-divided multiple-stage power supply, including digital-to-analog conversion, LPF, pre-stage processing, amplification drive and other power supply stages. Each power supply stage uses many precision LDOs for secondary voltage stabilization, further ensuring a clean and stable supply of power.

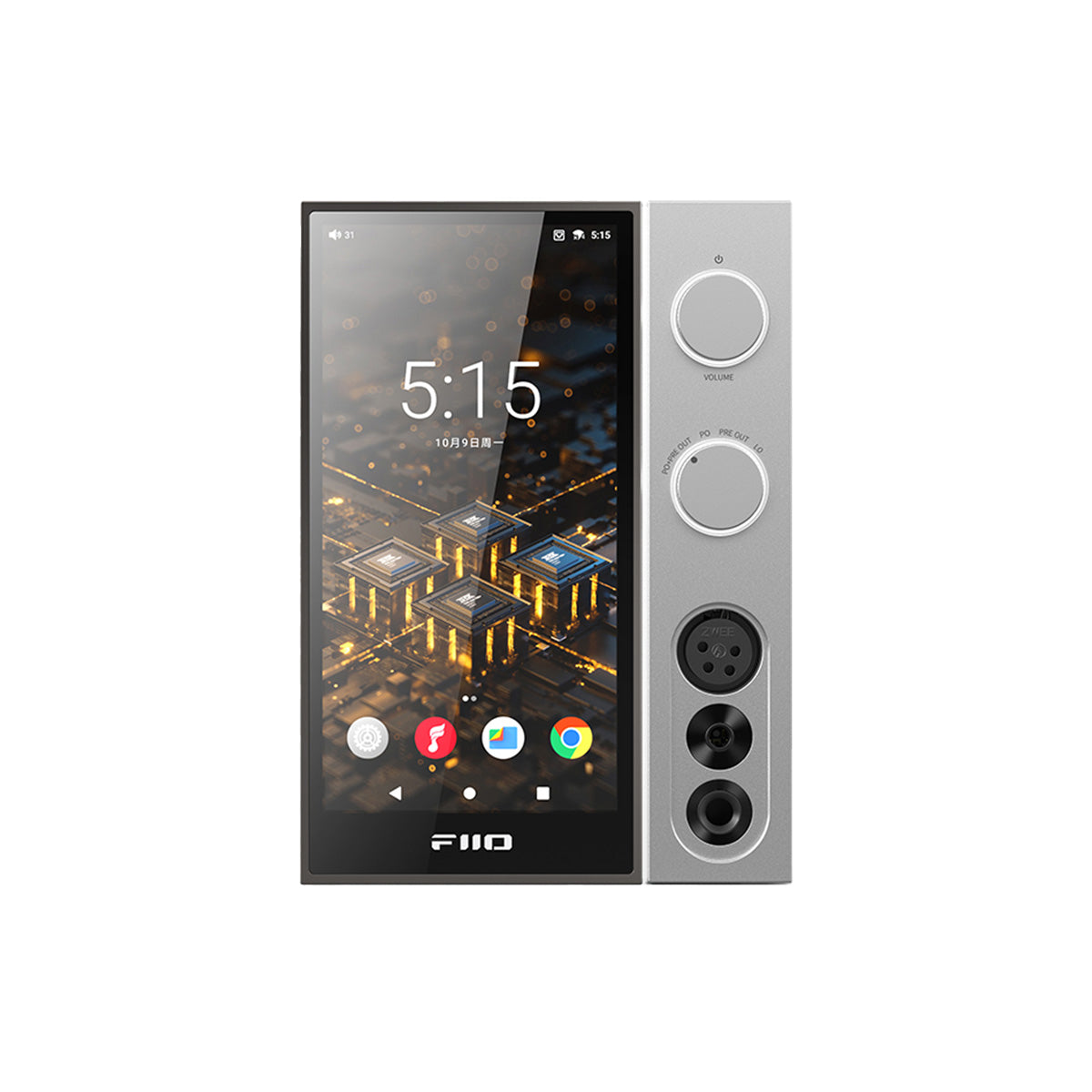

Large 6-inch HD screen Taking your experience to new "heights"

The R9 features a tall 6-inch 2160*1080 vertical (portrait) screen combined with the open Android OS for a thoroughly intuitive experience. The open Android OS not only allows the user to freely install and use third-party streaming music and other apps, it is also thoroughly refined so that the user does not have to worry about app compatibility problems.

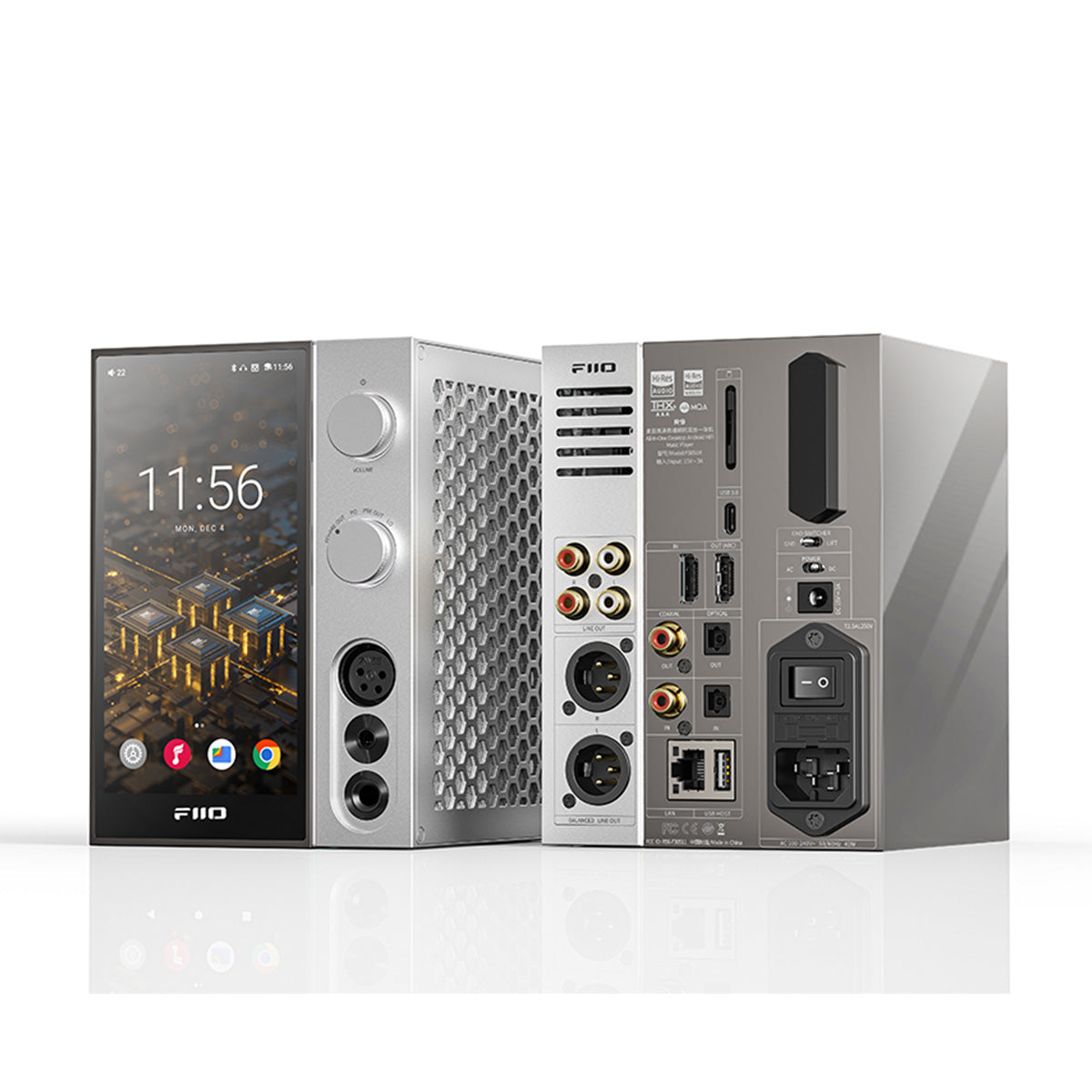

All kinds of connectors Almighty HiFi audiovisual center

The unimaginable, sheer number of inputs and outputs allow the R9 to become the new center of your desktop HiFi setup.

Four output modes All within reach of one knob

Let the R9 become the center of your HiFi desktop setup, connecting to both headphones and speakers simultaneously. You can seamlessly switch

between headphones for speaker outputs with just a twist of a knob, making it more convenient for you to listen to whichever is more comfortable.

Classic metallic bicolor scheme as in luxury cars Befitting of a flagship

The R9 adopts a unique metallic dual color scheme inspired by luxury cars, presenting an extraordinary flagship texture. The body-colored 4H PET is attached to its body as a protective layer that also helps to prevent fingerprints and scratches from building up on it. Additionally, the high-density metal body is more robust and stable, helping to effectively reduce

deformation and minimize degradation in sound performance caused by vibrations, thus ensuring stable delivery of high- quality music.
