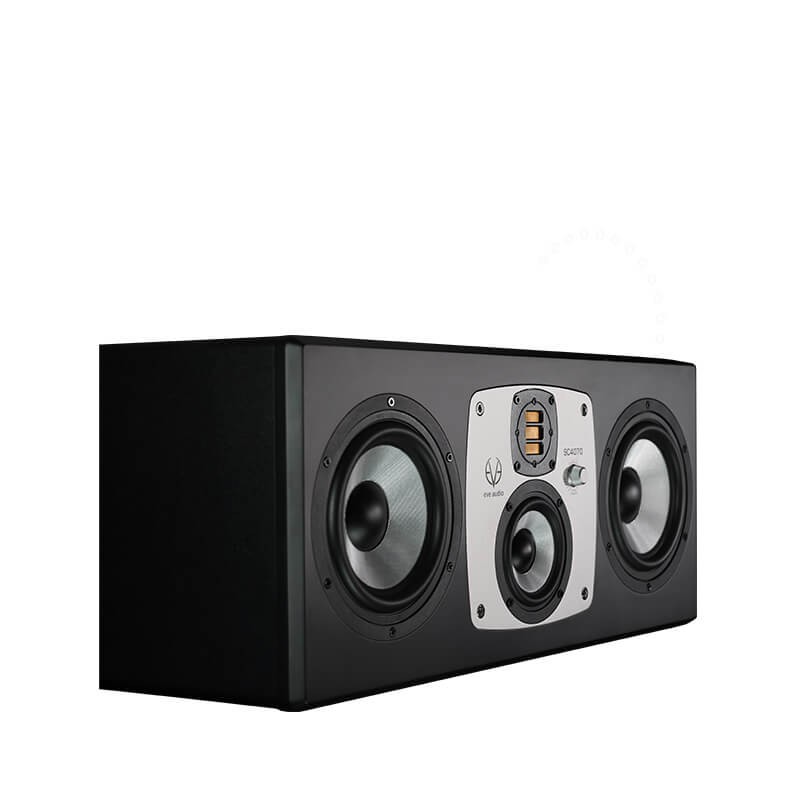

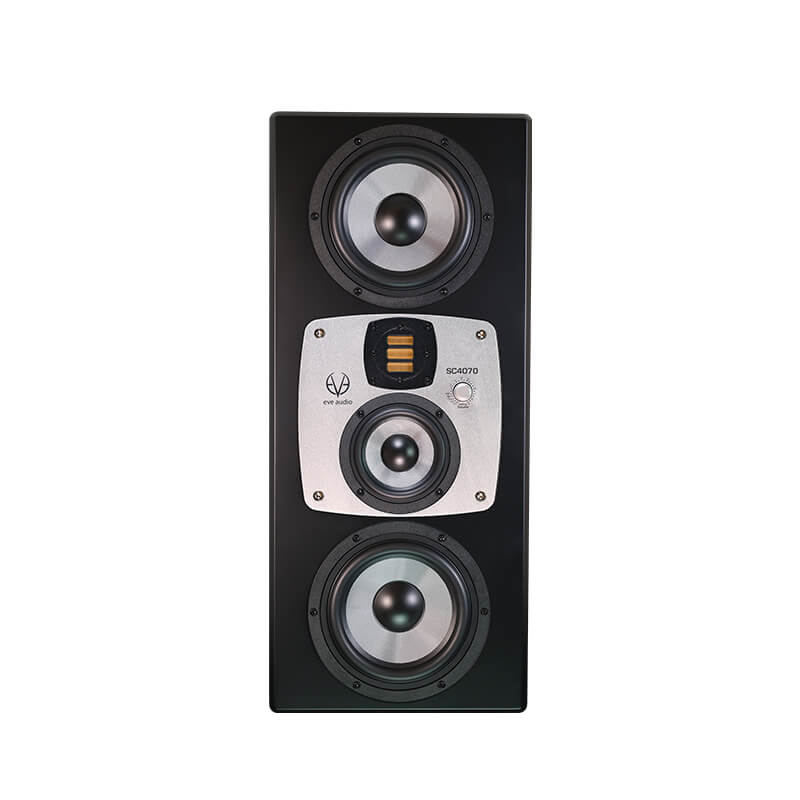

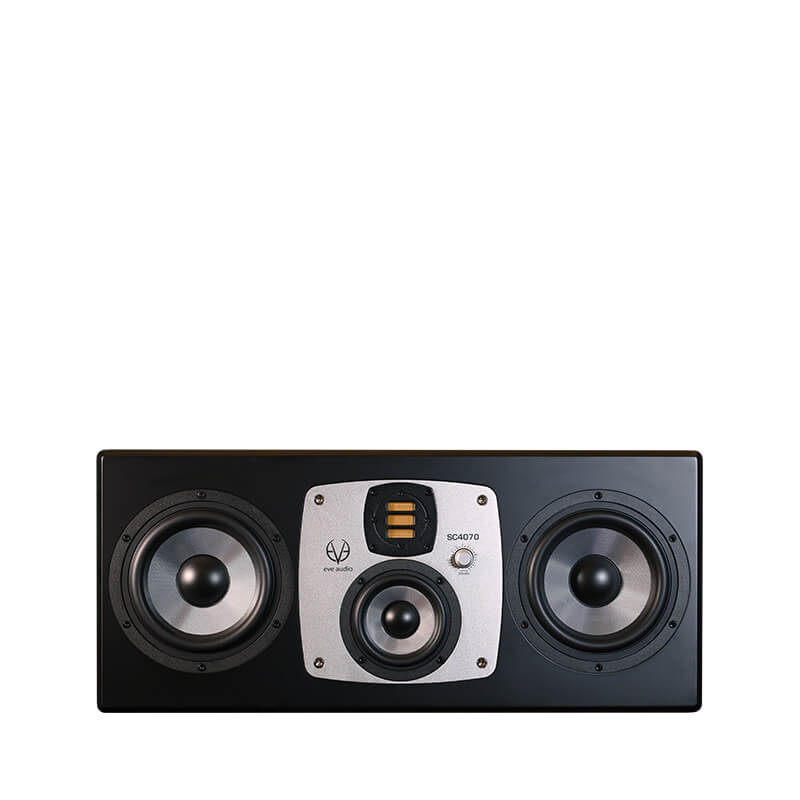

EVE Audio SC4070 6.5" 4-Way Professional Studio Monitors

TECH TALK

Our 4-way monitoring system SC4070 features two 6.5" SilverCone woofers with a specially made 1.5” voice coil to extend the bass frequency response down to 32Hz. Both woofers work simultaneously up to 280Hz. An especially developed 4" SilverCone midrange unit joins these high quality bass drivers that endows these speakers with a greater linear excursion and clear and accurate midrange. The bass and mid woofers in our SC4070 feature our very low distortion copper cap magnet system. The combination of our unique glass fibre coated diaphragm and a very stiff but light honeycomb structure reproduces sound spectacularly detailed and clear. Our proprietary Air Motion Transformer AMT RS3.1 completes SC4070. The core of those AMT tweeters is a folded membrane that works in a powerful magnetic field of a large neodymium magnet. Due to design changes like new materials, improved inner damping construction and a more efficient magnet field SC4070 delivers a higher sound pressure level with virtually no distortion even at high output levels. This AMT RS3.1 can achieve to reproduce a frequency response up to 40 kHz. Each chassis in SC4070 is fitted with its own PWM amplifier for total short-term output power of 1000 W. With a max output level of 126dB (SPL @ 1m, half space, pair) mixes can be judged precisely, whatever their intended output level is. The SC4070 combines perfectly powerful bass with very transparent midrange and crystal clear but silky-smooth high frequencies and is predestined to be the perfect work piece for mid to large size control rooms where quality and consistent power output are important variables. As with every other EVE Audio studio monitor you get both balanced XLR input and unbalanced RCA input for greater convenience.

DSP / SMART-KNOB

All EVE Audio monitors feature a high-resolution DSP electronics. A high-quality analog/digital converter from BurrBrown (24bit/192kHz) converts the analog input signal supplied via RCA or XLR. The DSP provides latency-free filtering while protecting tweeter and woofers against overload across the entire frequency range. When switched on, the volume of the monitor increases slowly to leave enough time to reduce the source volume if the input signal is too loud. Adjustments to the acoustic environment can be made via the front rotary/pressure encoder, the SMART-knob with rotating LED ring. This knob allows the levelling of system volume as well as the adjustment of filters for room variables (low shelf, mid eq and high shelf filters). All settings are displayed on the LED ring, providing instant information about the selected values. The brightness of the LED ring can be adjusted for dark studios or video applications. High-quality Class D amplifiers complete the system and deliver enough power to the demands of modern music production. Selected volume and/or filter settings can be independently fixed with DIP-switches that are positioned on the rear of the amplifier to prevent unauthorised or unintentional adjustments.

BASS PORT DESIGN

The rear-facing bass reflex channel is, as usual with EVE Audio, designed for low airflow noise and enhances the powerful and precise bass reproduction.
