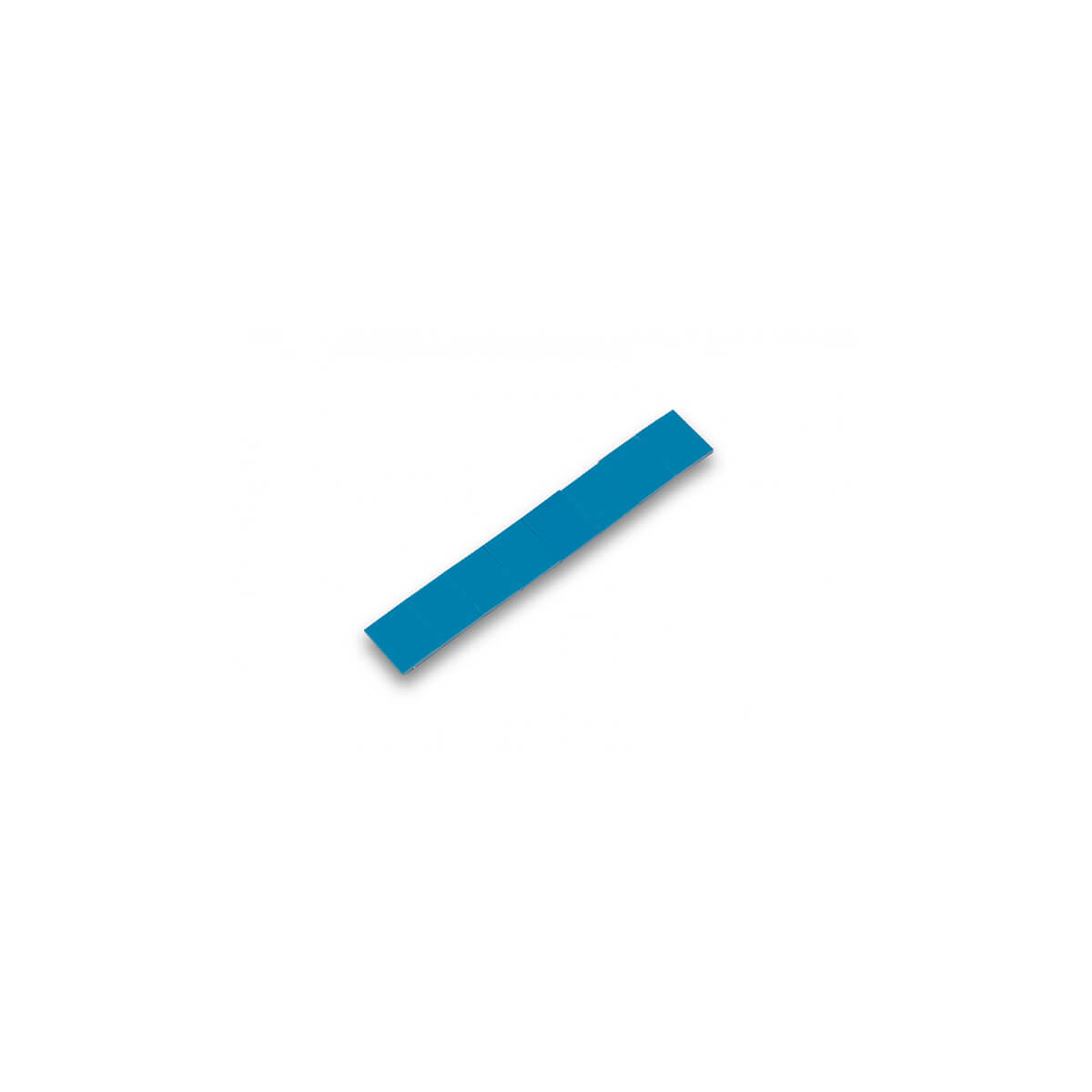

EKWB Thermal PAD E 1 0mm - (RAM 8X)

EKWB  |  SKU 37682  |  MPN 3830046996695

Out of Stock

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Description

Details

Replacement thermal conductive pad for use with EK water blocks. Along with thermal conductivity, it provides great elasticity and elongation with natural tack on one side. Can be used multiple times, thus offering great reworkability and electrical insulation.


Thermal pads are used to fill air gaps caused by imperfectly flat or smooth surfaces which should be in thermal contact. Please consult your installation manual prior purchasing to see what size and thickness is correct for your EK water block.


  • Thermal conductivity: 3.5 W/mK (+/-0.35)
  • General dimensions: Type E (100 x 16 mm) - precut to 8 pieces
  • Thickness: 1.0mm
  • Working Temperature: -55 ~ +200°C
  • Hardness: 5 (Shore A)
  • Elongation: 100%
  • Specific Gravity: 2.6 g/cm3 (+/- 0.2)
  • Flame Rating: V-0
  • Dielectric Breakdown Voltage: >4kV
  • Volume Resistance: > 10^11 Ohm-m
  • Main ingredient: Aluminum oxide (Al2O3) 85-95%


PLEASE NOTE:

The surface of the pad is slightly sticky and is equipped with a double sided protective foil when shipped. This foil must be removed prior to installation.

Thermal pads may need to be trimmed to desired size (as per installation manual for each EKWB product).

This thermal pad has natural tack on one side only.
