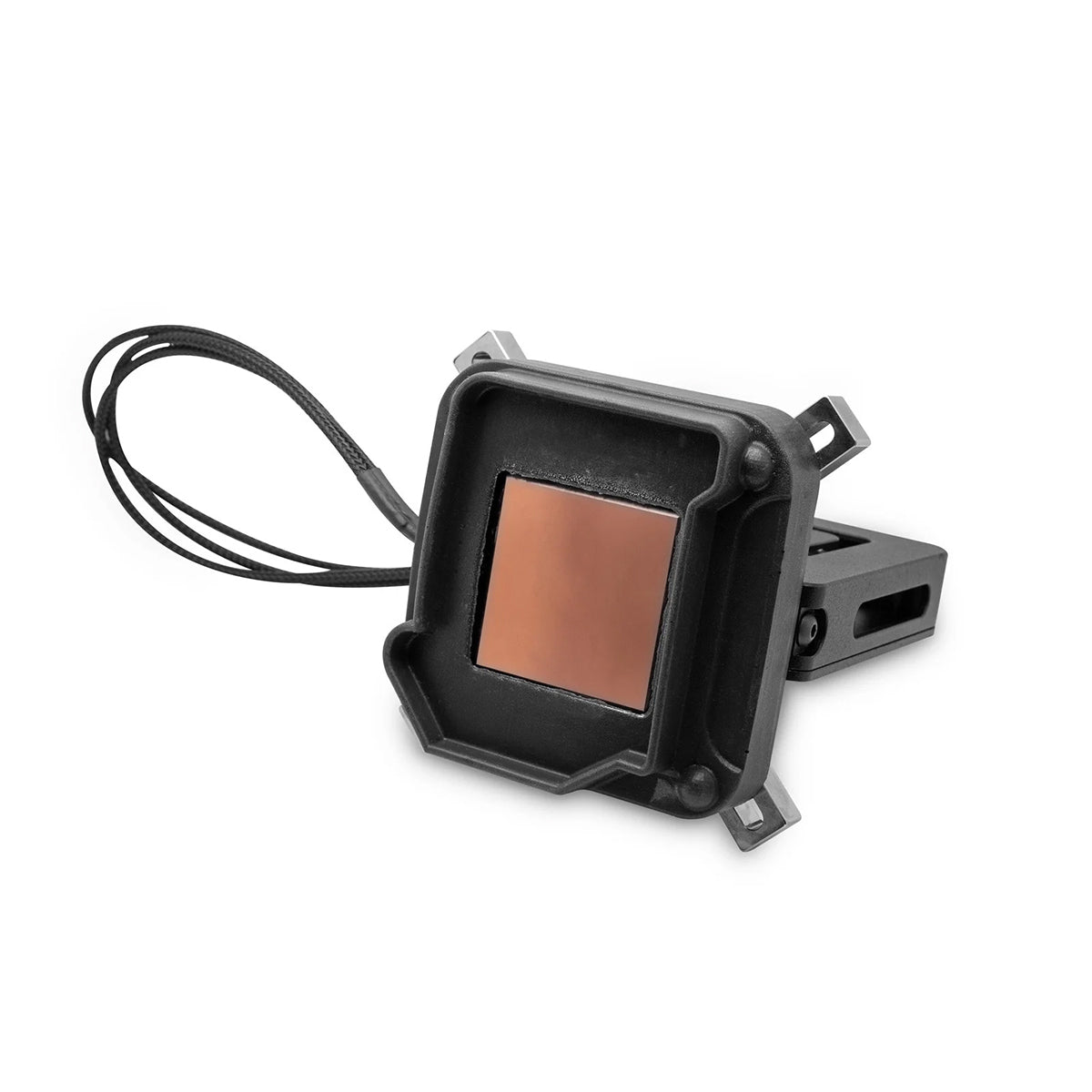

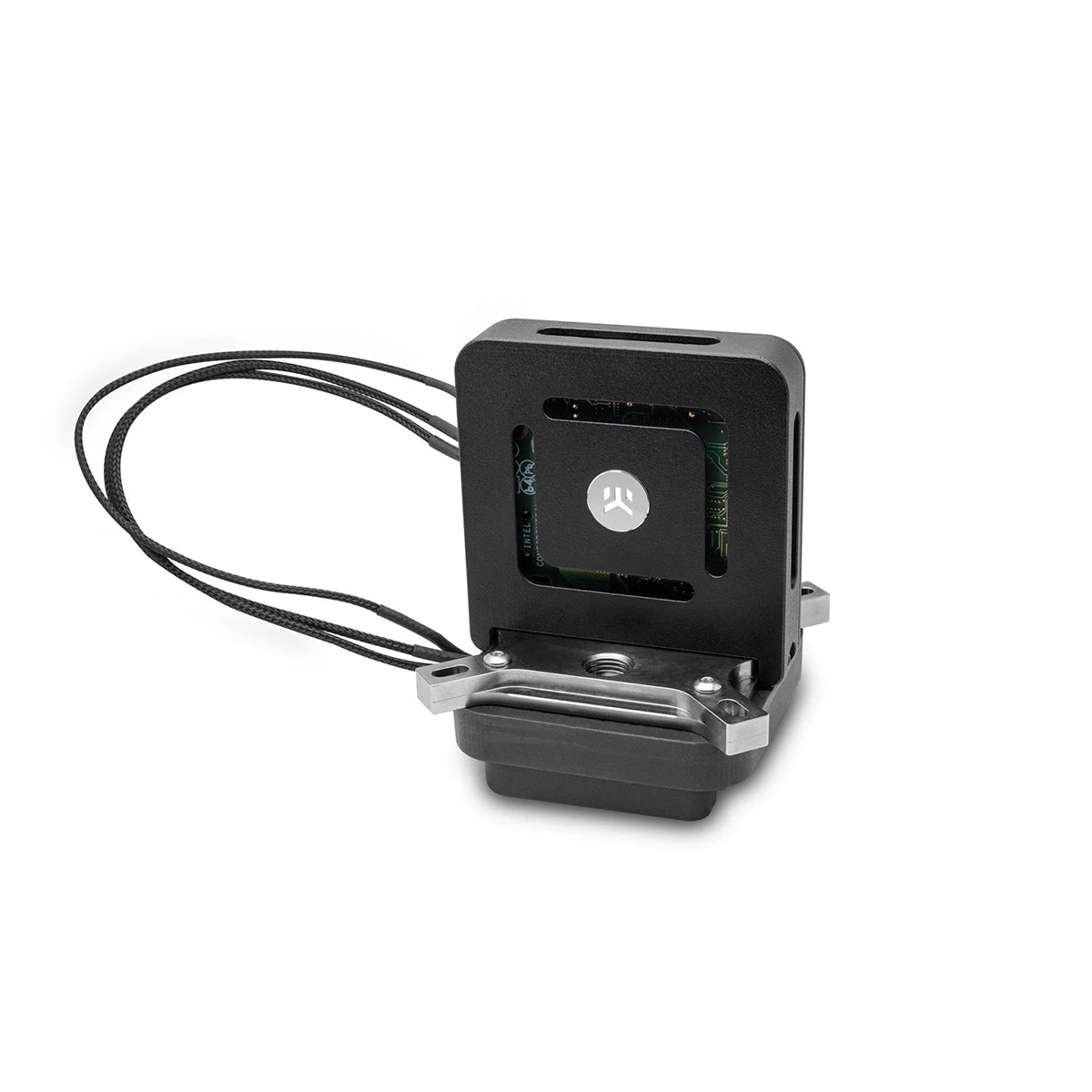

EKWB EK-QuantumX Delta TEC EVO - Copper + Nickel

Details

EK-QuantumX Delta TEC EVO is the 2nd generation of cryo-cooling water block that is made in collaboration with Intel®. It is a unique cooling solution for enthusiasts who are seeking consistent system performance and ultimate overclocking on unlocked 11th and 10th Gen Intel® Core™ desktop processors. It brings in further improvements to the design, most notably an even more powerful TEC plate allowing over 50W more of cooling power. The TEC plate is now soldered to the bottom of the water block that goes over the CPU, improving contact and transfer of cooling to the block and eventually the CPU.

Quantum Xtreme

Delta TEC water blocks are like no other. Hence, they bear the flag of special products that are ought to push the limits – the QuantumX. The water block itself features a robust all-metal design for extreme conditions with an insulation shroud that isolates the water block cold plate from the environment, impeding condensation. The cold plate is CNC-machined out of high-purity electrolytic copper, which enables high thermal performance. A large surface area, covered with 51 cooling fins, transfers the heat away from the powerful, purpose-made TEC plate.

Built upon a purpose-designed large surface flow-through cooling engine together with Intel Cryo Cooling Technology, bridging aesthetic uniformity and near-silent operations with technological advancements in thermal solutions, the EK-QuantumX Delta TEC EVO is an exceptional application of cooling the CPU with sub-ambient temperatures by utilizing a Thermoelectric Cooler (TEC) plate while continuously monitoring and adjusting temperatures dynamically, achieving an ideal operating environment for sustained gaming performance. 

How does this EK-QuantumX Delta TEC EVO water block work?

Liquid coolers are unable to reach temperatures below ambient (room) temperature, but the EK-QuantumX Delta TEC is cutting-edge, as it actively cools the CPU to sub-ambient temperatures while extracting and dissipating the heat generated from the TEC plate through the traditional liquid cooling loop.  While the TEC plate cools the CPU, the TEC plate itself is cooled entirely by your custom liquid loop.

Doesn't sub-ambient cooling cause condensation?

The EK-QuantumX Delta TEC utilizes an innovative two-pronged approach to mitigate thermal condensation, a byproduct that has plagued previous attempts of sub-ambient cooling. The cooler features a compact integrated insulation shroud that isolates all exposed cold surfaces from the environmental conditions inside the PC, while the Intel Cryo Cooling Technology continuously monitors and adapts to those conditions to minimize condensation risk generated by the cooling process.

Warning:

Given that the CPU is cooled by the EK-QuantumX Delta TEC directly to achieve low temperatures, the rest of your liquid cooling loop will be under stress from the TEC plate. Do not use your CPU temperatures as a baseline for your Fan or Pump speeds! It is best to monitor the coolant temperature or set the fans and pump at a fixed speed level!

To keep your warranty please use licensed Intel software and follow the manual.

Delta TEC is not designed for ALL CORE MAX frequency under heavy load, but it's intended for a lighter load like gaming and ONE CORE MAX boost. The TEC is not suitable for benchmarking with software like Prime95 that heavily loads all cores on the CPU.

Technical Specifications:

- Power connector: 8-pin PCI-E

- Connection with PC: internal USB 2.0

CPU socket compatibility:

- Intel LGA1200

For motherboard and CPU compatibility please consult "Is my PC compatible" below.

Enclosed:

- EK-Quantum Delta TEC EVO water block

- EK-QuantumX Delta TEC EVO controller

- M4 PVC Washers (4 pcs)

- Screw (4 pcs)

- Coiled Spring (4 pcs)

- Backplate (1 pcs)

- Sticker (1 pcs)

- Thumb Nut (4 pcs)

- Thermal Paste(1 pcs)

- EK-Cable 5-Pin Motherboard (F) to Micro-USB (M) 50cm (1pcs)

Made in Slovenia - Europe!

PLEASE NOTE:

The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated water block! EK is offering a selection of such products in the coolant section.

This product should NOT be installed with any aluminum EK Fluid Gaming parts!

The latest BIOS update is required to be able to run the product successfully.

The water block is compatible only with LGA 1200 Z590 and Z490 Socket based motherboards.

Chek the compatibility list before purchasing the product.

Intel TEC software supports only Windows 10.
