EKWB EK-Quantum Vector TUF RTX 3080/3090 D-RGB - Nickel + Plexi

EKWB  |  SKU 35995  |  MPN 3831109832608

Out of Stock

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Description
Details

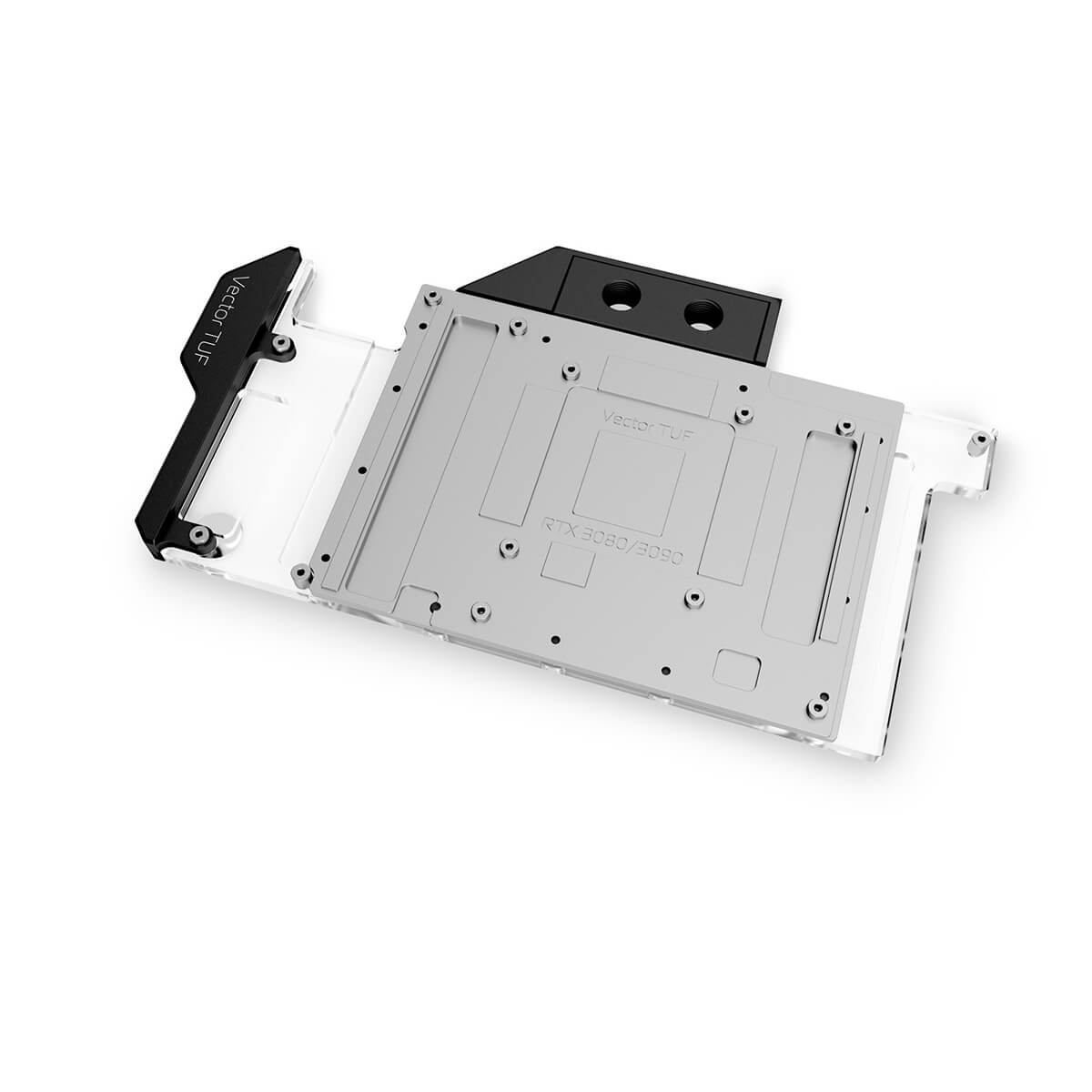

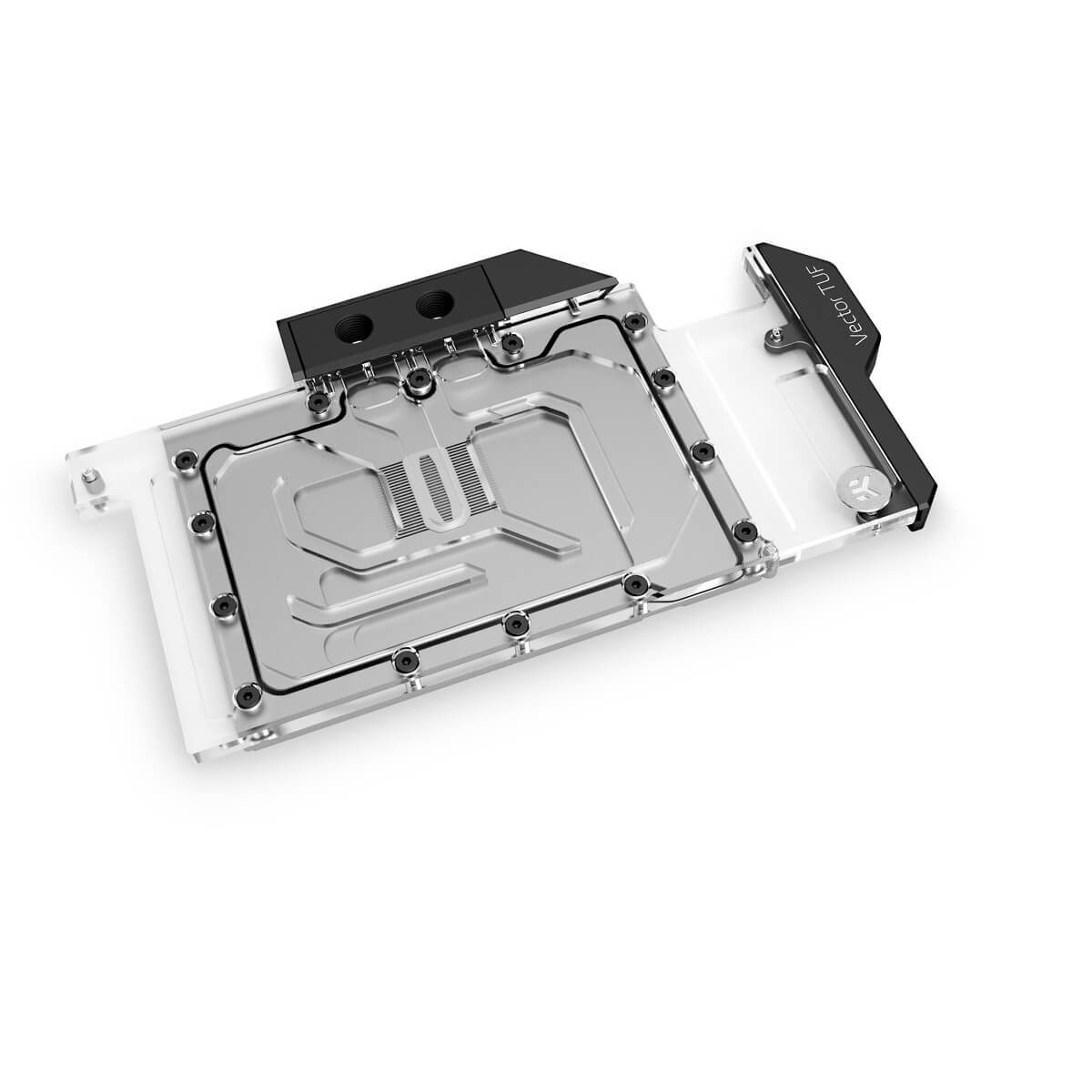

This is the 2nd generation Vector GPU water block from the EK® Quantum Line, designed for ASUS® TUF RTX 3080 and 3090 graphics cards based on the latest NVIDIA® Ampere™ architecture. For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.

An EK water block for TUF RTX 3080 and 3090
EK-Quantum Vector TUF 3080/3090 D-RGB water block is compatible with TUF RTX 3080 and 3090 graphics cards. The Vector water block actively cools the GPU, VRAM (on the front), MOSFETs, and chokes in the VRM (voltage regulation module). The water block contacts every single inductor in the VRM area to suppress any potential coil whine.

These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. Additionally, this new design allows the copper cold plate to extend almost the entire length of the PCB.

The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.
Backplate for the EK-Quantum Vector TUF 3080/3090 water block
EK recommends the purchase of a retention backplate, especially for the 3090 models of graphics cards. The backplate improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core, VRAM on the 3090 cards, and backside of the printed circuit board VRM section.

Enclosed:
- EK-Quantum Vector TUF RTX 3080/3090 D-RGB series high-performance water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)

Technical Specification:
- Dimensions: (LxHxW) - 267x148x16.5mm

Made in Slovenia - Europe!

D-RGB lighting on EK-Quantum Vector TUF RTX 3080/3090 D-RGB water block

The aesthetic corner end-piece is housing the addressable D-RGB LEDs. This water block boasts a total of 6 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.


Backplate for the EK-Quantum Vector TUF 3080/3090 water block

EK recommends the purchase of a retention backplate, especially for the 3090 models of graphics cards. The backplate improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core, VRAM on the 3090 cards, and backside of the printed circuit board VRM section.


Enclosed:

- EK-Quantum Vector TUF RTX 3080/3090 D-RGB series high-performance water block

- Mounting mechanism with screw-in brass standoffs

- Necessary mounting screws, nuts, and washers

- 2x Nickel plated brass plug G1/4”

- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)

- Thermal pads

- Thermal grease EK-TIM Ectotherm (1g)


Technical Specification:

- Dimensions: (LxHxW) - 267x148x16.5mm


Made in Slovenia - Europe!

PLEASE NOTE:

Due to an immense variety of fittings/barbs available on the market and no prescribed standards, we guarantee compatibility only for connectors bought from our website.

Factory backplates are not compatible with this water block!

Check your toolbox if you are missing this special Hex adapter for some of the screws.

This product should NOT be installed with any aluminum Fluid Gaming parts!

The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel plated water block! EK is offering a selection of such products in the coolants section.


Compatible Graphic Cards

ASUS® TUF RTX 3080 and 3090 graphics cards
