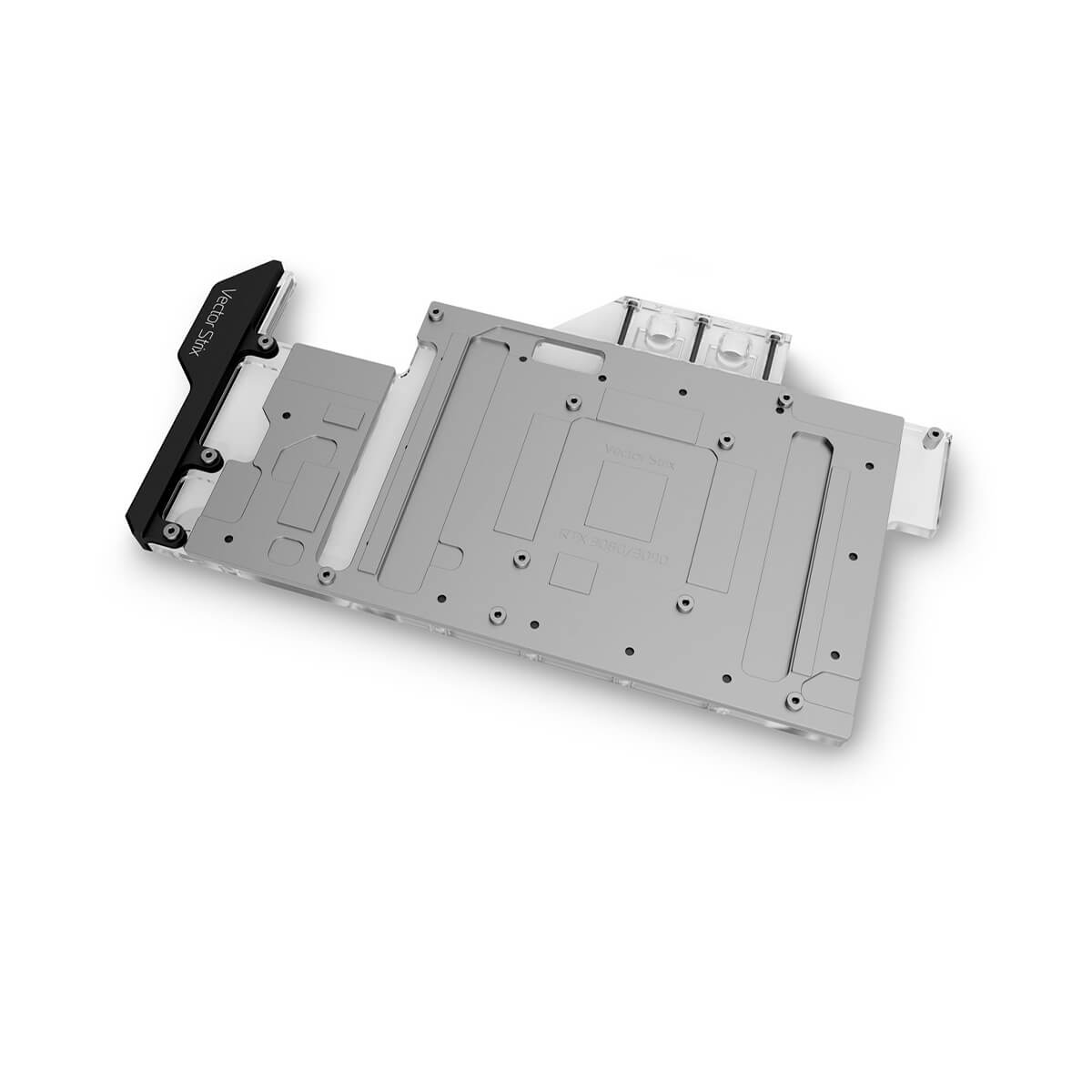

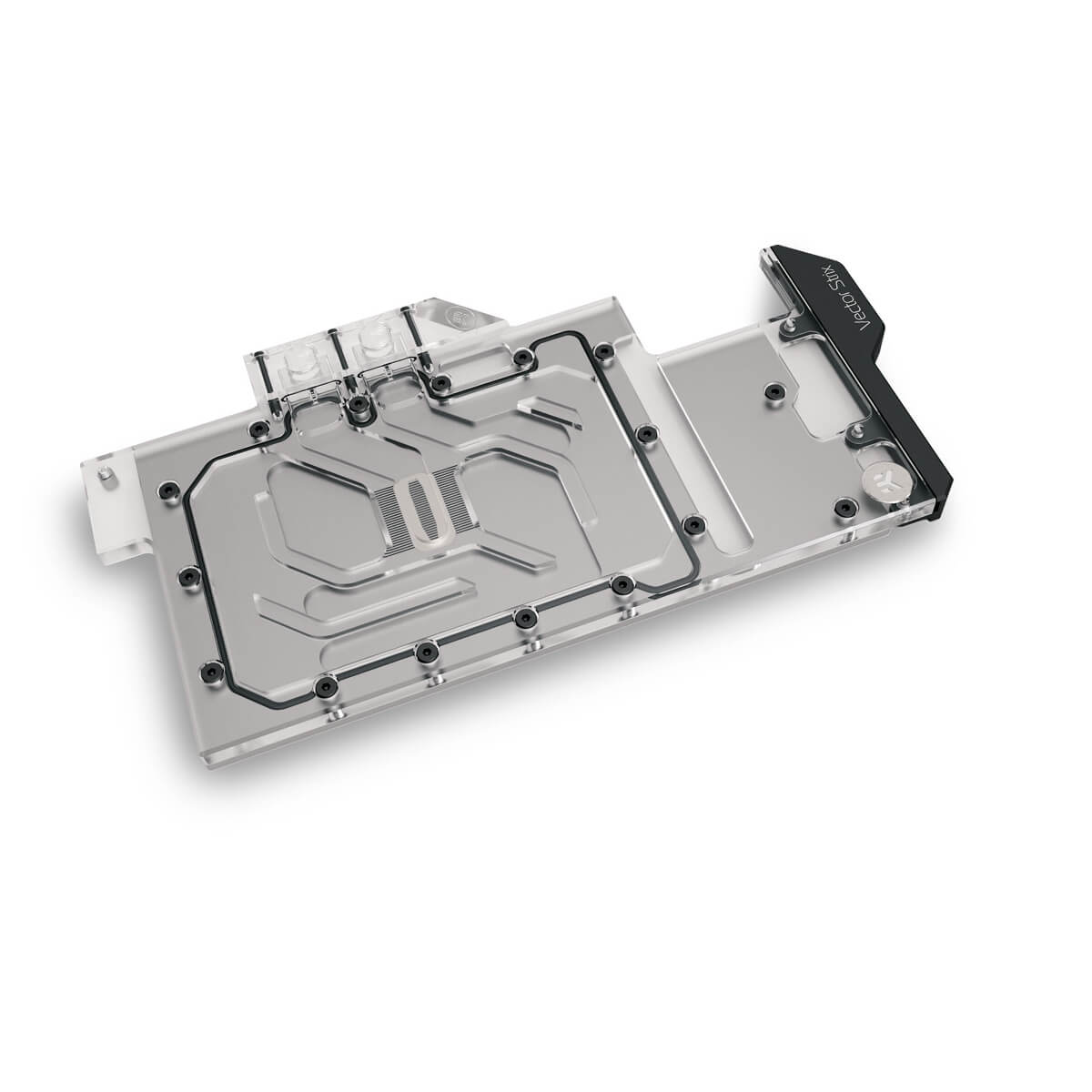

EKWB EK-Quantum Vector Strix RTX 3080/3090 D-RGB - Nickel + Plexi
Out of Stock
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Description
Description
The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.
Fin array is populated by 28 microfins with 0.6mm wide microchannels that provide optimal cooling performance, without unnecessary flow restrictions or clogging hazards.
The base of the block is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable black POM acetal. These 2nd generation Vector GPU water blocks also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure.
D-RGB lighting on EK-Quantum Vector Strix RTX 3080/3090 D-RGB water block
The aesthetic corner end-piece is housing the addressable D-RGB LEDs. This water block boasts a total of 6 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.
Backplate for the ROG Strix 3080/3090 water block
EK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core, VRAM on the 3090 cards, and backside of the printed circuit board VRM section.
Enclosed:
- EK-Quantum Vector Strix RTX 3080/3090 D-RGB series high-performance water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)
PLEASE NOTE:
This block is made for reference PCB 3080 and 3090 cards. Founders Edition does NOT have a reference PCB.
Due to an immense variety of fittings/barbs available on the market and no prescribed standards, we guarantee compatibility only for connectors bought from our website.
Factory backplates are not compatible with this water block!
Check your toolbox if you are missing this special Hex adapter for some of the screws.
This product should NOT be installed with any aluminum Fluid Gaming parts!
The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel plated water block! EK is offering a selection of such products in the coolants section.
Compatibility
Most reference design (not Founders Edition) GeForce RTX 3080 and 3090 graphics cards.
Most reference design (not Founders Edition) GeForce RTX 3080 and 3090 graphics cards.
Current Compatibility List for EK-Quantum Vector RTX 3080/3090 Water Blocks:
Gainward GeForce RTX 3080 Phoenix
Gainward GeForce RTX 3080 Phoenix GS
Gainward GeForce RTX 3090 Phoenix
Gainward GeForce RTX 3090 Phoenix GS
GALAX GeForce RTX 3080 EX Gamer
GALAX GeForce RTX 3090 EX Gamer
KFA2 GeForce RTX 3080 SG 10GB (38NWM3MD99NK)
KFA2 GeForce RTX 3090 SG 24GB
Palit GeForce RTX 3080 GamingPro (NED3080019IA-132AA)
Palit GeForce RTX 3080 GamingPro OC (NED3080S19IA-132AA)
Palit GeForce RTX 3090 GamingPro (NED3090019SB-132BA)
Palit GeForce RTX 3090 GamingPro OC (NED3090S19SB-132BA)
PNY GeForce RTX 3080 10GB XLR8 Gaming EPIC-X RGB Triple Fan Edition (VCG308010TFXPPB)
PNY GeForce RTX 3090 24GB XLR8 Gaming EPIC-X RGB Triple Fan Edition (VCG309024TFXPPB
Made in Slovenia - Europe!
