EKWB EK-Pro Quick Disconnect Manifold 2CPU 2GPU kit

The EK-Pro manifold and CPC quick disconnect coupling (QDC) kit is the most efficient way to make your professional liquid cooling loop easily serviceable and upgradable with minimal downtime. The kit consists of all necessary components to connect up to two CPU and two GPU water blocks to the rest of your liquid cooling loop in a parallel or semi-parallel setup.

The EK-Pro manifold system, combined with QDCs, enables users to easily add or remove water blocks to the cooling loop without draining the entire system. This prevents downtime for workstations and other professionally used computer setups.

It features a full acetal body, stainless steel end caps, and nickel-plated brass plugs. Pre-assembled, out of the box, it is set up to be used in a semi-parallel setup. Please follow the user manual for detailed information on connectivity options. The kit contains a universal manifold mounting system that can be used in various scenarios. The steel mounting plate is equipped with 120mm and 140mm fan mounting patterns found in almost all computer and workstation cases.

CPC’s dripless quick disconnect couplings (QDCs) are made of ultra-durable PPSU and are compatible with most industry standard coolants and cooling loop materials. They support a wide range of operating temperatures and, thanks to the quality lubrication of the valve mechanisms and stainless-steel springs, will provide smooth operation for up to 10,000 cycles. EPDM’s O-rings and seals ensure a long service life free of leaks.

The CPC QDCs have color-coded latches to easily identify a water block’s hot/cold or in/out lines. For improved user-friendliness, they emit an audible “click” when fully connected, while their ergonomic design makes them particularly easy to operate using a single hand, which comes in very “handy” in tight spaces.

The patented valve technology prevents any coolant from escaping during the coupling and decoupling process. The high flow coefficient results in a low pressure drop, enabling prolific use of the CPC QDCs without fears of any significant flow impedance.

Technical specifications:

EK-Pro Manifold 2CPU 2GPU - Acetal

• Size (HxWxD): 144 x 54 x 36mm (without the mounting system)
• Materials: POM (Acetal) and Stainless-Steel

CPC Quick Disconnect Couplings

•  Operating temperature: -17°C to 85°C
•  Main component and latch material: PPSU
•  Valve and external spring material: Stainless Steel
• Seals: EPDM
•  Barb OD: 9,5mm
•  Thread: G1/4”
•  Flow coefficient: 1.37 (~2.11PSI pressure drop at 2GPM flow rate)

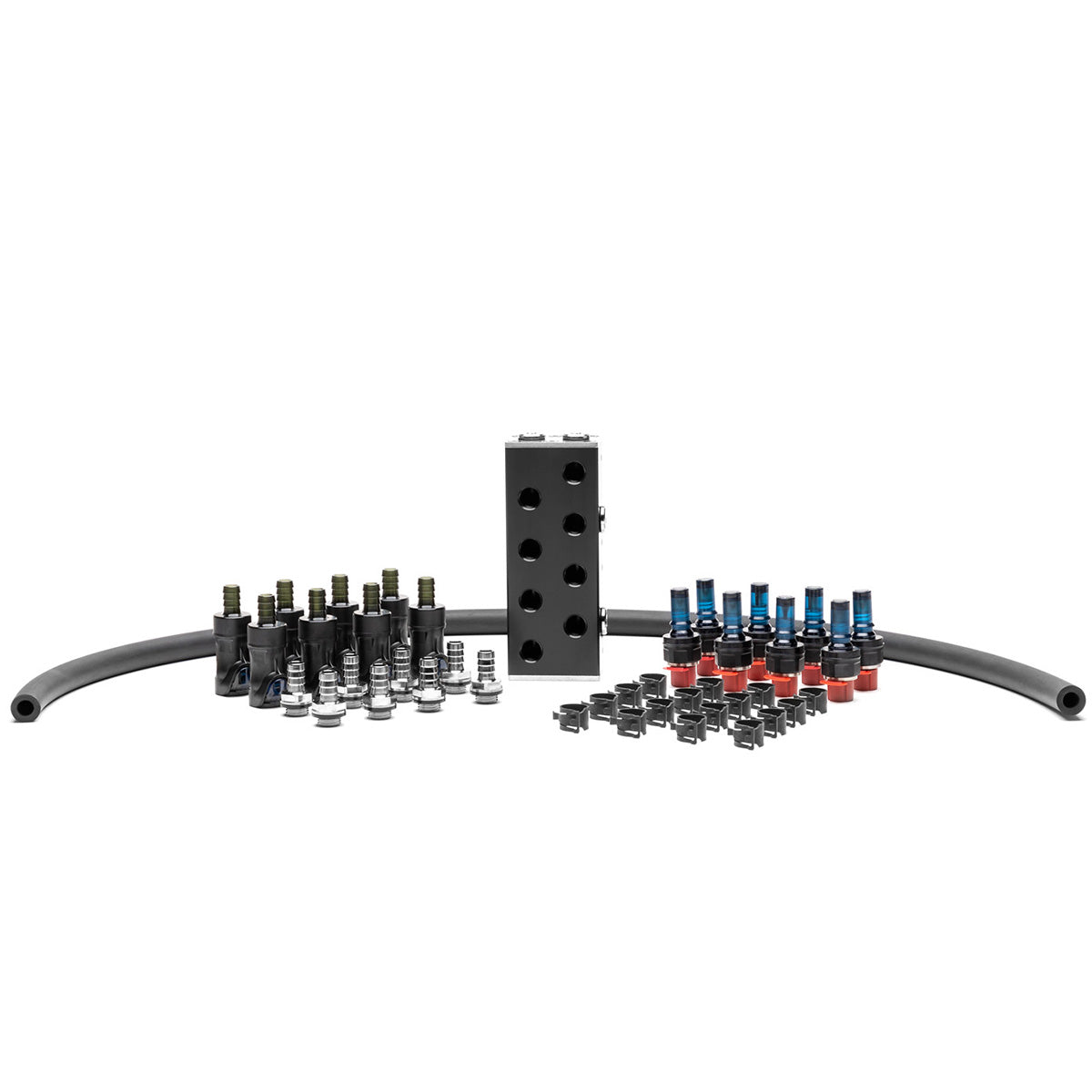

Enclosed:

• EK-Pro Manifold unit 2CPU 4GPU – Acetal (1pcs)
• EK-Pro Manifold mounting hardware

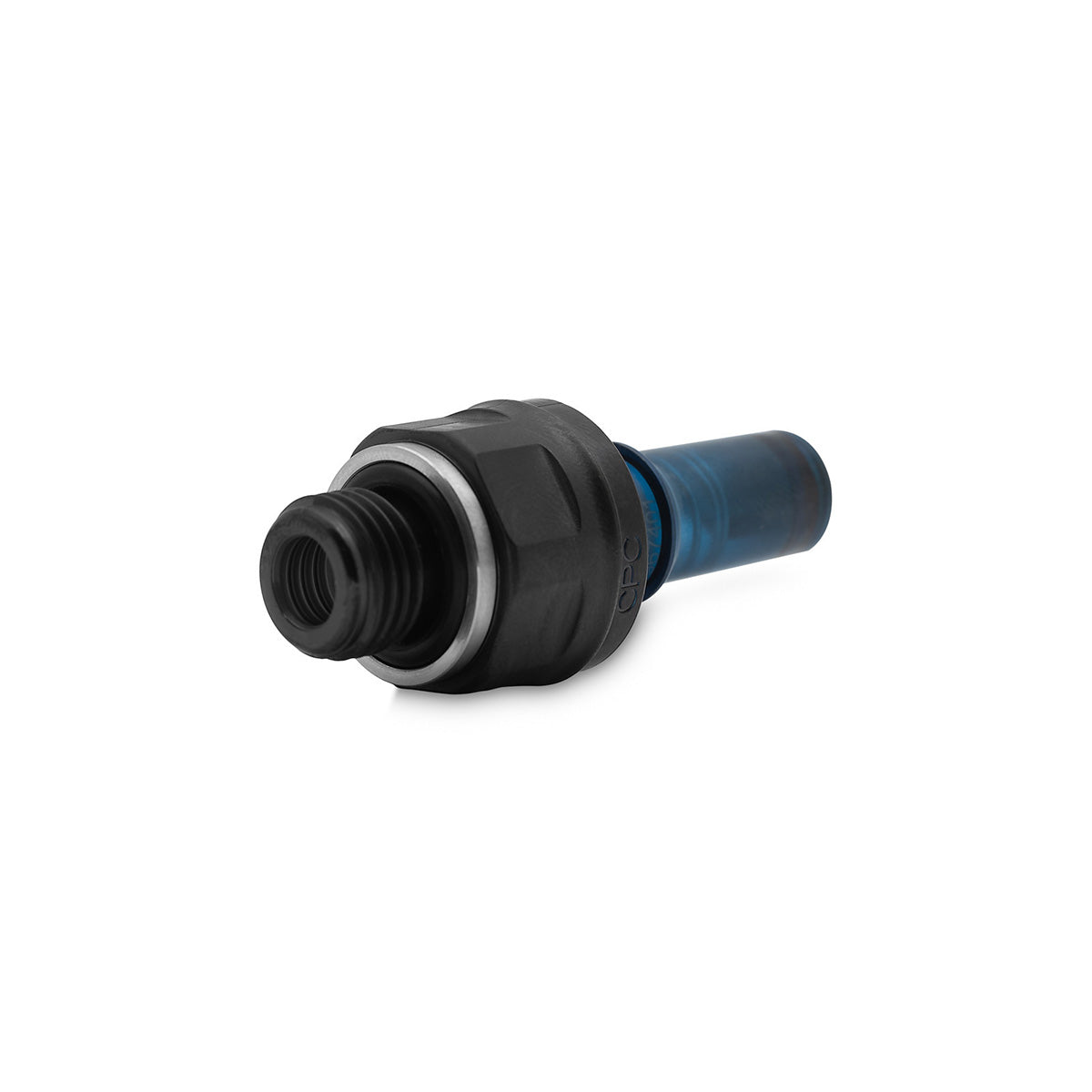

• CPC Quick Disconnect Coupling – Male – G1/4” Thread (8pcs)

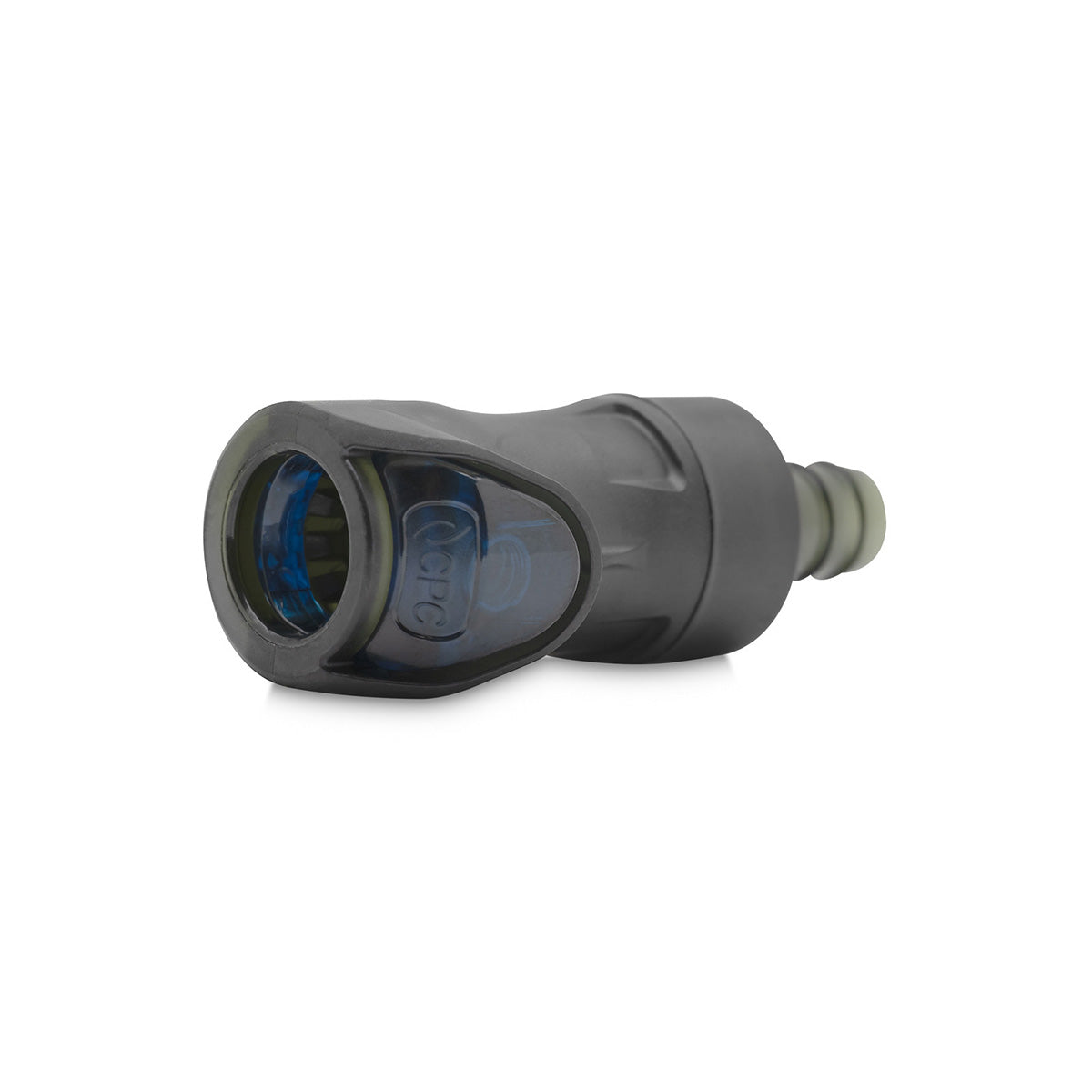

• CPC Quick Disconnect Coupling – Female – Barb 10mm OD (8pcs)

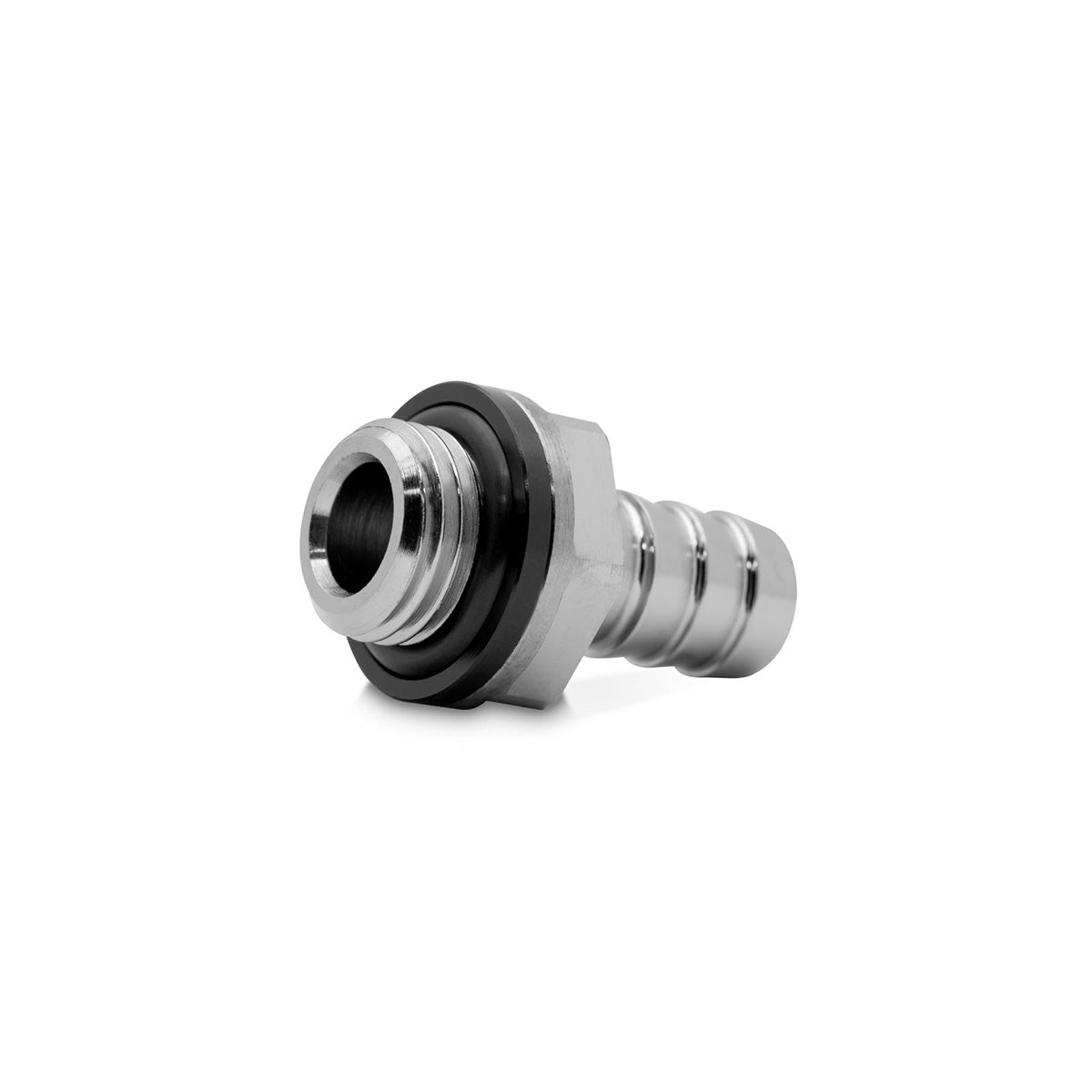

• EK-Pro Fitting – Barb 10mm OD – G1/4” Thread (8pcs)

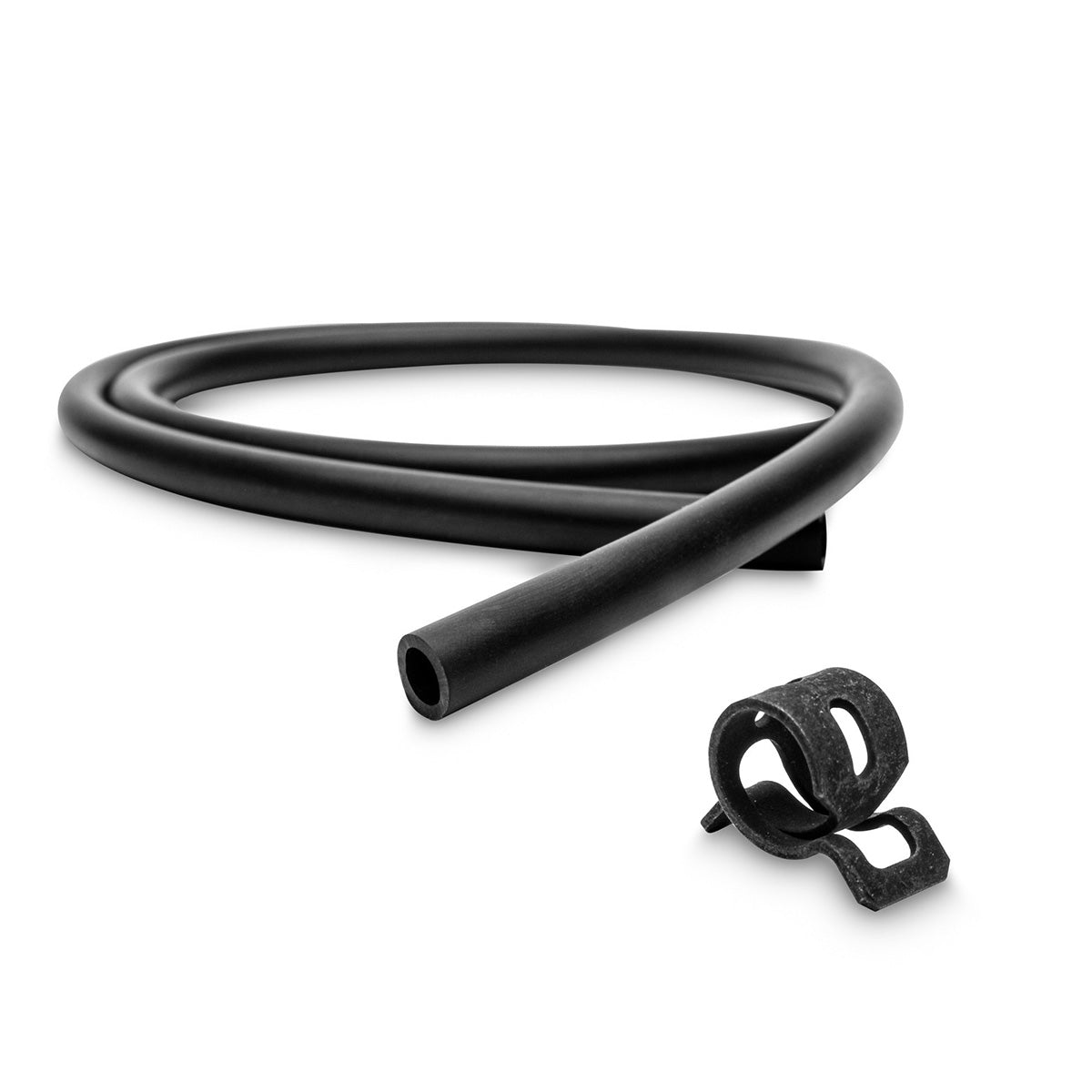

• Tube Clamps – Black (16pcs)
• EK-Tube ZMT Matte Black 15,9/9,5mm (4m)
