EKWB EK-Pro QDC Kit P360 AMD sTR/SP3

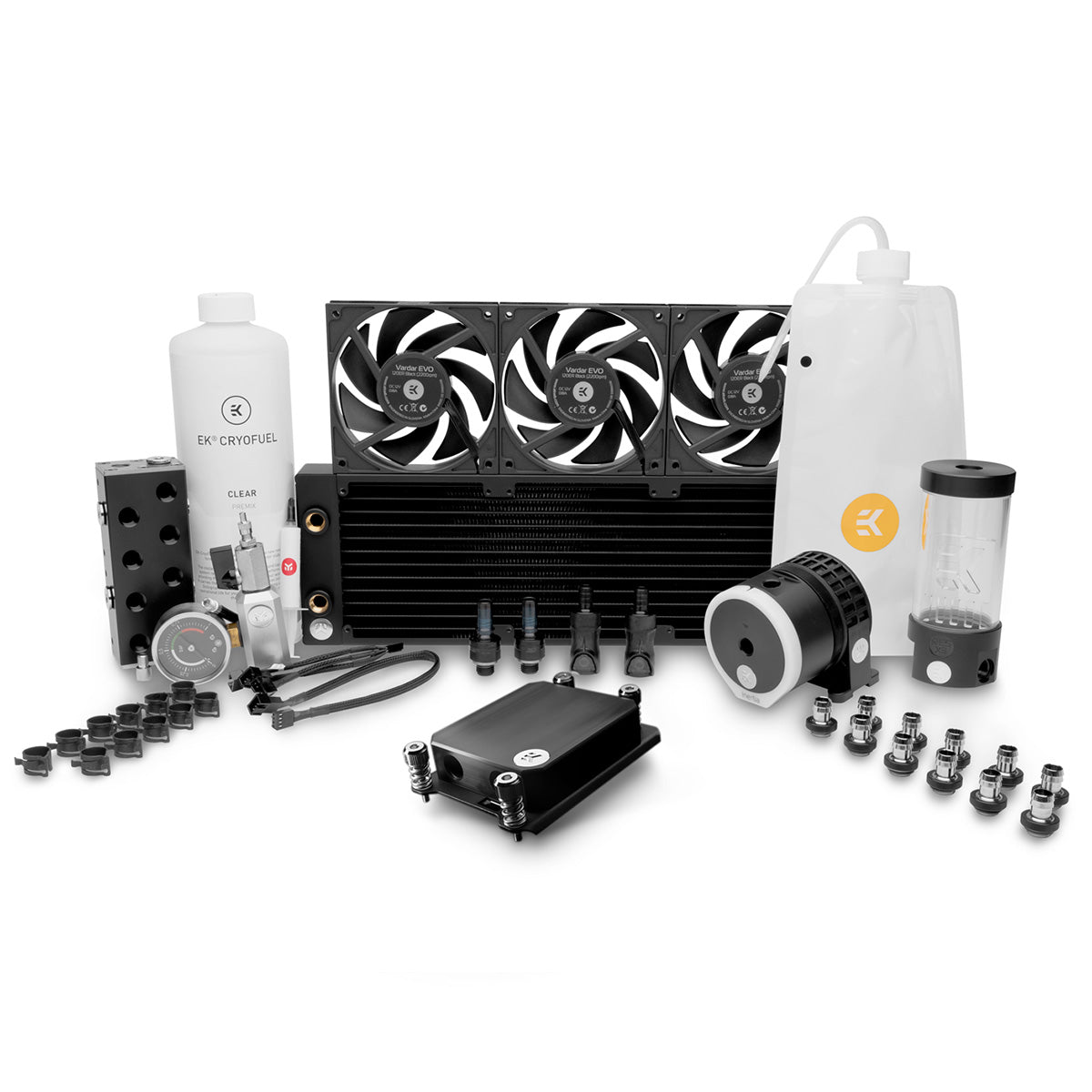

EK-Pro QDC Kit P360 AMD sTR/SP3 is an enterprise-grade kit that bundles everything a user needs to liquid cool an AMD® SP3-socket CPU. It comes with all required custom loop components – radiator, fans, pump, reservoir, manifold, quick disconnects, fittings, and tubing. As well as tools to build the loop, utility cables, splitters, thermal paste, and even a filling bottle. This kit allows you to liquid cool a CPU based on any of the following SP3 socket revisions - SP3r2(also known as TR4), SP3r3(also known as sTRX4), and Sp3r4(also known as sWRX8). Having every part required for a custom liquid cooling loop aimed at the specific socket allows minimum effort in achieving great thermal results.

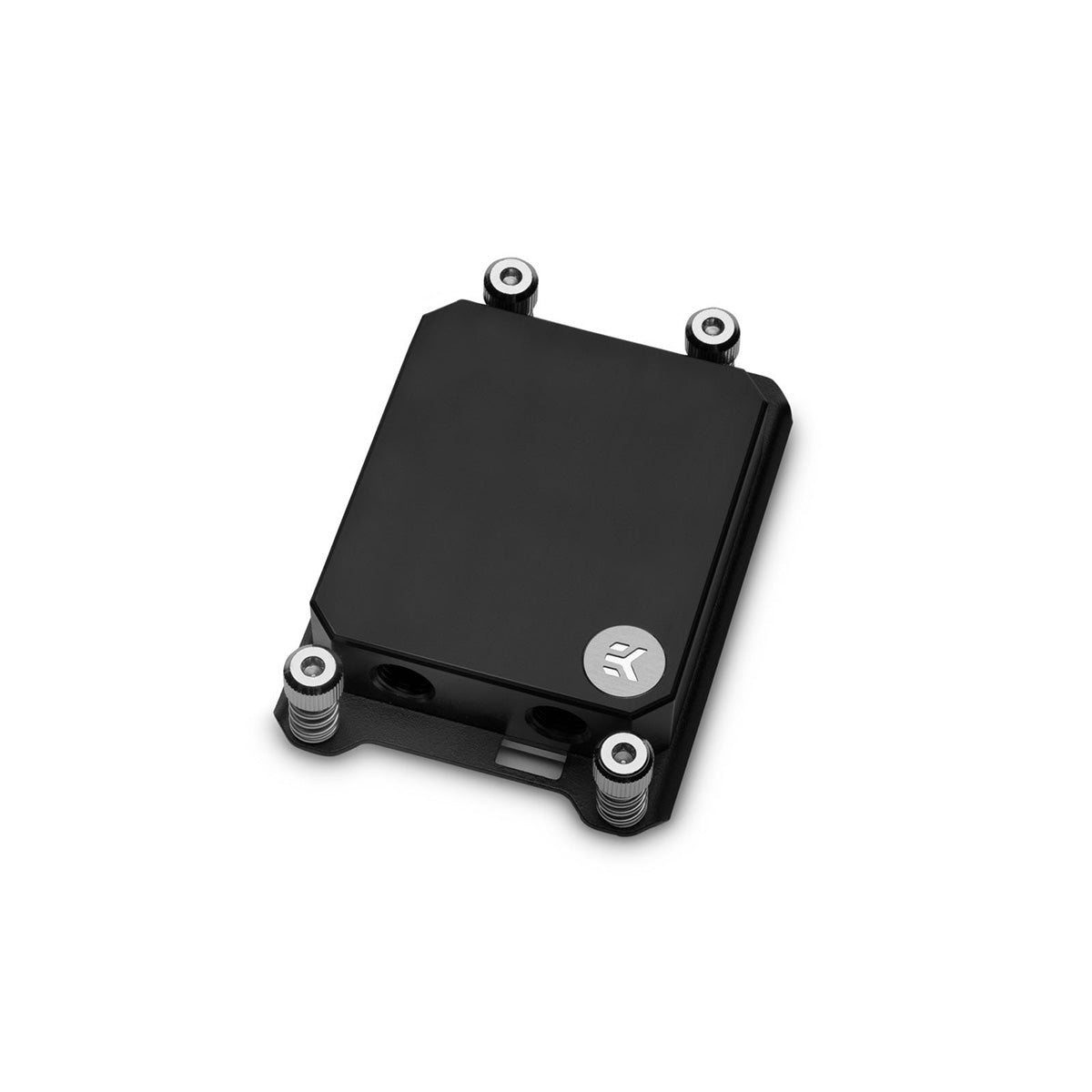

EK-Pro CPU WB sTR Rack - Nickel + Acetal - a dedicated server grade water block with 1U chassis compatibility that is tailor-made for AMD® EPYC™ and AMD® Ryzen™ Threadripper™ processors. 1U rack compatibility is achieved through the use of two G1/4”-threaded side ports that enable a smaller vertical footprint.

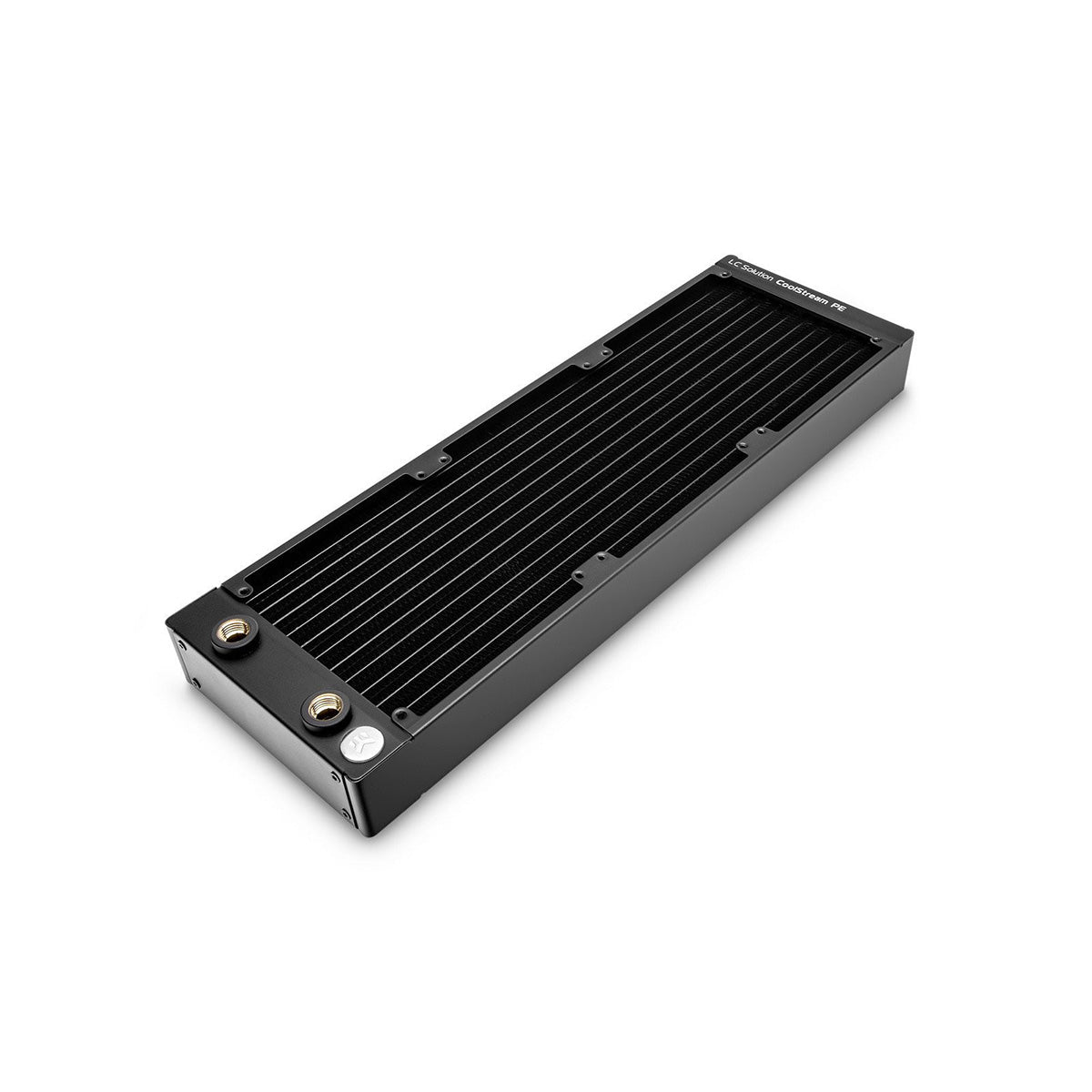

EK-CoolStream PE 360 (Triple) radiator - 45mm thick design allows for lower fin density while allowing great cooling potential due to increased thickness. Lower fin density allows for less fan noise, as they can be run at lower speeds. This 360mm long radiator can easily cool off overclocked CPU and a GPU. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across the entire fan operational range thus delivering exceptional performance at both low and high airflow operation.

EK-Pro Manifold - is a purpose-made coolant delivery system for multiple water blocks in workstation systems. It offers perfect coolant distribution by using multiple industry-standard G1/4" in and out ports. The EK-Pro Manifold 2CPU 2GPU can support two CPUs and two GPU water blocks in parallel or semi-parallel setup.

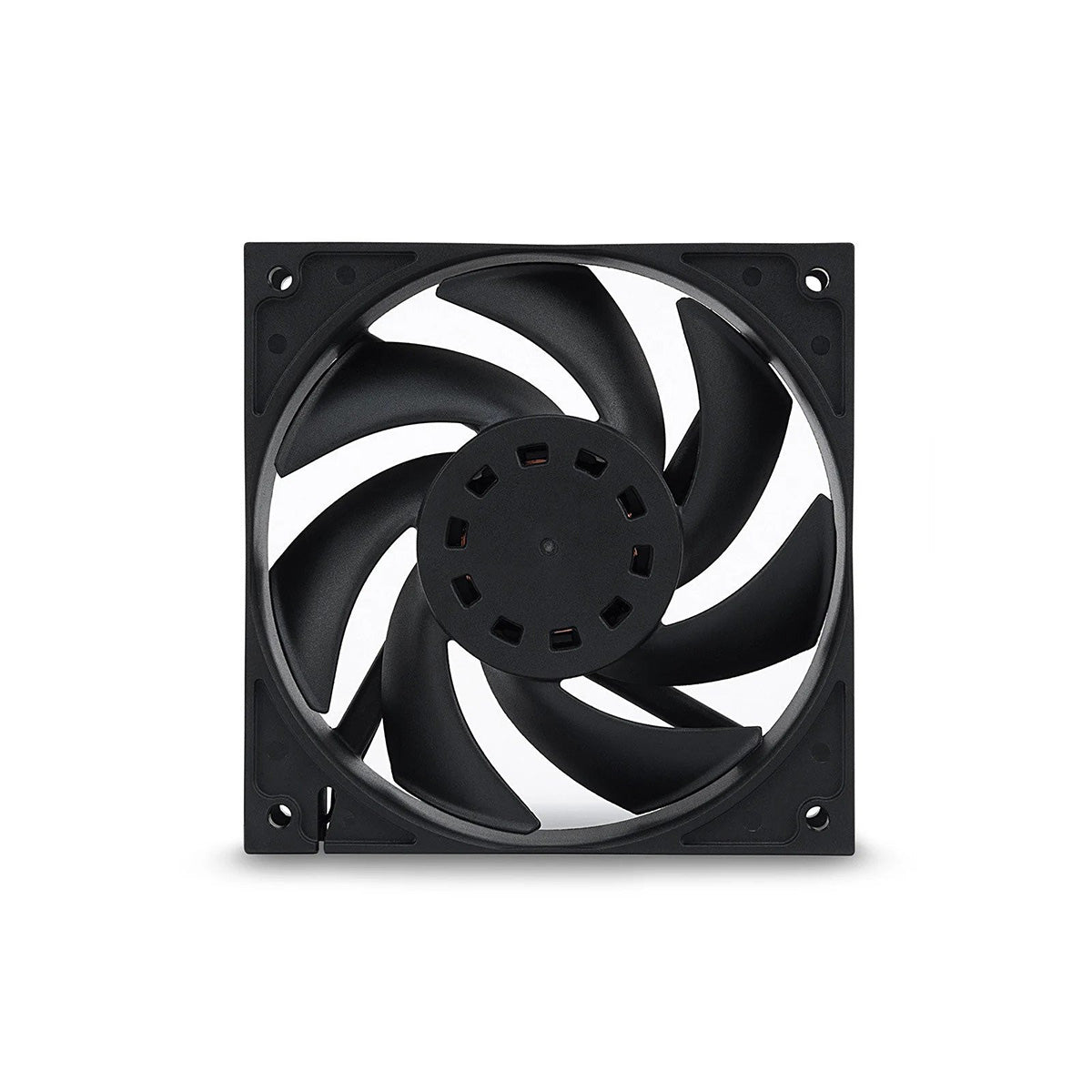

EK-Vardar EVO 120ER Black BB (500-2200rpm) - high-static pressure computer cooling fan, designed and built primarily for highest-performance computer liquid cooling systems. EK-Vardar is simply the best choice for computer radiator cooling as it provides unmatched performance throughout the entire operating range.

EK-Quantum Inertia D5 PWM D-RGB - Acetal - a premium water cooling pump+top. It features a market-favorite genuine D5 PWM pump. PWM control allows for automatic pump speed regulation depending on your CPU temperature. Full performance on demand or whisper-quiet operation in idle mode.

EK-RES X3 150 - is a standard reservoir 150mm tall.

EK-CryoFuel Clear Premix (1000ml) - a pure, non-toxic coolant based on the patent-pending chemical formula, which prevents the creation of any sediments in the liquid cooling loop. It contains anti-corrosive additives and prevents the formation of any biological growth.

EK-Loop Multi Allen Key - a multi-purpose tool that replaces the standard 6mm, 8mm, and 9mm Allen key, while it can also be used to operate acetal plugs (with the line style groove). The key does not only replace all of the crucial Allen key formats used for building a liquid-cooled PC but also helps protect your liquid cooling gear.

EK-TIM Ectotherm - a best-in-class thermal compound with exceptional value for money. This thermal interface material provides an effective heat transfer and easy application between the CPU or GPU, and a water block.

EK-Leak Tester - a fast and safe way of testing for possible leaks in your liquid cooling loop. While traditional leak testing works, it requires hours before very small leaks are detected and then things can become messy. The EK-Leak Tester does the job almost instantly without requiring to fill a loop with liquid making it a significantly safer alternative.

The kit is easy to install, use, and maintain. Every item in this kit can be purchased separately, further descriptions and specifications of individual items can be found in the EK webshop.

The majority of components have been pre-assembled resulting in a quick and painless installation procedure. Once installed, this kit is a full custom loop solution. It can be upgraded with additional water blocks and components, such as additional radiators or GPU blocks.

This water cooling kit is compatible with the following AMD CPU sockets:

• AMD TR4 (SP3v2)
• AMD sTRX4 (SP3v3)
• AMD sWRX8 (SP3v4)
