EKWB EK-Pro QDC Kit 2xP360 1xSP5 2??6000 Ada

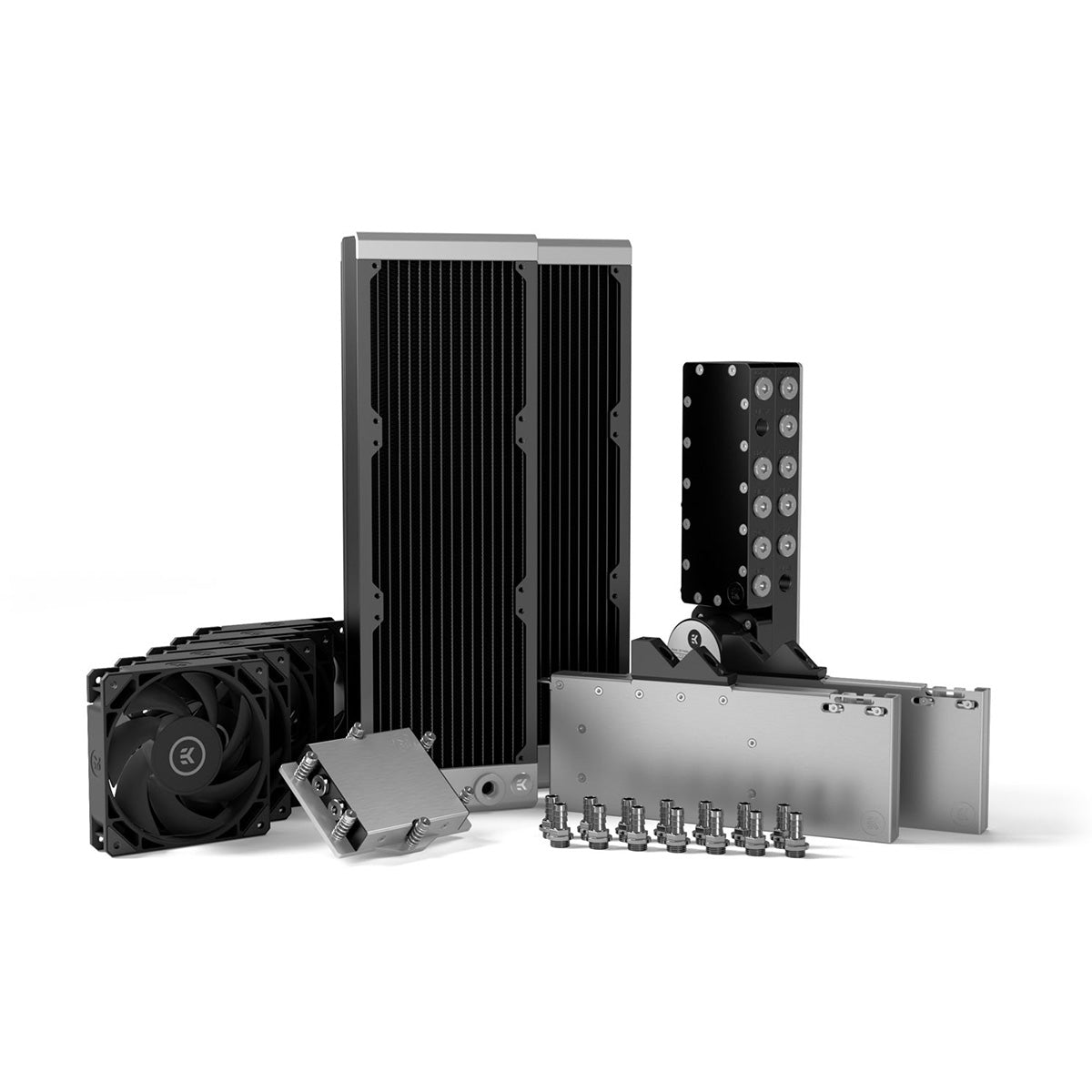

EK-Pro QDC Kit 2xP360 1xSP5 2×6000 Ada is an enterprise-grade kit that bundles everything a user needs to liquid cool an AMD® SP5-socket CPU and two NVIDIA® RTX™ 6000 ADA GPUs. It comes with all required custom loop components – radiator, fans, pump, reservoir, manifold, quick disconnects, fittings, and tubing. As well as splitters, leak testers, and even filling bottles. Having every part required for a custom liquid cooling loop aimed at the specific socket and GPUs allows minimum effort in achieving great thermal results.

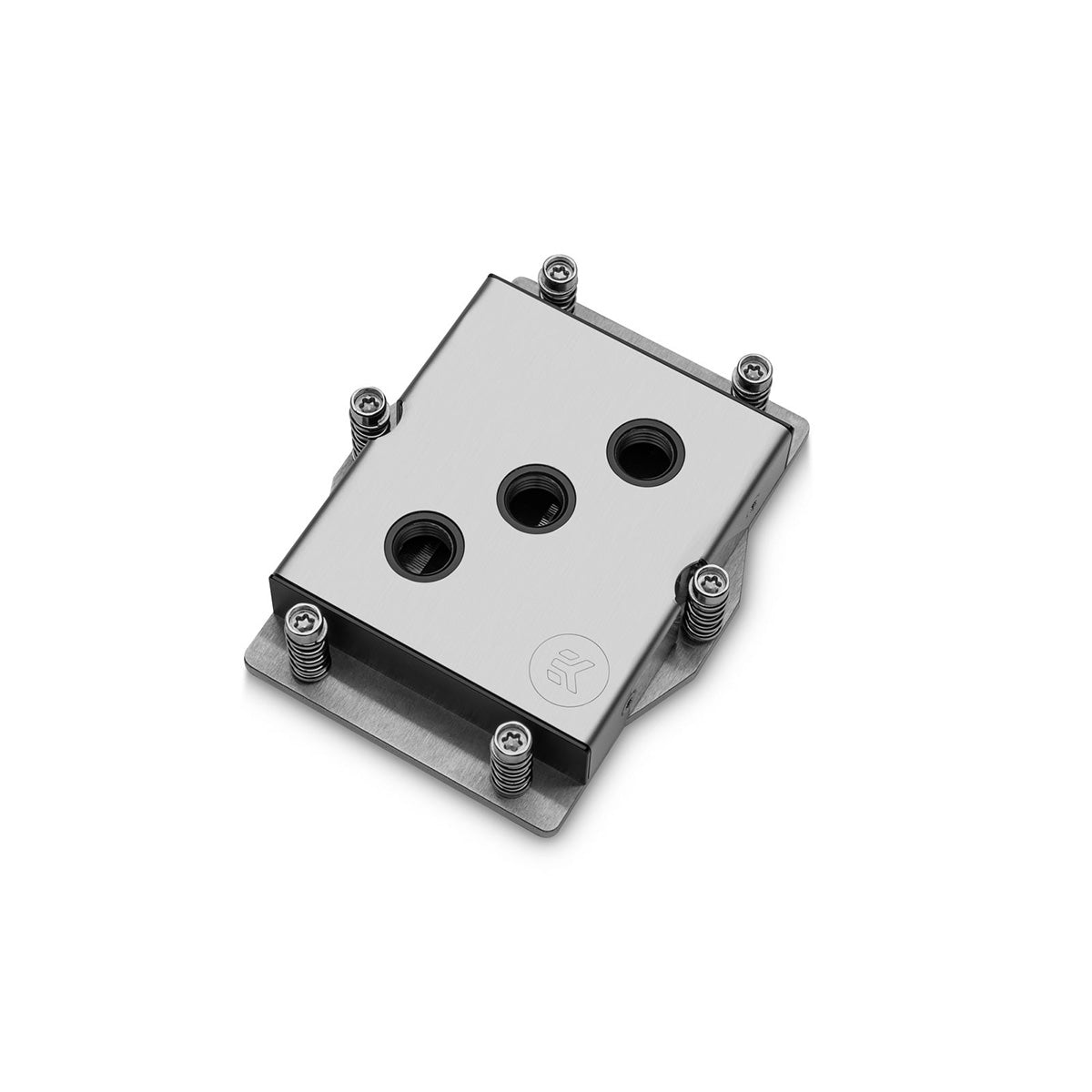

EK-Pro CPU WB SP5 Ni + Acetal - This water block features a total of 3 standard G1/4″ threaded ports located on the top of the water block and is intended for workstations and taller server racks.

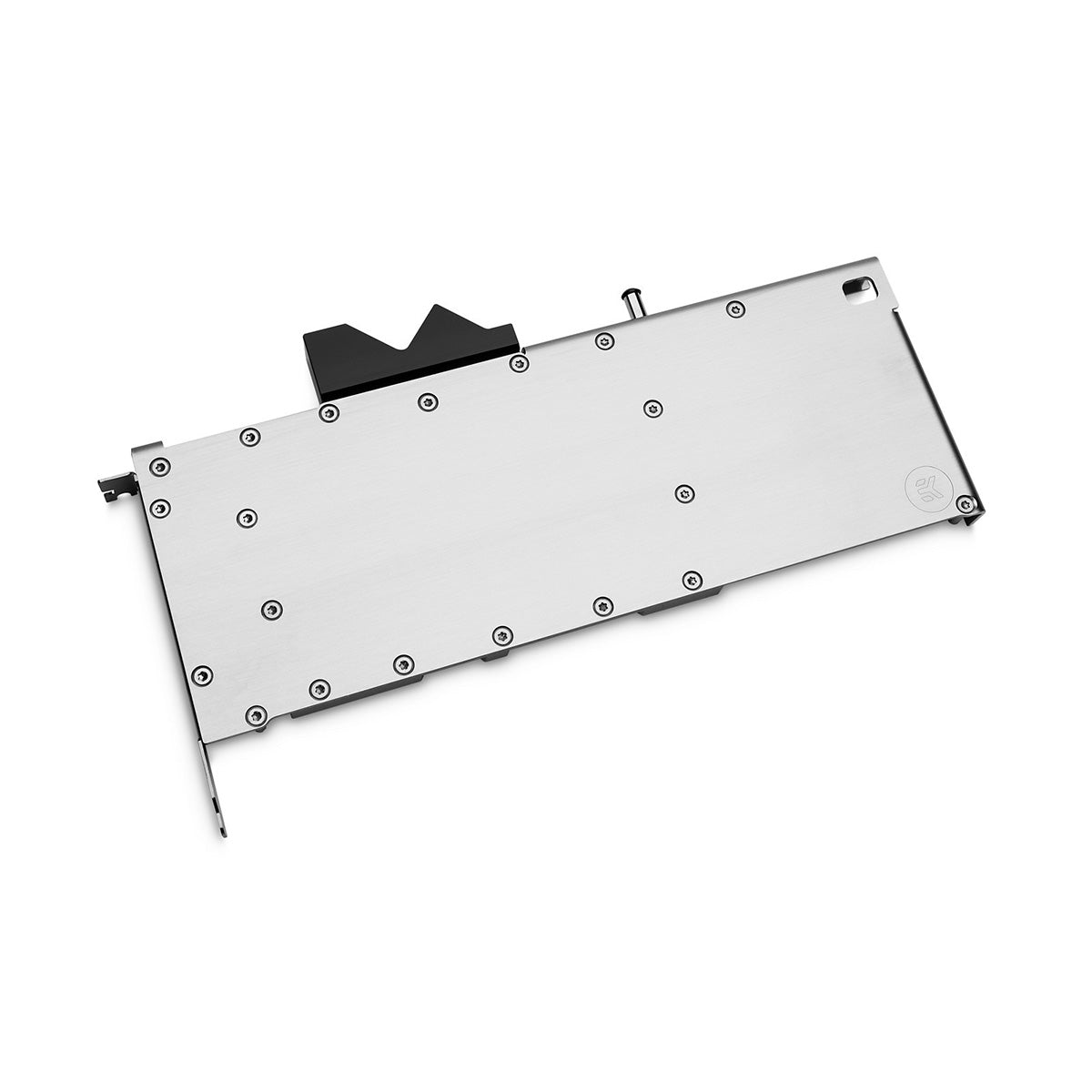

EK-Pro GPU WB RTX 6000 Ada – Nickel + Inox - This is a high-performance full-cover water block for the NVIDIA RTX™ 6000 Ada Generation graphics card. The water block is a liquid cooling solution that spans the entire card length, cooling all critical components. This kit gets two of these.

This version of the EK-Pro 6000 Ada GPU water block features a 45° angled terminal block with two G1/4” ports, enabling easy integration with QDCs and manifolds for high compute density applications.

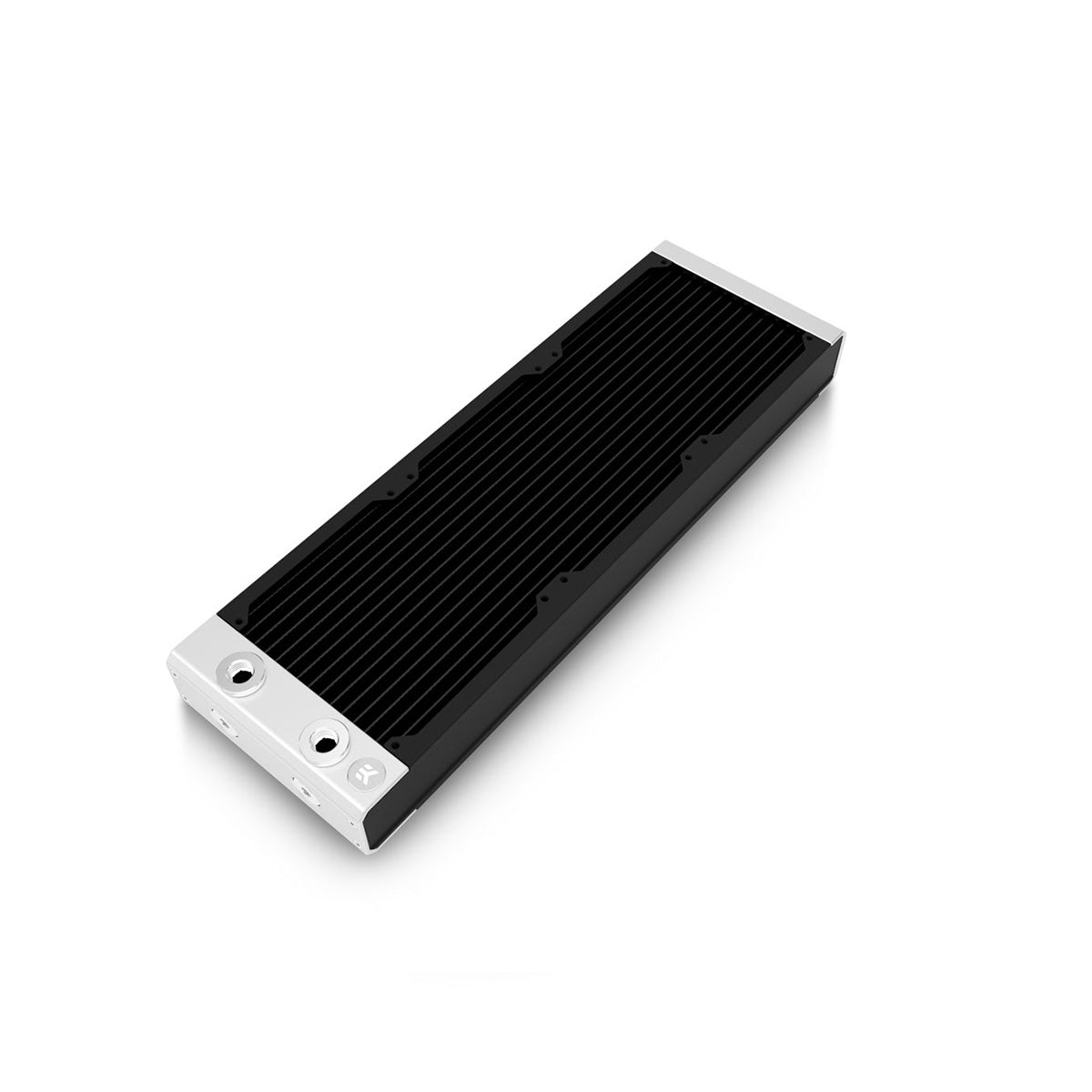

EK-Quantum Surface P360M – Black - With a thickness of 44mm, they are the ultimate all-rounder radiators for low noise and high performance. They are equipped with four G1/4“ threaded connection ports and an additional fifth G1/4“ port on the end tank, which can be used for loop draining and bleeding the air.

The radiator features sixteen 2mm-wide copper tubes spanning its entire length, ensuring optimal coolant flow. High-grade non-louvered copper fins, boasting 18 FPI density, strike the perfect balance between thermal transfer and air resistance, guaranteeing optimal performance even at low fan speeds. In order to maximize cooling, the users can use the Push/Pull setup. Notably, the EK-Quantum Surface P Radiator won the “Highly Recommended” Award by TechPowerUp.

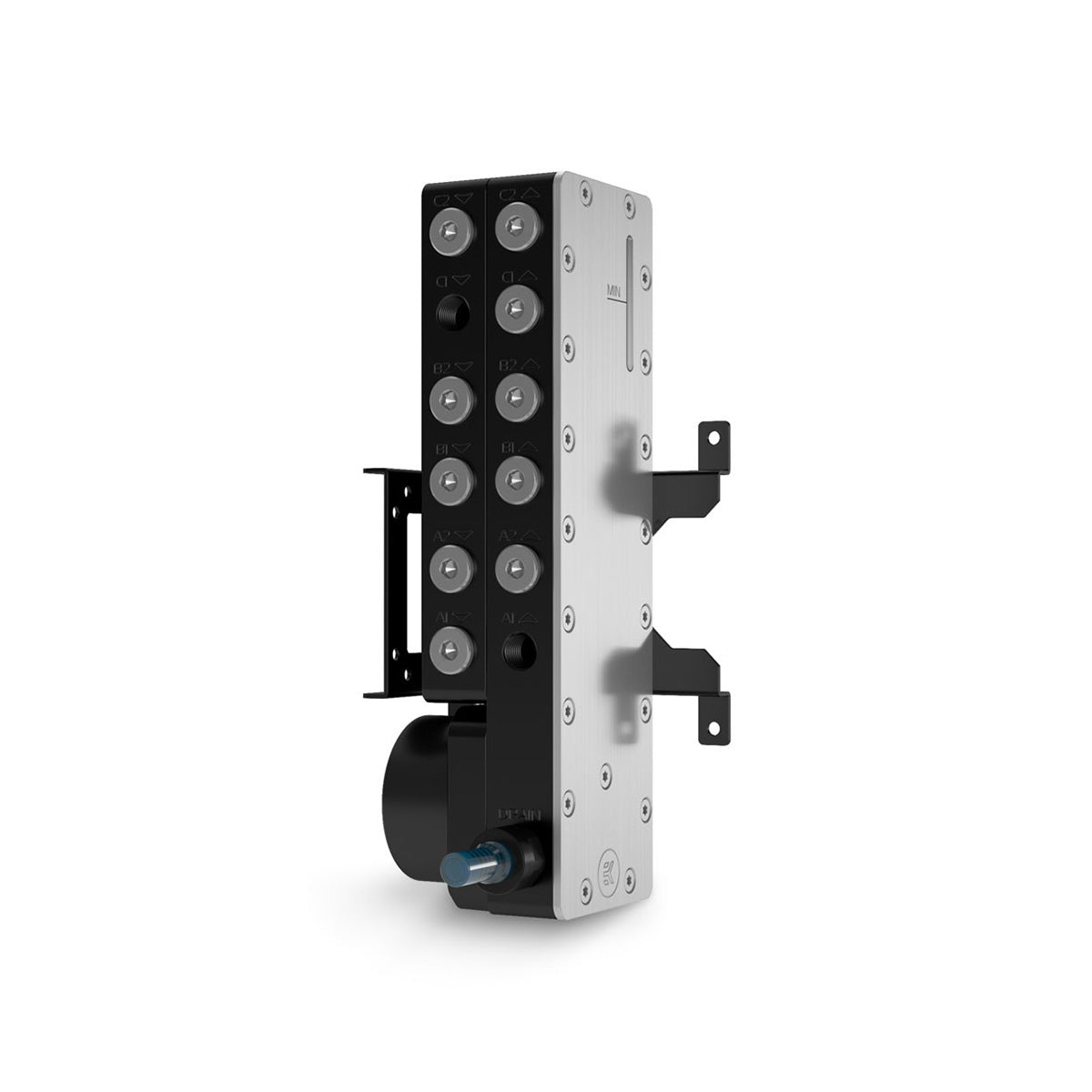

EK-Pro Pump Reservoir Manifold X6 D5 – Acetal - This is a 3-in-1 product that acts as a pump, reservoir, and manifold. The X6 in the name designates the number of components it can directly connect as a manifold, and D5 indicates a single D5 pump pushing the liquid around the loop.

This combo unit can be mounted to the case in many different ways. EK-Pro Pump Reservoir Manifold X6 D5 has M4 screw threads on the side opposite to ports and on the backside, allowing for plenty of mounting options, multiplied by the bracket with 120mm fan mounting hole spacing (105mm). A staggering 14 G1/4″ ports are available, of which two act as dedicated fill and drain ports.

EK-Loop FPT 120 – Black (550-2300rpm) - These 120mm addressable RGB high-static pressure computer cooling fans are specifically designed for radiator cooling and provide a low noise profile while delivering optimal cooling performance. The fluid dynamic bearings ensure a long lifespan and silent operation during low-power scenarios, while precise PWM allows for on-demand performance.

Full Pressure Technology (FPT) utilizes a full–frame design that completely seals the radiator, preventing air escape. Additionally, OmniLink enables easy single-cable daisy-chaining of fan and pump power.

EK-CryoFuel Clear (concentrate 100mL) rev.2. - a pure, non-toxic coolant based on the patent-pending chemical formula that prevents the creation of any sediments in the liquid cooling loop. The 100 mL concentrate is to be mixed with distilled water in a ratio of 1:9 to form 1 L of ready-to-use coolant. To make mixing the concentrate with distilled easier, EK recommends using a filling bottle, which is included in the package.

CPC QDC - CPC’s Dripless Quick Disconnect Couplings (QDCs) are made of ultra-durable PPSU and are compatible with most industry-standard coolants and cooling loop materials. Thanks to the quality lubrication of the valve mechanisms and stainless-steel springs, they support a wide range of operating temperatures and will provide smooth operation for up to 10,000 cycles. EPDM’s O-rings and seals ensure a long, leak-free service life.  6 of them come in this kit.

EK-Pro G1/4 Barb Fitting 10mm – Nickel - The kit packs 14 soft-tube barb fittings designed for use with flexible soft tubing such as PVC, EPDM, Norprene, silicone, or any other type of compatible flexible tubes. This product is a high-flow barb fitting and is suggested to be used with hose clamps or similar substitutes for the safest operation. It is made from nickel-plated CNC-machined brass with high-quality O-rings.

EK-Pro Clamp 10/17 – 20 Pack - This is a set of twenty tube clamps used in conjunction with barb fittings and soft tubing of outer diameter (OD) between 15 and 17mm.

EK-Pro Clamps are manufactured from hot-rolled low-carbon steel sheets characterized by their excellent formability.

EK-Pro Tubing 10/17mm Reinforced EPDM 1m – Black - The kit features 4 meters of high-quality, industrial–grade reinforced EPDM rubber tubing in matte black. This durable matte black tubing is designed to withstand harsh conditions for very long periods of time. It offers a truly exceptional lifespan as it can resist UV, ozone, and heat exposure for many years, while its thick rubber walls prevent coolant evaporation.

EK-Loop Leak Tester Flex - A simple tool used to test the loop for leaks. It is a very safe and quick way to check and prevent unwanted leaks.

EK-Cable Y-Splitter 3-Fan PWM (10cm) - splitter cable that enables you to connect up to 3 fans to a single source header.

Foldable Filling Bottle - very convenient for mixing the EK-CryoFuel concentrates with distilled water. The telescopic tube of the filling bottle can reach even the most remote and crammed fill ports.

The kit is easy to install, use, and maintain. Every item in this kit can be purchased separately. Further descriptions and specifications of individual items can be found in the EK webshop.

The majority of components have been pre-assembled, resulting in a quick and painless installation procedure. Once installed, this kit is a full custom loop solution. It can be upgraded with additional water blocks and components, such as additional radiators or GPU blocks.

This water cooling kit is compatible with the following AMD CPU sockets:

• AMD SP5

This water cooling kit is compatible with the following NVIDIA GPUs:

• RTX 6000 ADA
