Description
Description
The EK-Pro GPU WB RTX 6000 Ada Rack - Nickel + Inox is a high-performance full-cover water block designed for the NVIDIA RTX™ 6000 Ada Generation graphics card. This enterprise-grade full-cover water block is meticulously crafted to excel in rack mount environments, effectively taking up just one PCIe slot in width. The EK-Pro Rack GPU water blocks fit the standard Full Height Full Width (FHFW) server chassis form factor, making them a drop-in replacement for dual-slot active and passive air coolers.

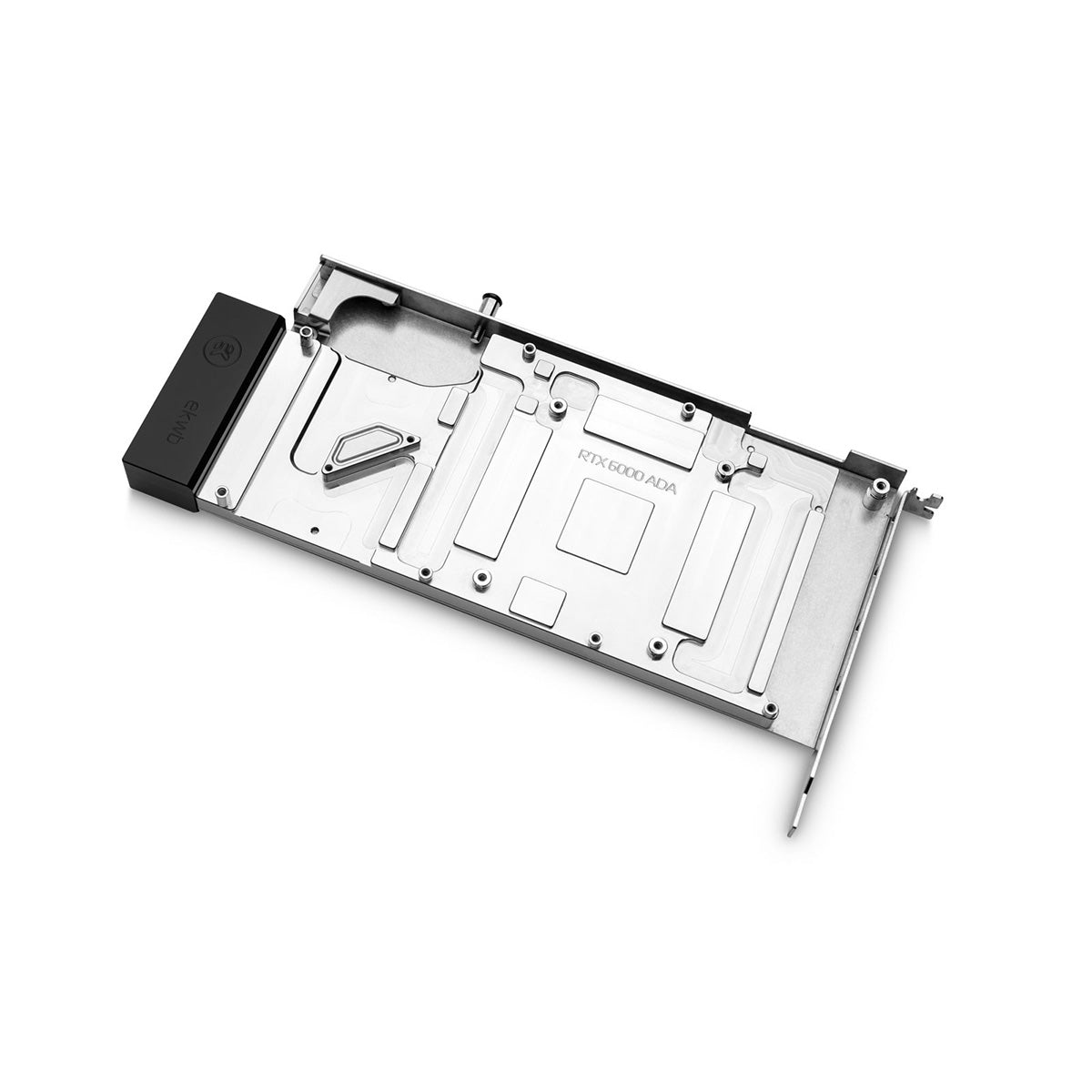

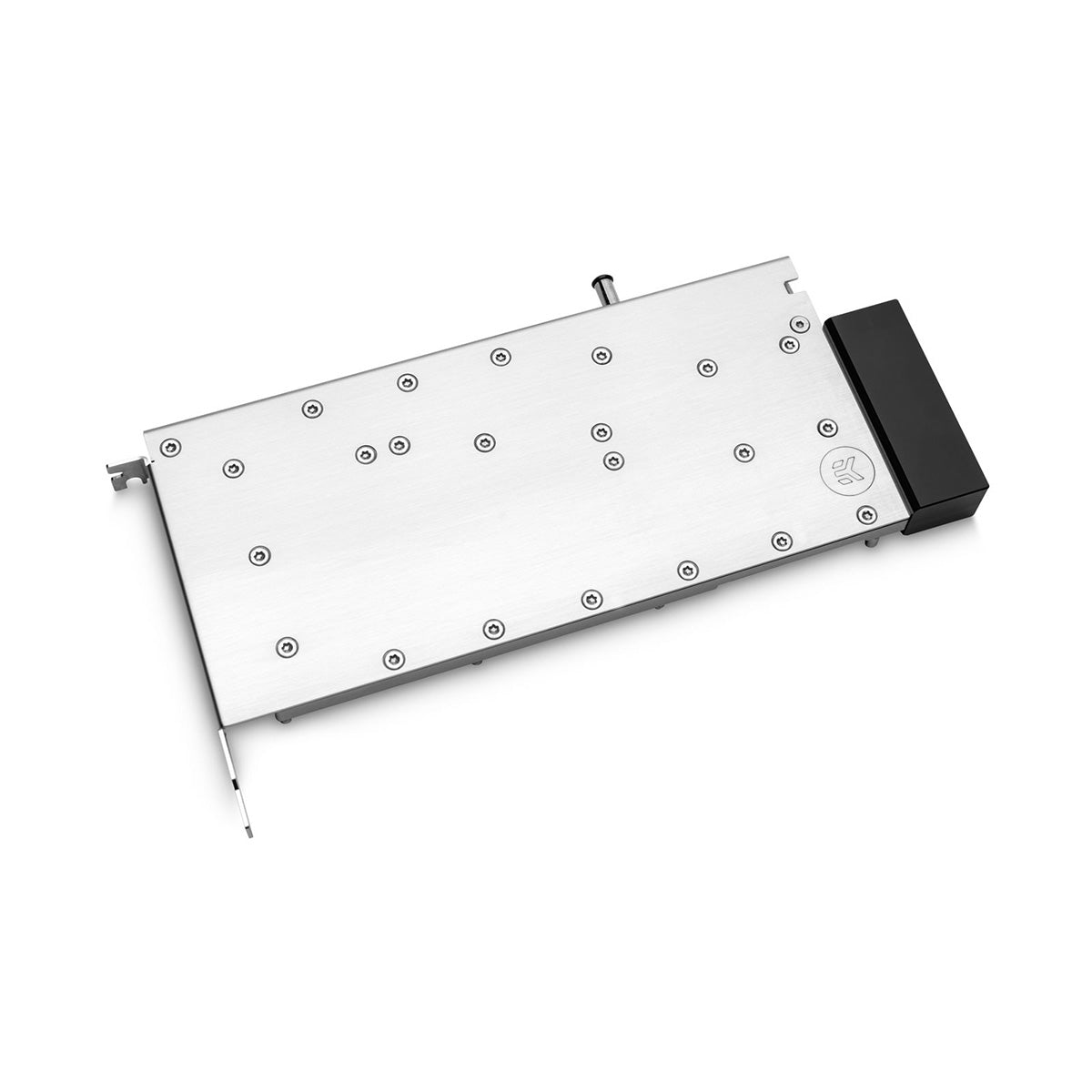

The water block features a CNC-machined nickel-plated copper base and a laser-cut stainless-steel top, ensuring durability and efficient heat dissipation. It covers the entire GPU, VRAM, and VRM components, effectively channeling cooling liquid over these critical areas.
One of its standout features is the Open Split-Flow cooling engine design, known for its superior performance. It offers remarkably low hydraulic flow restriction, enabling compatibility with weaker water pumps or low-speed settings while delivering peak performance, which makes it a perfect choice for multi-GPU workstations.
The jet plate and fin structure geometry are optimized for well-balanced and evenly distributed flow, minimizing losses and maximizing overall cooling efficiency, even in scenarios with reversed water flow.
The EK-Pro GPU WB RTX 6000 Ada Rack - Nickel + Inox ensures improved integration and stability. It features a POM-crafted terminal block at the rear with two G1/4" ports for easy integration with EK-Pro QDC kits and manifolds, catering to high-density computing applications. The water block also includes a side-mounted standoff designed for GPU brace application, providing secure GPU mounting during chassis transportation and movement.
The base of the water block is CNC-machined from nickel-plated electrolytic copper, while the top is laser-cut from industry-grade stainless steel. The top plate includes a screw-in PCIe power connector bracket, ensuring a secure power connection. High-quality EPDM O-Rings guarantee reliable sealing, and pre-installed brass standoffs ensure a safe and straightforward installation process.
Additionally, the water block incorporates the I/O plate at the top, replacing the stock I/O shield, which enhances stability and protection. The integrated single-slot I/O plate offers advantages in compact workstations and server environments with limited space and PCIe slot spacing. It allows the graphics card to occupy just a single PCIe x16 slot, freeing up surrounding slots for additional add-in cards.
The water block comes with an aesthetic retention backplate that improves the visual appeal and structural rigidity of the graphics card while providing passive cooling to the backside of the PCB VRM area. The cutouts in the water block top and backplate ensure full compatibility with the NVIDIA NVLink connector.
