EKWB EK-Pro GPU WB RTX 4090 WindForce V2 - Nickel + Inox

EKWB  |  SKU 62764  |  MPN 3831109912843
$549.00

Warranty and Support

Warranty: 2 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

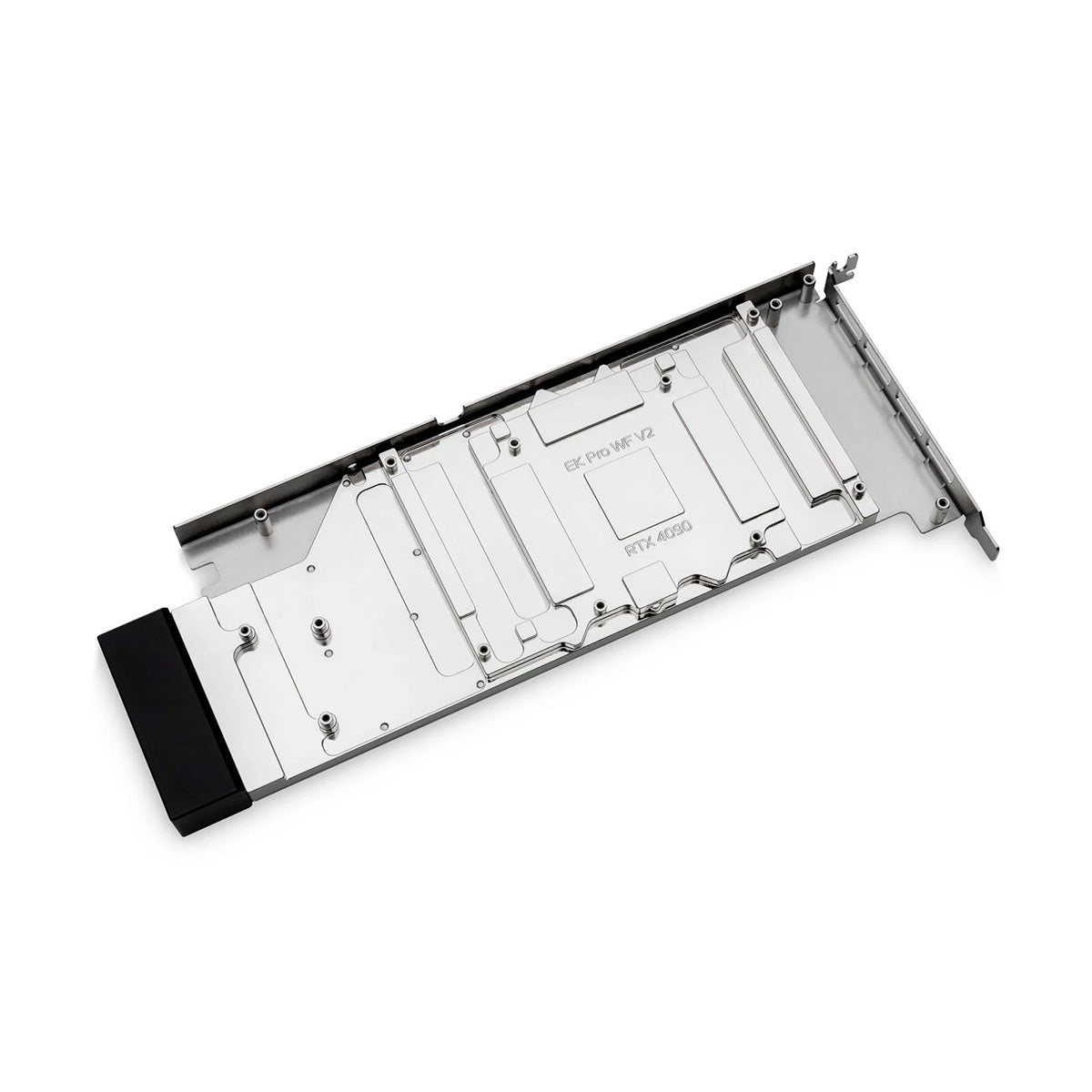

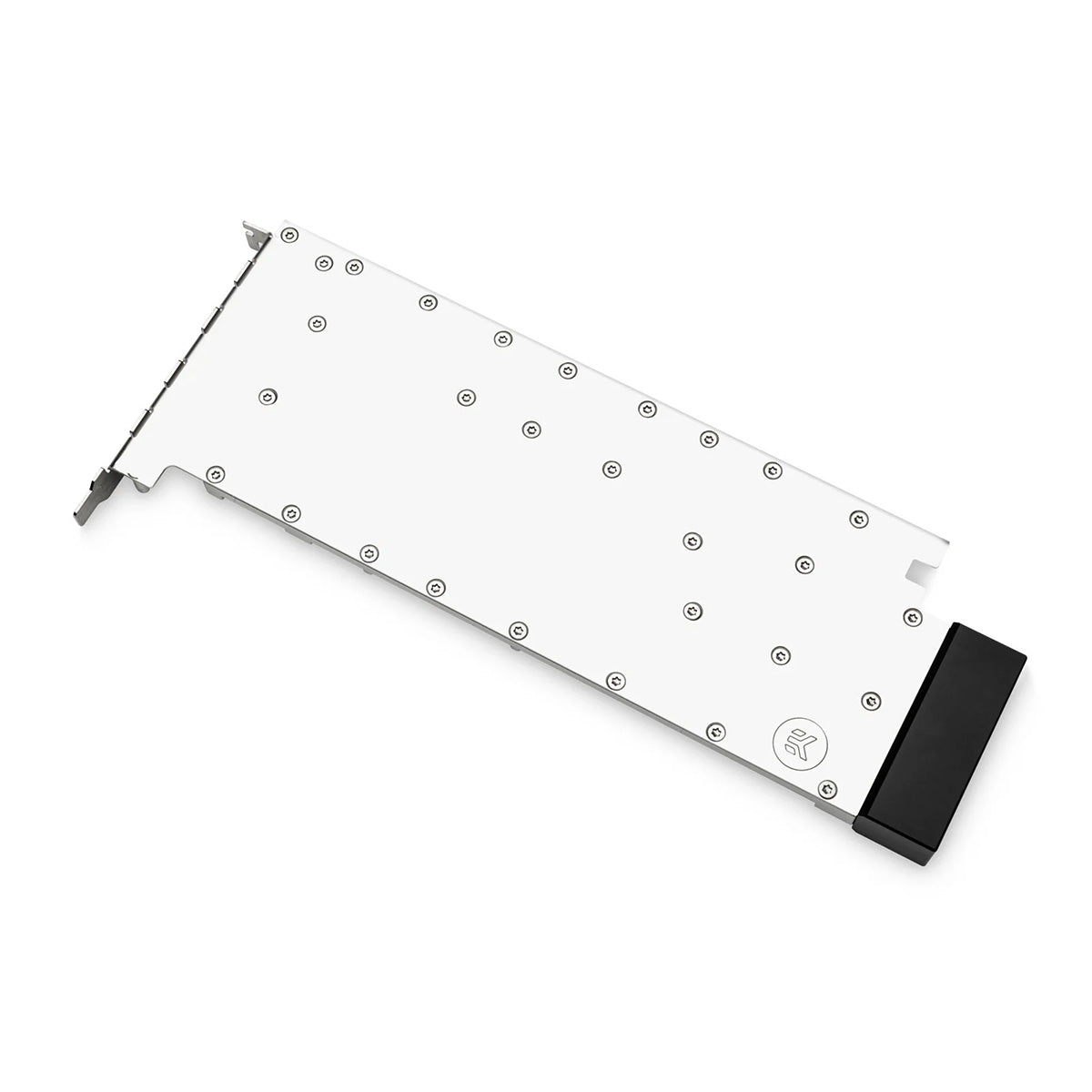

EK-Pro GPU WB RTX 4090 WindForce V2 - Nickel + Inox is a high-performance full-cover water block for the Gigabyte® GeForce RTX™ 4090 WINDFORCE V2 graphics cards. The water block is a liquid cooling solution that spans the entire card length, cooling all critical components. It directly cools the GPU, VRAM, and the VRM (voltage regulation module) as cooling liquid is channeled directly over these critical areas. It also features a single-slot I/O bracket making this a true one-slot GPU.


Cooling Engine

EK-Pro GPU WB RTX 4090 WindForce V2 - Nickel + Inox water blocks use an Open Split-Flow cooling engine design that has proven to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, which means it can be used with weaker water pumps or pumps running on low-speed settings and still achieve top performance.


The jet plate and fin structure geometry have been optimized to provide an even flow distribution with minimal losses and optimal performances even when used in reversed water flow scenarios.

Engineering Solutions

The base of the block is CNC machined out of nickel-plated electrolytic copper, while the top is laser-cut out of industry-grade stainless steel. High-quality EPDM O-Rings ensure the sealing. The brass standoffs are pre-installed and allow for a safe and easy installation procedure. For added stability and protection for the graphics card, the single-slot I/O plate is designed to be a part of the water block top itself, which means that the block replaces the stock I/O shield and adds more sturdiness to the whole assembly.

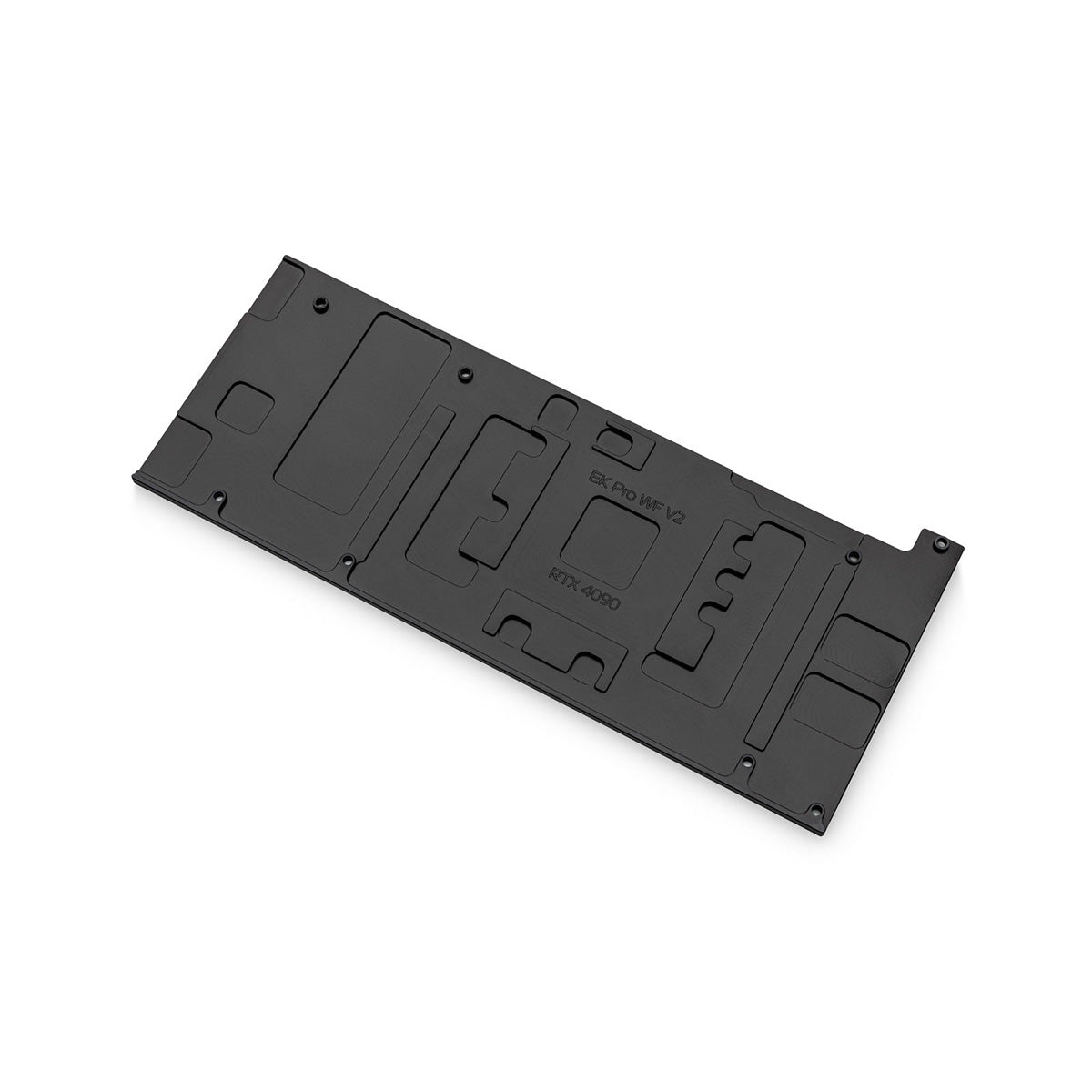

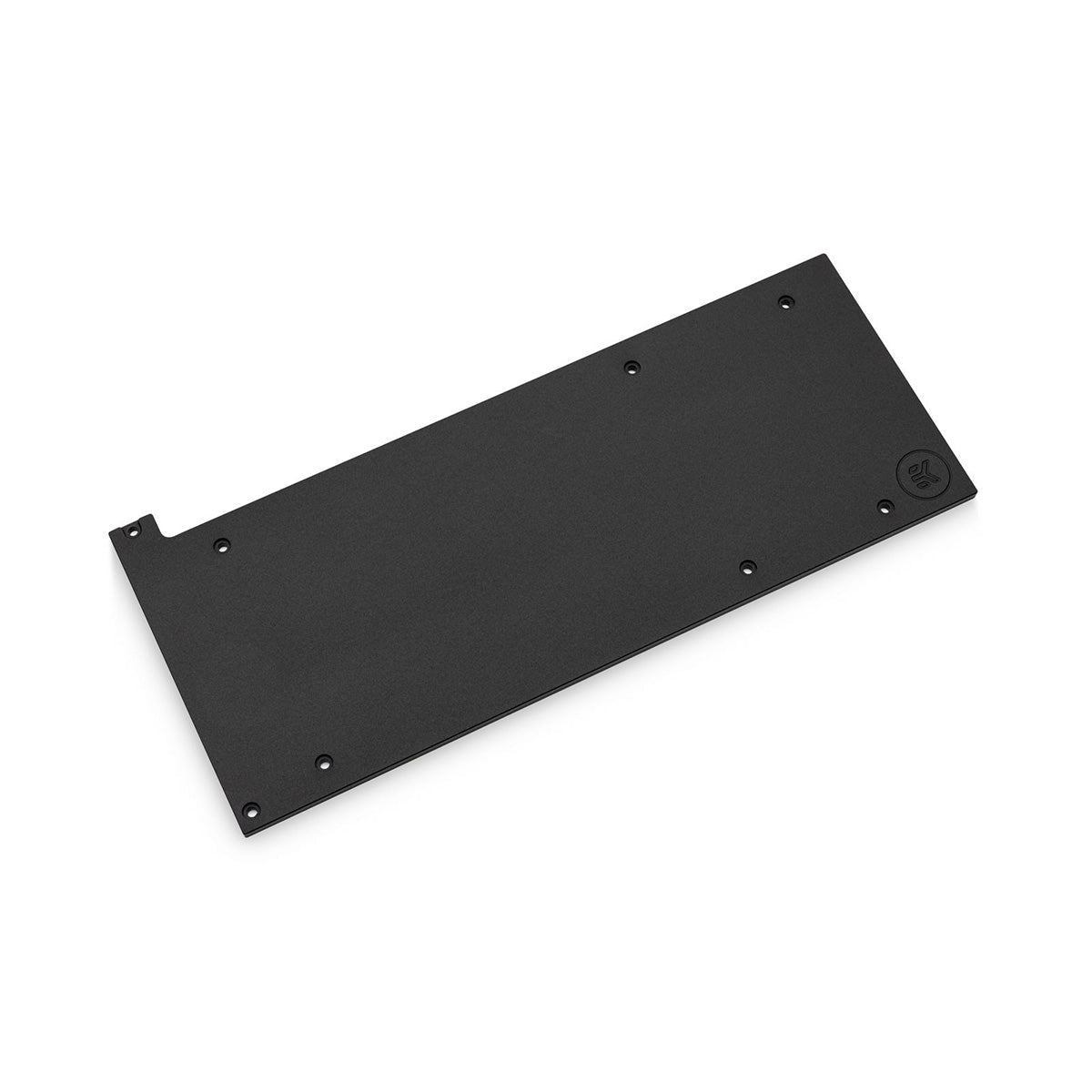

The aesthetically pleasing retention backplate improves your graphics card’s looks and structural rigidity while providing passive cooling to the backside of the PCB VRM and VRAM area.

GPU Water Block Terminal
This version of the EK-Pro GPU WB RTX 4090 WindForce V2 water block features a front-mounted terminal block with two direct G1/4” ports, enabling easy integration with EK-Pro QDC kits and manifolds for high compute density applications.

    Enclosed:

    • EK-Pro GPU WB RTX 4090 WindForce V2 - Nickel + Inox workstation and server-grade water block
    • Retention backplate
    • Mounting mechanism with screw-in brass standoffs
    • Necessary mounting screws, nuts, and washers
    • Thermal Interface Material
