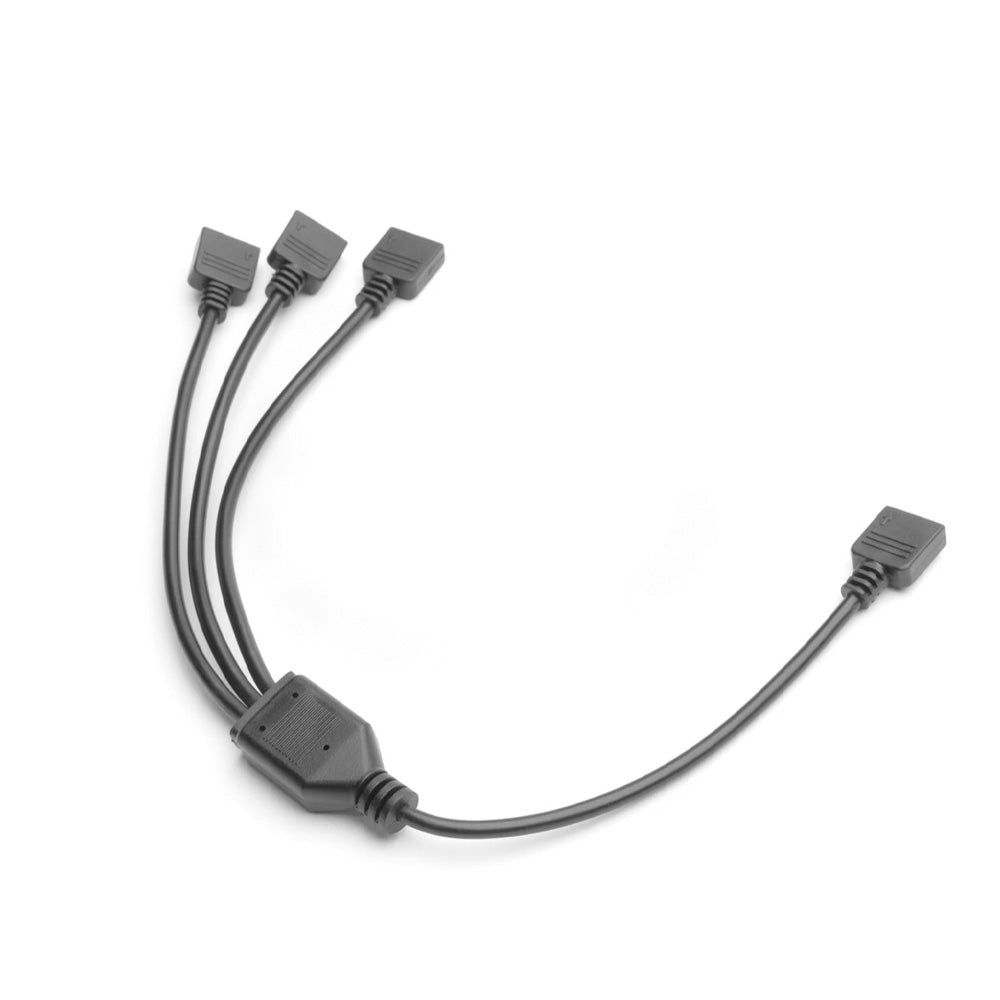

EKWB EK-Loop D-RGB 3-Way Splitter Cable

Details

The EK-Loop D-RGB Splitter Cable 3-Way allows users to connect up to three digitally addressable RGB products to a single D-RGB (addressable) motherboard or controller header so that they can synchronize all their D-RGB products.

EK-Loop D-RGB Splitter Cable 3-Way

It features standard 3-pin D-RGB headers and the male-male connector pins are also included in the packaging. The splitter cable can be used with any standard 3-pin 5V D-RGB controller or any of the popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.

Please refer to the motherboard manufacturer manual or RGB controller manufacturer manual for LED type compatibility, maximum power load, and maximum allowed LED strip length. For a list of EK D-RGB product power consumption, consult: https://www.ekwb.com/blog/ek-6-way-d-rgb-splitter-and-how-to-use-it

Technical and electrical specifications:

- D-RGB connector classic 3-pin (+5V, Data, Blocked, Ground)

- 3-pin D-RGB Source header to three 3-pin D-RGB headers

- Maximum total cable length: 300mm +/- 10mm

- Length of split cables: 135mm +/- 5mm

- Color: Black

Content:

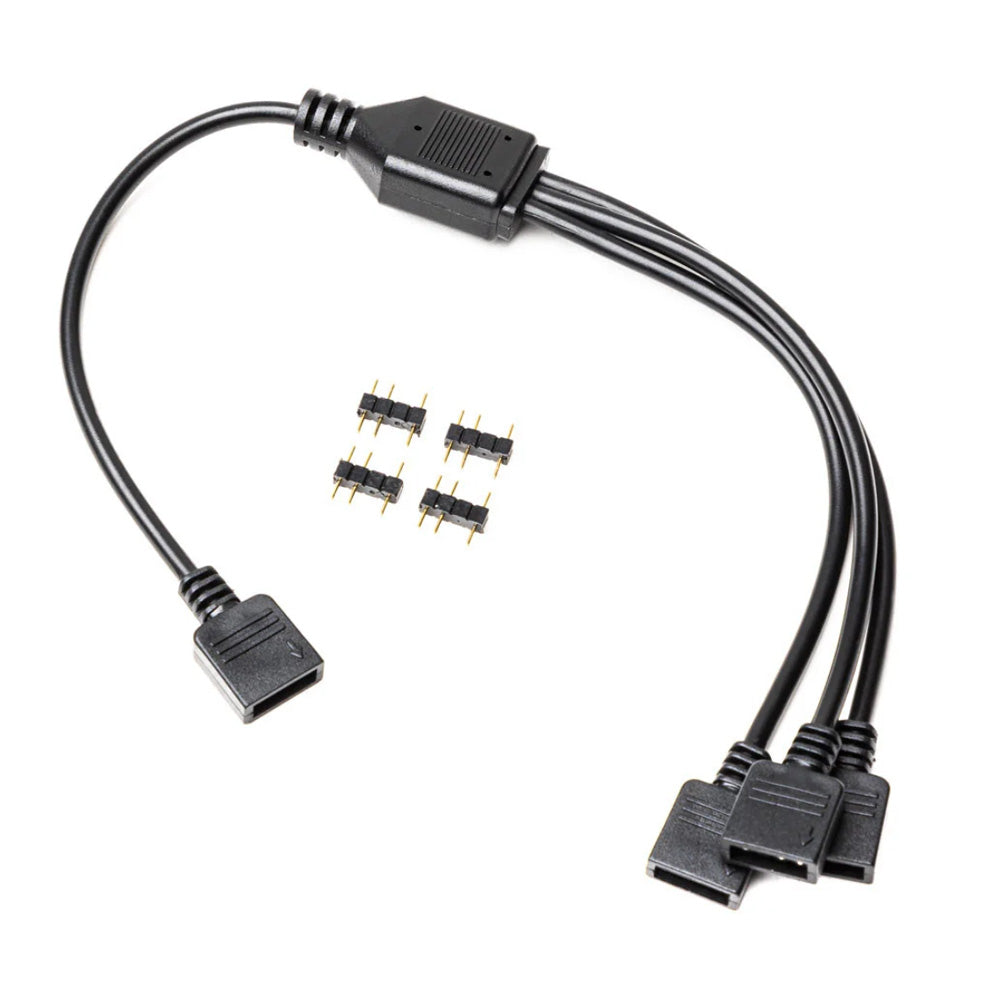

- EK-Loop D-RGB Splitter Cable 3-Way

- 3-pin male-male connector (4pcs)

 Made in China

PLEASE NOTE:

Please refer to the motherboard manufacturer manual or RGB controller manufacturer manual for LED type compatibility, maximum power load and maximum allowed LED strip length.

For power consumption list of EK products, refer to https://www.ekwb.com/blog/ek-6-way-d-rgb-splitter-and-how-to-use-it/

The male-male 3-pin connectors are removable from the splitter cable.

The splitter cable is compatible with every major motherboard manufacturer and mainstream RGB controller via the 3-pin header.

The D-RGB extension cable is not compatible with NZXT HUE+ / HUE+ Advanced RGB controllers!
