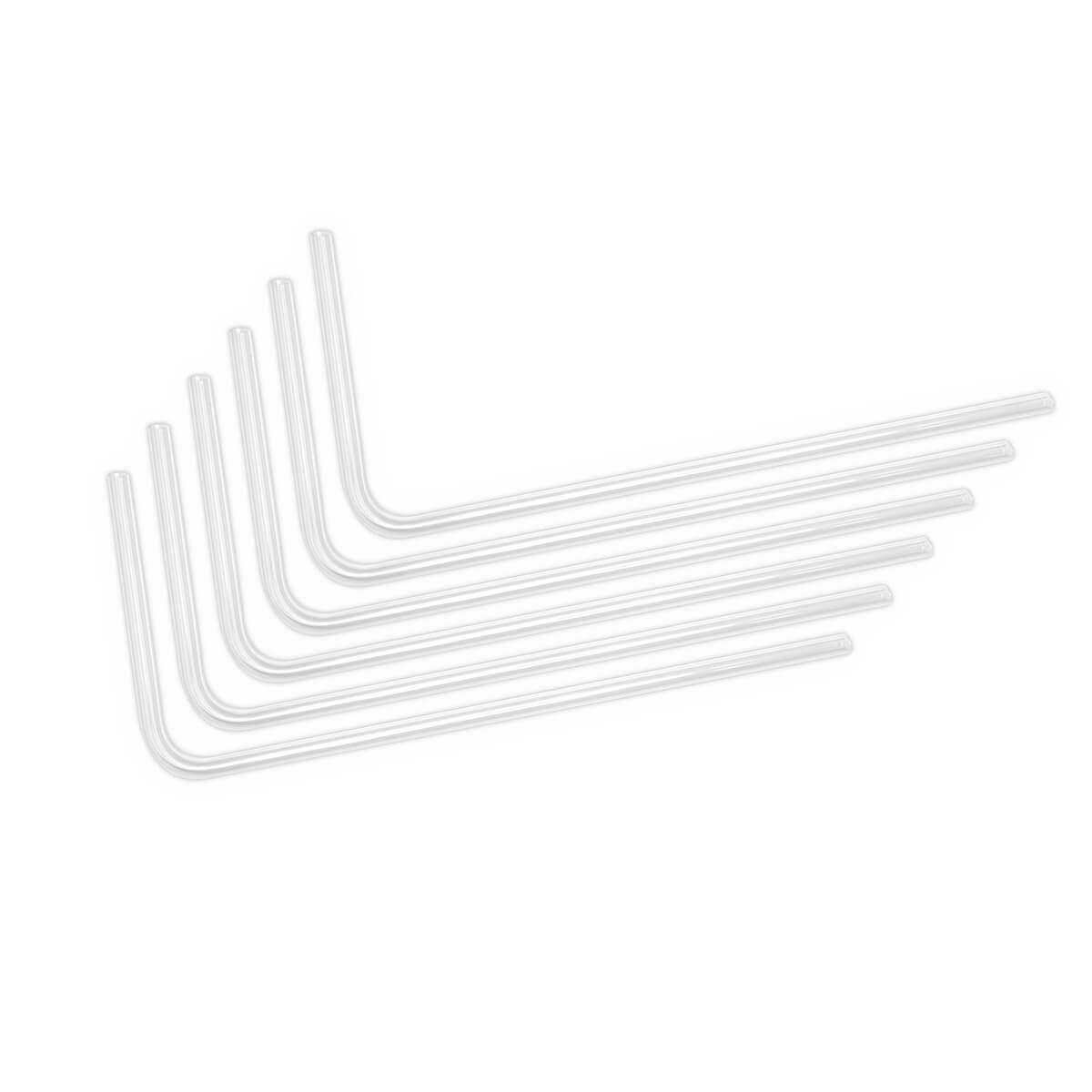

EKWB EK-Loop 12mm 0.8m Pre-Bent 90° Acrylic Hard Tube (6pcs)

EKWB  |  SKU 37671  |  MPN 3831109826041
$99.00

In stock at Computer Lounge

Warranty and Support

Warranty: 2 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Details

EK-Loop Hard Tube 12mm 0.8m Pre-Bent 90° - Acrylic (6pcs) is a 6-pack of 10/12mm (ID/OD) acrylic tubing bent to a 90-degree angle with a tubing length of 250mm and 550mm on either side of the bend. Intended to help liquid cooling beginners, but also bring a quality of life improvement for liquid cooling enthusiasts by shortening the time and effort needed to bend the tubing and build the systems.


EK 90 degree pre-bent tubing

It comes in a length of 0.8m (800mm) which can be easily cut and shortened to an adequate length for any tubing run. It is mandatory to chamfer the edges of a freshly cut tube in order to prevent gasket (O-ring) damage.


Technical data:

- Material: Extruded acrylic

- Inner diameter: 10 mm

- Outer diameter: 12 mm

- Total length: 800 mm

- Bend Angle: 90°

- Bend Radius: R20

- Length per axis: 550x250mm

The package contains 6 pieces of tubing only. Please purchase HDC or HDP fittings separately.


We recommend wetting the gasket (O-ring) using drops of water before installing the solid tube for easier installation.

Specifications

Size:12mm OD
