EKWB EK-AIO Elite Aurum 360 D-RGB CPU Cooler

Details

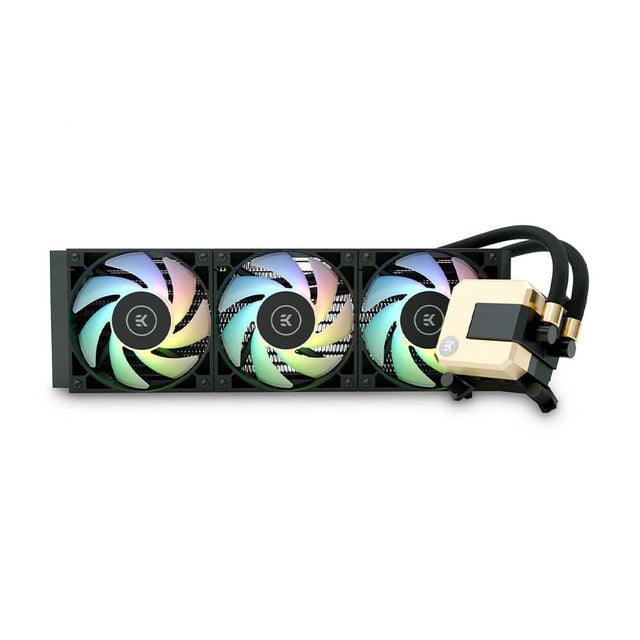

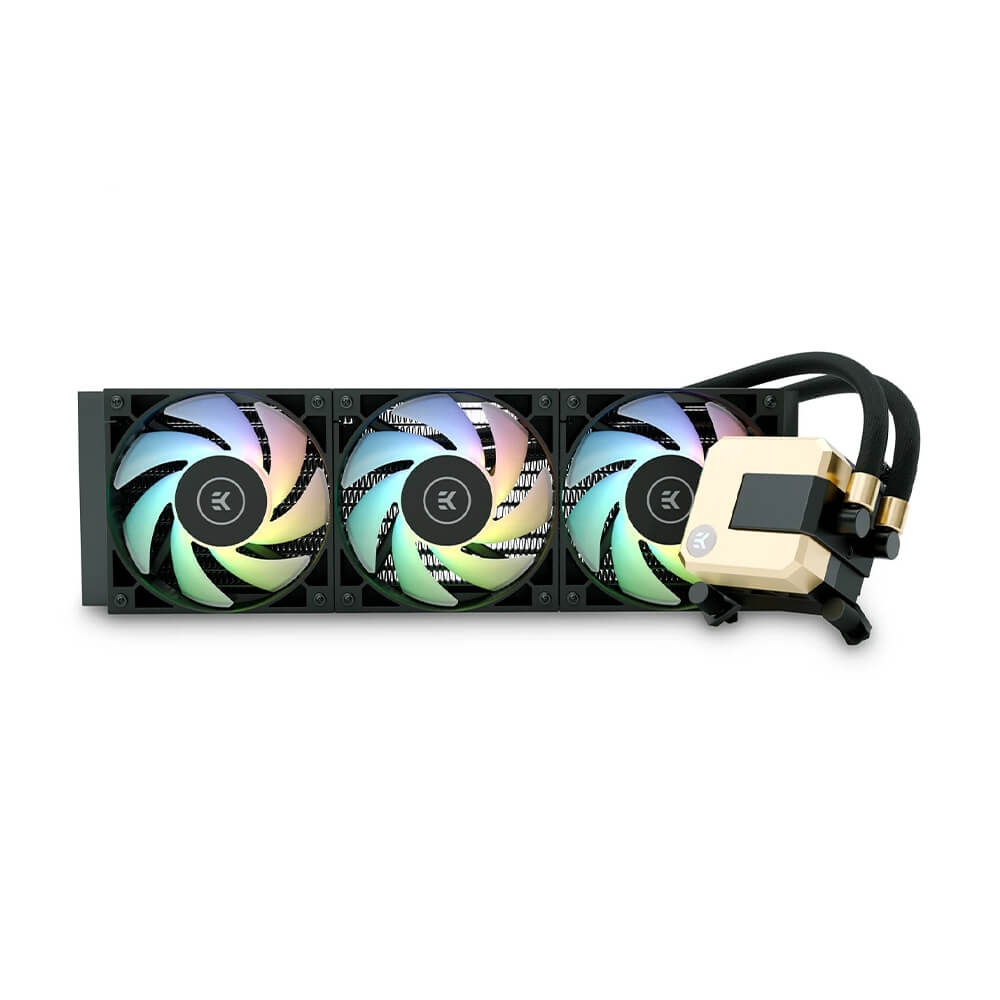

The EK-AIO Elite Aurum 360 D-RGB is an all-in-one liquid cooling solution for your CPU, boasting a six-fan setup for even better cooling performance. It offers all the benefits of a water-cooling solution in an easy to install and maintenance-free design. The EK AIO Elite Aurum comes with a universally compatible CPU water-block, along with a pre-filled pump-res combo design for a liquid cooling solution that’s ready to go straight out of the box. This Special Edition AIO is dressed in a glossy finish, featuring a golden nickel plated pump cover and diamond-cut gold fittings.

EK-AIO Elite Aurum 360 D-RGB

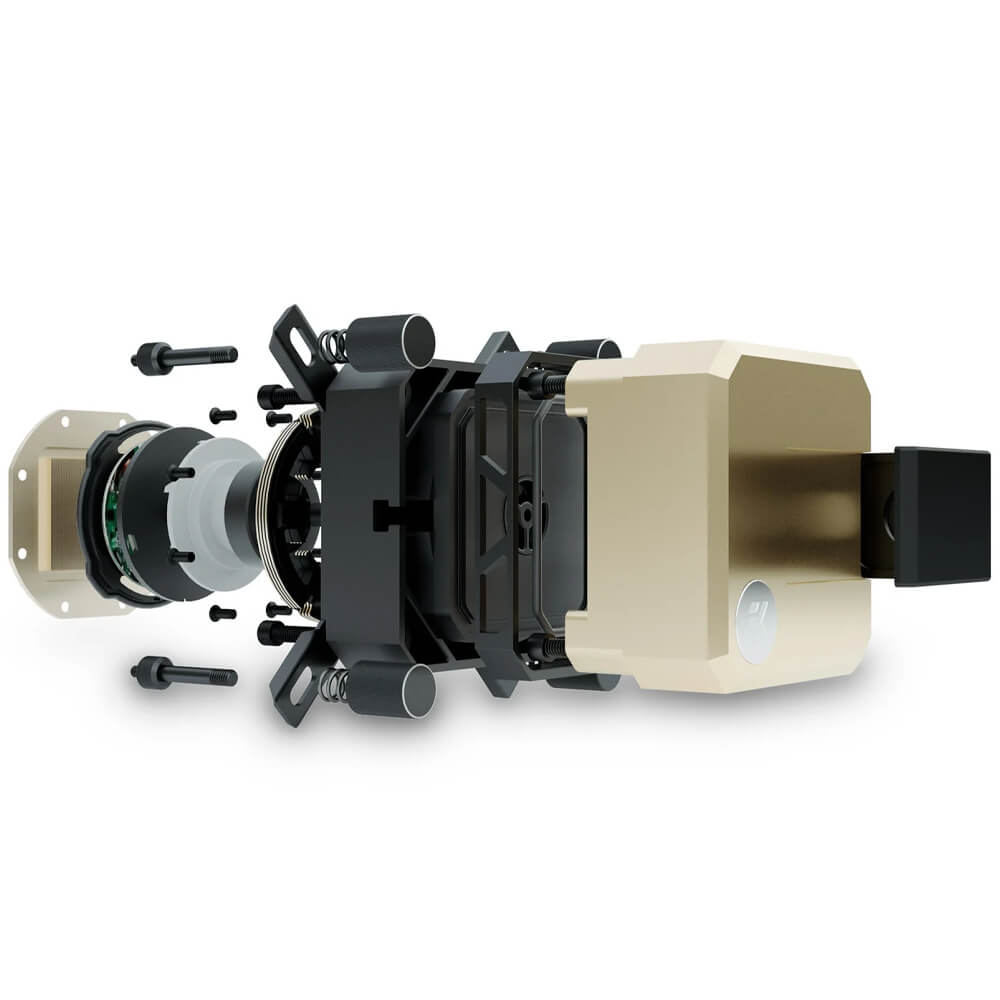

Easy installation with Universal Compatibility - The EK AIO comes with a universally compatible CPU water-block, fitting all the latest Intel & AMD CPU sockets as well as featuring a tool-less mounting mechanism for easy installation. Requiring just a single 360mm radiator mount, with diamond cut rotary fittings for easy tube adjustment, the EK AIO Elite offers compatibility with almost all modern case designs.

Dynamic Addressable D-RGB lighting

Customize your EK AIO to match your set-up with its range of fully addressable D-RGB lighting effects. Built into both its CPU block and six Vardar S fans, the EK AIO Elite offers a range of color configurations controlled from either your motherboard or standalone D-RGB controller. The Golden Nickel cover of the pump with a hint of D-RGB peeking through the EK logo is just one of the cool features of this Limited Edition EK-AIO.

Ultra-durable design with diamond-cut rotary fittings

 The EK AIO comes pre-installed with reinforced and sleeved rubber tubing, each fitted with an aluminum cover to ensure they’re ultra-durable. Its diamond-cut rotary golden nickel fittings allow for easy installation and adjustment of the rubber tubing, featuring a full range of movement to make the EK AIO suitable for installation in even the tightest spaces.

EK-Vardar High-Performance Fans

The EK-Vardar S included with the EK AIO are industrial grade high-static PWM fans, designed and built primarily for high-performance liquid cooling systems. Controlled by either your motherboard or standalone fan controller, the EK Vardar can be adjusted to run at speeds between 550 - 2200RPM for either high airflow or silent running. The EK-AIO Elite Aurum includes six Vardar fans, which can be utilized to create a push-pull configuration or if there is not enough space, create a better airflow by positioning three of the fans on the case itself.

Cable management

To help manage the cables of EK-Vardar fans, the EK-AIO Elite Aurum unit comes with an included EK-Hub, offering multi-connection with seven sets of addressable RGB LED headers and 4-pin PWM fan headers. The EK-Hub will help you neatly organize the Push-Pull fan configuration.

Technical Specifications

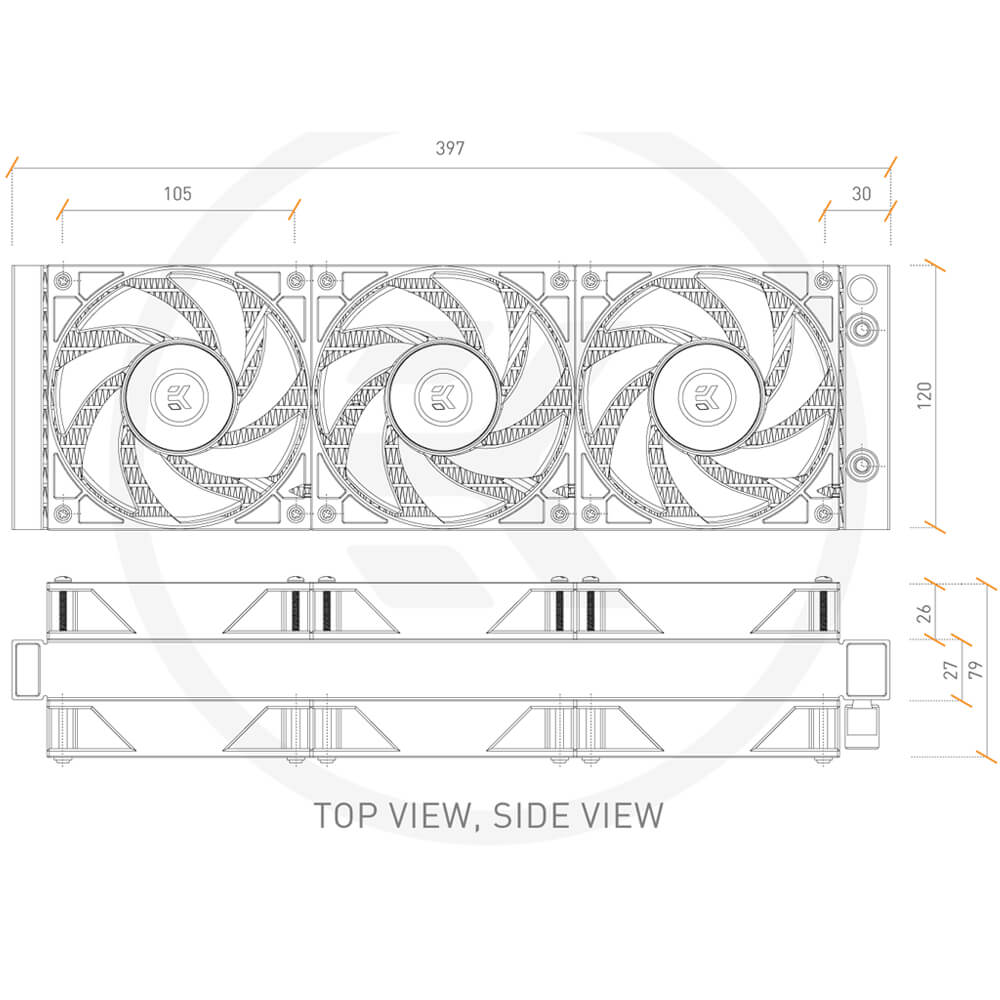

- Radiator Dimensions: 395 x 120 x 27 mm

- Radiator Material: Aluminum

- Fan Compatibility: 120 mm

- Pump Unit Dimensions: 88 x 70 x 64 mm

- Pump Unit Material: Golden nickel Housing, Copper Cold plate, Steel Mounting Pump

- Pump Speed Range: 1000 - 3300 RPM ± 10%

- Pump PWM Range: 25 - 100%

- Pump Cable Length: 50 mm

- Pump Unit RGB Type: 5V Digital (Addressable)

- Pinout: 5V, D, Empty, Ground Pump RGB Cable Length: 50 mm

- Tubing Material: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve

- Tubing Length: 400 mm

- Fan Dimensions: 120 x 120 x 25mm

- Fan Speed Range: 550 - 2200 ± 10%

- Fan Noise Level: 36,4dBA (at maximum speed)

- Fan Static Pressure: 2,89 mm H20 = 28,9 Pa (at maximum speed)

- Fan Air Flow: 66,04 CFM = 112,20 m³/h (at maximum speed)

- Fan Cable Length: 500 mm

- Fan RGB Type: 5V Digital (Addressable) Pinout: 5V, D, Empty, Ground

- Fan RGB Cable Length: 50 mm

System Requirements:

- 4-Pin PWM Header for pump and fan operation

- 3-Pin Addressable 5V D-RGB header

Enclosed:

- EK-AIO Elite Aurum 360 D-RGB unit

- EK-Vardar S 120ER D-RGB (6pcs)

- EK-Hub PWM + D-RGB

- Tube of Thermal Paste

- Mounting Kit

- User Manual

Mounting kit:

Zip Bag 1:

- 12x Phillips Head Screw UNC 6-32 x 30mm (5 mm thread length)

- 12x Phillips Head Screw UNC 6-32 x 6mm

- 12x Phillips Head Screw UNC 6-32 x 34mm

Zip Bag 2:

- 4x Thumb nut (Intel /AMD)

- 4x Mounting thumb screw for INTEL LGA 115x / AMD AM4 socket

- 4x Mounting thumb screw for Intel LGA 20XX socket

- 4x Spring

- 4x Mounting Plate Phillips Head M4x4mm (for the installation of mounting brackets)

Zip Bag 3:

- 1x Intel LGA 115x Backplate

- 2x Intel mounting bracket

- 2x AMD mounting bracket

CPU Socket Support:

- Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066, 1200

- AMD Sockets: AM4

5 Years Limited International Warranty

Designed in Slovenia, EU

Made in China

PLEASE NOTE:

AIO is a fully closed loop, so additional modification to this unit is not possible.

Unplugging the D-RGB cable does not turn off the LEDs. If you wish to turn them off, connect them to the motherboard 5V addressable RGB header and shut it down from the software
