EKWB EK-AIO Basic 360 CPU Cooler

Details

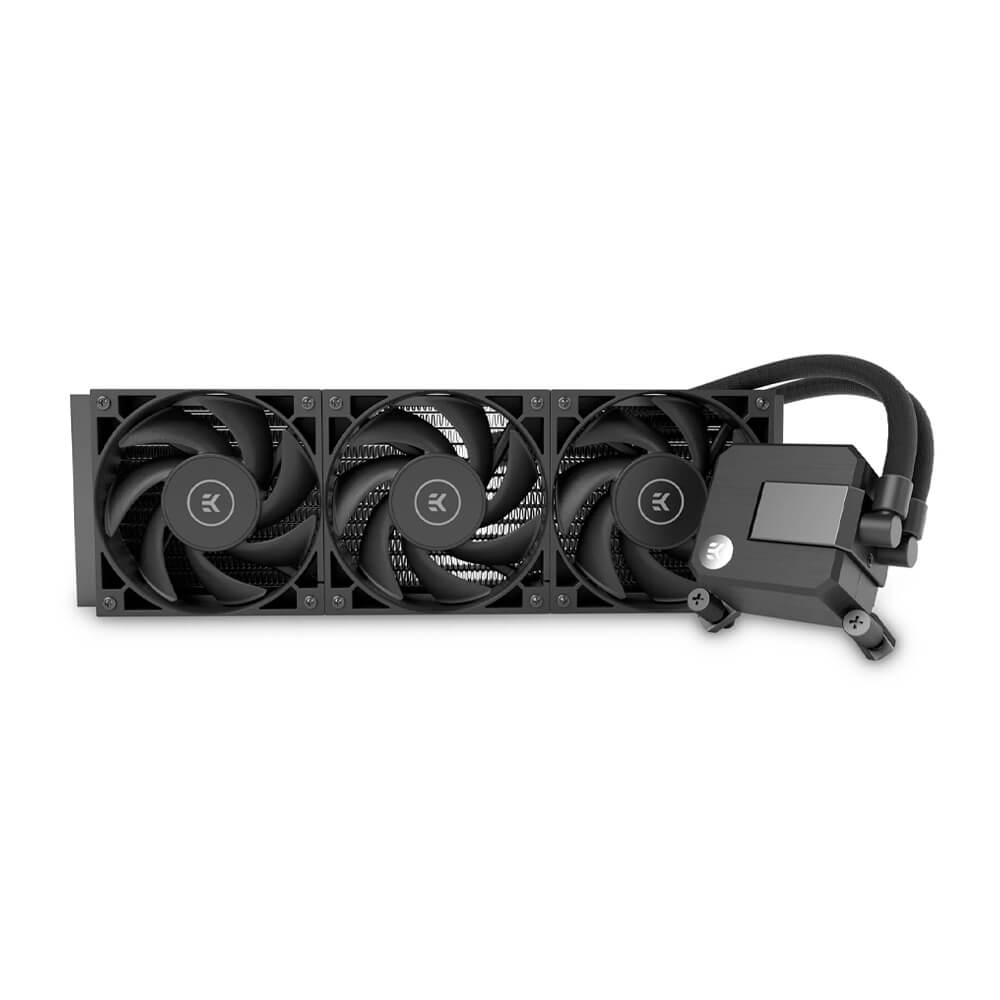

EK-AIO Basic 360 is a non-RGB, price-conscious, all-in-one liquid cooling solution for your CPU. It offers all the water cooling benefits in a compact, easy to install, and maintenance-free design. This EK-AIO comes with a universally compatible CPU water block, along with a pre-filled pump-reservoir combo. It is ready to go straight out of the box. Less fuss, more cooling!

Easy installation with Universal Compatibility - The EK AIO Basic comes with a universally compatible CPU water-block, fitting all the latest Intel & AMD CPU sockets as well as featuring a tool-less mounting mechanism for easy installation. Requiring just a single radiator mount, with diamond cut rotary fittings for easy tube adjustment, the EK AIO offers compatibility with almost all modern case designs.

EK-AIO Basic

Ultra-durable design with diamond-cut rotary fittings  - The EK AIO Basic comes pre-installed with reinforced and sleeved rubber tubing, each fitted with an aluminum cover to ensure they’re ultra-durable. Its diamond-cut rotary fittings allow for easy installation and adjustment of the rubber tubing, featuring a full range of movement to make the EK AIO suitable for installation in even the tightest spaces.

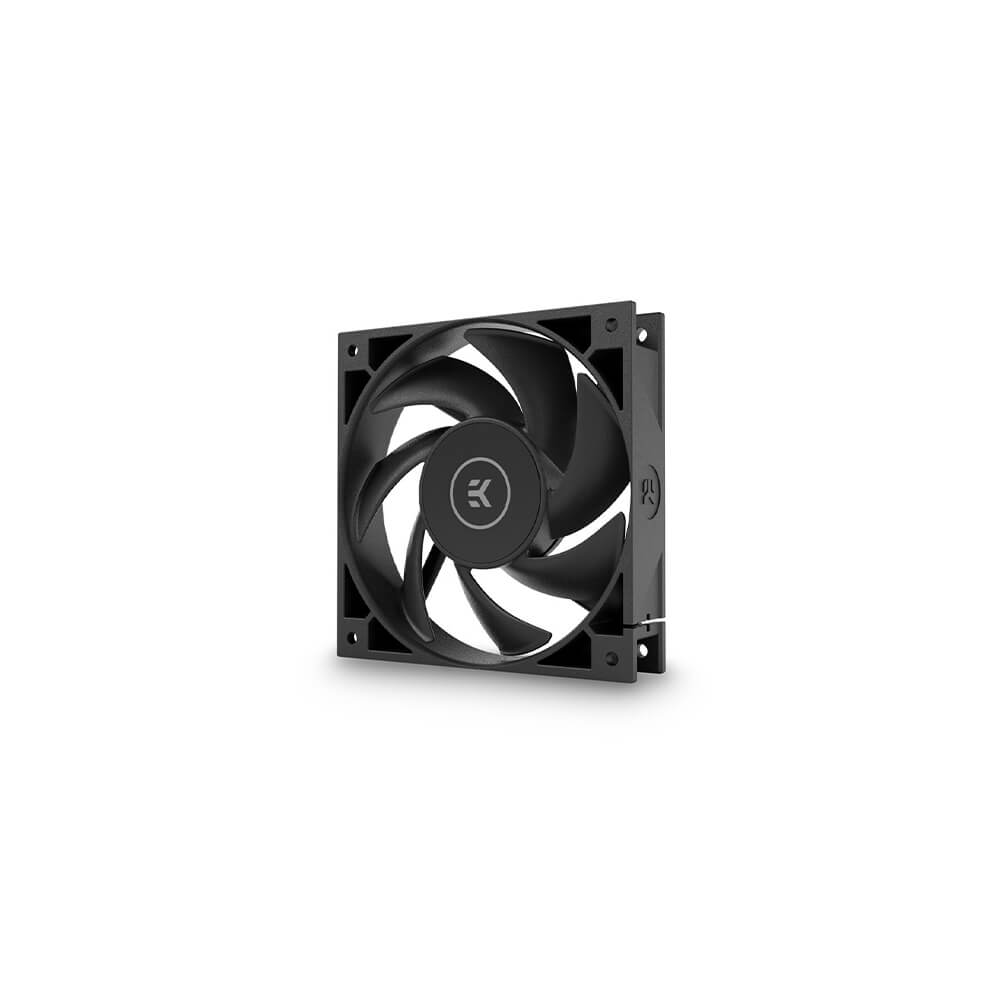

EK-Vardar High-Performance Fans - Three EK-Vardar S Black Edition fans included with the EK AIO are industrial grade high-static PWM fans, designed and built primarily for high-performance liquid cooling systems. Controlled by either your motherboard or standalone fan controller, the EK Vardar can be adjusted to run at speeds between 550 - 2200RPM for either high airflow or silent running.

Technical Specifications

- Radiator Dimensions: 275 x 120 x 27 mm

- Radiator Material: Aluminum

- Fan Compatibility: 120 mm

- Pump Unit Dimensions: 88 x 70 x 53 mm

- Pump Unit Material: PETG and ABS Housing, Copper Cold plate, Steel Mounting Pump

- Pump Speed Range: 850 - 2600 RPM ± 10%

- Pump PWM Range: 20 - 100%

- Pump Cable Length: 50 mm

- Tubing Material: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve

- Tubing Length: 400 mm

- Fan Dimensions: 120 x 120 x 25mm

- Fan Speed Range: 550 - 2200 ± 10%

- Fan Noise Level: 33,5dBA (at maximum speed)

- Fan Static Pressure: 2,89 mm H20 = 28,9 Pa (at maximum speed)

- Fan Air Flow: 77 CFM = 131 m³/h (at maximum speed)

- Fan Cable Length: 500 mm

Enclosed:

- EK-AIO Basic 360 unit

- 3x EK-Vardar S 120 Dark Edition

- Tube of Thermal Paste

- Mounting Kit

- User Manual

Mounting kit:

Zip Bag 1:

- 12x Phillips Head Screw UNC 6-32 x 30mm (5 mm thread length)

- 12x Phillips Head Screw UNC 6-32 x 6mm

- 12x Phillips Head Screw UNC 6-32 x 34mm

Zip Bag 2:

- 4x Thumb nut (Intel /AMD)

- 4x Spring

Zip Bag 3:

- 4x Mounting screws (Intel 1150,1151,1155,1156,1200/AMD)

Zip Bag 4:

- 4x Mounting screws (Intel 2011,2011-3,2066)

Zip Bag 5:

- 2x Intel Mounting Bracket

Zip Bag 6:

- 2x AMD Mounting Bracket

Zip Bag 7:

- 5x Mounting screws for Brackets M4x6mm

CPU Socket Support:

- Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066

- AMD Sockets: AM4

5 Years Limited International Warranty

Designed in Slovenia, EU

Made in China

PLEASE NOTE:

AIO is a fully closed loop, so additional modification to this unit is not possible.
