EKWB EK-AIO 360 D-RGB CPU Cooler

EK-AIO 360 D-RGB

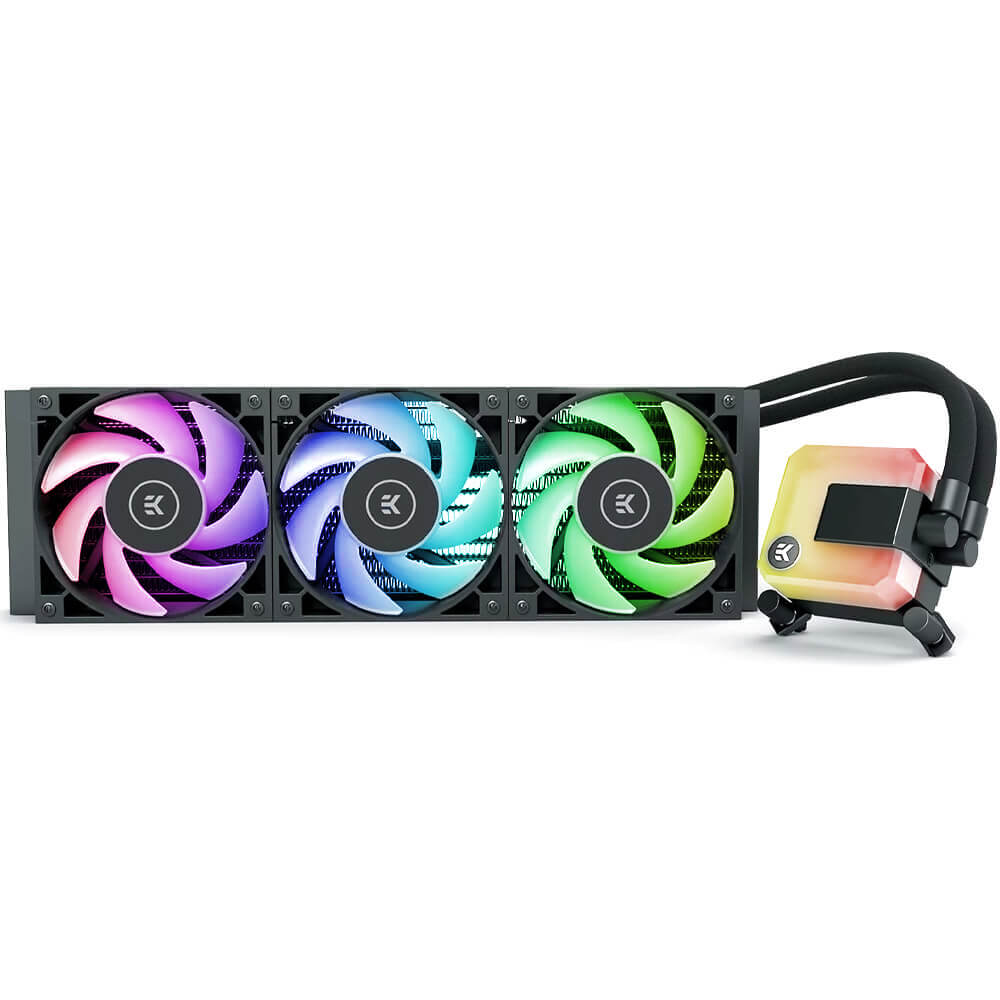

Take your first step into liquid-cooling with the new EK-AIO (All-In-One) CPU cooler. Simple to use and easy to install, the EK AIO is a plug-and-play water-cooling solution requiring no assembly or maintenance. Top of its class cooling performance accompanied by fully customizable D-RGB lighting - the EK-AIO is an ideal solution for anyone who requires something more than an ordinary air cooler.

Easy installation with Universal Compatibility

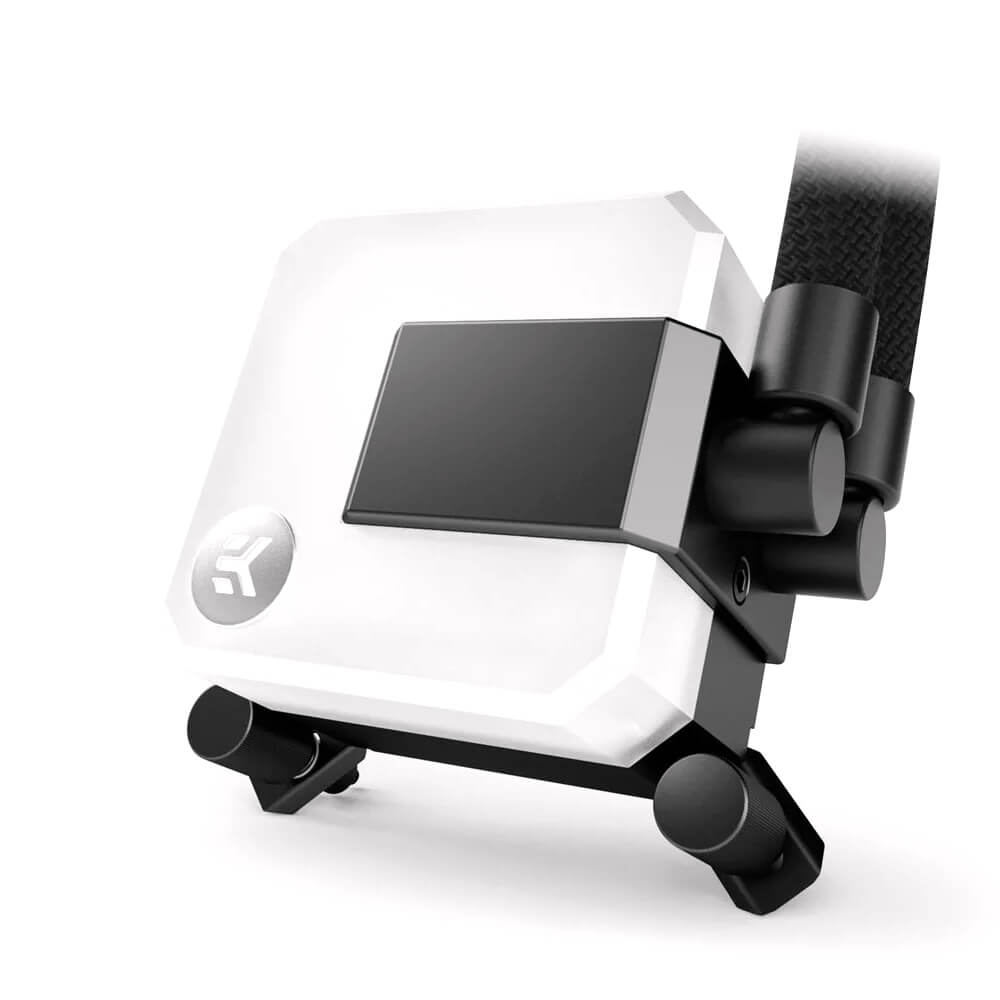

The EK AIO comes with a universally compatible CPU water-block, fitting all the latest Intel & AMD CPU sockets as well as featuring a tool-less mounting mechanism for easy installation. Requiring just a single radiator mount, with diamond cut rotary fittings for easy tube adjustment, the EK AIO offers compatibility with almost all modern case designs.

Dynamic Addressable D-RGB lighting

Customize your EK AIO to match your set-up with its range of fully addressable D-RGB lighting effects. Built into both its CPU block and Vardar S fans, the EK AIO offers a range of color configurations controlled from either your motherboard or standalone RGB controller. The EK AIO CPU monoblock features a full acrylic cover, acting as a light diffuser with its frosted finish, for a dynamic lighting display with smooth color transitions.

This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the A-RGB (D_RGB) header. You can easily remove the LED strip cover which is mounted with two screws to replace the LED strip with some other type of LED strip.

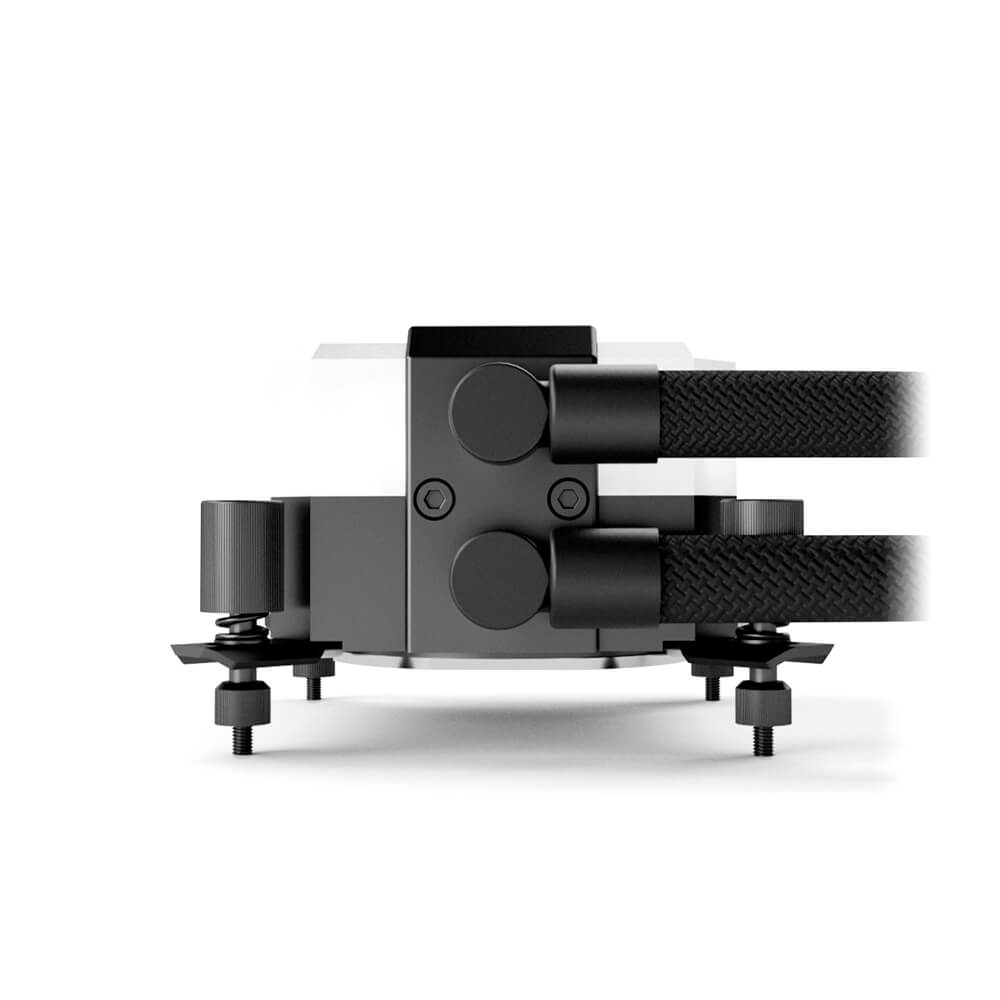

Ultra-durable design with diamond-cut rotary fittings

The EK AIO comes pre-installed with reinforced and sleeved rubber tubing, each fitted with an aluminum cover to ensure they’re ultra-durable. Its diamond-cut rotary fittings allow for easy installation and adjustment of the rubber tubing, featuring a full range of movement to make the EK AIO suitable for installation in even the tightest spaces.

EK-Vardar High-Performance Fans

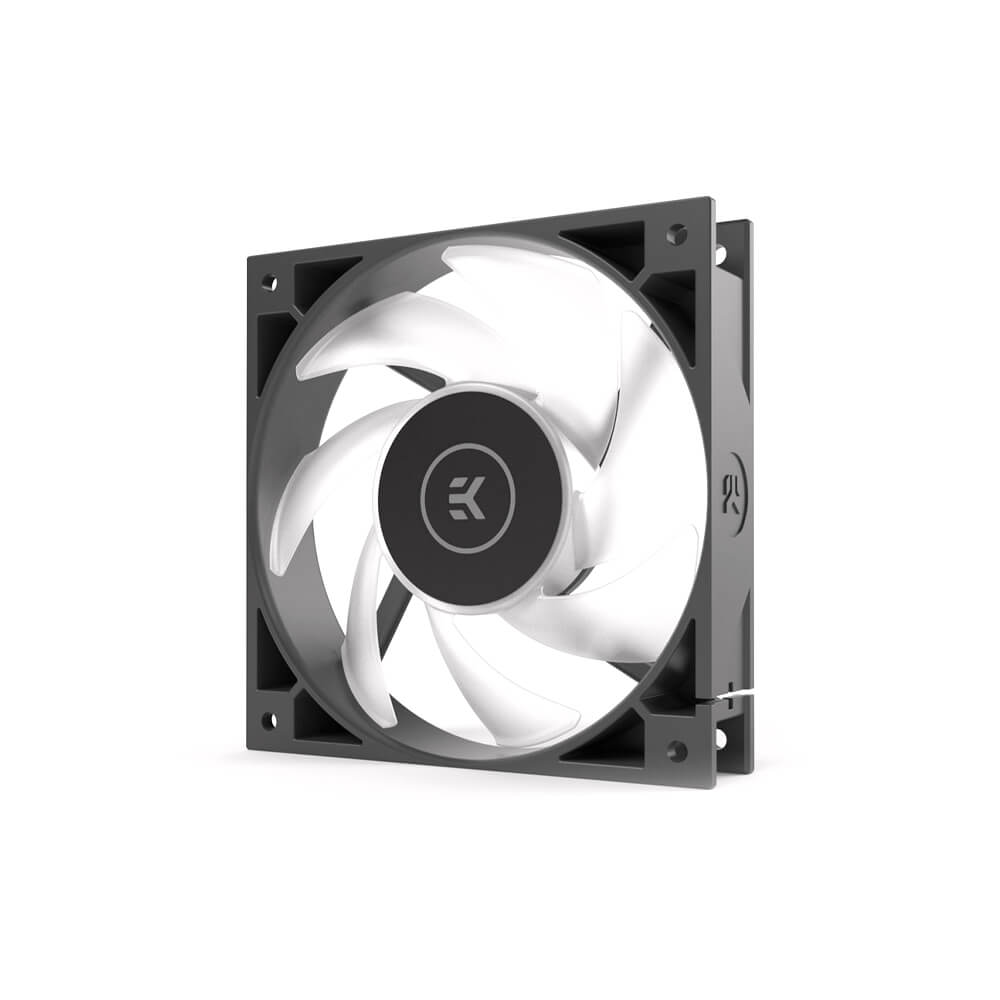

The EK-Vardar S included with the EK AIO are industrial grade high-static PWM fans, designed and built primarily for high-performance liquid cooling systems. Controlled by either your motherboard or standalone fan controller, the EK Vardar can be adjusted to run at speeds between 600 - 2500RPM for either high airflow or silent running. EK-Vardar S is our first choice for radiator cooling, providing unmatched cooling performance, with fully integrated and customizable D-RGB lighting.

System Requirements:

• 4-Pin PWM Header for pump and fan operation
• 3-Pin Addressable 5V D-RGB header

Enclosed:

• EK-AIO 360 unit
• EK-Vardar S 120ER D-RGB (3pcs) Mounting Kit
• Tube of Thermal Paste
• User Manual
