EKWB EK-AIO 280 D-RGB CPU Cooler

Details

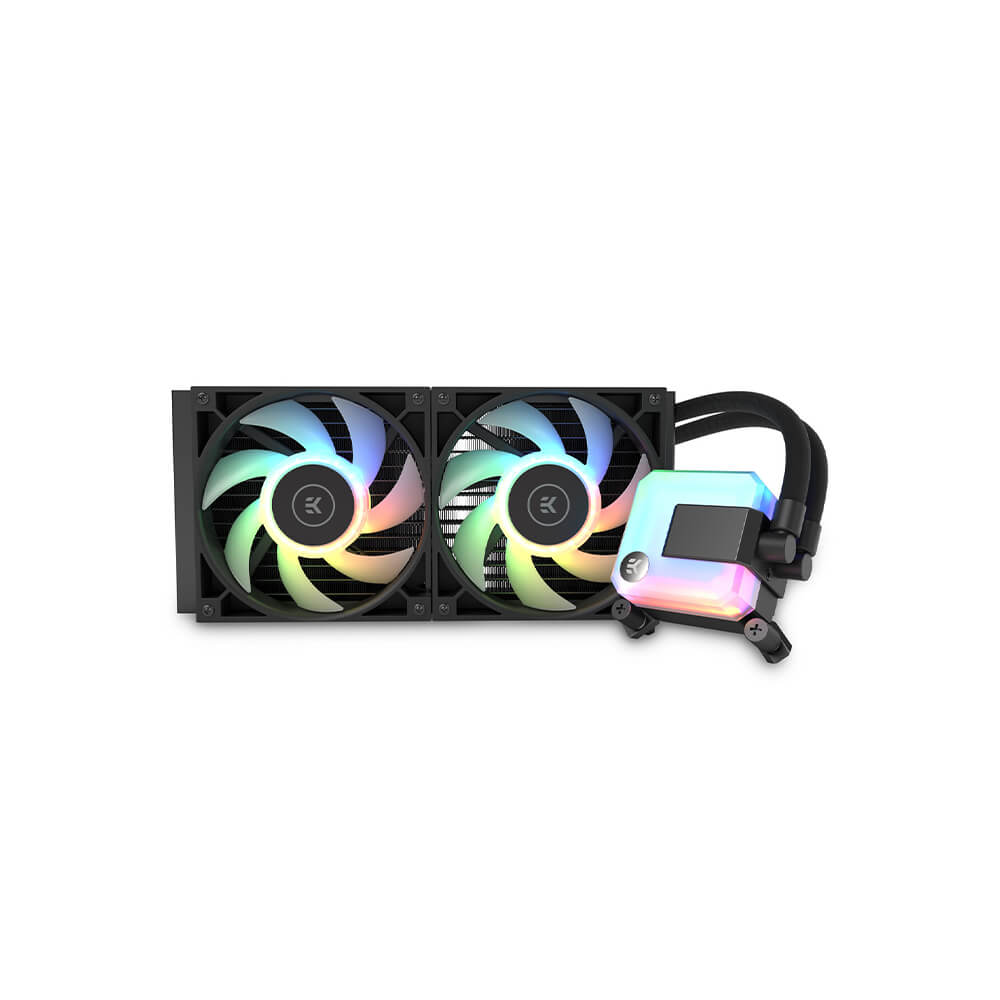

The EK-AIO 280 D-RGB is an all-in-one liquid cooling solution for your CPU. It offers all the benefits of a water-cooling solution in a compact, easy to install, and maintenance-free design. The EK AIO comes with a universally compatible CPU water-block, along with a pre-filled pump-res combo design for a liquid cooling solution that’s ready to go straight out of the box. It’s simple, efficient, and comes with fully customizable D-RGB lighting.

EK-AIO 280 D-RGB

Easy installation with Universal Compatibility - The EK AIO comes with a universally compatible CPU water-block, fitting all the latest Intel & AMD CPU sockets as well as featuring a tool-less mounting mechanism for easy installation. Requiring just a single 280mm radiator mount, with diamond cut rotary fittings for easy tube adjustment, the EK AIO offers compatibility with almost all modern case designs.

Dynamic Addressable D-RGB lighting

Customize your EK AIO to match your set-up with its range of fully addressable D-RGB lighting effects. Built into both its CPU block and Vardar S fans, the EK AIO offers a range of color configurations controlled from either your motherboard or standalone RGB controller. The EK AIO CPU water block features a full acrylic cover, acting as a light diffuser with its frosted finish, for a dynamic lighting display with smooth color transitions.

This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the A-RGB (D_RGB) header.

/

Ultra-durable design with diamond-cut rotary fittings  - The EK AIO comes pre-installed with reinforced and sleeved 400mm rubber tubing, each fitted with an aluminum cover to ensure they’re ultra-durable. Its diamond-cut rotary fittings allow for easy installation and adjustment of the rubber tubing, featuring a full range of movement to make the EK AIO suitable for installation in even the tightest spaces.

EK-Vardar High-Performance Fans - The two 140mm EK-Vardar S fans included with the EK AIO are industrial grade high-static PWM fans, designed and built primarily for high-performance liquid cooling systems. Controlled by either your motherboard or standalone fan controller, the EK Vardar can be adjusted to run at speeds between 500 - 2000RPM for either high airflow or silent running. EK-Vardar S is our first choice for radiator cooling, providing unmatched cooling performance, with fully integrated and customizable D-RGB lighting.

Technical Specifications

• Radiator Dimensions: 313 x 140 x 27mm
• Radiator Material: Aluminum
• Fan Compatibility: 140mm
• Pump Unit Dimensions: 88 x 70 x 53mm
• Pump Unit Material: ABS Housing, Copper Cold plate, Steel Mounting Pump
• Pump Speed Range: 850 - 2600 RPM ± 10%
• Pump PWM Range: 20 - 100%
• Pump Cable Length: 450mm
• Pump Unit RGB Type: 5V Digital (Addressable)
• Pinout: 5V, D, Empty, Ground Pump RGB Cable Length: 50 mm
• Tubing Material: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve
• Tubing Length: 400mm
• Fan Dimensions: 140 x 140 x 25mm
• Fan Speed Range: 500 - 2000 ± 10%
• Fan Noise Level: 36,4dBA (at maximum speed)
• Fan Static Pressure: 1,9 mm H20 = 18,6 Pa (at maximum speed)
• Fan Air Flow: 116 CFM = 197 m³/h (at maximum speed)
• Fan Cable Length: 500mm
• Fan RGB Type: 5V Digital (Addressable) Pinout: 5V, D, Empty, Ground
• Fan RGB Cable Length: 50mm

System Requirements:

- 4-Pin PWM Header for pump and fan operation

- 3-Pin Addressable 5V D-RGB header

Enclosed:

- EK-AIO 280 unit

- EK-Vardar S 140ER D-RGB (2pc)

- Tube of Thermal Paste

- Mounting Kit

- User Manual

Mounting kit:

Zip Bag 1:

- 8x Phillips Head Screw UNC 6-32 x 30mm (5 mm thread length)

- 8x Phillips Head Screw UNC 6-32 x 6mm

- 8x Phillips Head Screw UNC 6-32 x 34mm

Zip Bag 2:

- 4x Thumb nut (Intel /AMD)

- 4x Spring

Zip Bag 3:

- 4x Mounting screws (Intel 1150,1151,1155,1156,1200 and AMD AM4)

Zip Bag 4:

- 4x Mounting screws (Intel 2011,2011-3,2066)

Zip Bag 5:

- 2x Intel Mounting Bracket

Zip Bag 6:

- 2x AMD Mounting Bracket

Zip Bag 7:

- 5x Mounting screws for Brackets M4x6mm

- 2x AMD mounting bracket

CPU Socket Support:

- Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066, 1200

- AMD Sockets: AM4

5 Years Limited International Warranty

Designed in Slovenia, EU

Made in China

PLEASE NOTE:

AIO is a fully closed loop, so additional modification to this unit is not possible.

Unplugging the D-RGB cable does turn off the LEDs. If you wish to turn them off, connect them to the motherboard 5V addressable RGB header and shut it down from the software
