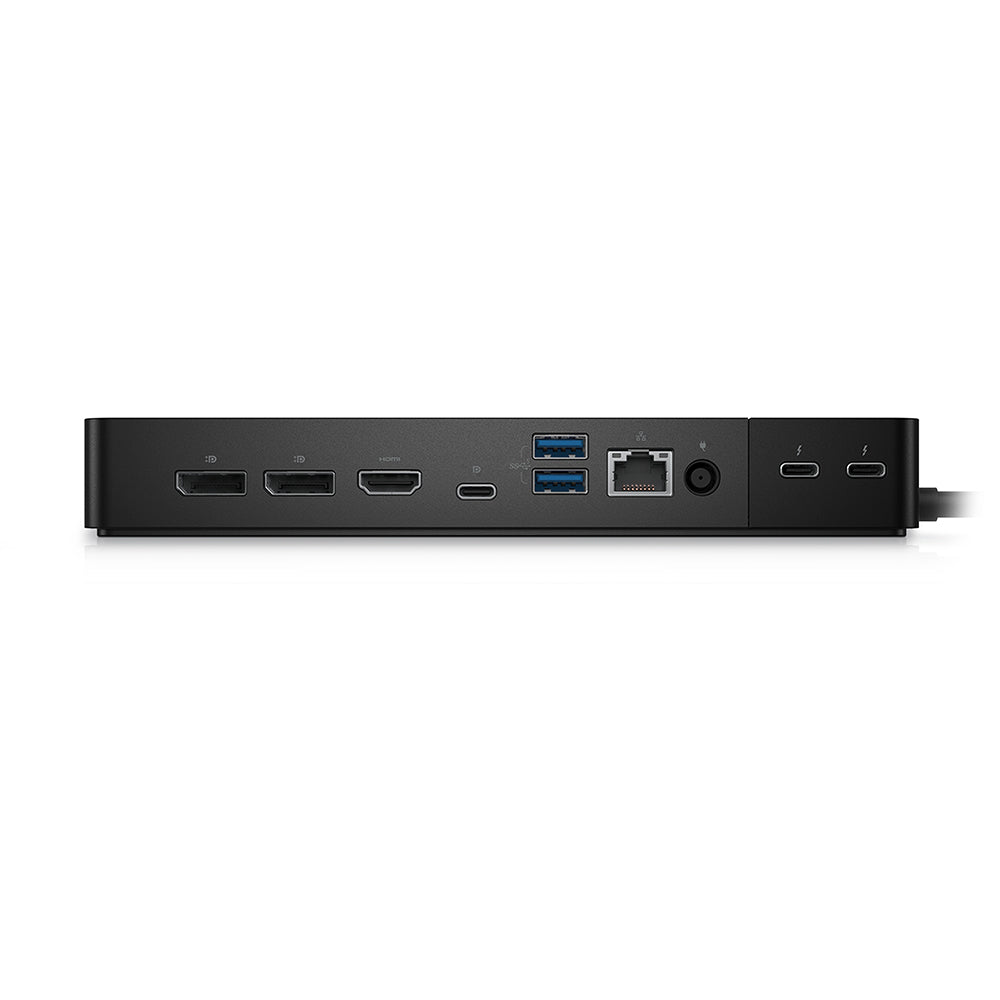

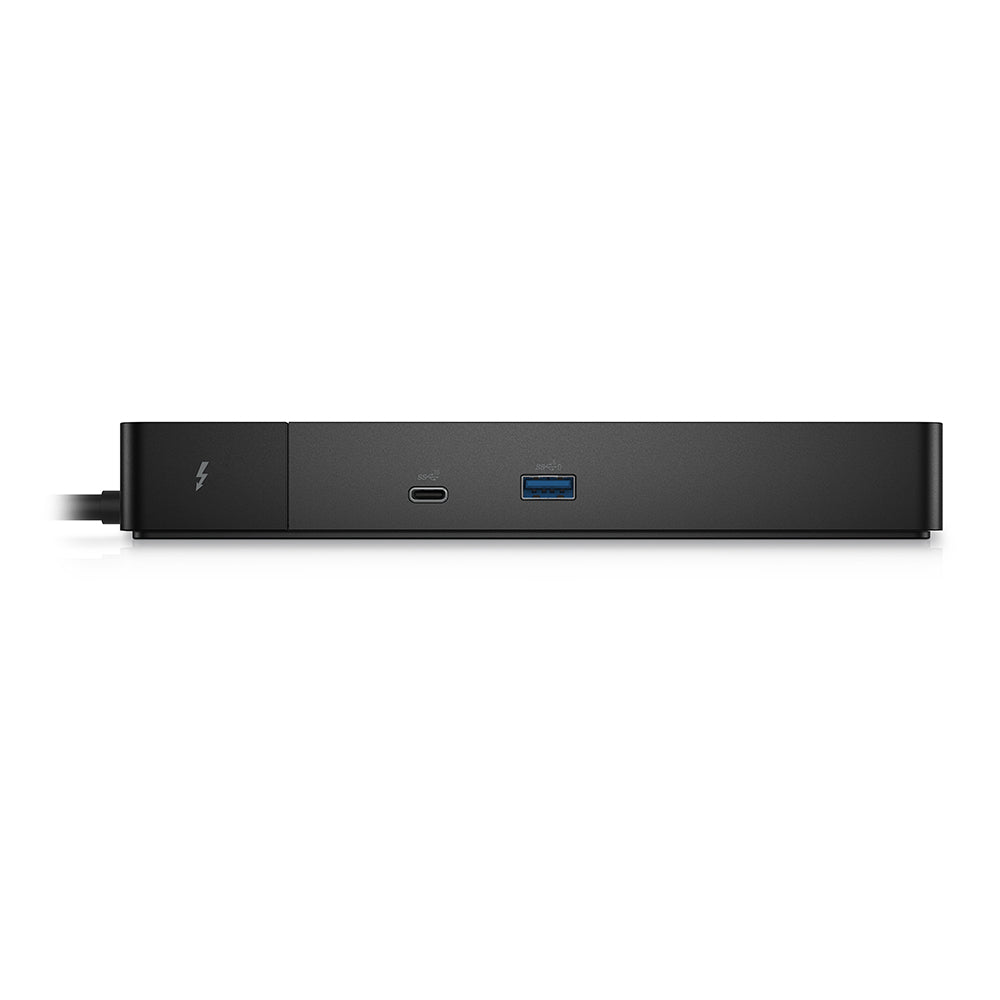

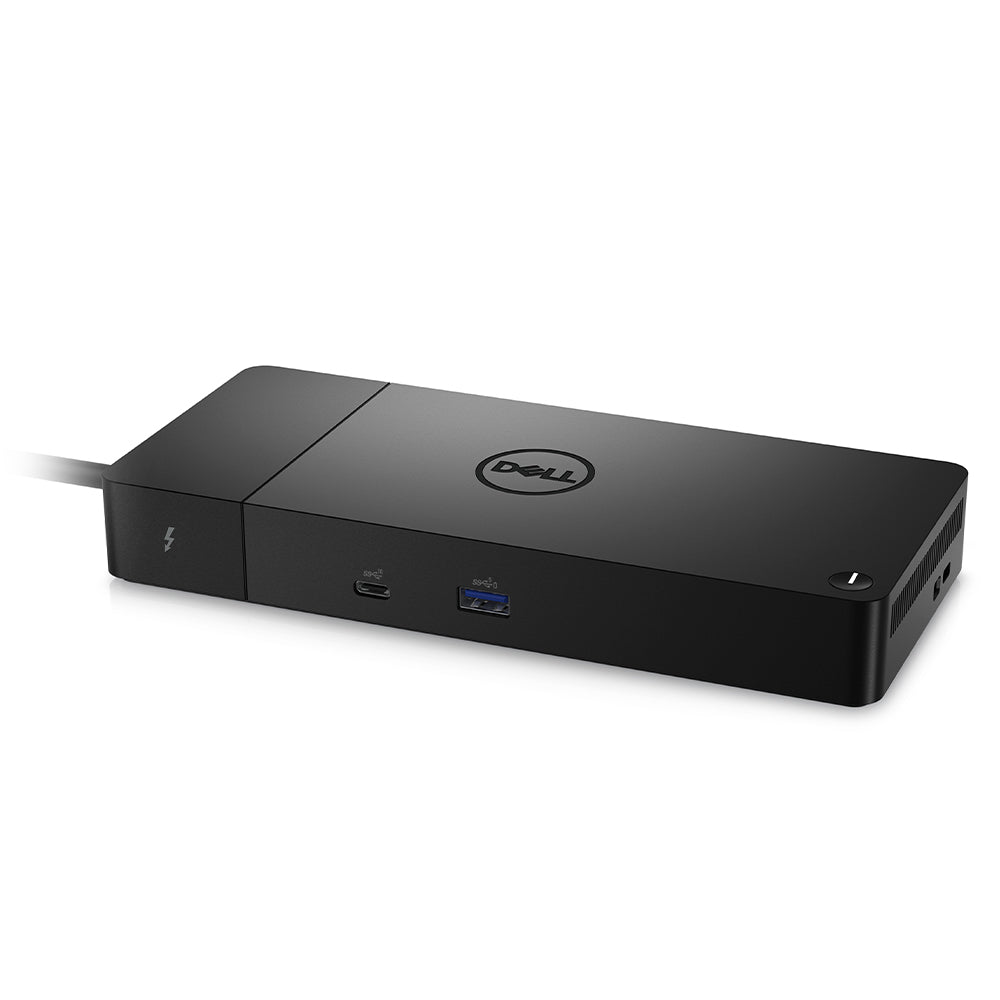

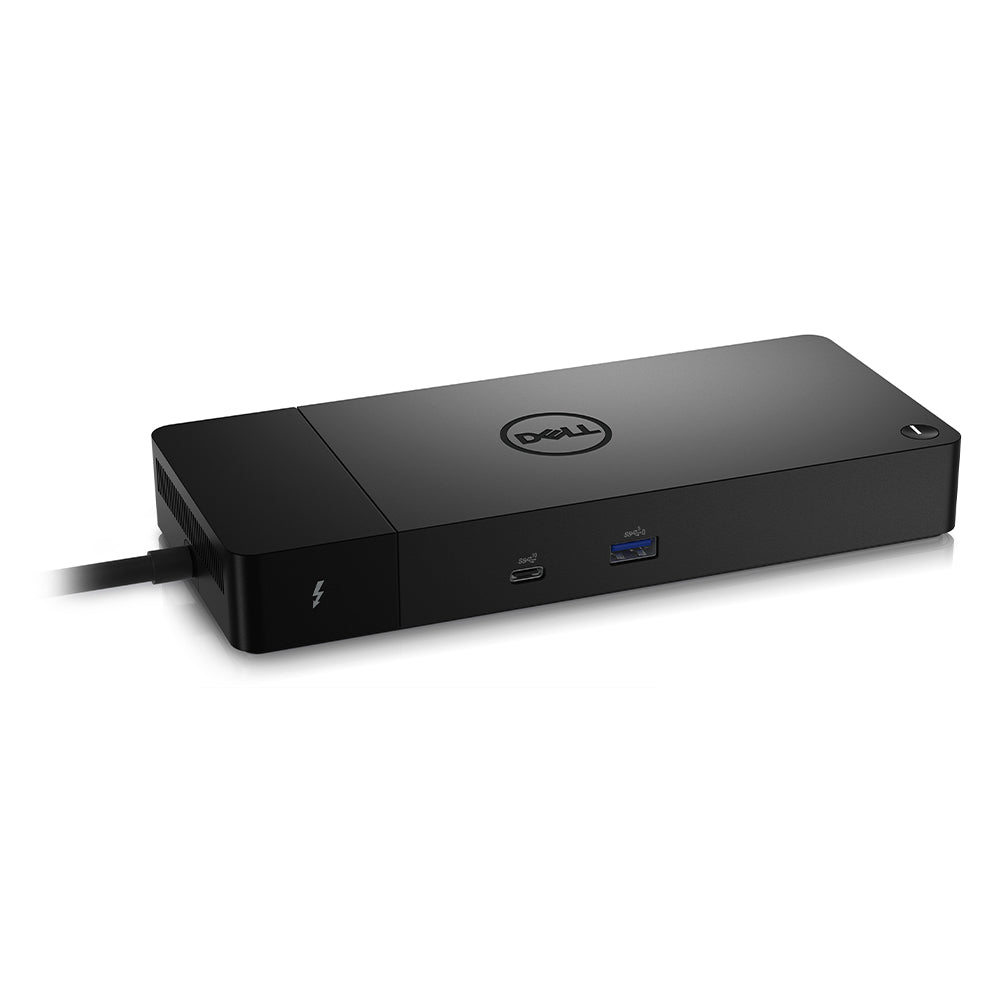

Dell WD22TB4 Thunderbolt 4 Triple 4K Docking Station support 130W power delivery
Order now and it ships in 2-3 working days.
In-stock at Supplier
Pickup available at Computer Lounge
Usually ready in 2-3 working days.
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
ExpressCharge technology
You'll experience power delivery of up to 130W on Dell devices with ExpressCharge technologyi that enables:
Future-made design
Swappable module lets you upgrade with ease to meet the needs of your IT environment.
Upgrade to get the latest in connectivity with not one but two Thunderbolt™ 4 ports for even more flexibility.
Multiply productivity
Connect displays and peripherals to your system with a single cable for ultimate productivity.
Thunderbolt™ 4 dock with the highest number of portsi connects multiple 4K displays and Thunderbolt peripherals allowing you to not compromise with your work setup. Get the maximum from your peripherals with data transfer of 40 GB/s.
Intelligent and simple management
Work without disruption: Firmware updates can be completed in five to seven minutes without needing to reboot the system.
Easier for IT:
Dell Client Command Suite and Microsoft System Center Configuration Manager offers a smoother firmware update experience. You can also streamline deployment and management with a single firmware.
Easier upgrades:
Modularity allows for simple field replacement of the power cable or connectivity module.
Better support:
Inventory management got easier since each has its own service tag, allowing IT to push firmware updates only to certain dock.
Secure manageability:
Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN, and more, it’s easier than ever to stay productive while managing your dock.
Industry standard compatibility
Dell Thunderbolt™ Dock – WD22TB4 offers wide compatibility across Dell Commercial laptops. It is is also compatible with notebooks from other manufacturers which support industry standards for Thunderbolt™ docking. For functional limitations with notebooks from other manufactures in comparison to Dell Commercial notebooks, please see this support article.
Specifications
Specifications
| Product Type | Docking station |
| Width | 20.5 cm |
| Depth | 9 cm |
| Height | 2.9 cm |
| Weight | 650 g |
| Max Resolution Details | 5K - 60 Hz (Single Display) 4K - 60 Hz (Quad Display) |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Interfaces | 2 x display / video - DisplayPort - 20 pin DisplayPort (1.4) 1 x display / video - HDMI - 19 pin HDMI 2.0 1 x USB-C 3.2 Gen 2/DisplayPort 1.4 2 x USB 3.2 Gen 1 - 9 pin USB Type A 1 x USB 3.2 Gen 1 with PowerShare - 9 pin USB Type A 1 x USB-C 3.2 Gen 2 1 x network - Ethernet 1000 - RJ-45 2 x Thunderbolt 4 |
| Cables Included | 80 cm |
| Features | Security lock slot (cable lock sold separately), wake on LAN, LED indicator, Preboot Execution Environment (PXE) support, MAC address pass-through, 130W power delivery to Dell systems, 90W power delivery to non-Dell systems, wireless vPro, Kernel Direct Memory Access (DMA) protection |
| Security Slot Type | Noble Wedge security slot / Kensington security slot |
| Compliant Standards | DisplayPort 1.4 |
| Power Device | Power adapter |
| Power Provided | 130W (Dell systems) 90W (non-Dell systems) |
| OS Required | Windows 10, Windows 11, Ubuntu 20.04 or later |
