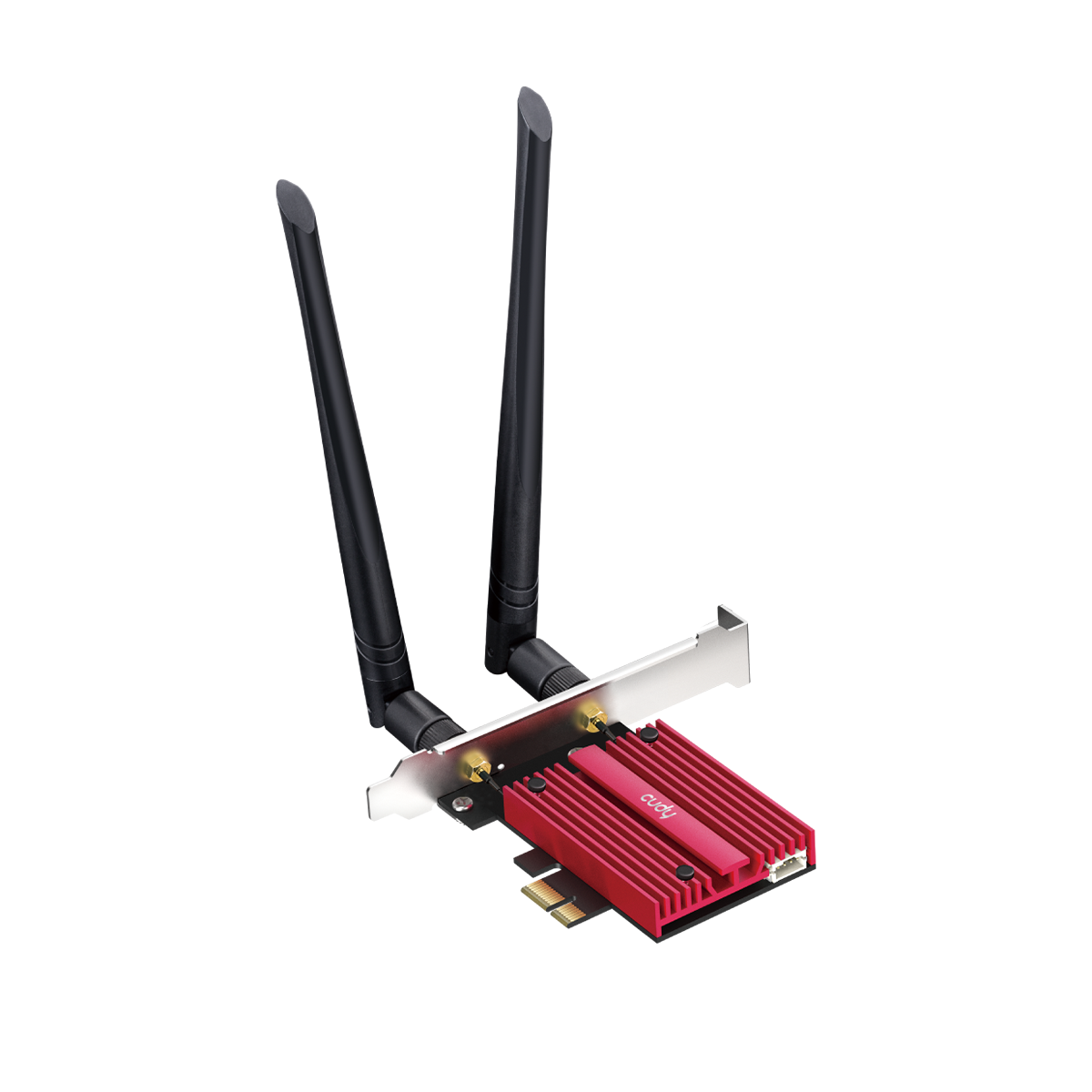

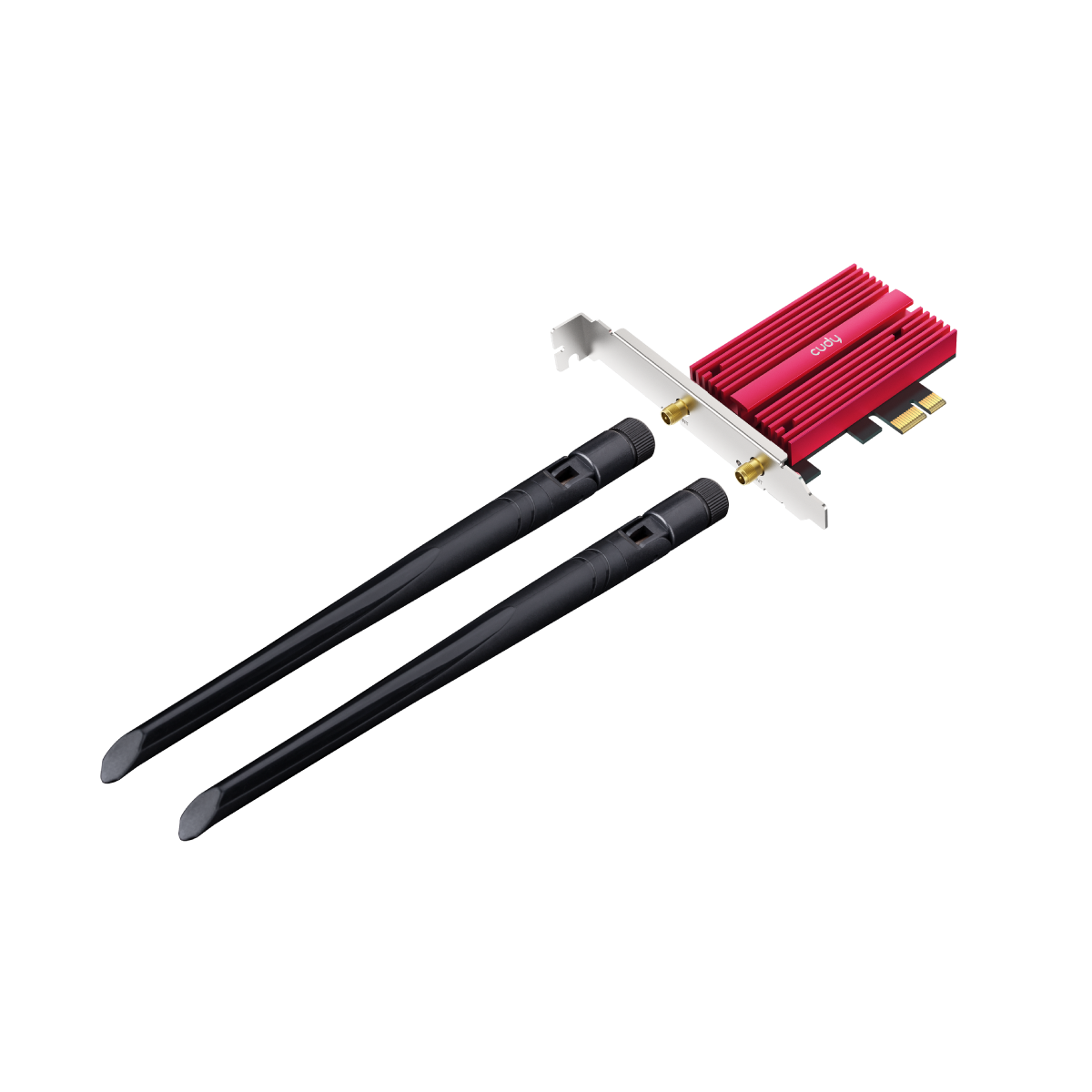

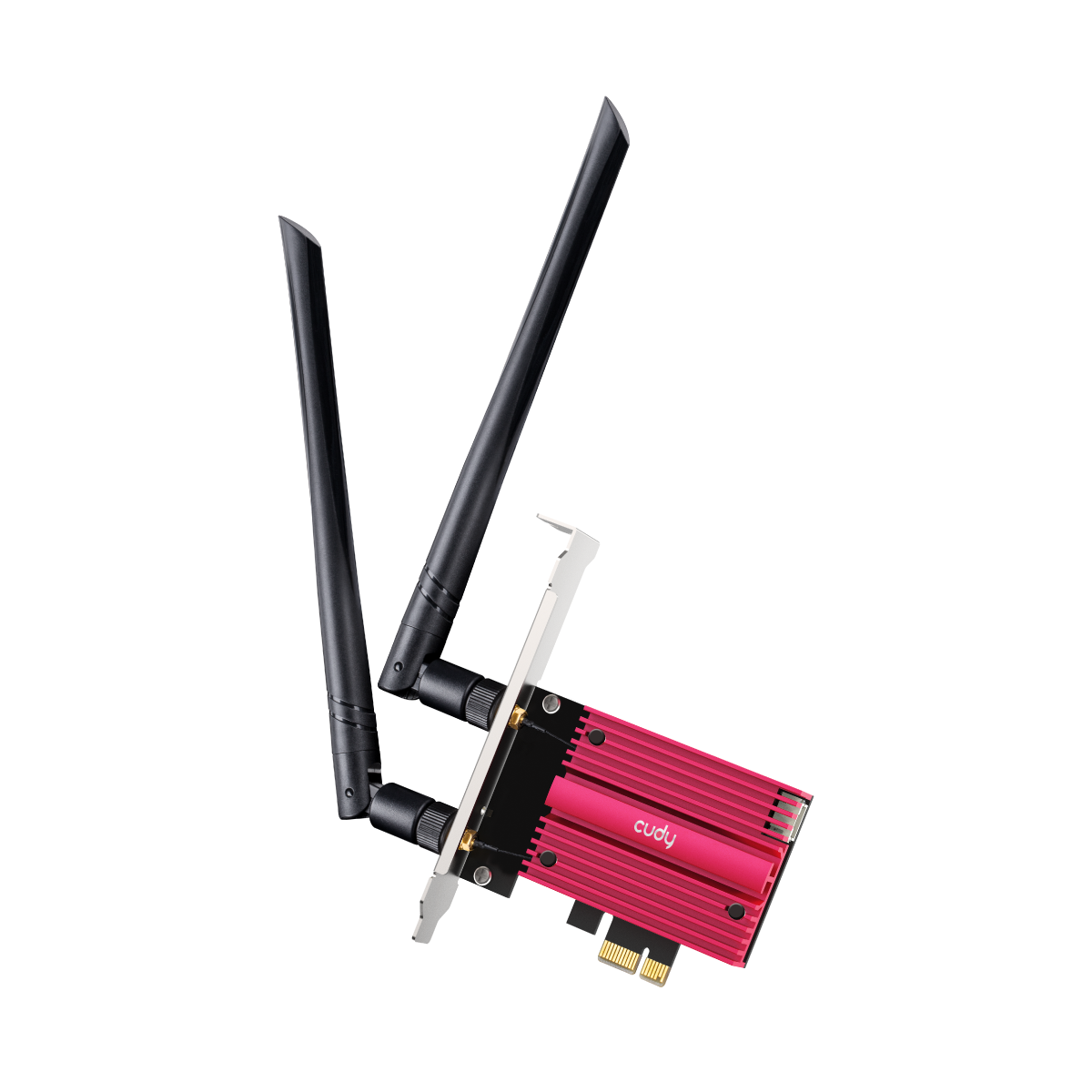

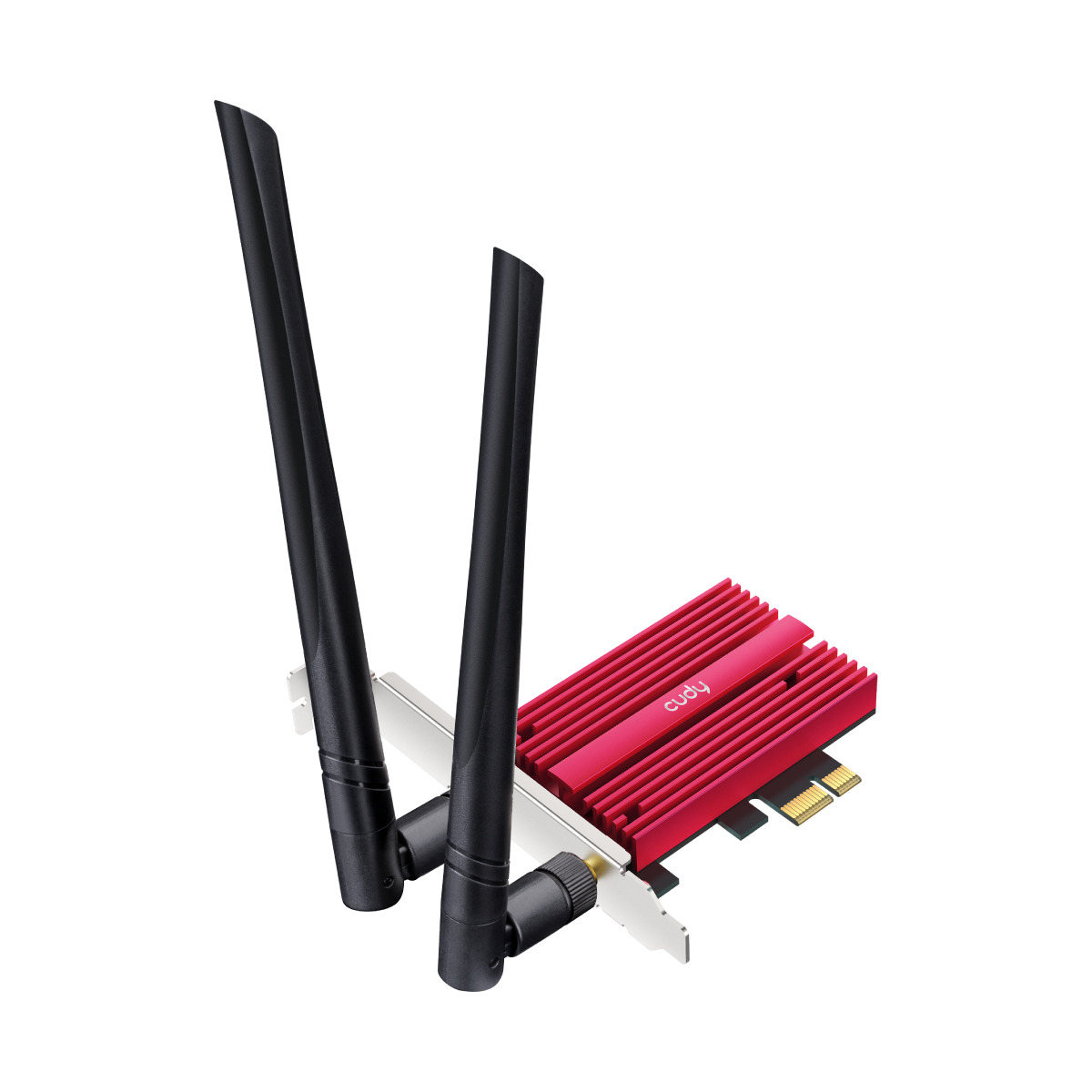

Cudy WE3000S AX5400 Tri-Band Wi-Fi 6 with Bluetooth 5.3 PCIe Adapter
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
AX5400 Wi-Fi 6E Bluetooth 5.3 PCI-E Adapter
Model: WE3000S 2.0
A Wi-Fi 6E and Bluetooth PCI-E adapter built on an AX210 Intel module with a heatsink. Install it to equip your Windows 10/11 PC with advanced wireless connectivity.
Tri-Band Wi-Fi 6E
2.4 Gbps + 2.4 Gbps + 574 Mbps WiFi
Bluetooth 5.3
Bluetooth 5.3 provides 2× faster speed and 4× broader coverage than Bluetooth 4.2. Connect as many devices as you want, including game controllers, headphones, and keyboards, to enjoy a smoother experience than ever before.
Incredibly Smooth Experience
Lower latency is essential to gaming success. Revolutionary OFDMA reduces lag by up to 75%. Enjoy ultra-responsive real-time gaming or immersive VR experiences.
AX200 Module Inside
Combined with AX200 WiFi 6 card, this WiFi 6 PCIe card brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router. 2.4GHz provides 574 Mbps maximum speed and extremely long range, while 5GHz reaches 2402 Mbps maximum speed, ideal for gaming and 4K streaming. Full compatibility for 802.11ax/ac/a/b/g/n routers.
WPA3 Advanced Security
Improved security with the latest WPA3 wireless encryption.
Windows 10/11 64-bit Compatible
Compatible with Windows 10/11 (64-bit).

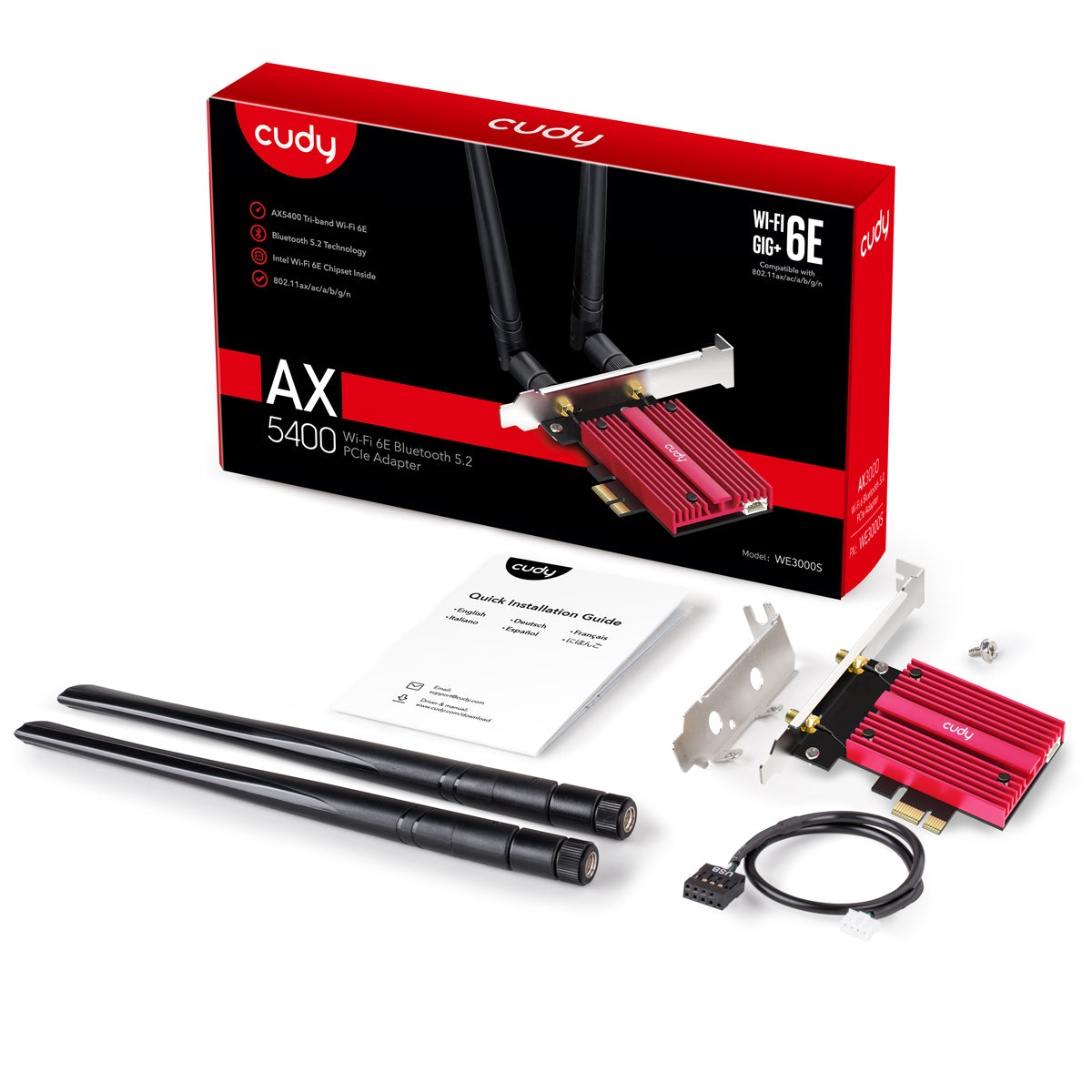

Package Content
- WE3000 with standard profile
- Two 5 dBi High Gain Antennas
- Low-Profile Bracket
- Bluetooth Header Cable
- Quick Installation Guide
Specifications
Specifications
Hardware Specs
| Model Version | WE3000S 2.0 |
| CPU Chipset | Intel AX210 |
| Wireless | 6 GHz Wi-Fi Speed: 2402 Mbps 5 GHz Wi-Fi Speed: 2402 Mbps 2.4 GHz Wi-Fi Speed: 574 Mbps |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 2× Detachable |
| Detachable Wi-Fi Antennas Connector | RP-SMA Female |
| Reliability | Ambient Operating Temperature: 0 ℃ ~ 70 ℃ (32 ℉ ~ 158 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing |
| Hardware Requirement | Requires a PCI-E 1x or higher standard slot on the motherboard for powering and the WiFi function Requires a USB 9-PIN slot on the motherboard for the Bluetooth function |
| Compatible OS | Windows 10/11 64-Bit |
| Driver Installation | Manual driver installation for Windows. Driver available in the Download Center. |
| Certifications | FCC, CE |
| Mechanical Dimension | Device Body: 70×45.5×20 mm 2.76×1.79×0.79 inches Antennas: Φ15×221.5 mm Φ0.59×8.72 inches |
| Product Weight | 116 g (4.09 oz.) |
| Package Content | WE3000S Detachable Antennas Bluetooth to 9-PIN USB Cable Low-Profile Bracket Installation Guide |
| Retail Package Weight | 261 g (9.21 oz.) |
| Retail Package Dimension | 232×136×40 mm 9.13×5.35×1.57 inches |
| Carton Net Weight | 15.7 kg (34.61 lbs) |
| Carton Gross Weight | 16.8 kg (37.04 lbs) |
| Units per Carton | 60 |
| Carton Dimension | 43.5×43×48 cm 17.13×16.93×18.9 inches |
Software Specs
| Wireless Wi-Fi Standards | Wi-Fi 6E |
| Max Wi-Fi Modulation | 1024-QAM |
| Wi-Fi Efficiency | OFDMA MU-MIMO BSS Color |
| Max Wi-Fi Channel Width | 160 MHz |
| Wi-Fi Security | WPA-PSK (WPA/WPA2/WPA3) |
| Bluetooth Standards | Bluetooth 5.3 |
