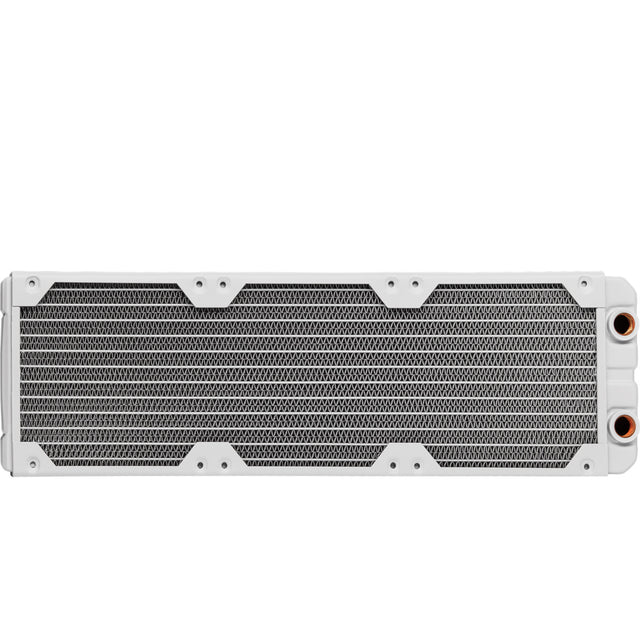

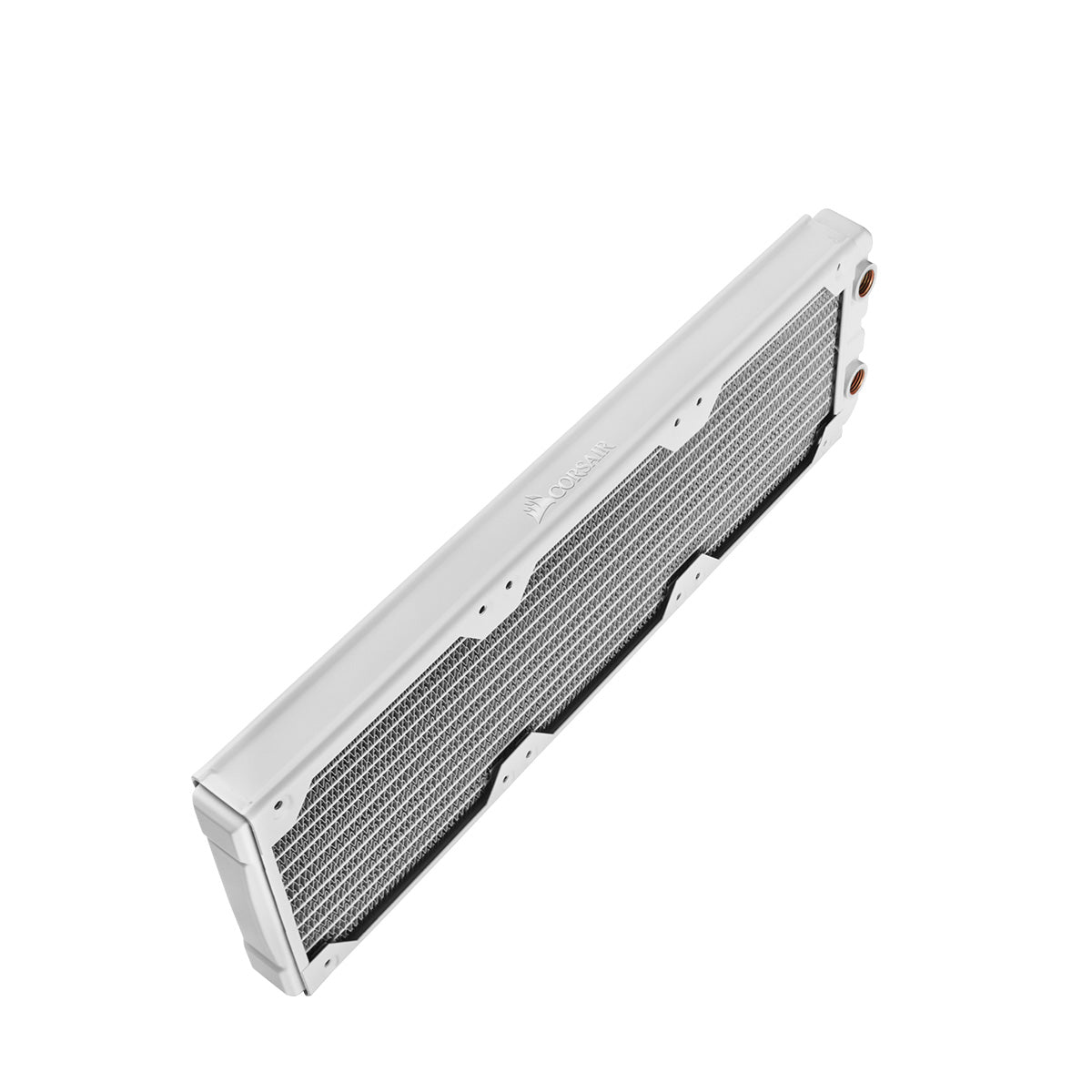

Corsair Hydro X Series XR5 360mm Water Cooling Radiator - White
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
EXTREME PERFORMANCE LIQUID COOLING
Triple 120mm fan mounts on either side are ready for your most ambitious custom cooling build.
HIGH SURFACE AREA
30mm Radiator thickness delivers easy installation and great cooling performance with low-noise fans and high-airflow fans.
MATTE WHITE COATING
Provides a flawless finish that matches the other white CORSAIR products in your setup.
PREMIUM COPPER CONSTRUCTION
A premium copper radiator core and 25 micron-thick cooling fins provide a high thermal transfer rate optimized for CORSAIR's performance copper water blocks.
SCREW PROTECTION PLATES
Prevents too long or over-tightened screws from damaging the radiator.
STANDARD G1/4” THREADS
All inlet/outlet ports provide universal fitting compatibility.
CUSTOM COOLING CONFIGURATOR
Take out all the guesswork and create the custom cooling system of your dreams. With thousands of components and millions of hardware combinations, it’s easy to pick, tweak and personalize your custom cooling system, with a detailed render of how your future loop will look.
Specifications
Specifications
| Material | Copper / Brass |
| Max Operating Temperature | 60°C coolant temperature |
| Compatible Coolants | CORSAIR XL or equivalent |
| Compatible Materials | Only mix with other copper / brass products |
| Port Thread | G1/4" BSPP |
| Screw Thread Size | M4xP0.7 |
| Radiator Thickness | 30mm |
| Color | WHITE |
| Radiator Dimensions | 396mm x 120mm x 30mm |
| Number of Fans | 3 |
| Model | Radiator |
| Weight | 1.0348 |
