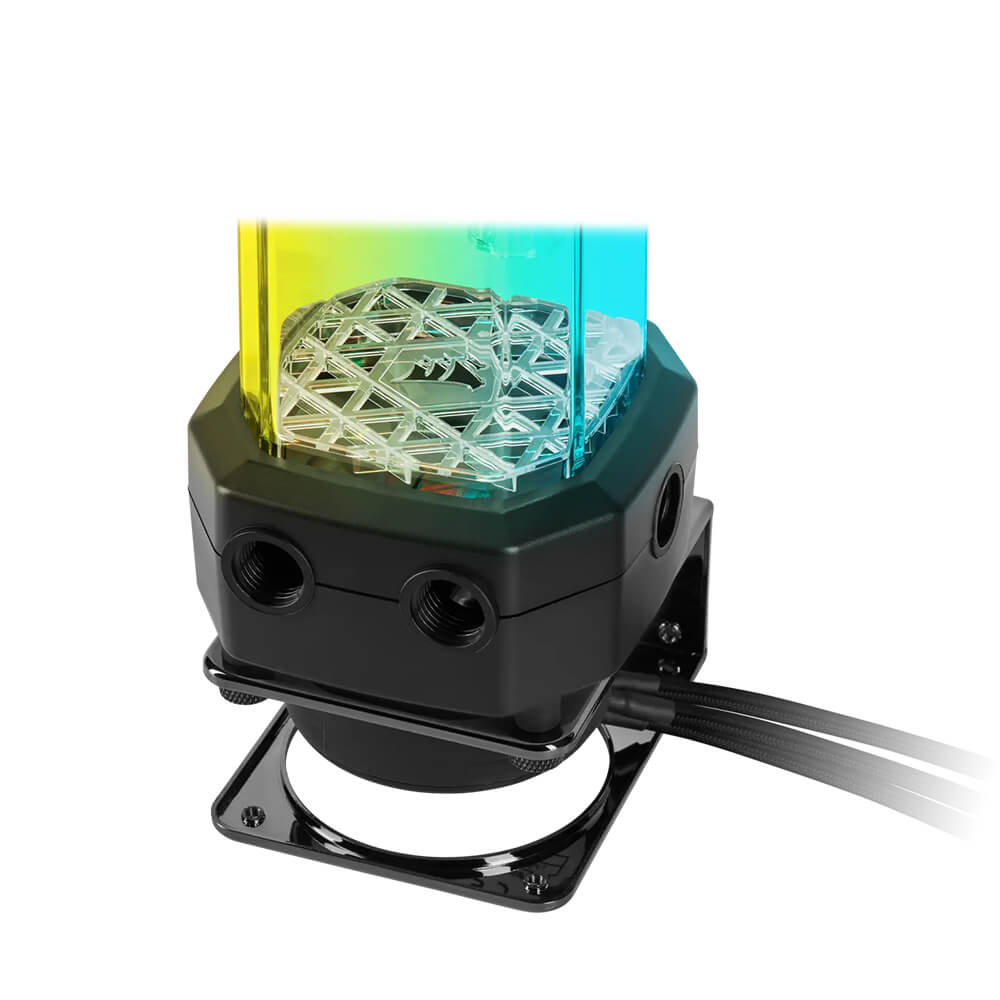

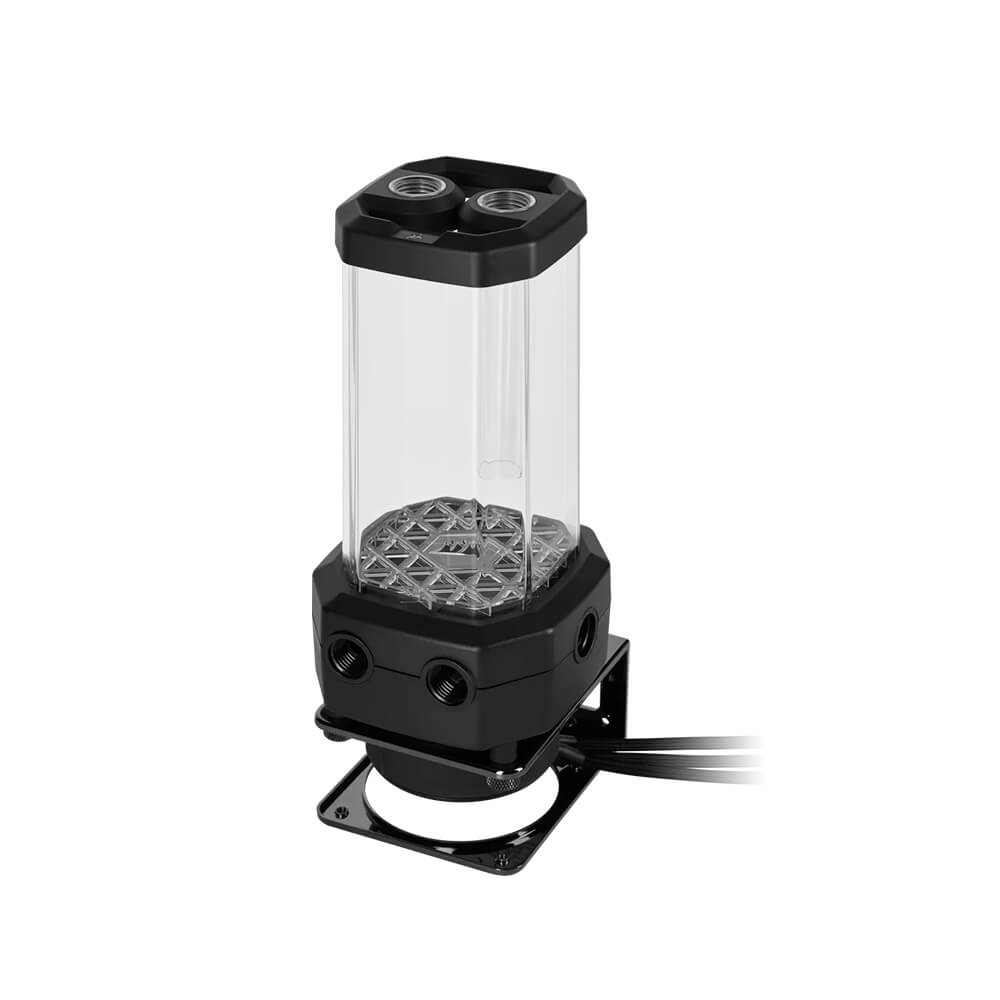

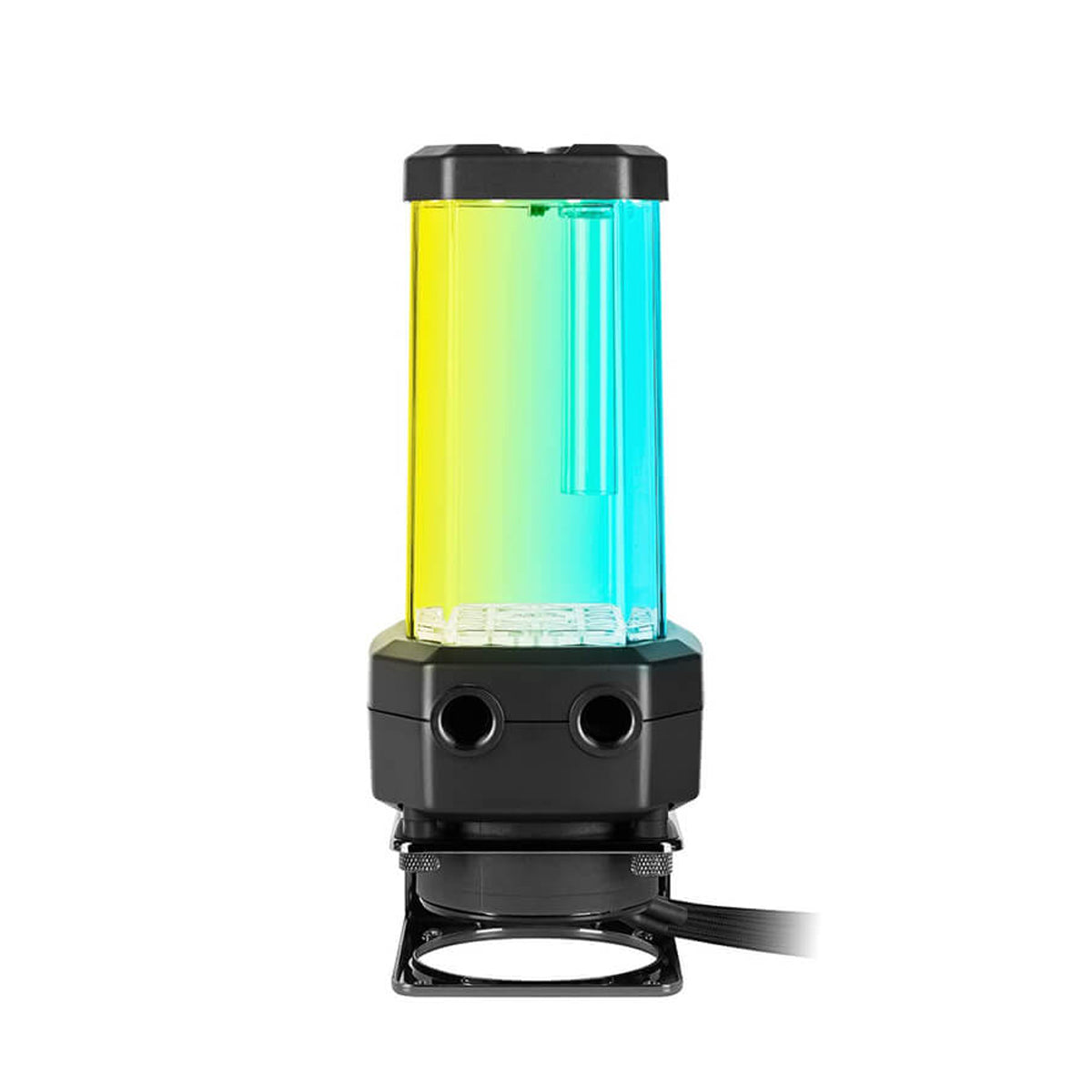

Corsair Hydro X Series XD5 RGB D5 Pump Reservoir - Black
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
CONTROLLED COOLING FROM EVERY ANGLE
A high-performance Xylem D5 PWM pump controlled via PWM to deliver the perfect flow balance for your loop.
VIVID RGB LIGHTING
Ten individually addressable top-mounted RGB LEDs light up your coolant with stunning customizable RGB lighting. Add a CORSAIR iCUE Controller (sold separately) and powerful CORSAIR iCUE software to customize and sync RGB lighting across all your iCUE-compatible products including water blocks, fans, keyboard, and more.
YOUR COOLANT ON DISPLAY
The integrated 330ml reservoir with an anti-vortex insert puts your custom cooling system’s coolant front-and-center, with stunning angular design and an integrated fillport that makes filling, flushing and topping-off coolant easy.
IN-LOOP TEMPERATURE MONITORING
Integrated G1/4 temperature sensor provides real-time coolant temperatures from inside your cooling loop when connected to a CORSAIR iCUE
INTELLIGENT CONTROL. UNLIMITED POSSIBILITIES.
Combine with a CORSAIR iCUE RGB lighting controller* and powerful CORSAIR iCUE software to allow you to customize and instantly sync RGB lighting across all your CORSAIR RGB products including water blocks, fans, keyboard, LED light strips and more.
INCLUDED ACCESSORIES GO AN EXTRA MILE
Jumper cable allows you to start your pump without powering your main components, for easy and safe filling.
Control lighting effects directly on compatible motherboards by using an included 5V ARGB adapter cable or connect to a CORSAIR iCUE Controller (sold separately) and powerful CORSAIR iCUE software to customize and sync RGB lighting across all your iCUE-compatible products.
MULTIPLE INSTALLATION BRACKETS
Easily mount the XD5 RGB Pump/Reservoir to a 120mm or 140mm fan mount or fan for wide chassis compatibility.
RUBBERIZED MOUNTING SYSTEM
Reduces pump vibrations and noise, so your custom cooling loop is seen, not heard.
INDIVIDUALLY SLEEVED CABLING
All the XD5 RGB Pump/Reservoir’s cabling is individually sleeved in premium paracord, ensuring your custom cooled system build looks great.
Specifications
Specifications
| Lighting | RGB |
| Max Operating Temperature | 60°C coolant temperature |
| Compatible Coolants | CORSAIR XL or equivalent |
| Compatible Materials | Only mix with other copper / brass products |
| Port Thread | G1/4" BSPP |
| Req Controller iCUE Support | CORSAIR Commander PRO Commander Core XT Lighting Node PRO |
| Pump Type | Xylem D5 PWM |
| Max Hydraulic Performance | 800L/h at 2.1m pressure head (1500L/H theoretical max) |
| Pump Voltage | 12V |
| Power Connector | 4-pin Molex (AMP Mate-N-Lok) - 45cm cable length |
| Signal Cable | 4-pin fan header (KK254)- 45cm cable length |
| Fluid Chamber Material | Nylon |
| Color | BLACK |
| Model | Pump / Reservoir Combo |
| Weight | 1.069 |
