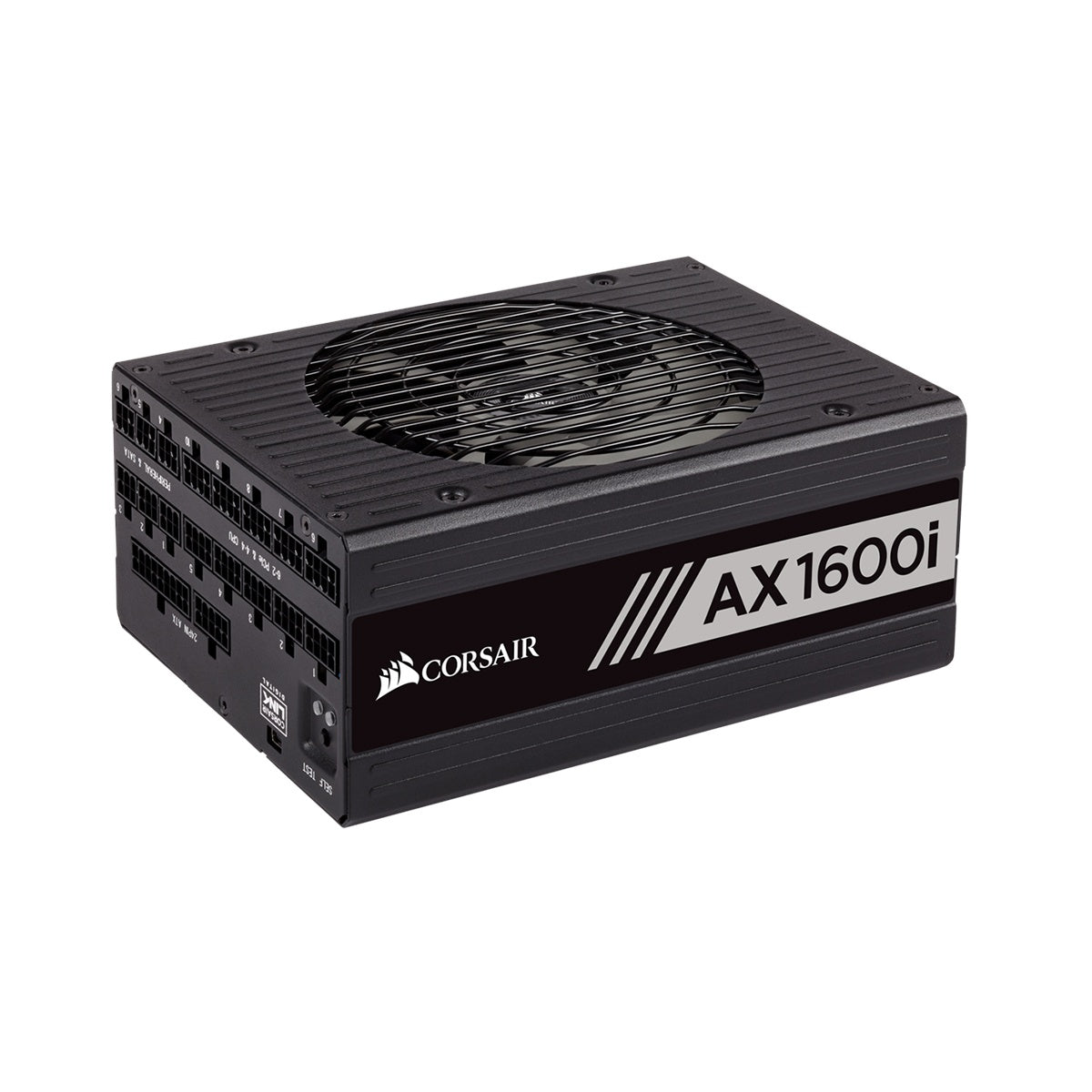

Corsair AX1600i 1600W Full Modular 80 Plus Titanium Power Supply
Warranty and Support
Warranty and Support
Warranty: 10 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
The CORSAIR AX1600i is the ultimate digital ATX power supply, built using only the best components and state-of-the-art gallium nitride transistors to deliver more than 94% efficiency.
The World's Best PSU Gets Better
The CORSAIR AX1600i is the ultimate digital ATX power supply, built using only the best components and state-of-the-art gallium nitride transistors to deliver more than 94% efficiency.
1600W Of Ultimate Power
Delivers 1600W of continuous, ultra-stable, 80 PLUS Titanium efficient power.
Top Tier Components
100% 105°C Japanese capacitors, top-specification internal components and digital design deliver over 94% efficiency.
The Only Consumer PSU With Gallium Nitride Transistors
Totem-pole PFC Gallium Nitride (GaN) transistors for superior efficiency in a smaller form-factor.
Incredibly stable voltages and ultra-low ripple noise.
Specifications
Specifications
| PSU Compatibility | Conforms to ATX12V v2.4 and EPS 2.92 standards, and is backward compatible with the ATX12V 2.2 and ATX12V 2.01 standards | Delivers 1600 watts of co |
| ATX Connector | 1 |
| ATX12V Version | v2.4 |
| Cable Type | Low-Profile, All Black |
| Continuous Power W | 1600 Watts |
| EPS Connector | 2 |
| Fan Bearing Technology | Fluid Dynamic Bearing |
| Fan Size MM | 140mm |
| Floppy Connector | 2 |
| MTBF Hours | 100,000 hours |
| Multi GPU Ready | Yes |
| SATA Connector | 16 |
| PATA Connector | 9 |
| PSU Form Factor | ATX |
| Special Technology | DSP, GaN Totem Pole PFC |
| Protections | OVP (Over Voltage) | UVP (Under Voltage) | SCP (Short Circuit) | OTP (Over Temp) | OPP (Over Power) |
| Modern Standby | No |
| Dimensions | 150mm x 86mm x 200mm |
| Modular | Fully |
| Intel C6C7 Sleep State Compat | Yes |
| PCIe Connector | 10 |
| Zero RPM Mode | Yes |
| Single Multiple 12V Rail Toggl | Yes |
| 80 PLUS Efficiency | Titanium |
| Warranty | 10 Year |
| Weight | 5.15 |
