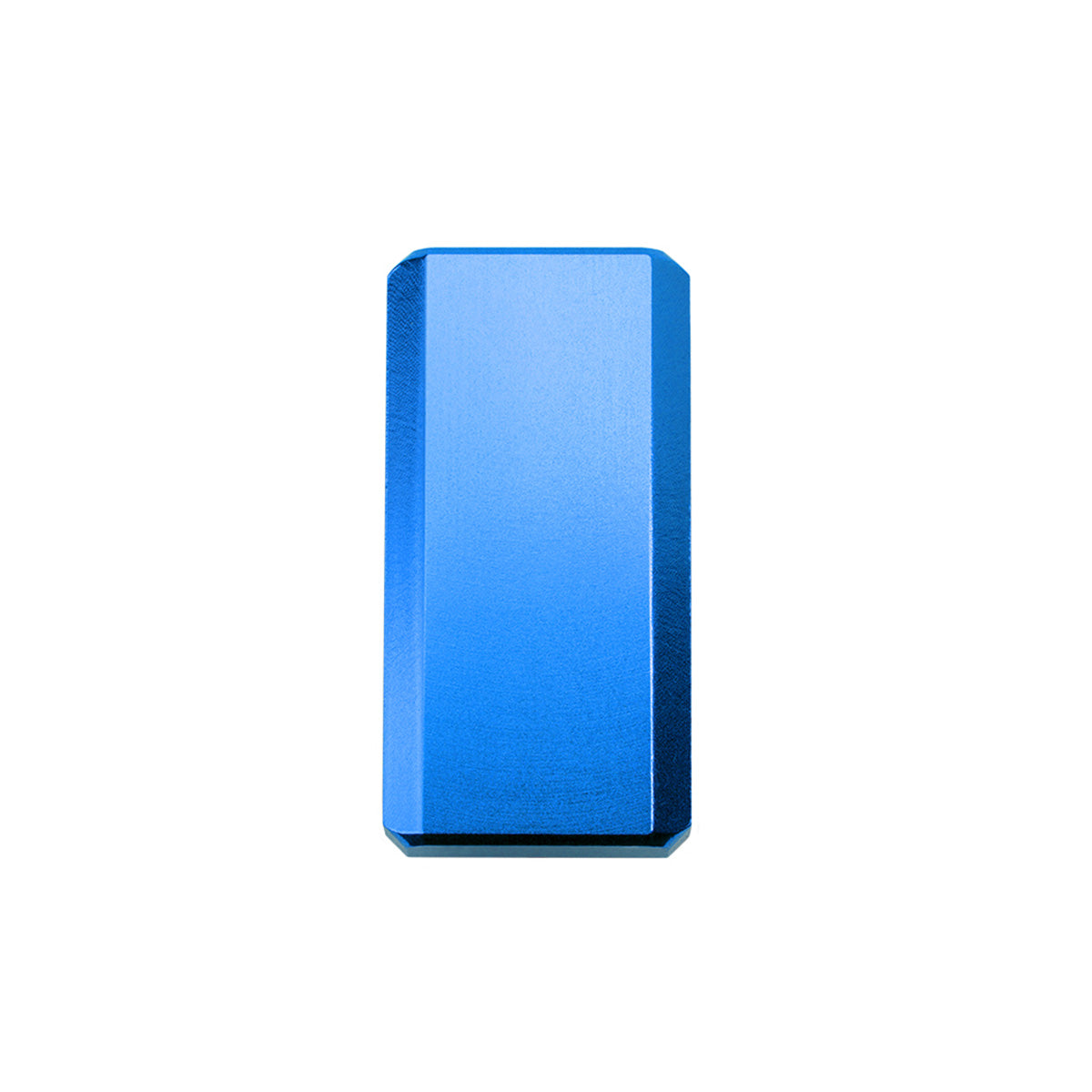

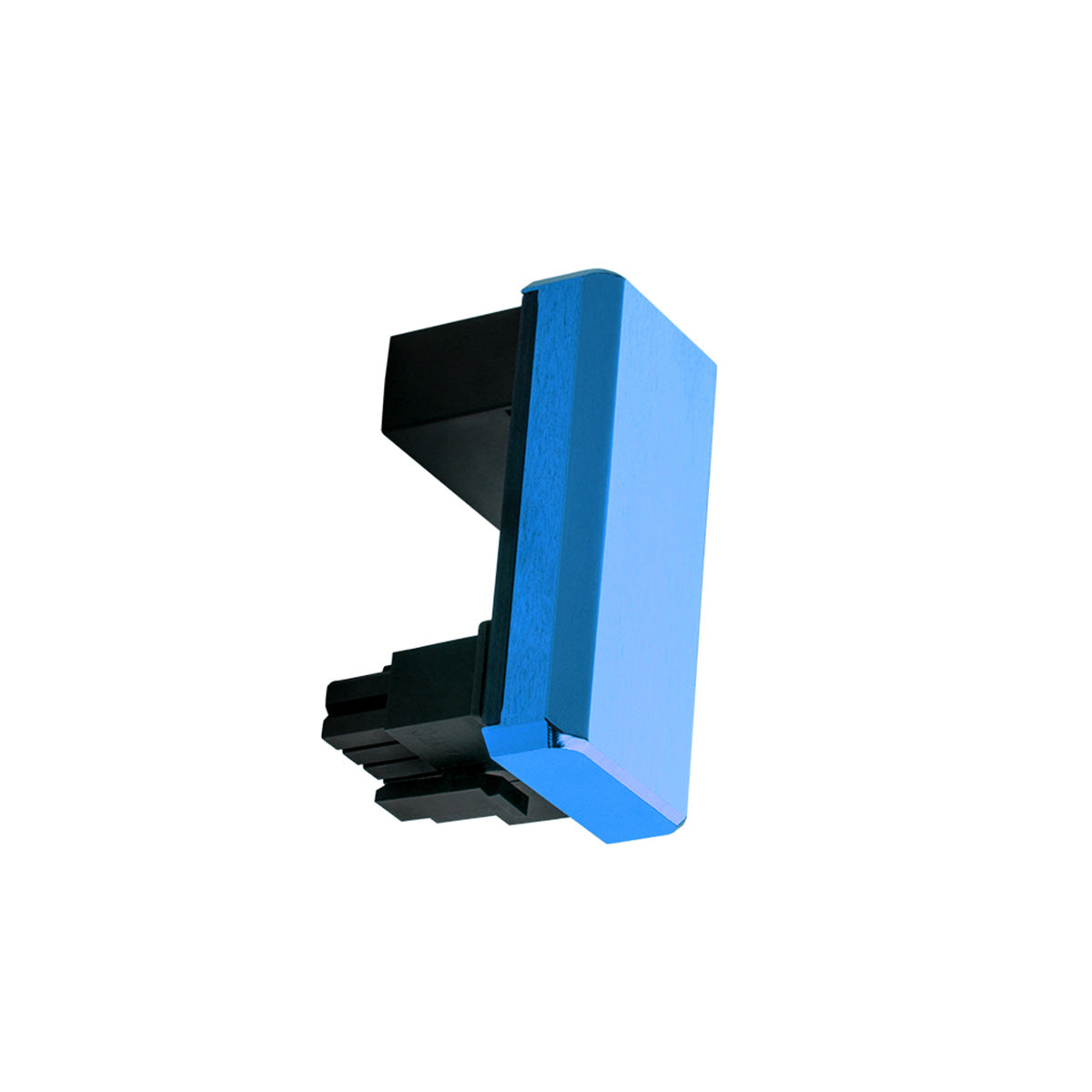

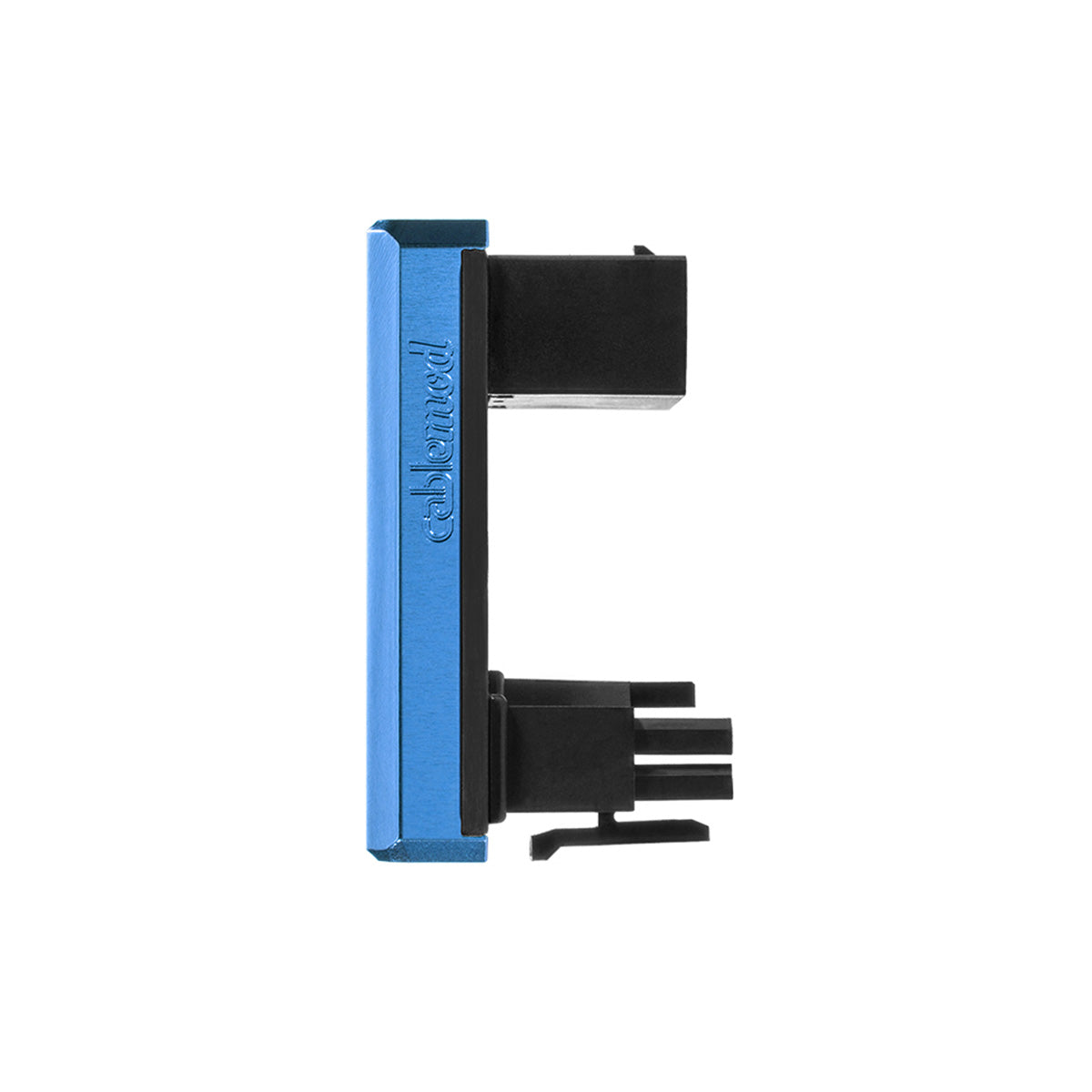

CableMod 12VHPWR 180 Degree Angled Adapter v1.1 - Variant B - Blue

Cablemod  |  SKU 52463  |  MPN CM-ADT-16PC-B180KB-R1

Out of Stock

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Description

Achieve cable management nirvana with the CableMod 12VHPWR 180 Degree Angled Adapter. This low profile adapter plugs into your graphic card’s 16-pin 12VHPWR port, and enables the power cable to be plugged in at a 180 degree angle. Featuring a reinforced PCB design and a sleek profile, this adapter helps increase clearance between the GPU and the side panel – perfect for today’s super wide GPUs. This is the newest v1.1 revision, which includes improved terminals and the new CEM 5.1 female connector.


Slim Profile

Our 12VHPWR 180 Degree Angled Adapter only protrudes 15.4mm from your graphics card, which means increased space and more clearance between your GPU and your side panel. This enables installation of super wide cards in more narrow chassis.


Zero Bending

Our angled adapters utilize a reinforced PCB design to achieve an angled connection. No wire bending ensures full contact with all cable terminals, and zero risk of thermal issues through excessive wire and terminal stress from tight bending radii.

Multi-Layered Cooling Solution

To ensure peak performance, our angled adapters use a 2oz copper PCB with applied copper foil to aid heat dissipation. Combined with a thermal pad and a quality aluminum shell, this multi-layered design helps keep things cool, even under continuous loads.


Two Variants

The CableMod 12VHPWR 180 Degree Angled Adapter comes in two variants, making sure there’s a solution for graphics cards no matter which 12VHPWR power port orientation they have. For those who prefer a more traditional cable layout, a 90 Degree Angled Adapter, which routes the cable below the graphics card, is also available.


Awesome Styling

No matter which variant you choose, this 12VHPWR 180 Degree Angled Adapter looks great with its sleek styling and unobtrusive design. Available in multiple colors, there’s sure to be an adapter that matches the theme of your build.
