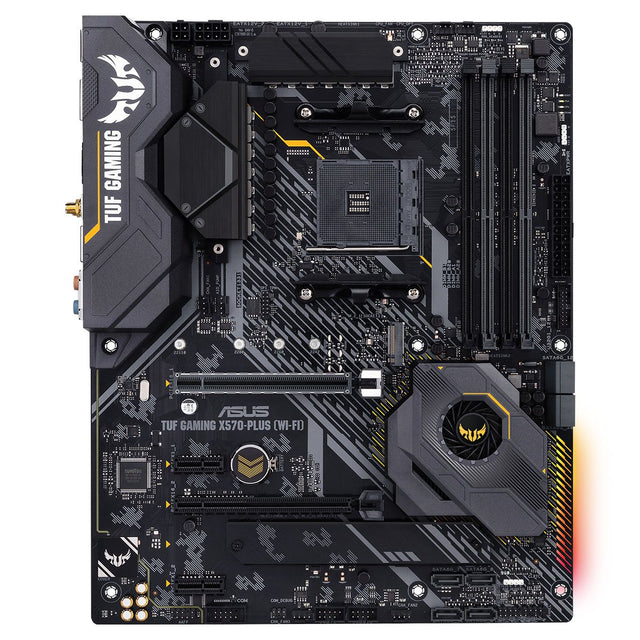

ASUS TUF GAMING X570-PLUS (WI-FI) Motherboard AMD AM4

DURABLE. STABLE. RELIABLE.

TUF Gaming X570-Plus (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.

ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.

Cooler by design

1. VRM HEATSINK

Large, high-mass heatsink with extensive surface that covers the VRM and choke areas.

1. THERMAL PAD

High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.

2. ACTIVE CHIPSET HEATSINK

A chipset heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.

3. M.2 HEATSINK

The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.

Dual PCIe 4.0 m.2

Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.

ASUS OPTIMEM - PROPRIETARY MEMORY DESIGN

ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.

Intel Wireless-AC 9260 - INTEGRATED WI-FI 5

TUF Gaming X570-Plus (Wi-Fi) features Intel Wireless AC-9260 Wi-Fi 5 (802.11ac) with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps.* In fact, its integrated Wireless-AC 9260 Wi-Fi adapter pushes wireless data up to 2X faster — so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9260 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.

* Actual speed varies, and depends on networking conditions.

Turbo LAN NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION

Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritize game-related data transmissions, smoothing network operations every time you play!

SafeSlot

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Dr. MOS

The TUF Gaming X570-Plus (Wi-Fi)'s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.

6-LAYER PCB DESIGN

Multiple PCB layers shift heat away from critical components, providing more headroom to push your CPUs beyond stock speeds.

ProCool Sockets - ENHANCED EATX 4-PIN & 8-PIN SOCKETS

・ Solid and more durable

・ Prevent hotspots and connector failure

Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.

TUF CHOKES

Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.

TUF CAPACITORS

+20% temperature tolerance and 2.5X-longer lifespan.

EXCLUSIVE GIGABIT ETHERNET

Experience ultra-fast gaming with the ASUS-exclusive Realtek® L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.
