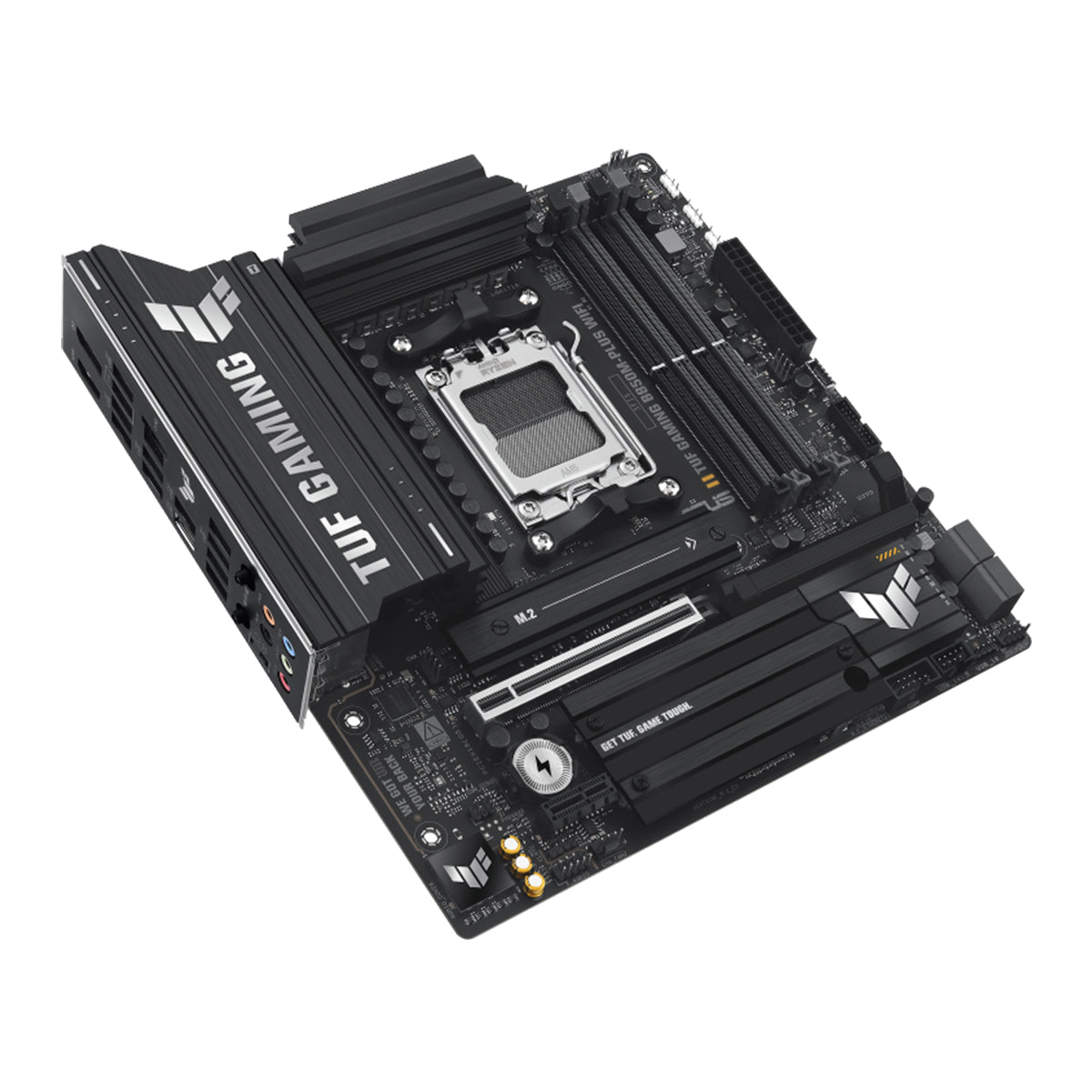

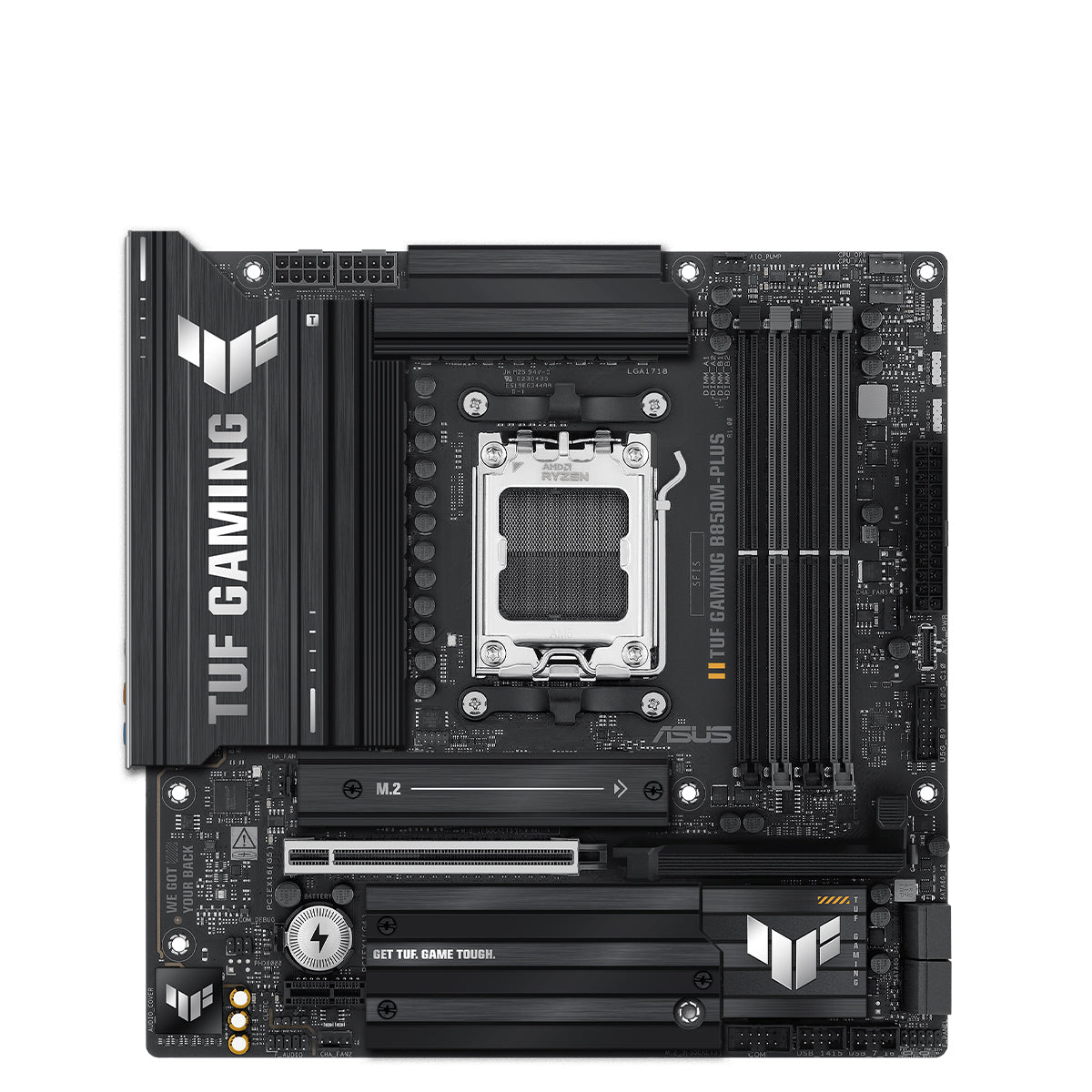

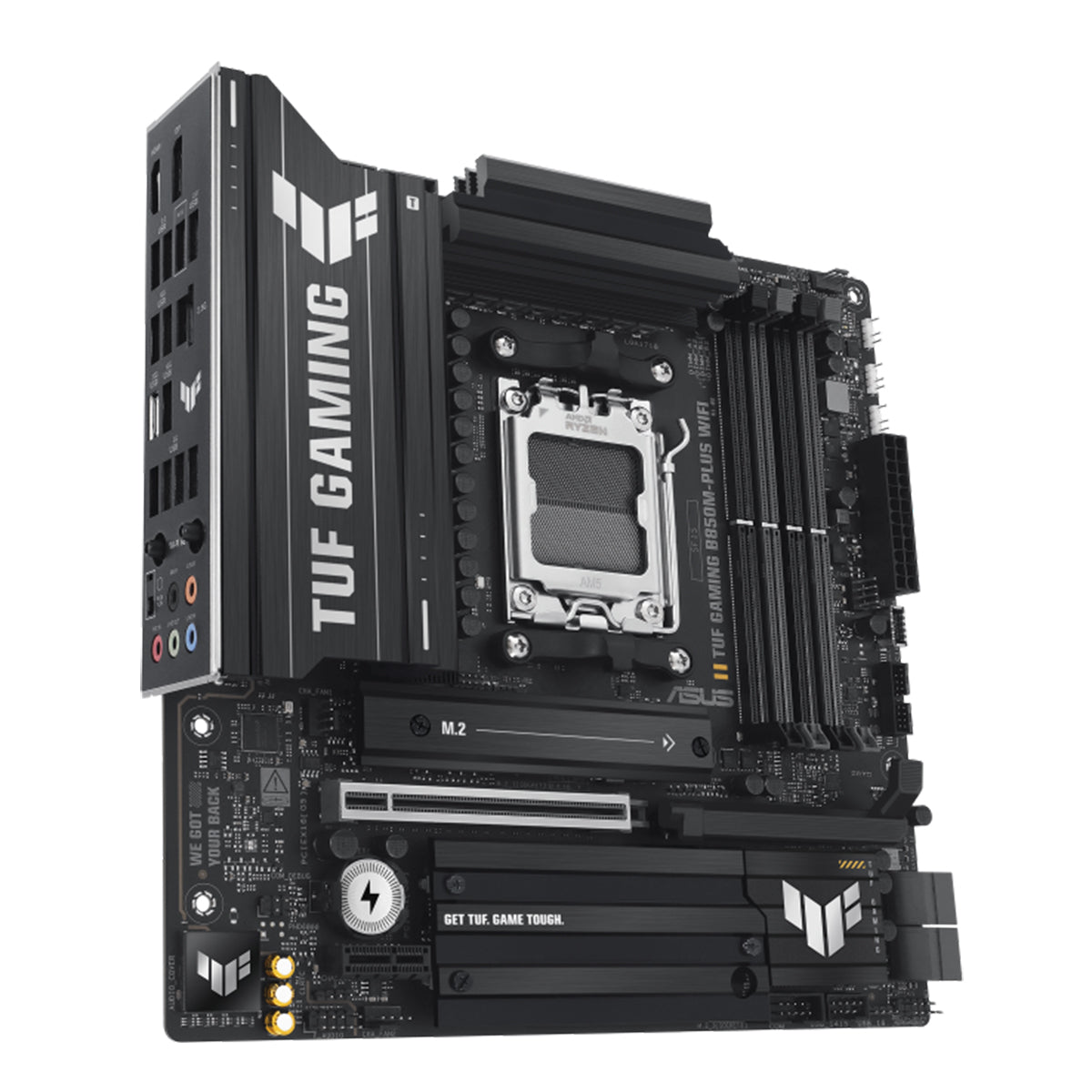

ASUS TUF GAMING B850M-PLUS WIFI mATX Motherboard

TUF GAMING B850M-PLUS WIFI

ASUS TUF GAMING B850M-PLUS WIFI combines the latest AMD Ryzen™ processors with game-ready features and proven durability. Designed with military-grade components, an upgraded power solution, and a comprehensive cooling system, this motherboard delivers rock-solid and stable performance for marathon gaming. TUF GAMING motherboards undergo rigorous endurance testing to ensure reliability under extreme conditions, providing the power and connectivity required for advanced AI PC applications.

Premium Power Design

Stable power is crucial for maximizing the performance of AMD processors. This motherboard features 14(80A) + 2(80A) + 1(80A) power stages, ensuring optimal power delivery, efficiency, stability, and performance for both current and future AMD processors.

Eight Layered PCB design

This multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

ProCool Power Connectors

ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

TUF Components

TUF chokes deliver rock-solid power to the CPU, improving system stability. TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.

Digi+VRM Control

The integrated Digi+ voltage-regulator module (VRM) delivers ultra-smooth and ultra-clean power to the CPU at all times for optimal performance.

DRAM Overclocking Performance

Comprehensive memory tuning options allow users to extract the full potential from DDR5 modules, whether they're from an extreme-speed kit or an entry-level set.

DDR5 DOMINANCE

This motherboard supports AMD Extended Profiles for Overclocking (EXPO™), allowing enthusiasts to push past stock DDR5 speeds. Users can further fine-tune performance via a comprehensive array of UEFI settings.

ASUS AEMP

ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and presents optimized frequency, timing, and voltage profiles for a performance boost.

M.2 PCIe 5.0 Support

This motherboard features one PCIe 5.0 M.2 slot for fast data transfers of up to 128 Gbps, with support for NVMe RAID configurations to maximize speeds.

Cooler by Design

• All onboard fan headers support auto-detection of PWM or DC fans.
• A surface area on the superb PCH heatsink maximizes heat dissipation and improves system performance.
• Dedicated M.2 heatsinks for all three M.2 slots keep SSDs at optimal temperatures for consistent performance and reliability.
• Smart Fan Protection includes integrated circuits that protect fan headers from excess heat and electrical currents.
• Multiple temperature sources allow fan mapping to optimize cooling for GPU- and CPU-intensive tasks.
• An AIO pump header supports PWM or DC water pumps for custom or all-in-one cooling setups.
• Enlarged VRM heatsinks improve thermal performance with an extensive surface area covering MOSFETs and chokes.

Empowering Connection

This motherboard offers PCIe 5.0, rear USB 20Gbps Type-C® port, and front USB 10Gbps Type-C® connector for versatile connectivity.

PCIe 5.0 for Graphics Card

PCIe 5.0 doubles the data transfer speed of PCIe 4.0, offering robust support for data-heavy tasks and improved signal integrity.

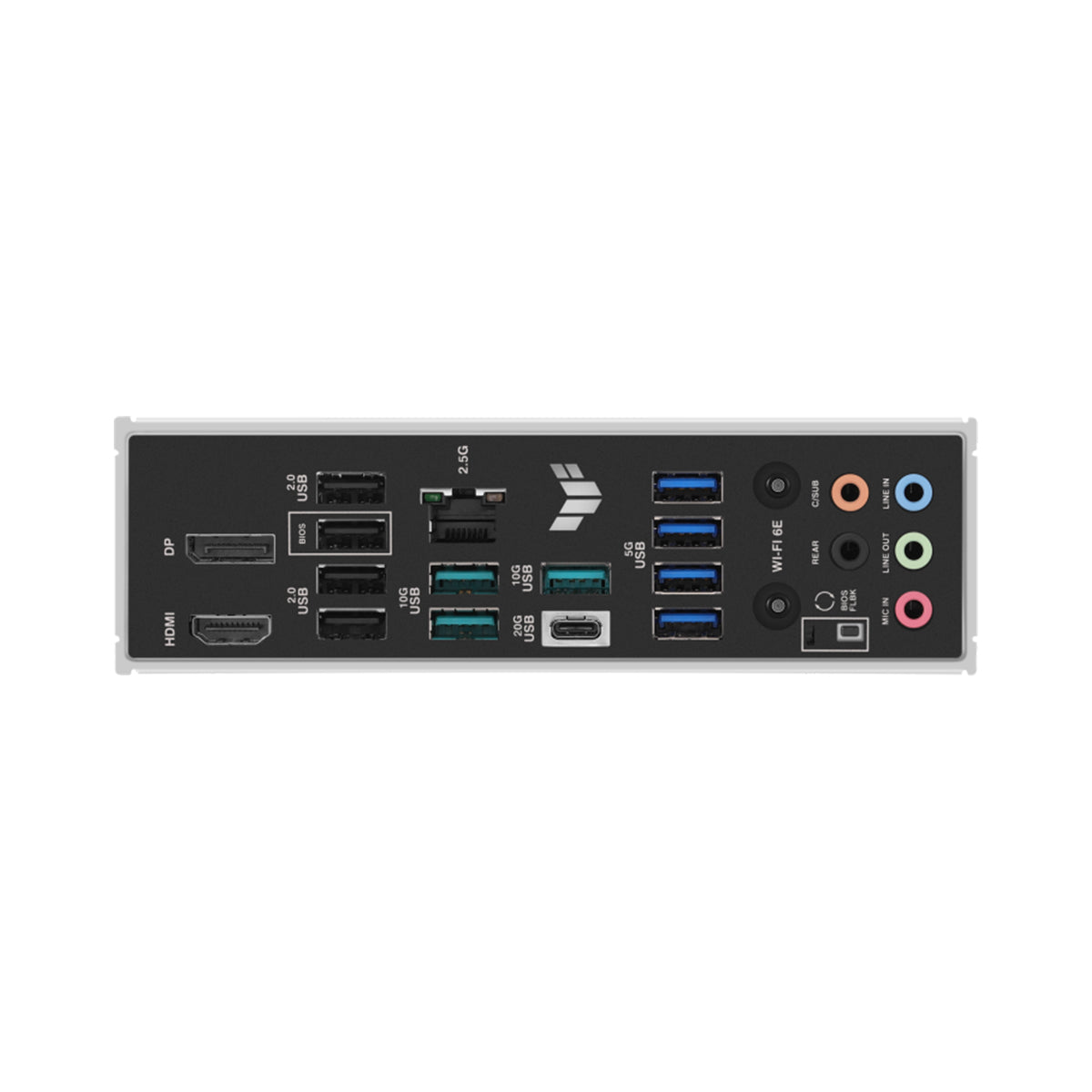

Rear USB 20Gbps Type-C®

The rear I/O panel includes a USB 20Gbps Type-C® port, enabling data transfers of up to 20Gbps for speedy connections to external devices.

Front USB 10Gbps Type-C®

This motherboard also features a front USB 10Gbps Type-C® connector for rapid data transfers up to 10Gbps.

WiFi 6E

Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity, as well as better performance in dense wireless environments.*

2.5Gb Ethernet

Onboard 2.5Gb Ethernet improves LAN connection bandwidth by up to 2.5X, reducing lag, enhancing high-resolution video streaming, and speeding up file transfers.

ALC1220P

This motherboard features the Realtek ALC1220P audio codec, offering a 120 dB signal-to-noise ratio for stereo output and a 113 dB SNR for input, ensuring pristine audio quality. It also includes an impedance-sensing circuit to optimize volume range for headphones.

Outshine The Competition

ASUS Aura Sync offers synchronized lighting effects with other Aura Sync products, including motherboards, graphics cards, monitors, and peripherals.

Addressable Gen2 RGB Headers

These headers automatically optimize lighting effects for compatible ARGB gear based on the number of LEDs present.
