Description
Description
Built For The Long Haul
The ASUS TUF Gaming 1000W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.
TUF Components
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 1000W Gold empowers you to build in confidence.
Dual Ball Fan Bearings
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
Protective PCB Coating
A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.
Fully Modular Etched Cables
The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.
80 Plus Gold Certification
The TUF Gaming 1000W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 Compatible
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.
Axial-tech Fan Design
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
10-year Warranty
We're so confident about the reliability of the TUF Gaming 1000W Gold that we back it with a 10-year worldwide warranty.
Specifications
Specifications
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.0 |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| MTBF | >120,000 hrs @ 40°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A25A70.8A 0.8A 3A |
| Combined Load | 130W 130W 850W 9.6W 15W |
| Total Output | 850W |

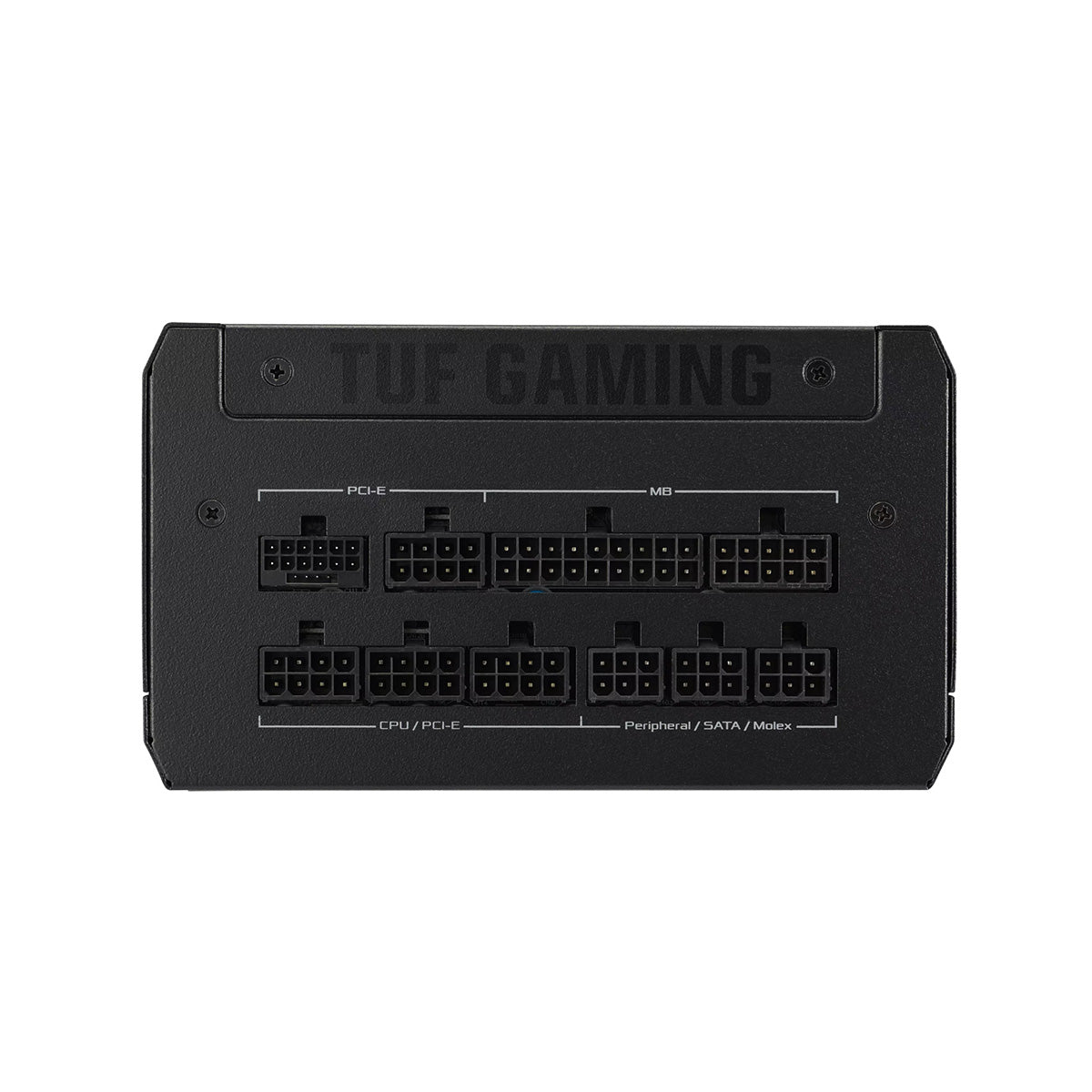

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 4 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) TUF Gaming Cable Tie x 3 User Manual x 1 |
| Weight | 2.38kg (single PSU) |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |
| 0dB Fan Button | No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load. |
