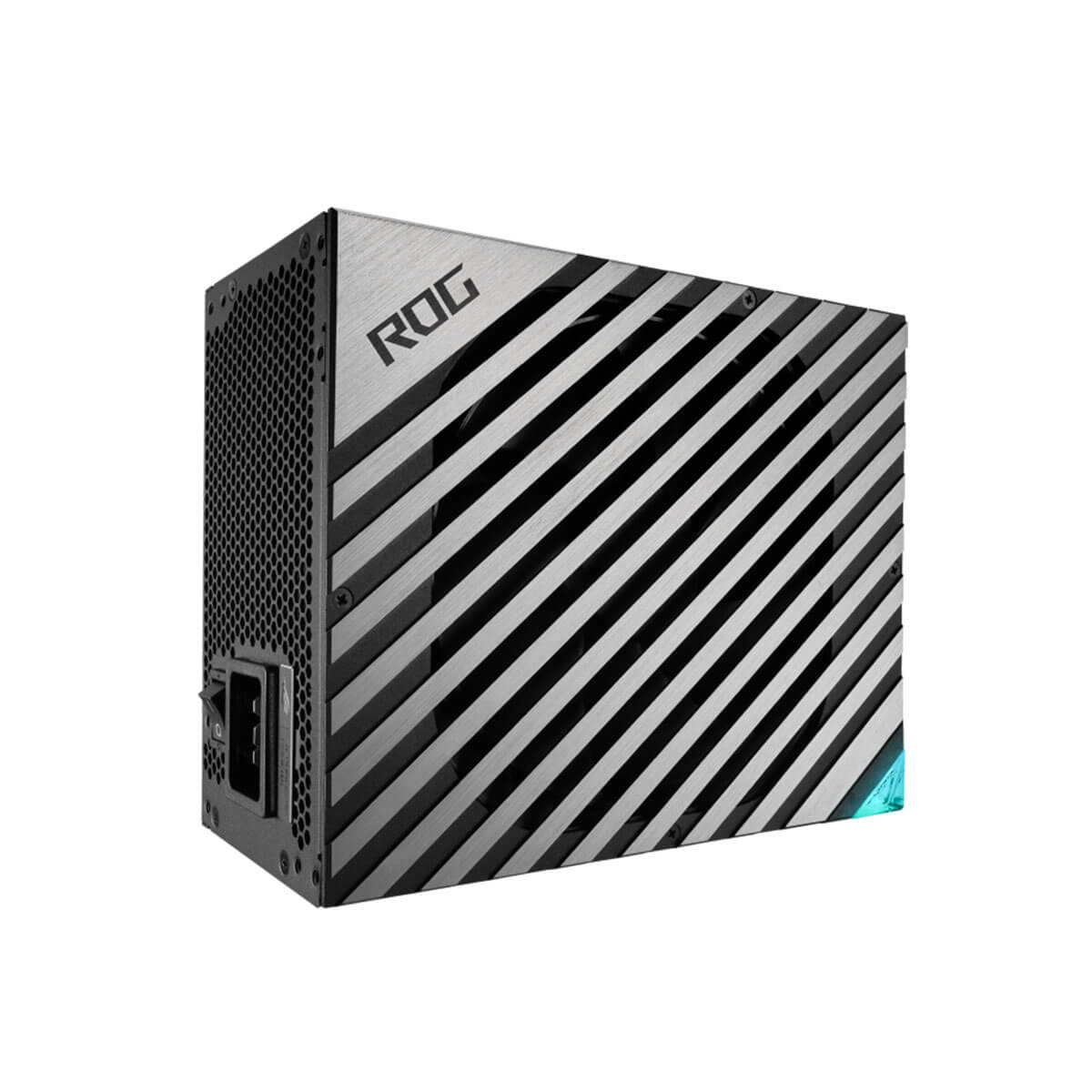

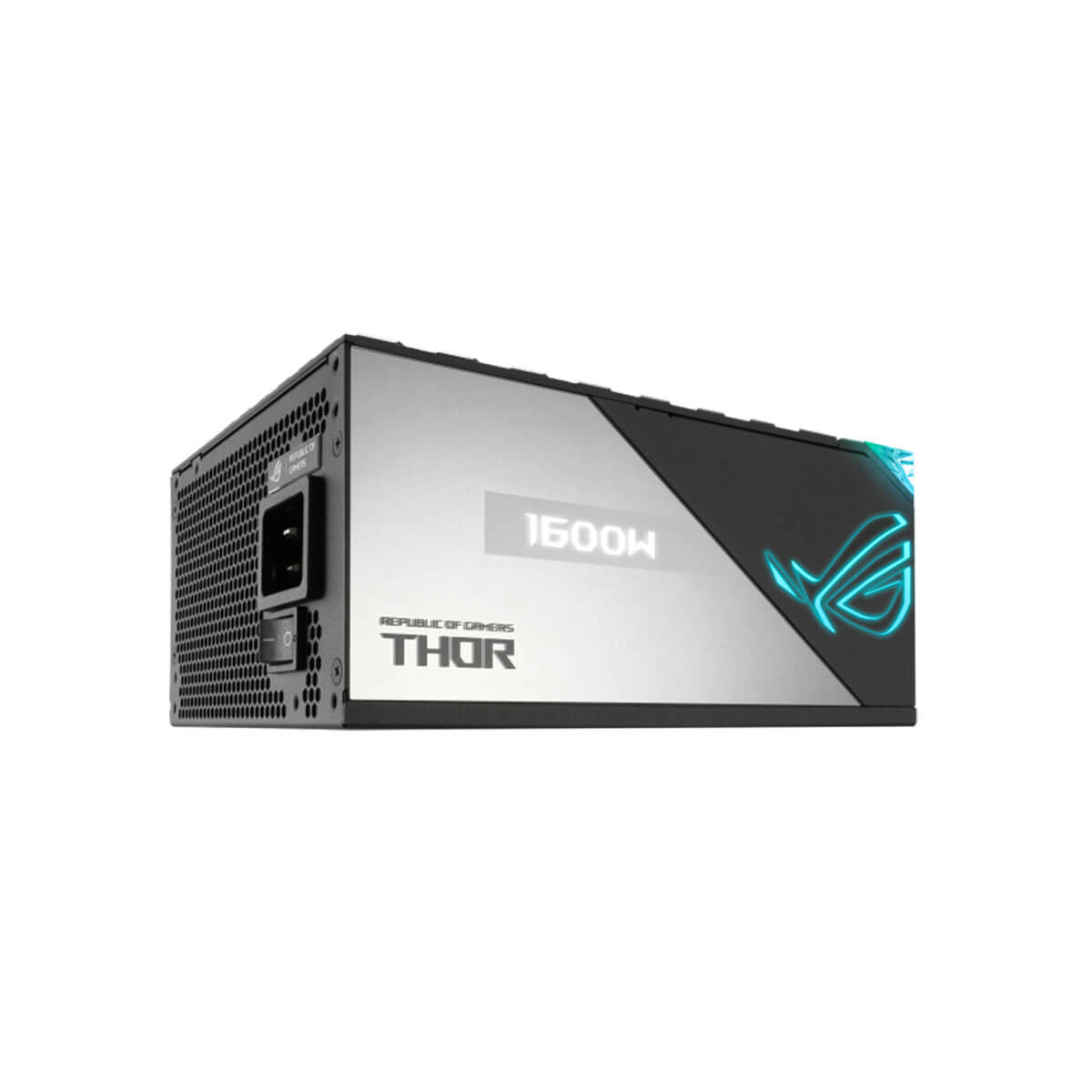

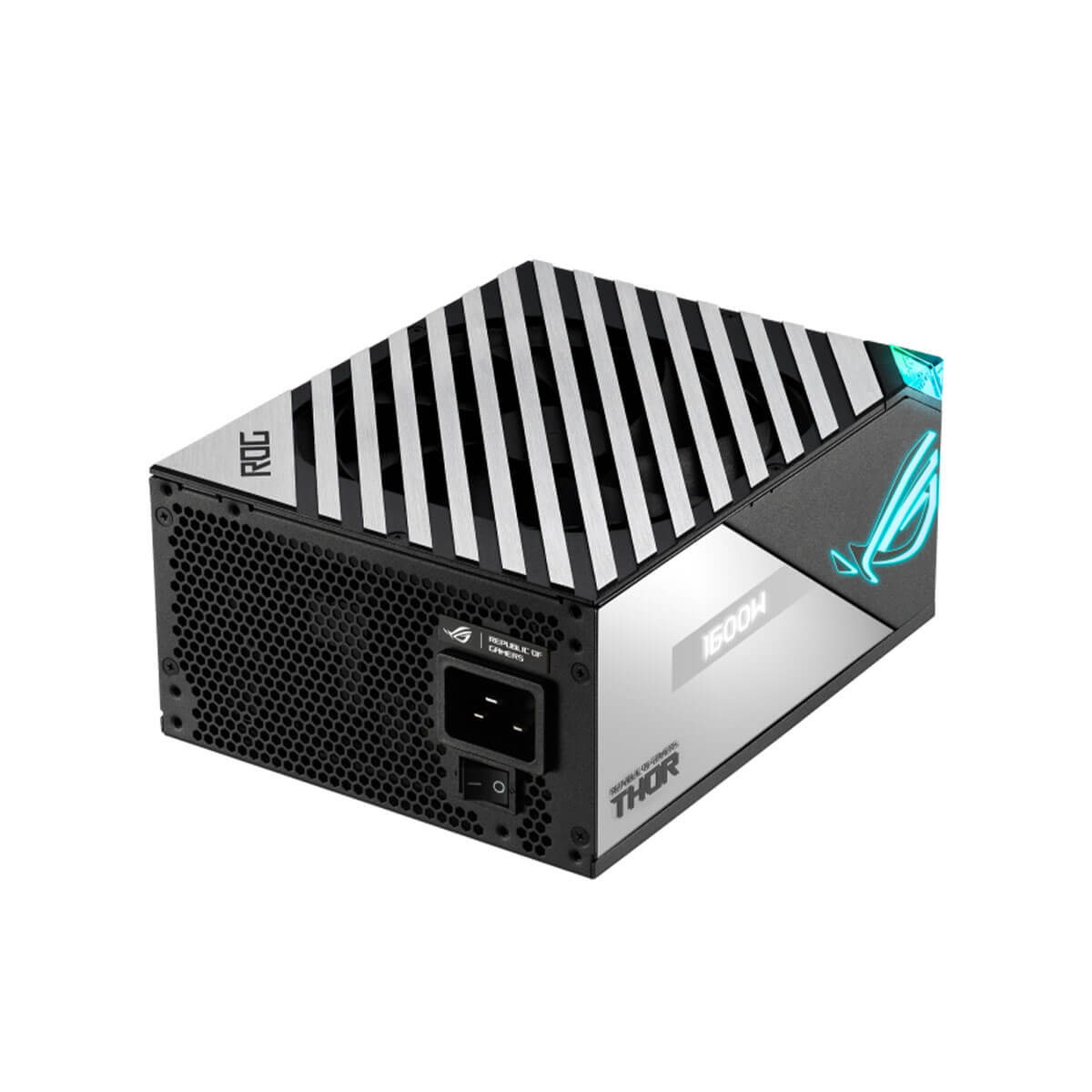

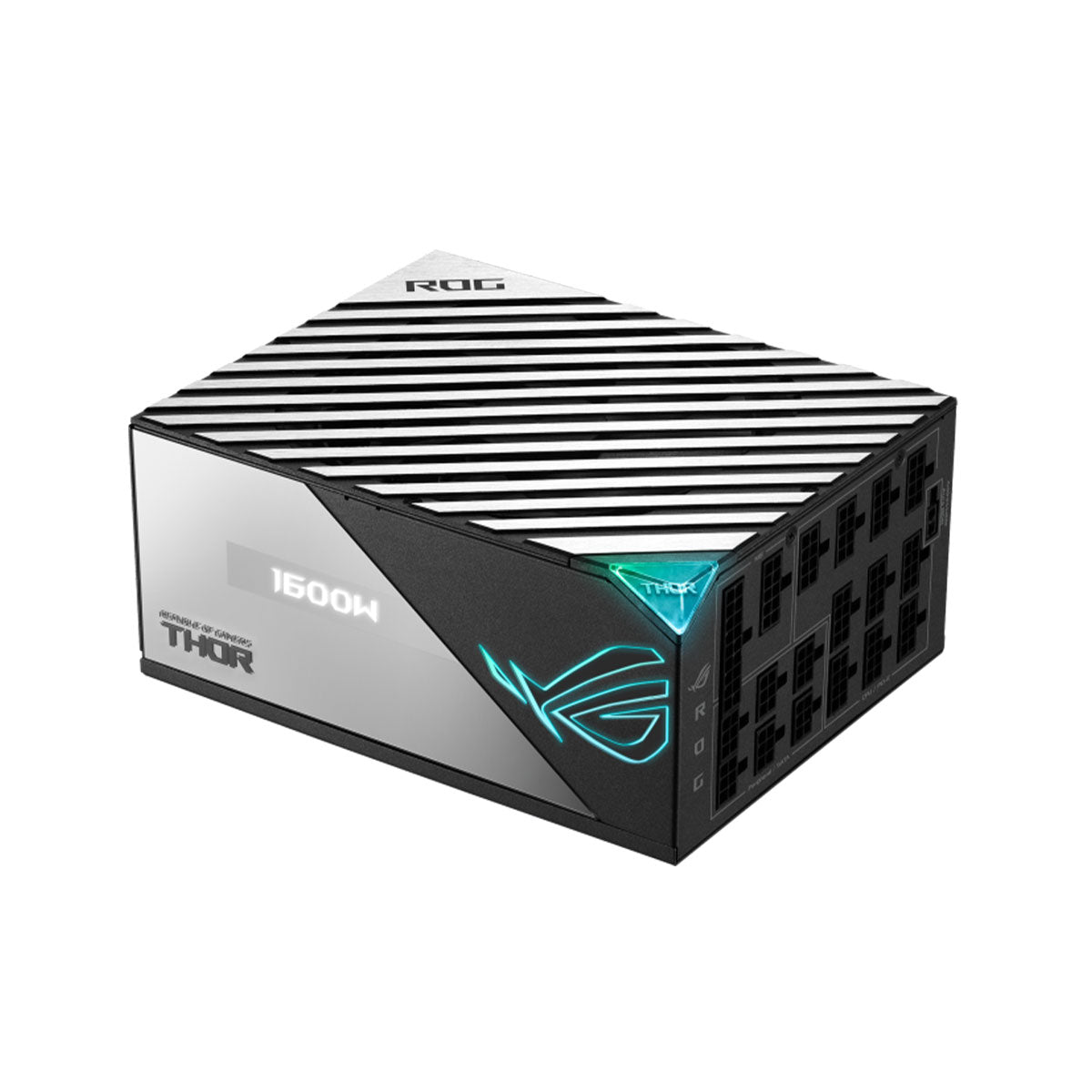

ASUS ROG THOR 1600W Titanium Power Supply
Warranty and Support
Warranty and Support
Warranty: 10 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
THE QUIETEST 1600W POWER SUPPLY
The ultimate expression of Thor wields a redesigned core that brings higher power efficiency, improved cooling, and lower noise to monstrous rigs that slay everything in their path。
GAN MOSFETS
Gallium nitride MOSFETs are the source of Thor’s power. Boasting lower switching losses and improved efficiency compared to conventional silicon transistors, GaN FETs allow the 1600W Thor to swing massive amounts of current without being needlessly wasteful.
DIGITAL POWER CONTROL
A digital controller provides precise control over the GaN power array, facilitating lightning-fast response to load changes.
80 PLUS TITANIUM CERTIFICATION
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying Thor to reliably fuel your build for years to come.
ROG HEATSINKS
Integrated ROG heatsinks have 2x more volume than traditional designs, resulting in 20% lower temperatures inside the PSU, further extending component lifespan.
135MM PWM FAN
The PWM-controlled Axial-tech fan shifts 21% more air and needs fewer revolutions to cool critical components. And because Thor is designed from the ground up to stay cool, the fan shuts off entirely when the PSU load is 50% or below.
LAMBDA A++ CERTIFICATION
Thor Titanium cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.
PLED POWER DISPLAY
The ROG Thor 1600w Titanium's OLED panel provides insight into total power draw, making it easier to tune system performance and efficiency.
AURA SYNC
ROG Thor has addressable Aura RGB LEDs built in, ready to accent your rig with an array of colors and lighting effects.
SLEEVED CABLES
A range of sleeved cables are bundled with Thor, and we also provide a 20% CableMod discount.
PCIE GEN 5.0 READY
Each ROG Thor 1600W Titanium PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
10-YEAR WARRANTY
We're so confident about the reliability of the ROG Thor 1600W Titanium that we back it with a 10-year* warranty.
Specifications
Specifications
| Intel Specification | ATX12V |
| PFC Type | Active PFC |
| Dimensions | 190 x 150 x 86 mm |
| Efficiency | 80Plus Titanium |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 20A 20A 133.3A 0.3A 3A |
| Combined Load | 100W 100W 1600W 3.6W 15W |
| Total Output | 1600W (115V-240V). 1300W (100V-115V) |

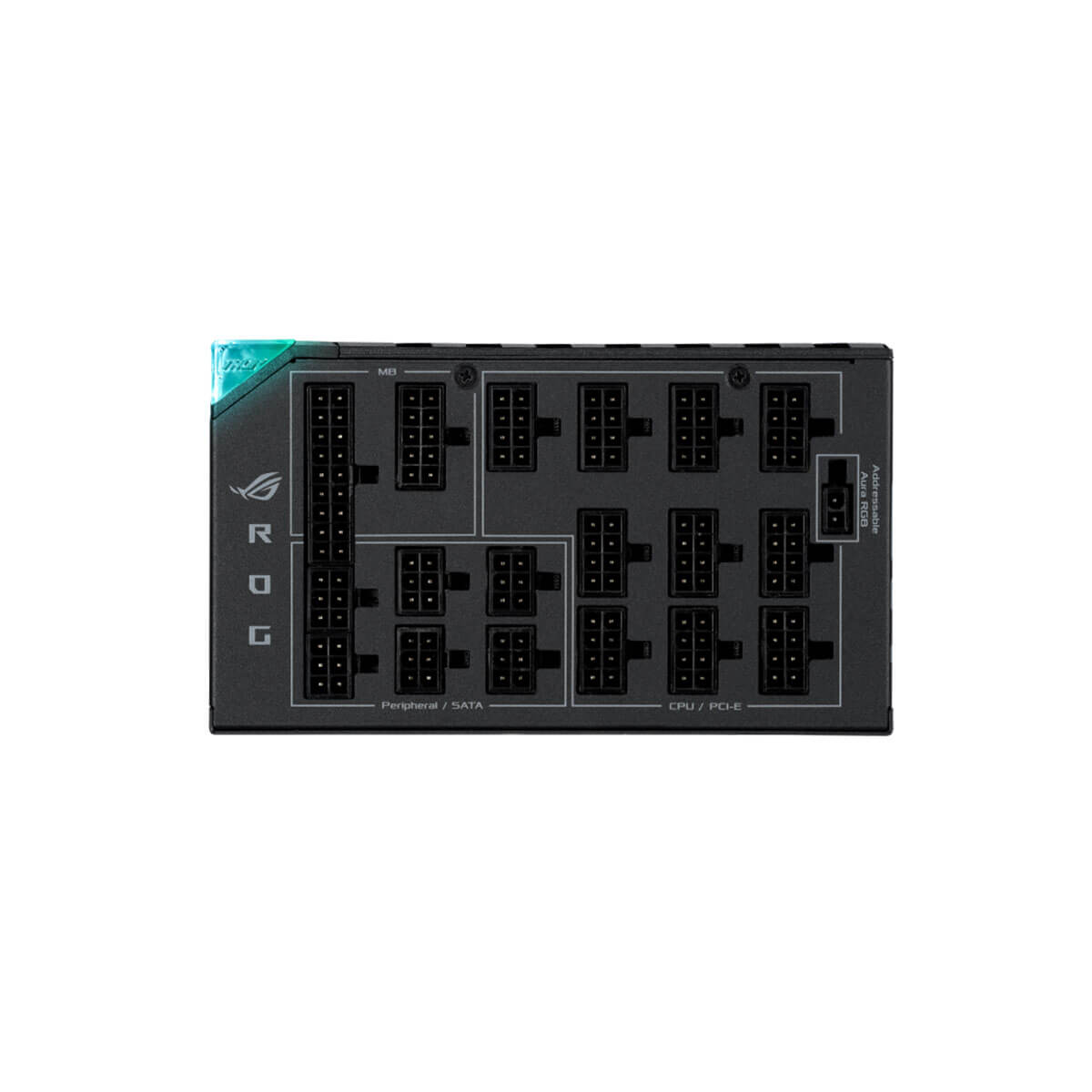

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (component side) PCI-E 6+2-pin x 10 SATA x 12 PERIPHERAL x 6 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (650mm) 16-pin PCI-E Cable x 1 (675mm) PCI-E 1-to-1 Cable x 6 (675mm) PCI-E 1-to-2 Cable x 2 (675+75mm) SATA 1-to-4 Cable x 3 (400+120+120+120mm) Peripheral 1-to-2 Cable x3 (450+120mm) Addressable RGB Cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
| Weight | 2.69kg (single PSU) |
| AURA SYNC | ARGB |
| Cybenetics Noise Level Certification | A++ 0dB Technology Supported. The fan shuts off entirely when the PSU is under certain load |
| 0dB Fan Button | No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load. |
