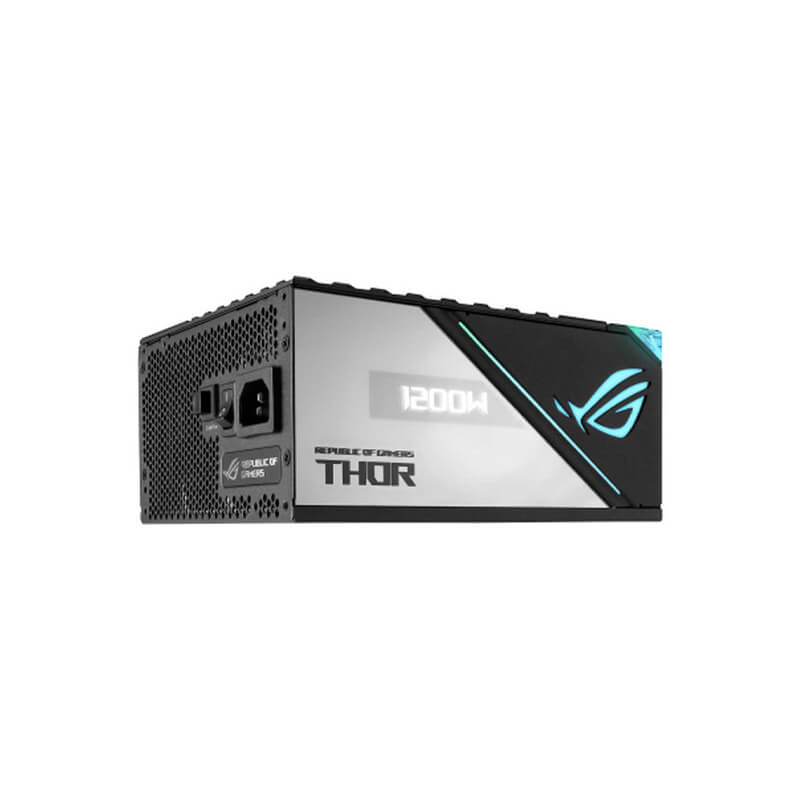

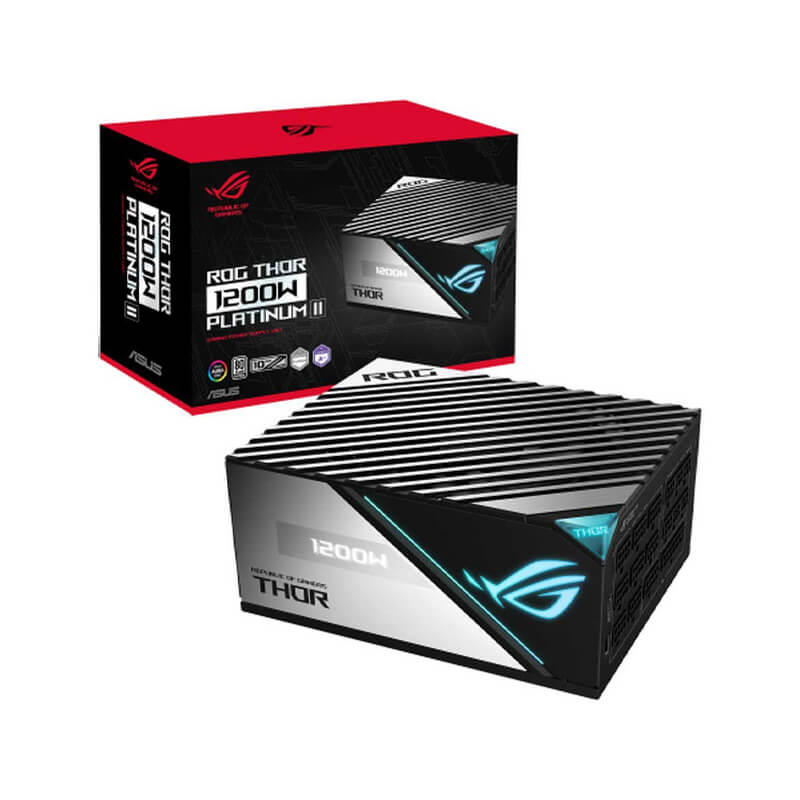

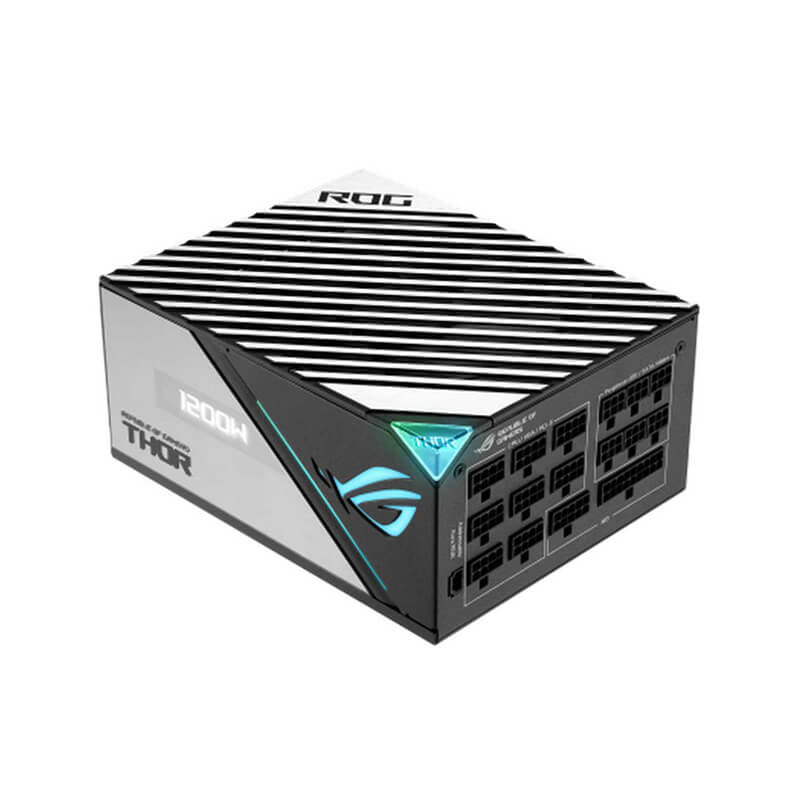

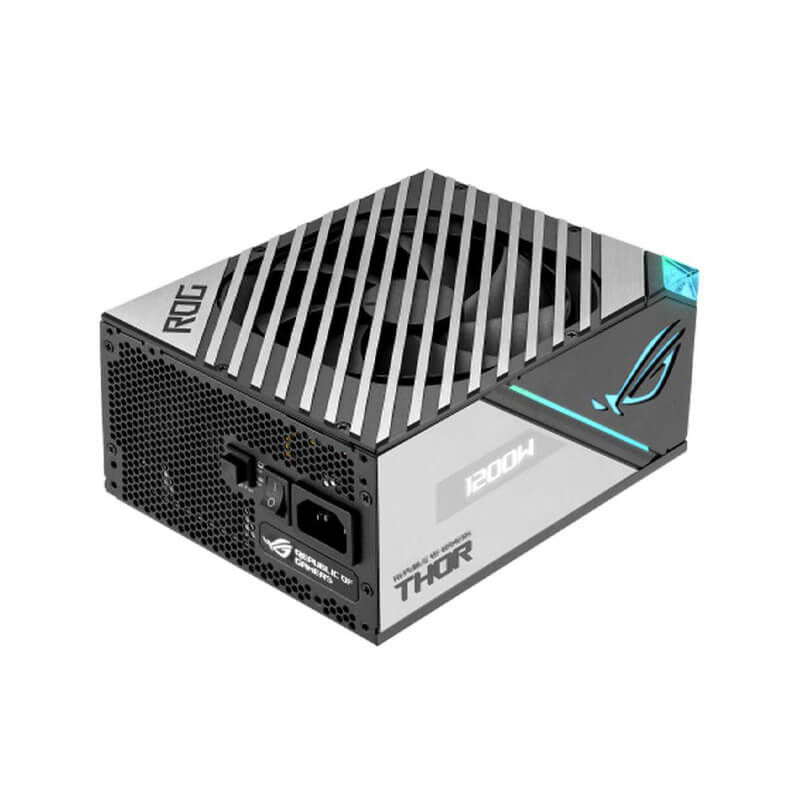

ASUS ROG THOR 1200W Platinum II Power Supply

ASUS  |  SKU 41665  |  MPN ROG-THOR-1200P2-GAMING
$699.00

Warranty and Support

Warranty: 10 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

The Quietest 1200W Power Supply

Back with a vengeance, the second iteration of the ROG Thor 1200W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.


ROG Heatsinks

ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.


Axial-tech Fan Design

A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.

Dual Ball Fan Bearings

The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.


0dB Technology

To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.​


Lambda A++ Certification

Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.

80 Plus Platinum Certification

The ROG Thor 1200W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.


OLED Power Display

The built-in OLED panel makes it easy to tune your system for best performance and efficiency.


Aura Sync

Customize the Aura ROG logo and/or add RGB lighting strips to accent your showcase build.

Sleeved Cables

A range of sleeved cables are bundled with Thor II, and we also provide a 20% CableMod discount.


PCIe Gen 5.0 Ready

Each ROG Thor 1200W Platinum II PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.


10-year Warranty

The ROG Thor 1200W Platinum II is backed with a 10-year* warranty. *Core product operation is guaranteed for 10 years. The OLED panel and RGB LEDs are subject to a 3-year warranty.

Specifications

Intel SpecificationATX12V
PFC TypeActive PFC
Dimensions190 x 150 x 86 mm
Efficiency80Plus Platinum
MTBF>120,000 hrs @ 25°C
Protection FeaturesOPP/OVP/UVP/SCP/OCP/OTP
Hazardous MaterialsROHS
AC Input Range100-240Vac
DC Output Voltage+3.3V +5V +12V -12V +5Vsb
Maximum Load25A 25A 100A 0.3A 3A
Combined Load125W 125W 1200W 3.6W 15W
Total Output1200W

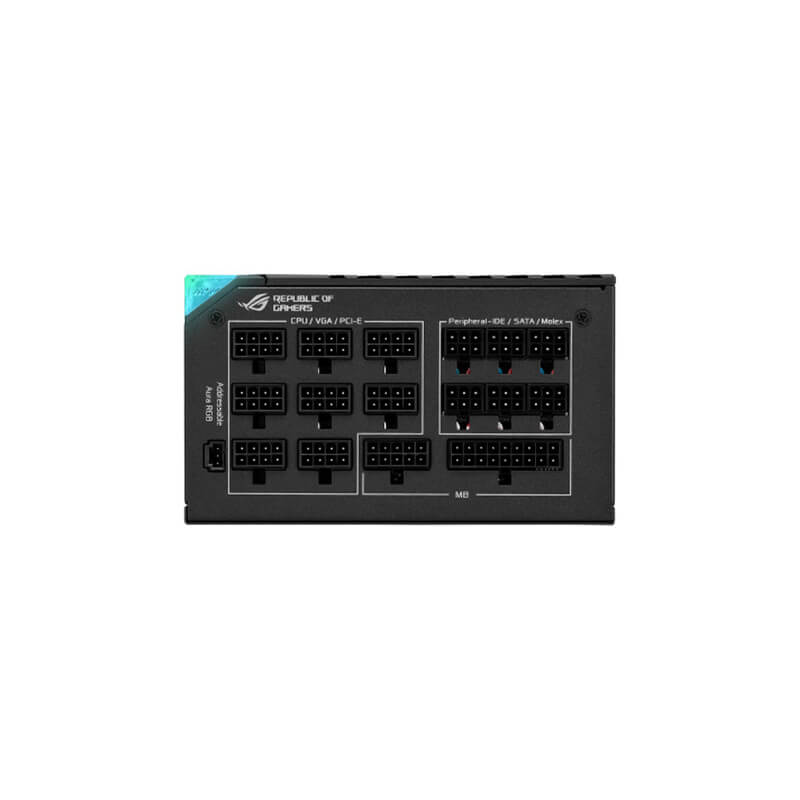

Cable ConnectorsMB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (component side) PCI-E 6+2-pin x 8 SATA x 12 PERIPHERAL x 6
Package ContentsPower Cord x 1 Motherboard Power Cable x1 (610mm) CPU Cable x2 (650mm) PCIE Cable 16-pin x1 (675mm) PCIE 1-to-1 Cable x4 (675mm) PCIE 1-to-2 Cable x2 (675+75mm) SATA 1-to-4 Cable x3 (400+120+120+120mm) Peripheral 1-to-3 Cable x2 (450+120+120mm) Addressable RGB Cable x1 (800mm) ROG sticker x 1 ROG cable tie x 6 Sleeved Cable Combs (6-pin) x 4 Sleeved Cable Combs (8-pin) x 10 Sleeved Cable Combs (24-pin) x 2 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1
Weight2.37 KG
AURA SYNCARGB
Cybenetics Noise Level CertificationA++ 0dB Technology Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan ButtonYes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
