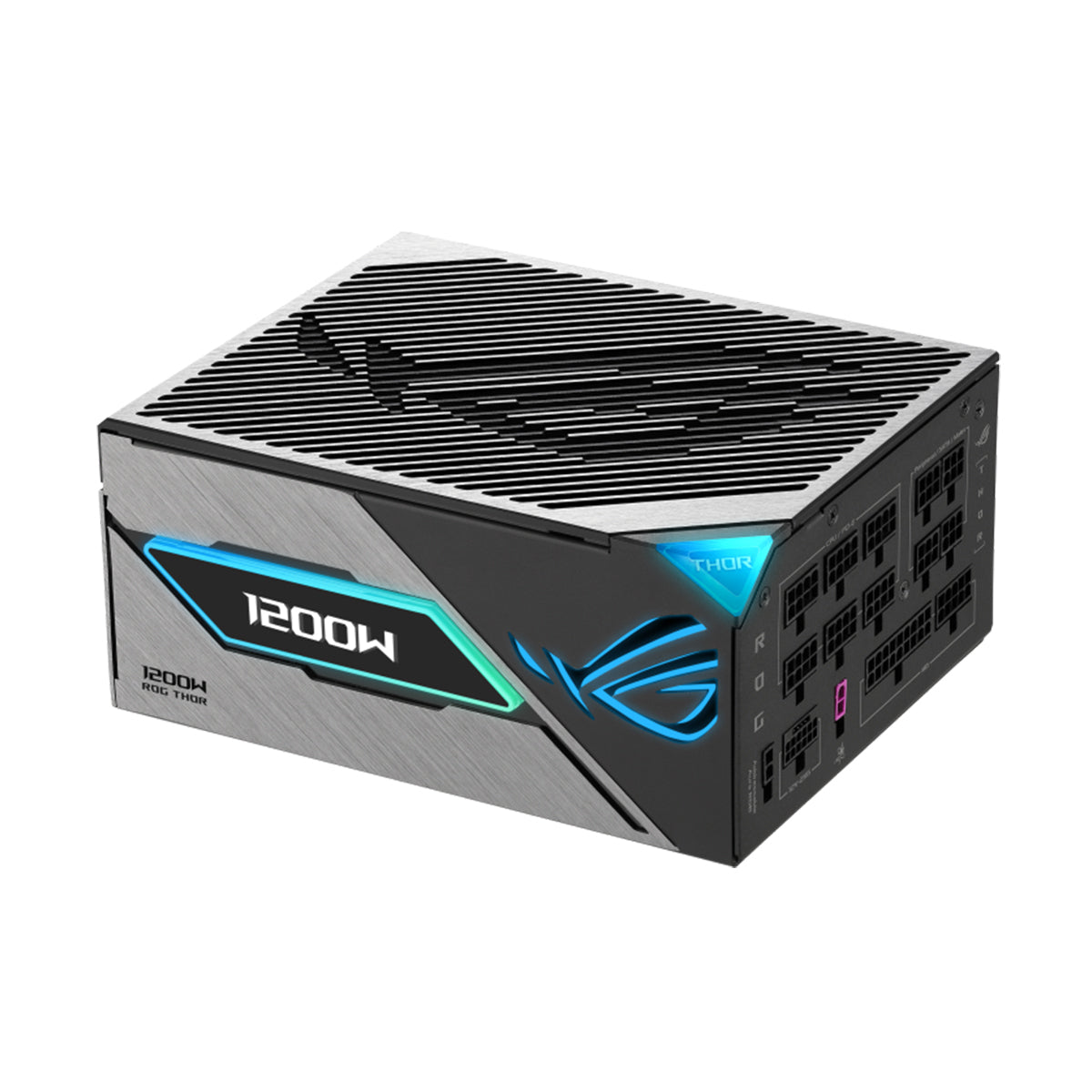

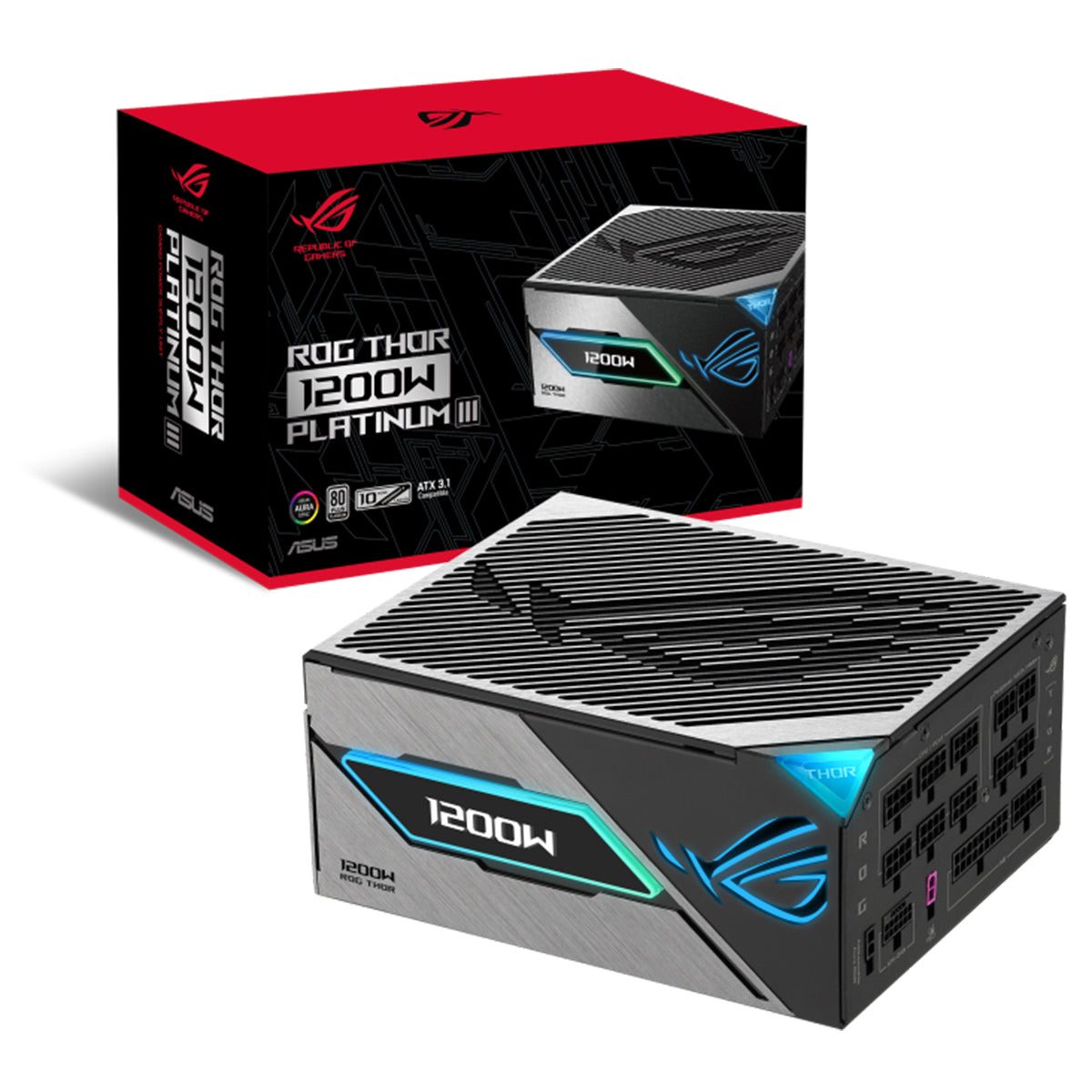

ASUS ROG THOR 1200P3 1200W Platinum Power Supply
Order now and it ships in 2-3 working days.
In-stock at Supplier
Pickup available at Computer Lounge
Usually ready in 2-3 working days.
Warranty and Support
Warranty and Support
Warranty: 10 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
ROG Thor 1200W Platinum III
Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1200W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build.
- GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
- "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.

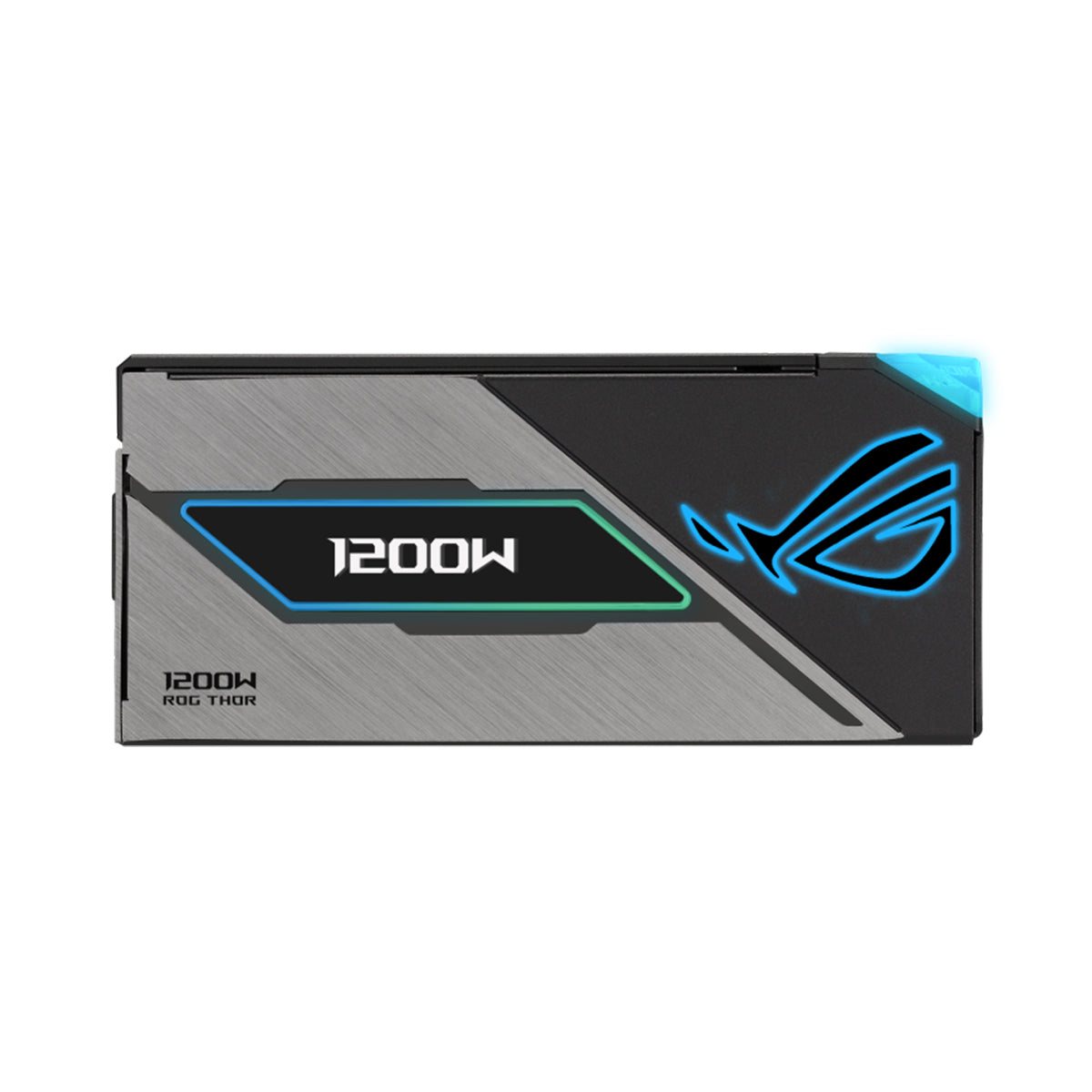

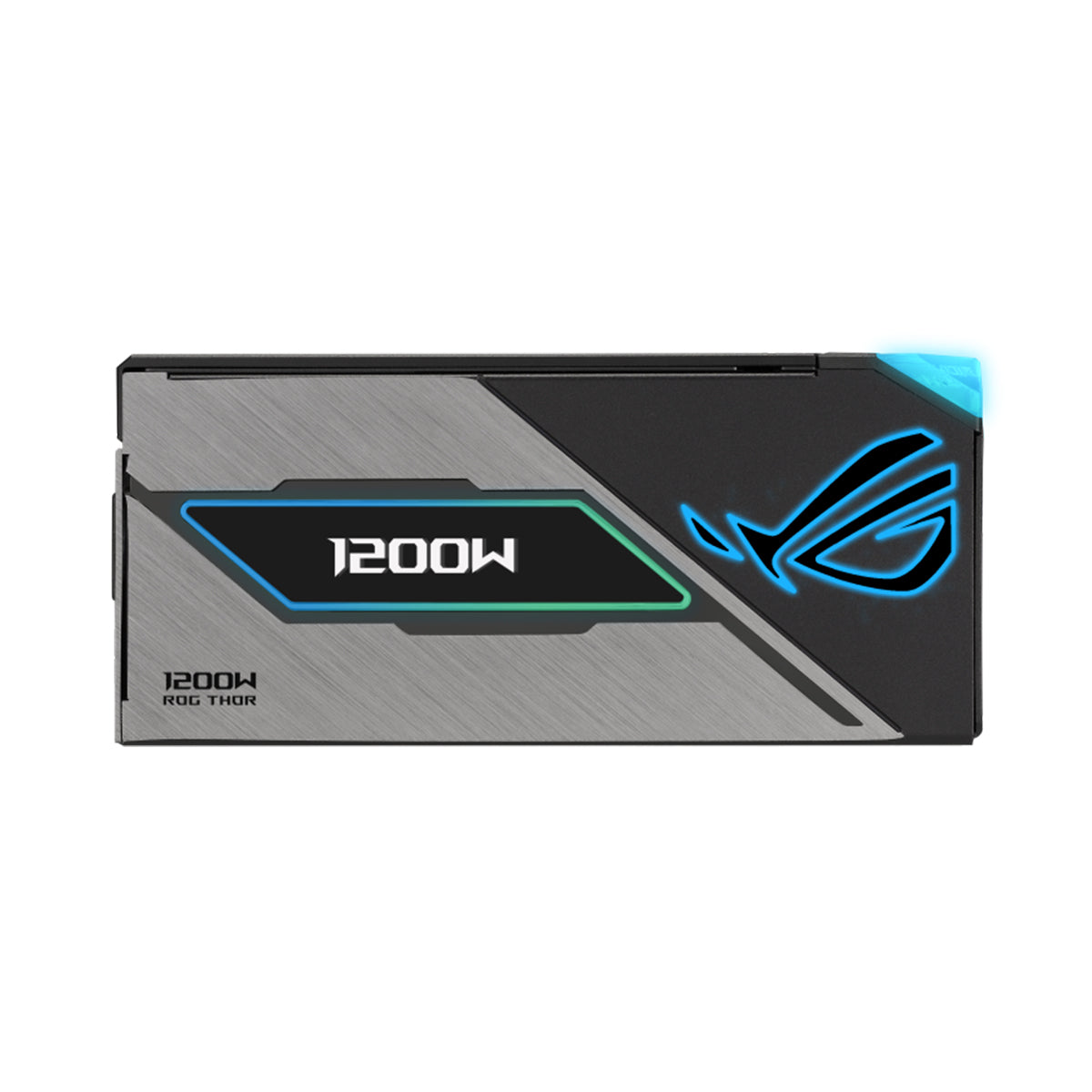

- Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
- Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
- ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
- Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
- ATX 3.1 compatible: ROG Thor Platinum III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
- Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
- 80 PLUS Platinum certified: ROG Thor III utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
- 10-year warranty included.
Specifications
Specifications
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.1 |
| Dimensions | 190 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP / OVP / UVP / SCP / OCP / OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 30A / 25A / 100A / 0.3A / 3A |
| Combined Load | 125W / 125W / 1200W / 3.6W / 15W |
| Total Output | 1200W |

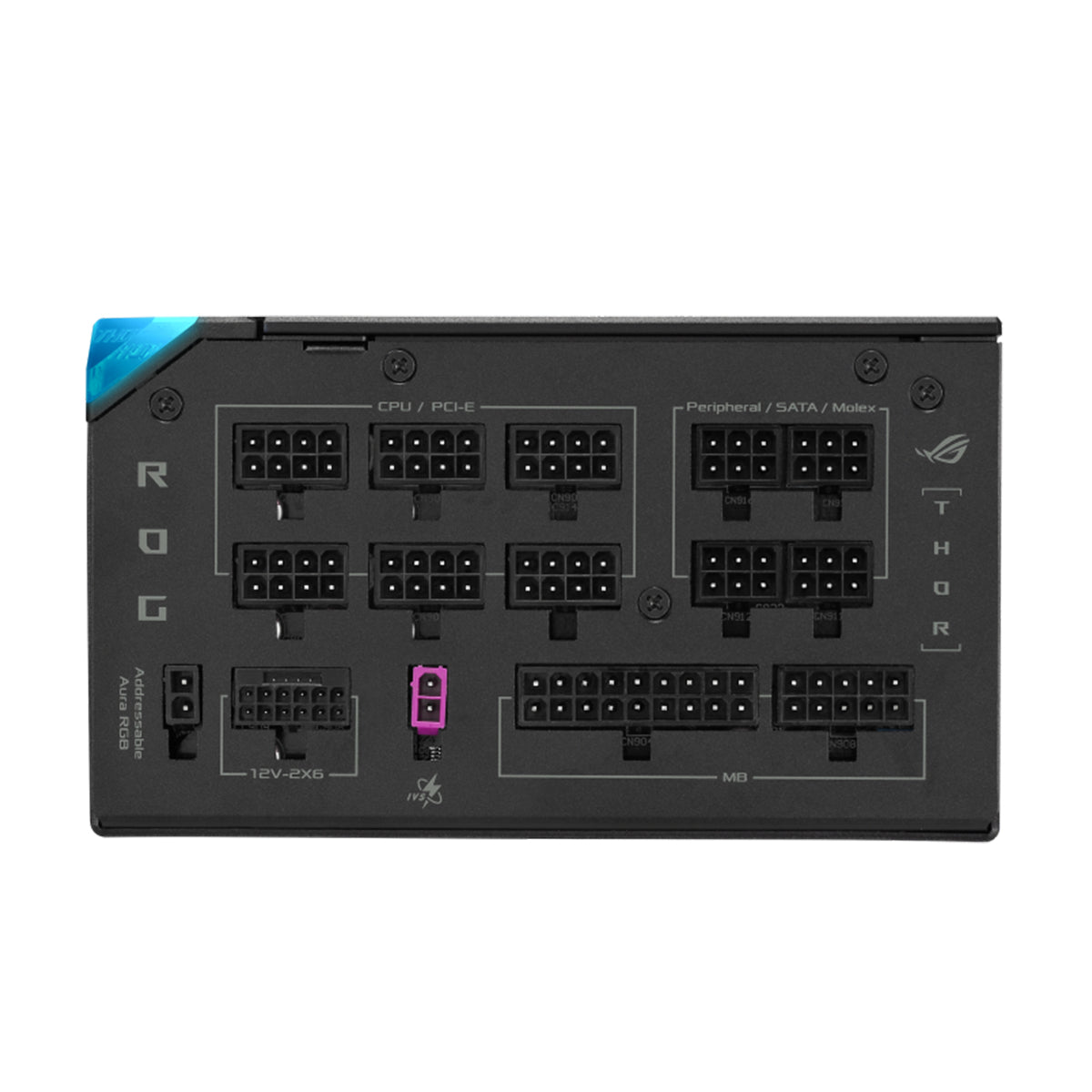

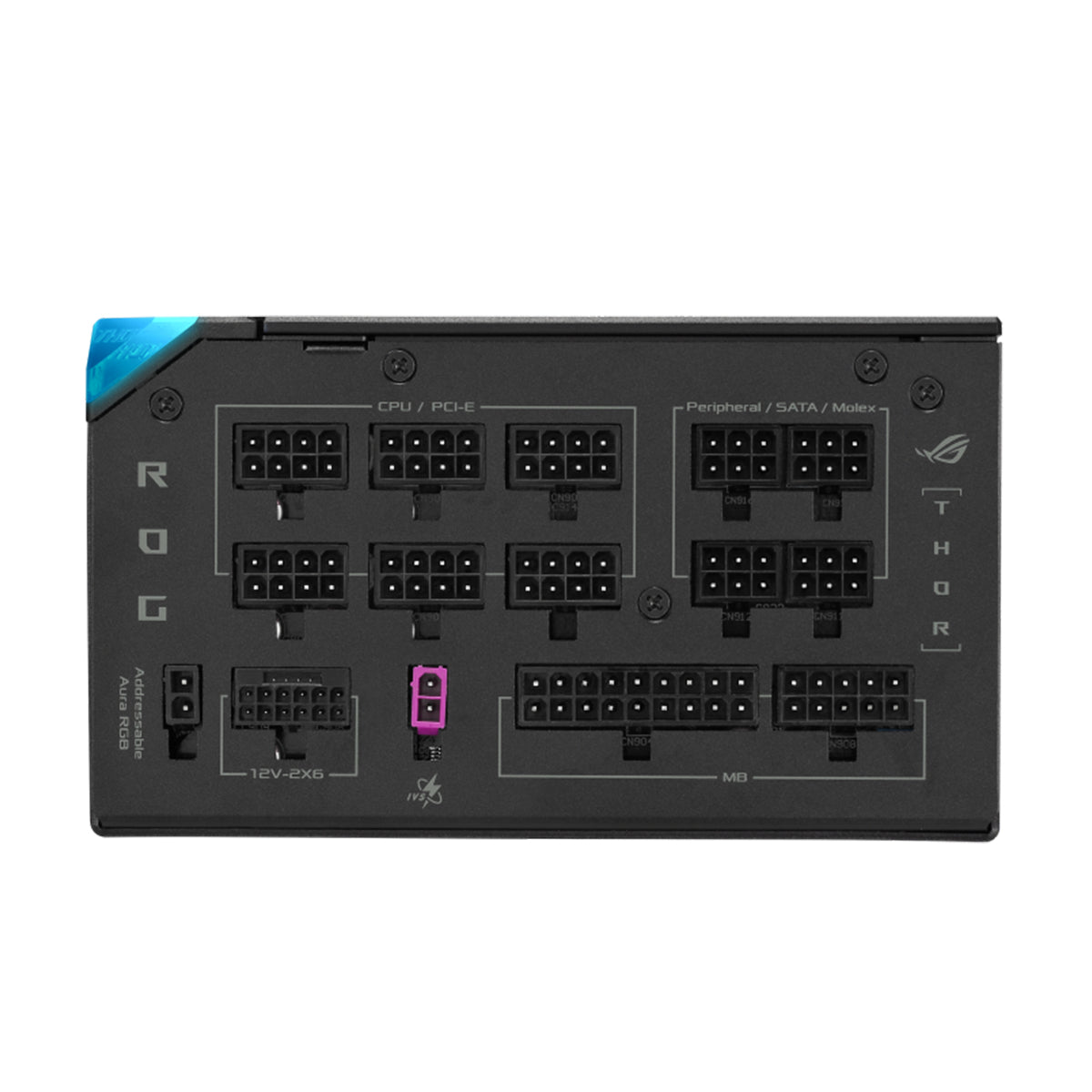

| Cable Connectors |
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 4 SATA x 7 PERIPHERAL x 6 |
| Package Contents |
Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 16-pin Cable x 1 (750mm) PCI-E Cable 1-to-1 x 4 (750mm) SATA Cable 1-to-4 x 1 (400+120+120+120mm) SATA Cable 1-to-3 x 1 (400+120+120mm) Peripheral 1-to-3 x 2 (400+150+150mm) Addressable RGB Cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
| Weight | 2.37 KG (single PSU) |
| AURA SYNC | ARGB |
| Cybenetics Noise Level Certification | A++ |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |
| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
