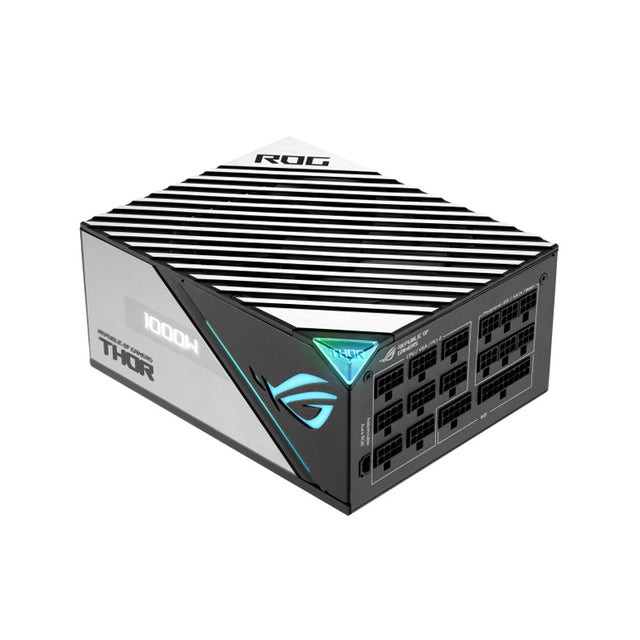

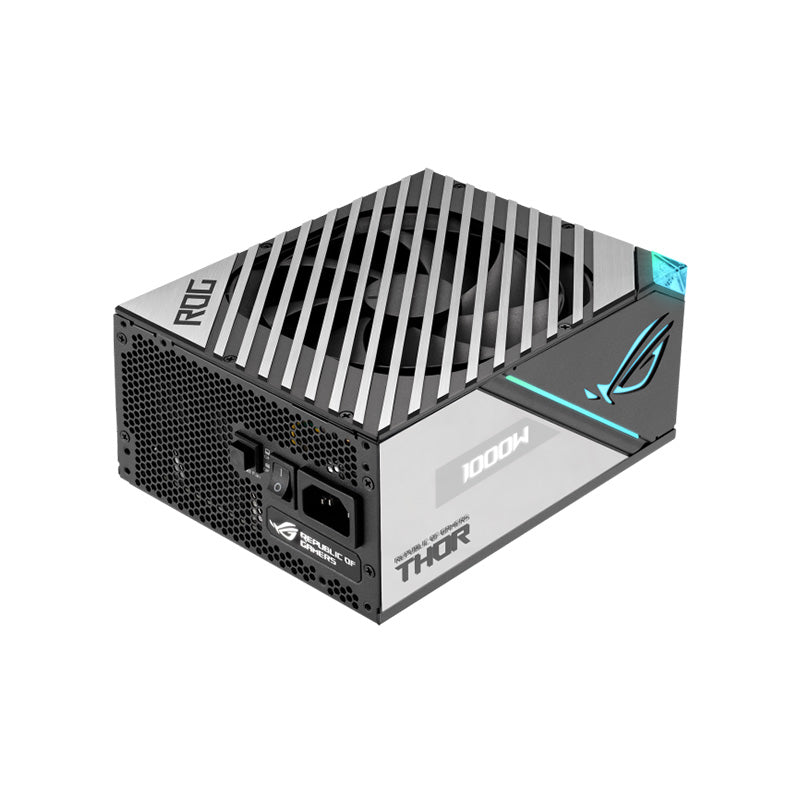

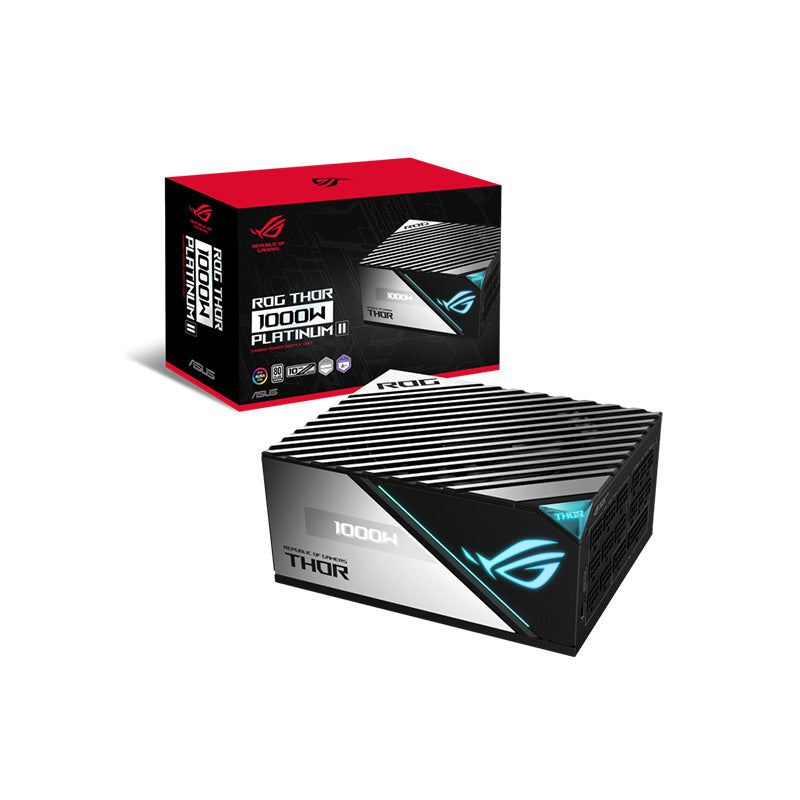

ASUS ROG THOR 1000W Platinum Power Supply
Order now and it ships in 2-3 working days.
In-stock at Supplier
Pickup available at Computer Lounge
Usually ready in 2-3 working days.
Warranty and Support
Warranty and Support
Warranty: 10 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
The Quietest 1000W Power Supply
Back with a vengeance, the second iteration of the ROG Thor 1000W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we've added a mirrored side panel that neatly frames the OLED display.
ROG Heatsinks
ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.
Axial-tech Fan Design
A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.
Dual Ball Fan Bearings
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
0dB Technology
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.
Lambda A++ Certification
Thor II cooling upgrades result in a coveted Lambda A++ noise rating, confirming the latest iteration wields menacing power in absolute stealth.
80 Plus Platinum Certification
The ROG Thor 1000W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat reduce fan noise and increases reliability.

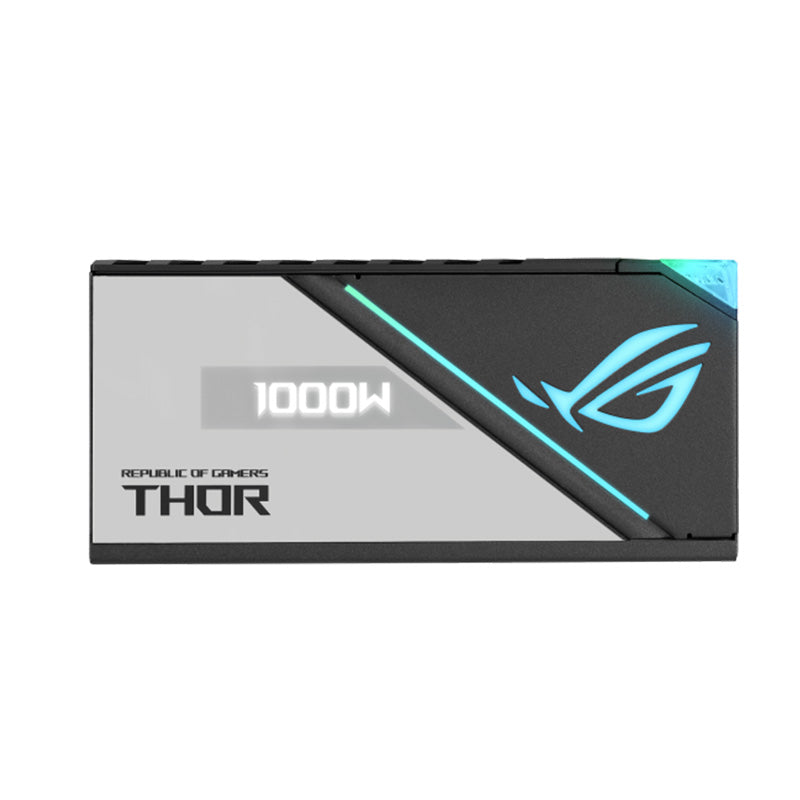

OLED Power Display
The built-in OLED panel makes it easy to tune your system for best performance and efficiency.
Aura Sync
Customize the Aura ROG logo and/or add RGB lighting strips to accent your showcase build.
Sleeved Cables
A range of sleeved cables are bundled with Thor II, and we also provide a 20% CableMod discount.
PCIe Gen 5.0 Ready
Each ROG Thor 1000W Platinum II PSU is bundled with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards. Get ready for the future of power delivery.
Specifications
Specifications
| Intel Specification | ATX12V |
| PFC Type | Active PFC |
| Dimensions | 190 x 150 x 86 mm |
| Efficiency | 80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 83A 0.3A 3A |
| Combined Load | 125W 125W 996W 3.6W 15W |
| Total Output | 1000W |

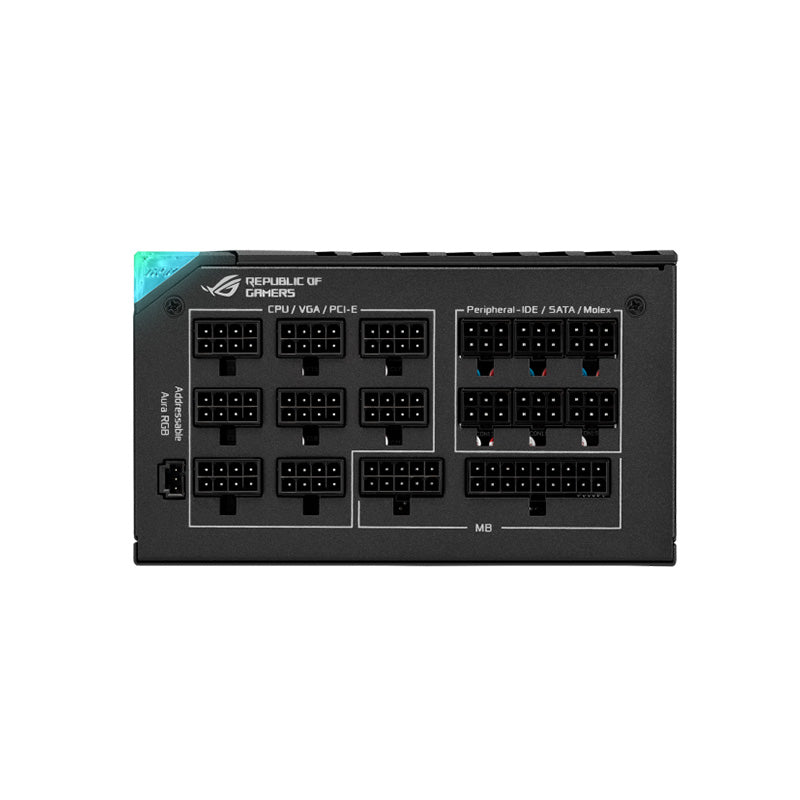

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (component side) PCI-E 6+2-pin x 8 SATA x 12 PERIPHERAL x 6 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x1 (610mm) CPU Cable x2 (650mm) PCIE Cable 16-pin x1 (675mm) PCIE 1-to-1 Cable x4 (675mm) PCIE 1-to-2 Cable x2 (675+75mm) SATA 1-to-4 Cable x3 (400+120+120+120mm) Peripheral 1-to-3 Cable x2 (450+120+120mm) Addressable RGB Cable x1 (800mm) ROG sticker x 1 ROG cable tie x 6 Sleeved Cable Combs (6-pin) x 4 Sleeved Cable Combs (8-pin) x 10 Sleeved Cable Combs (24-pin) x 2 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
| Weight | 2.37 KG |
| AURA SYNC | ARGB |
| Cybenetics Noise Level Certification | A++ 0dB Technology Supported. The fan shuts off entirely when the PSU is under certain load |
| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
