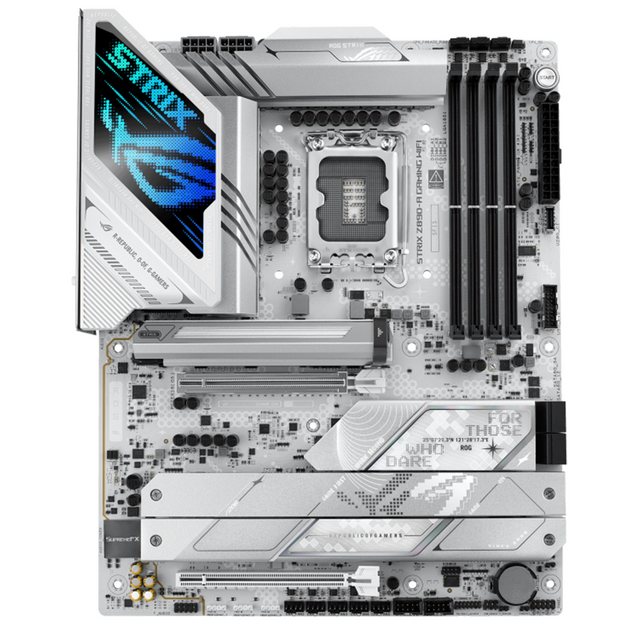

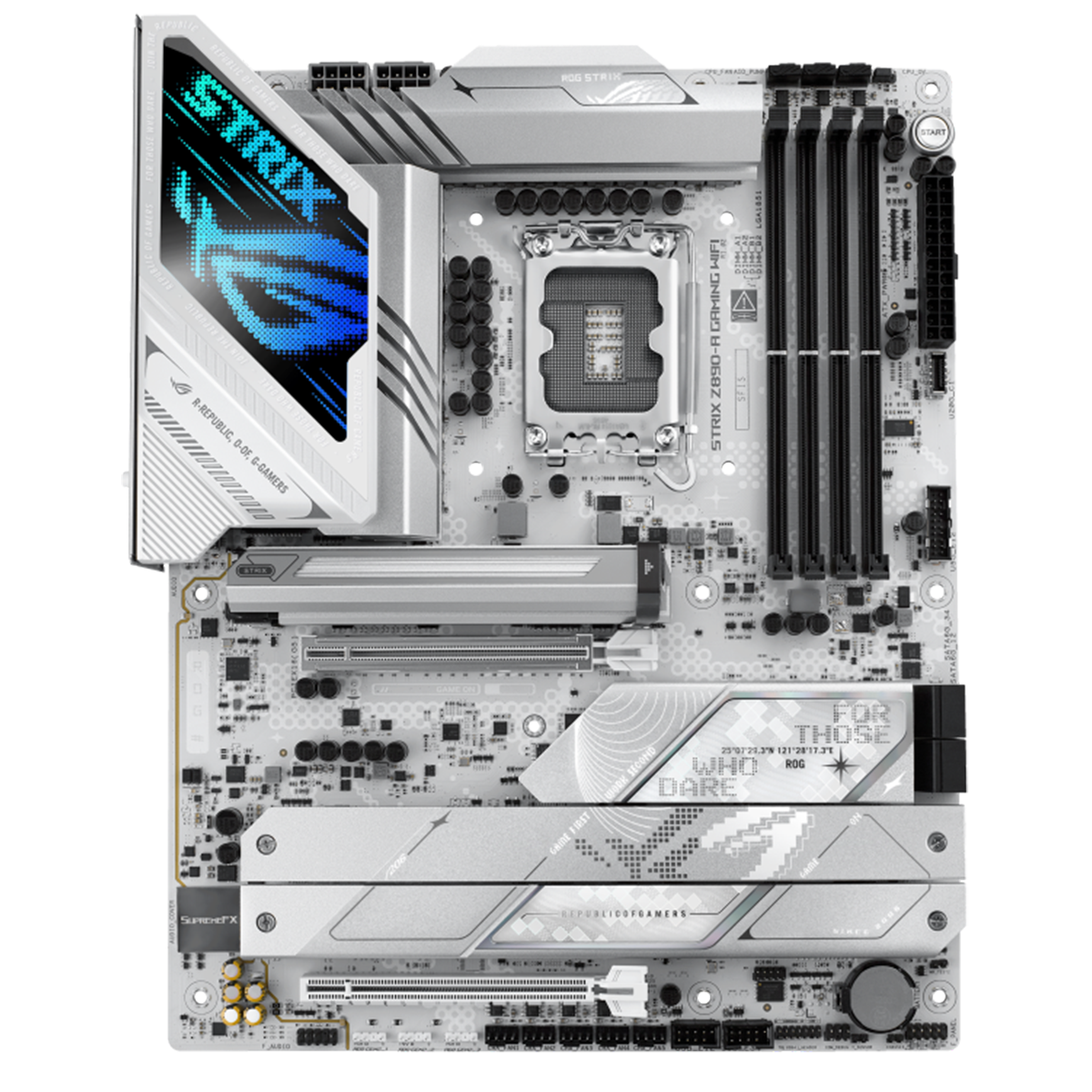

ROG STRIX Z890-A GAMING WIFI
With Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, the ROG Strix Z890-A delivers lightning-fast data transfers, exceptional connectivity, and a customizable aesthetic that can be subtle or bold. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
ASUS AI INTELLIGENCE
- ASUS AI ADVISOR: Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
- AI OVERCLOCKING: ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
- AI COOLING II: Balance the thermals and acoustics of any build with a single click.
- AI NETWORKING II: AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
MEMORY
- DDR5 DOMINATION: Enhanced signal routing can push enthusiast-grade kits well beyond the 8 GT/s threshold on the Strix Z890-A.
- DIMM FIT: DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
- AEMP III: ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.
ROG STRIX ULTIMATE POWER DESIGN
- 16(90A)+1(90A)+2(90A)+2(80A) Power Stages
- DUAL PROCOOL II POWER CONNECTORS: ProCool II connectors are precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.
- ALLOY CHOKES AND DURABLE CAPACITORS: Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
- EIGHT-LAYER PCB: A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
COOLING
- M.2 BACKPLATE: An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.
- M.2 HEATSINKS: Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
- VRM HEATSINK ARRAY: Two thick heatsinks covering the power delivery section provide strategic airflow channels for increased heat dissipation while empowering high-performance Intel® Core™ Ultra Processors (Series 2).
LEADING CONNECTIVITY
- WIFI 7: The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
- INTEL 2.5GB ETHERNET: Onboard Intel® 2.5Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.
- PCIE 5.0: The Strix Z890-A offers end-to-end PCIe 5.0 support, and the topmost x16 expansion slot is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One onboard M.2 slot is rated for blistering read and write speeds up to 16 GB/s, while the remainder can deliver still-impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.
TWO THUNDERBOLT 4 TYPE-C® PORTS
Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays, and PCIe bandwidth extends to up to 32 Gbps.
USB WATTAGE WATCHER
USB Wattage Watcher allows users to monitor the current wattage delivered to a device connected to the USB 10Gbps Type-C® rear I/O port. With USB Wattage Watcher, users can glance at their device's charging wattage in real-time and check on their device’s Fast-Charging status.
BIOS Q-DASHBOARD
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
OUTSHINE THE COMPETITION
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
Specifications
Specifications
CPU | Support Intel® Core™ Ultra Processors (Series 2)* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
CHIPSET | Intel® Z890 Chipset |
MEMORY | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8600+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex Supports DIMM FIT ASUS Enhanced Memory Profile III (AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/download-center/. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
GRAPHICS | 1 x DisplayPort* 1 x HDMI™ port** 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs*** - Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20. **** VGA resolution support depends on processors' or graphic cards' resolution. ***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
EXPANSION SLOTS | Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
STORAGE | Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
ETHERNET | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
WIRELESS & BLUETOOTH | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4*** * Wi-Fi features may vary depending on the operating system. For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
USB | Rear USB (Total 10 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD/PPS Fast-charge)** 2 x USB 5Gbps ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C®)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
AUDIO | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback on front panel Audio Features SupremeFX Shielding Technology Savitech SV3H712 AMP Rear optical S/PDIF out port Premium audio capacitors Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |

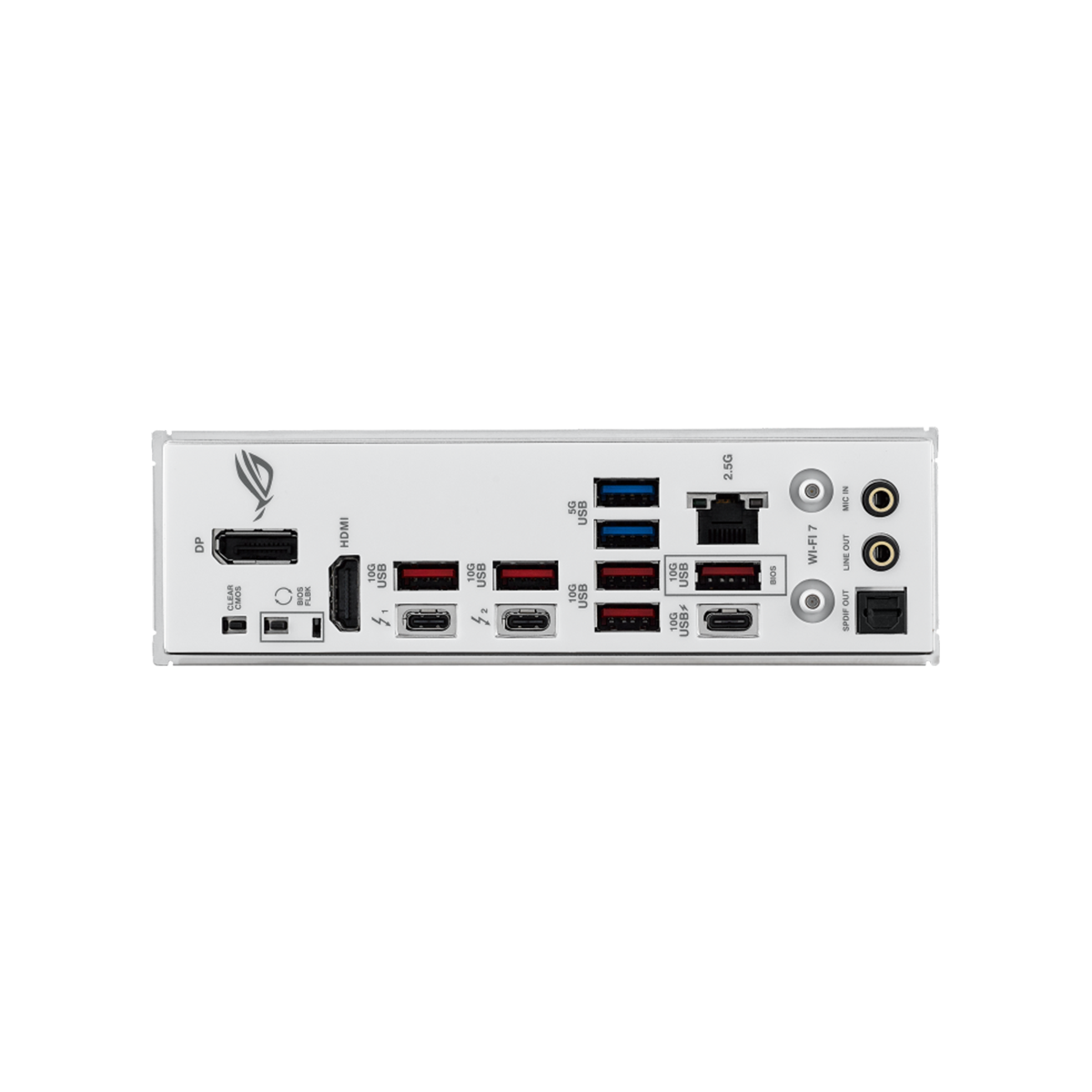

BACK PANEL I/O PORTS | 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD/PPD Fast-charge) 2 x USB 5Gbps ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
INTERNAL I/O CONNECTORS | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
Miscellaneous | 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
SPECIAL FEATURES | Extreme Engine Digi+ 5K Black metallic capacitors ASUS Q-Design M.2 Q-Latch M.2 Q-Release M.2 Q-Slide PCIe Slot Q-Release Slim (with PCIe SafeSlot) Q-Antenna Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink backplate M.2 heatsink ASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED Clear CMOS button CPU Socket lever protector ProCool II Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync Addressable Gen 2 headers |
SOFTWARE FEATURES | ROG Exclusive Software ROG CPU-Z Dolby Atmos ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 4 (with AI Cooling II) GameFirst Power Saving AIDA64 Extreme (60 days free trial) HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (30 Days Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial)UEFI BIOS AI Overclocking Guide NPU Boost ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash ASUS UEFI BIOS EZ Mode ASUS MyHotkey FlexKey BIOS 256 Mb UEFI AMI BIOS |
MANAGEABILITY | WOL by PME, PXE |

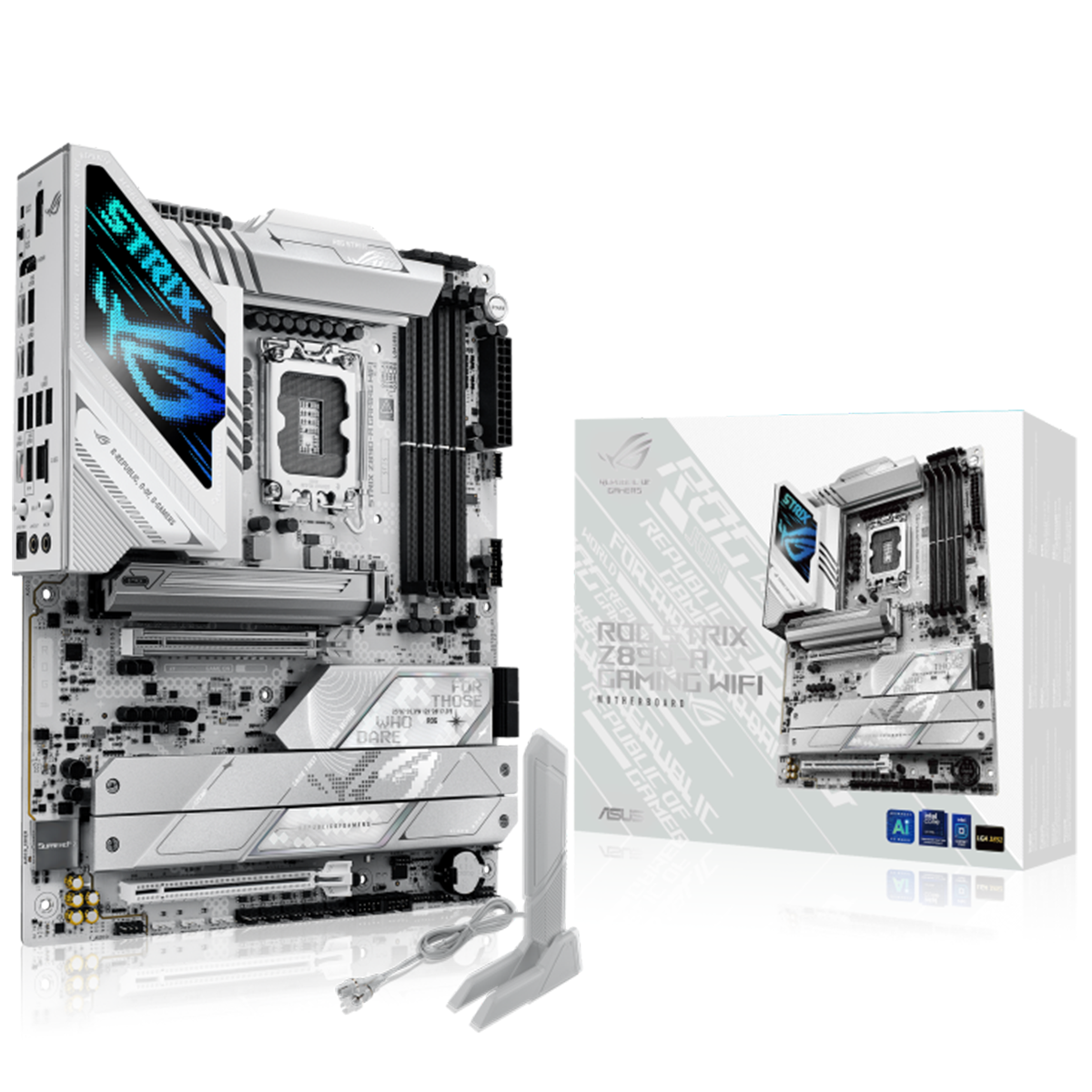

ACCESSORIES | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 5 x M.2 rubbers Documentation 1 x Quick start guide |
OPERATING SYSTEM | Windows 11 (22H2 later) |
FORM FACTOR | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
