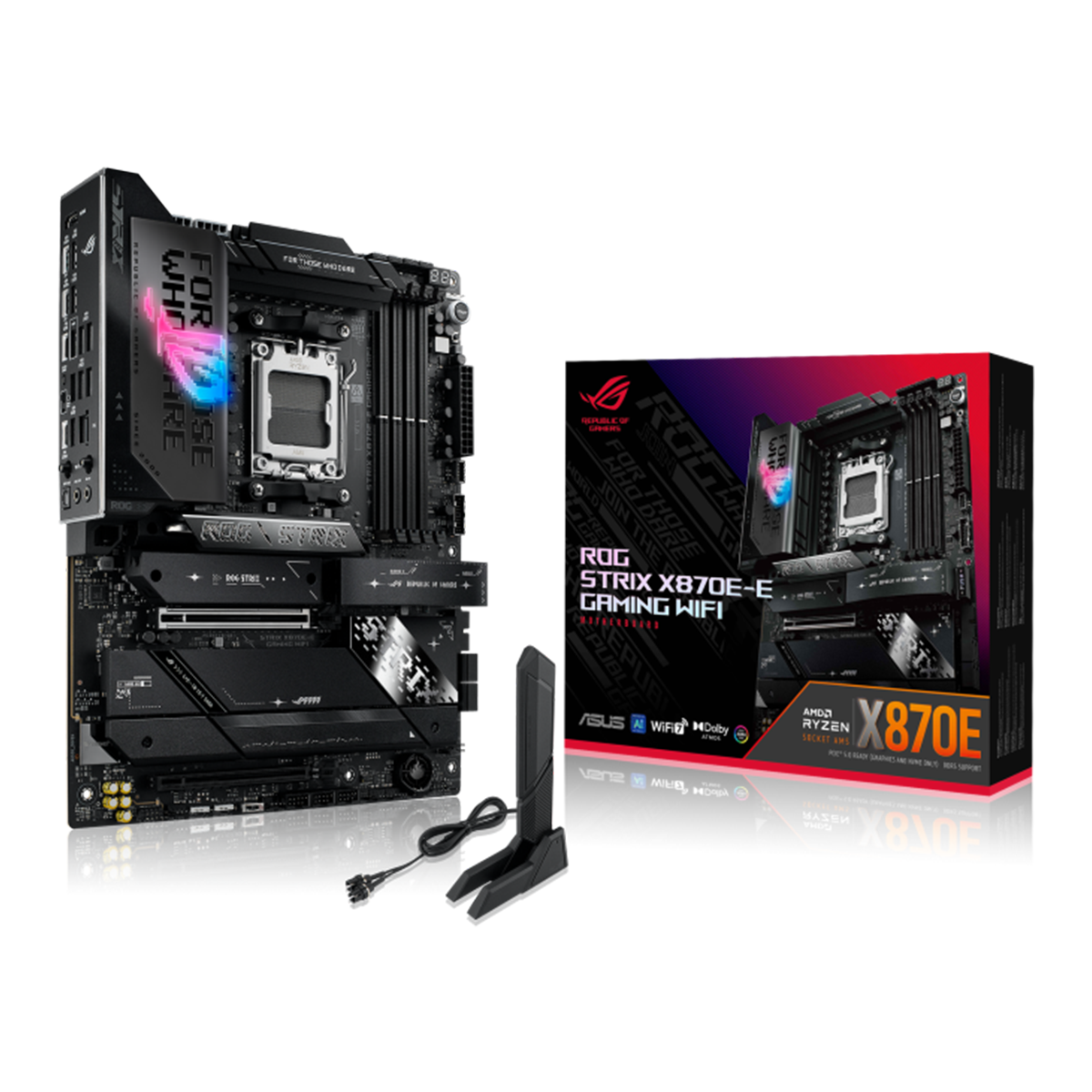

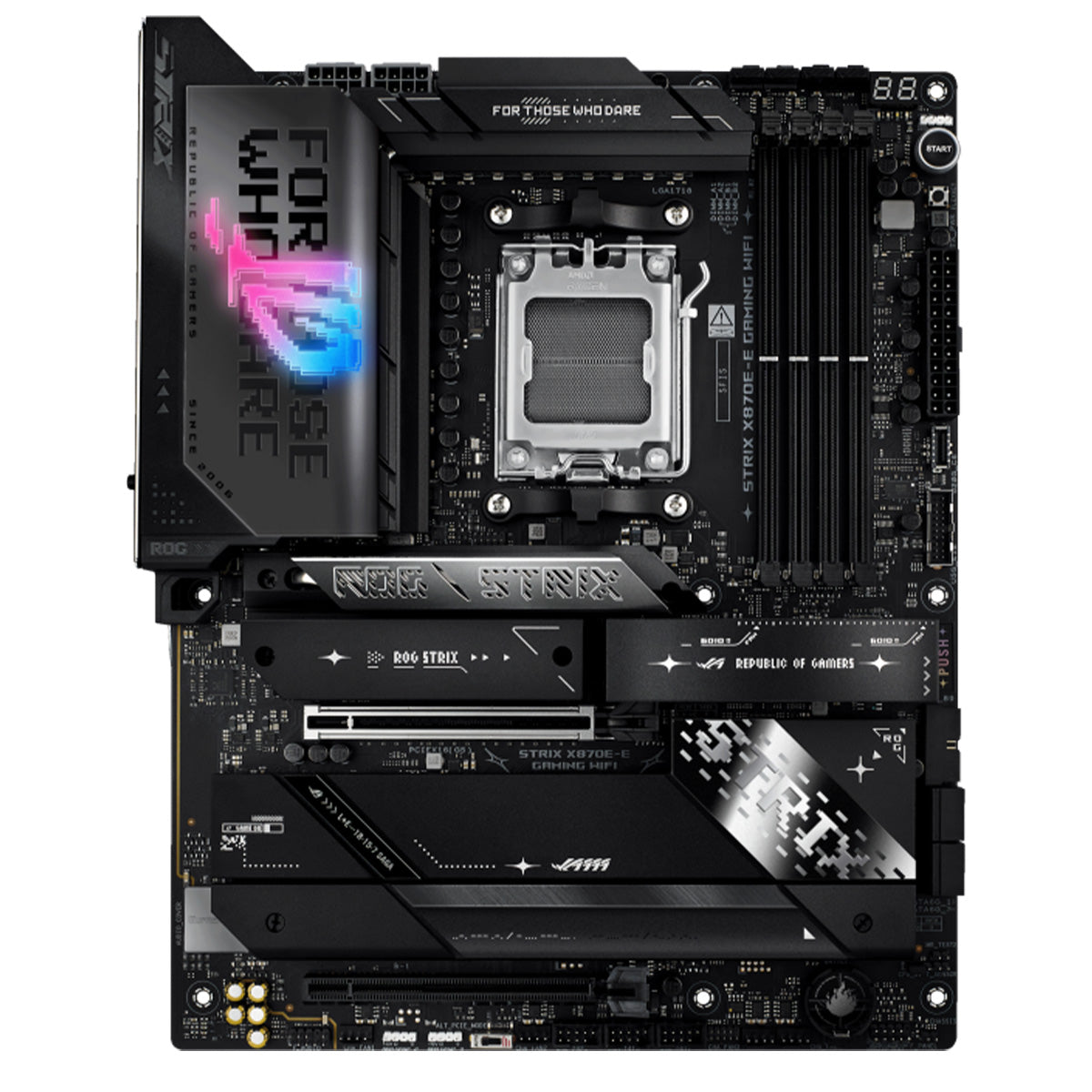

ASUS ROG STRIX X870E-E GAMING WIFI Motherboard

The ROG Strix X870E-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen™ 9000 Series processors. Featuring PCIe® 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP, setup is streamlined while performance is maximized. Dual USB4® Type-C ports and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.

ASUS AI INTELLIGENCE

AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI COOLING II
Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

*Features may vary by model.

ROG STRIX ULTIMATE POWER DESIGN 18+2+2

Performance

OVERCLOCKING

DYNAMIC OC SWITCHER
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overclock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

CORE FLEX
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. The system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently.

ASYNCHRONOUS CLOCK
For next-level frequency flexibility, the ROG Strix X870E-E features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.

PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

LEADING CONNECTIVITY

WIFI 7
The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6*, thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking new realms in gaming, streaming, and industrial IoT.

* WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions. ** Specifications vary by model.

ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5, and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
Disclaimer: The availability of WiFi 7 160 GHz and 320 GHz varies according to regional regulations.

Wireless Signal Reception Improvement
Versus previous-generation antenna
Up to +6% @ 6GHz
Up to +18% @ 5/2.4 GHz

Intel 2.5Gb Ethernet
Onboard Intel® 2.5Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.

PCIE 5.0
Fully embracing the new standard, the Strix X870E-E offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. Three of the onboard M.2 slots are geared for blistering 16 GB/s read and write speeds thanks to its PCIe 5.0 interface, while all the rest can deliver still-impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.

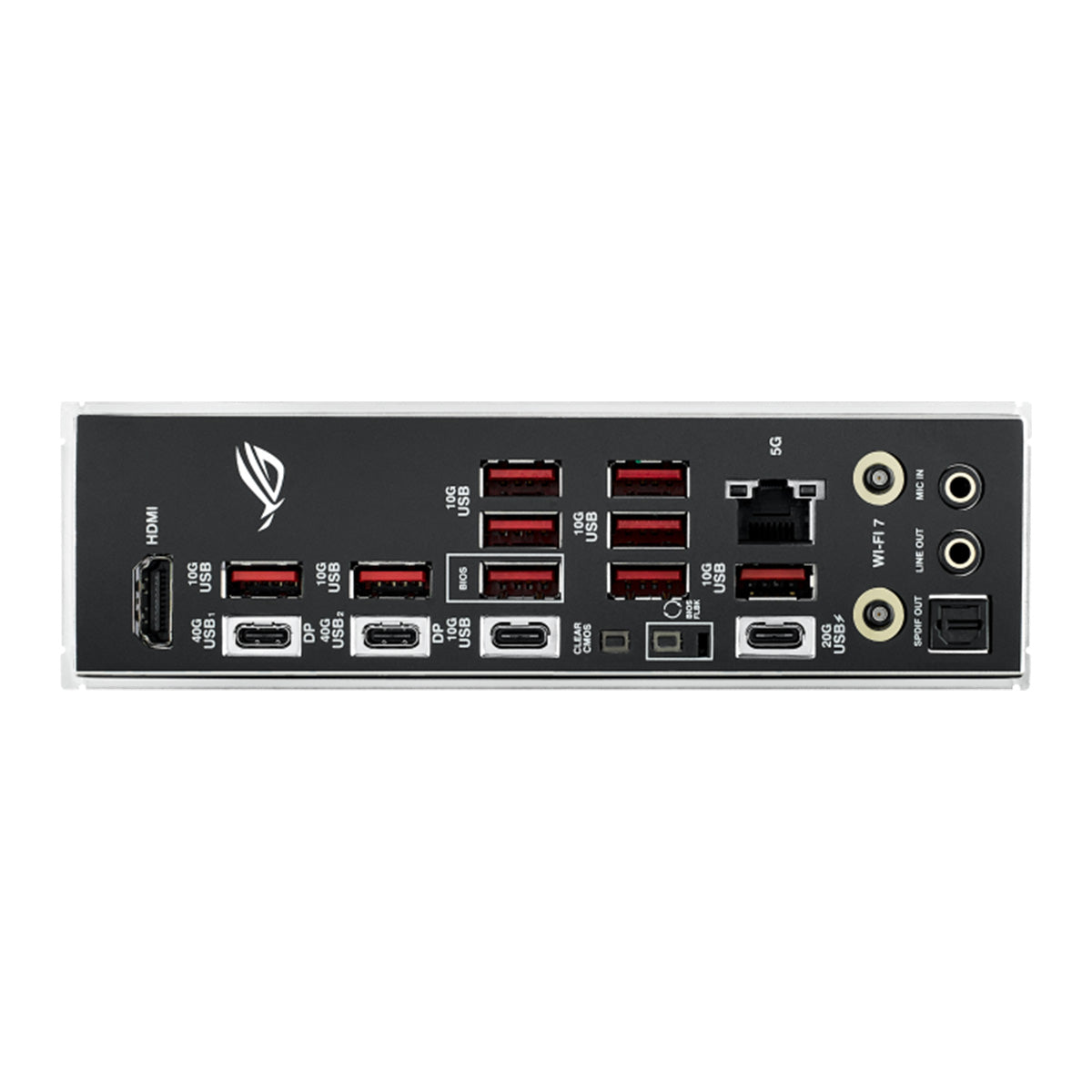

DUAL USB4® PORTS
Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.*

*VGA resolution support depends on CPU or graphic card capabilities.

USB 20Gbps
The Strix X870E-E comes loaded with two USB 20Gbps Type-C® connectors for speedy data transfers up to 20Gbps. One connector can be connected to the chassis front panel, while the other is located on the rear I/O and supports Power Delivery (PD) 3.0 technology, enabling rapid device charging up to 30W.

USB WATTAGE WATCHER
USB Wattage Watcher allows users to monitor the current wattage delivered to a device connected to the USB 20Gbps Type-C® rear I/O port. With USB Wattage Watcher, users can glance at their device's charging wattage in real-time and check on their device’s Fast-Charging status.

DOLBY ATMOS
ROG and Dolby® have partnered to bring superior gaming audio quality to users. Dolby Atmos expands on traditional surround sound systems by adding height channels, which enables immersive three-dimensional audio to be perceived from above, below, and around the listener.

SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix X870E-E implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
