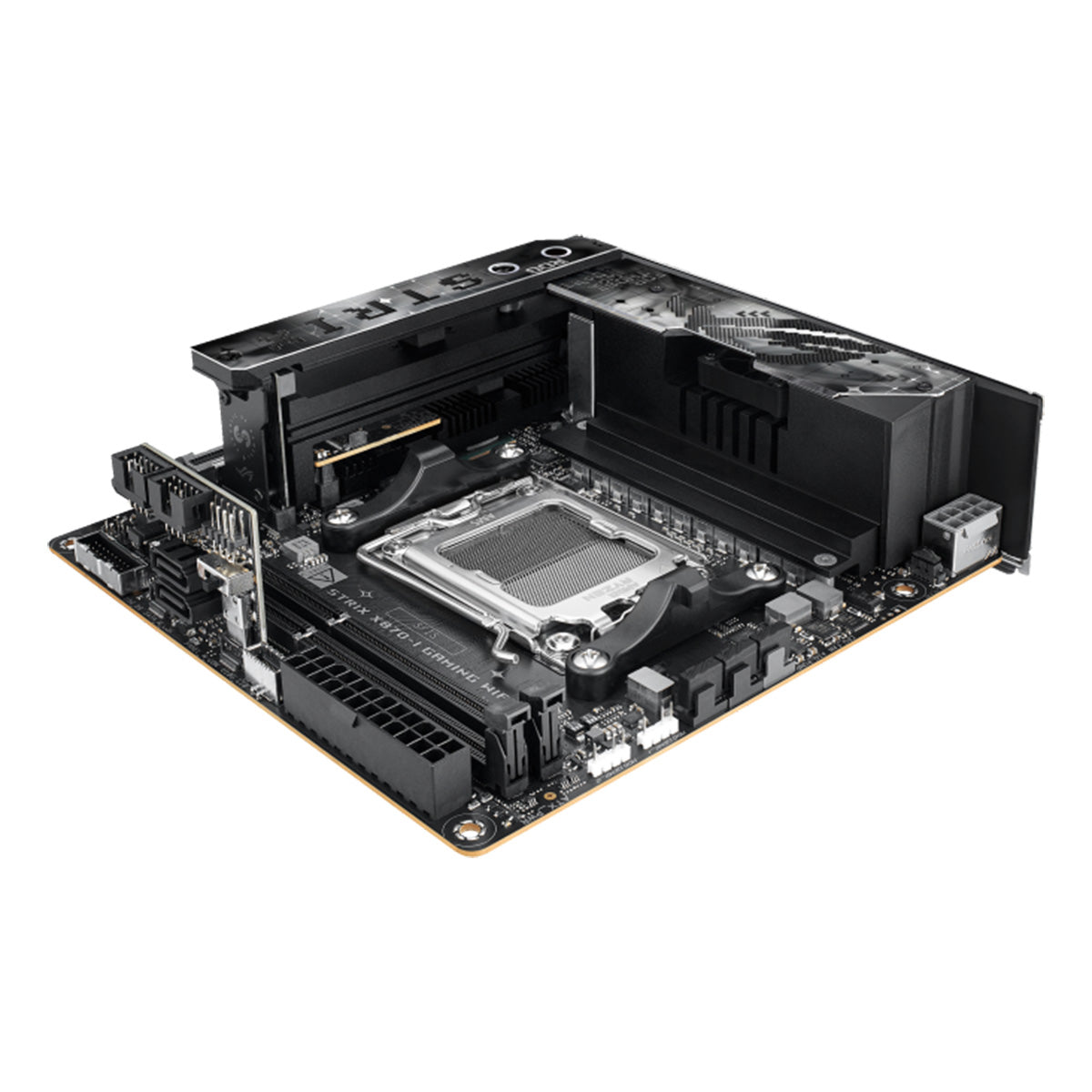

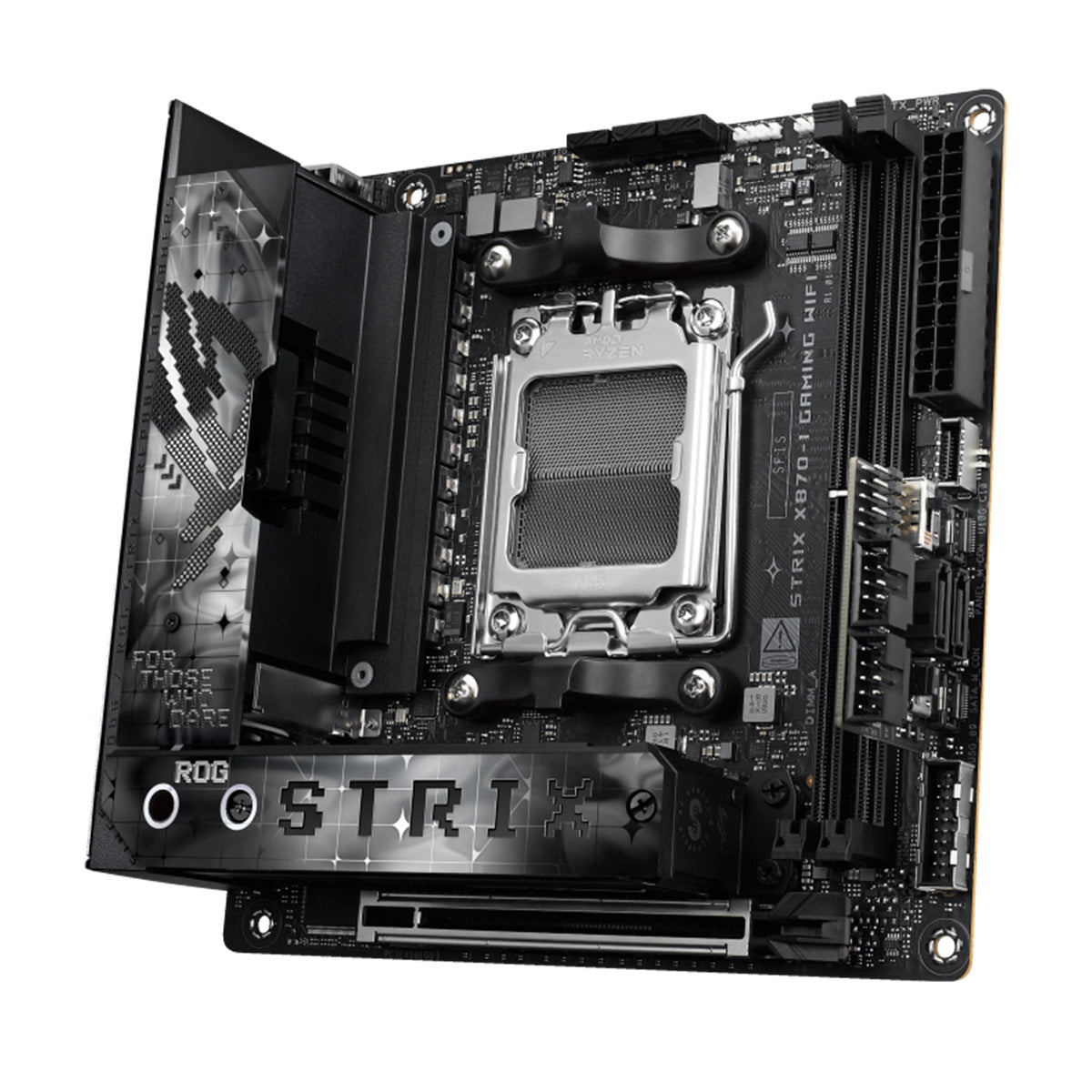

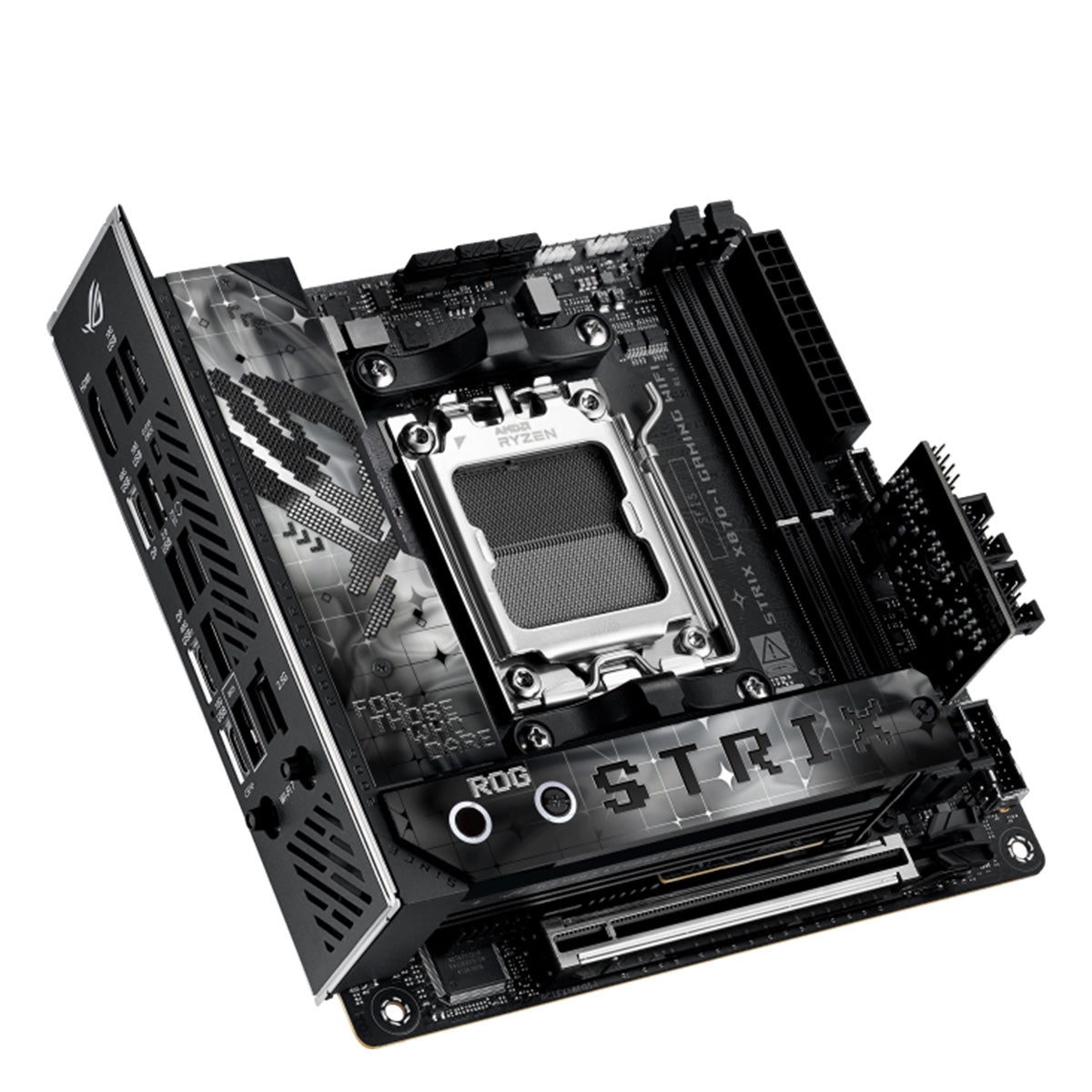

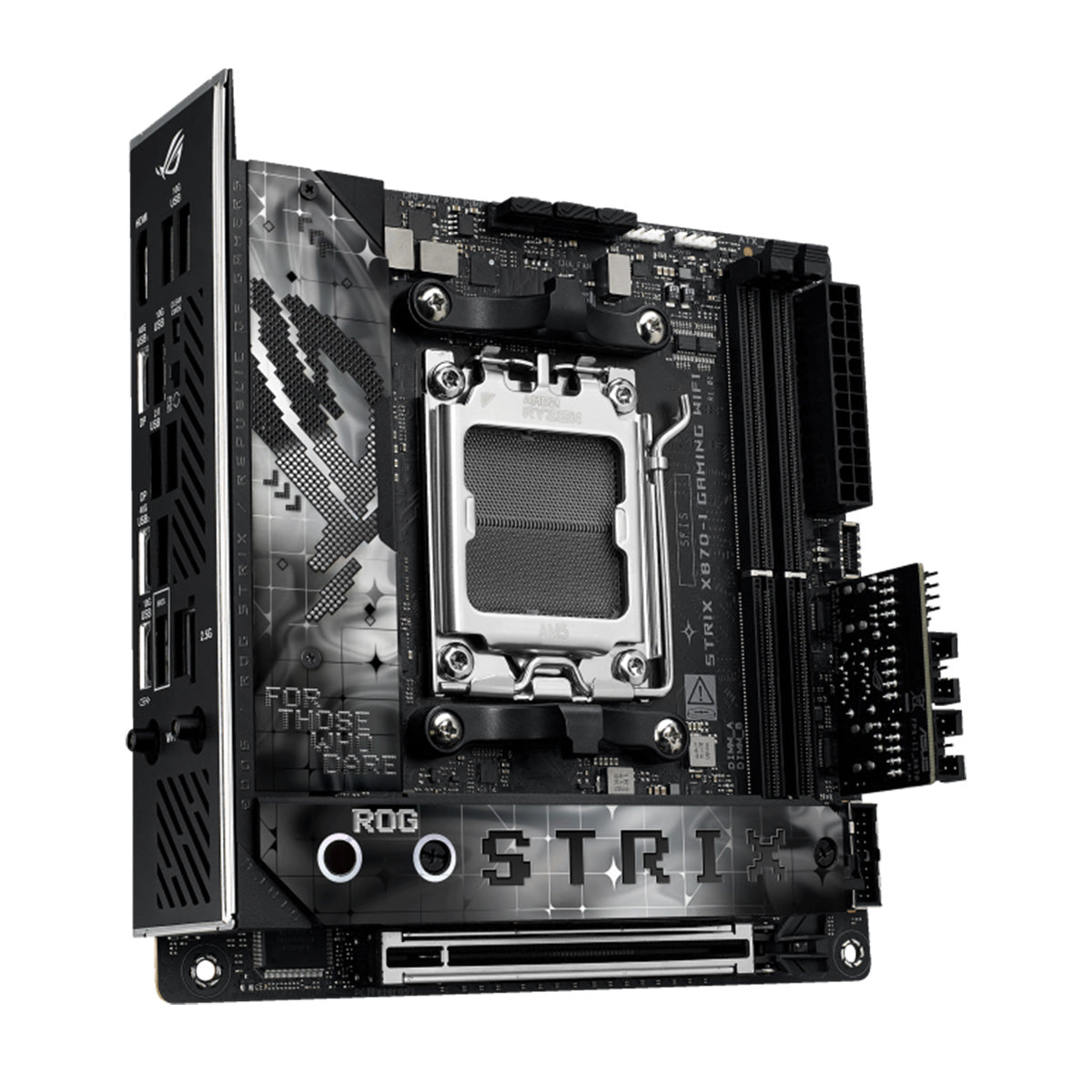

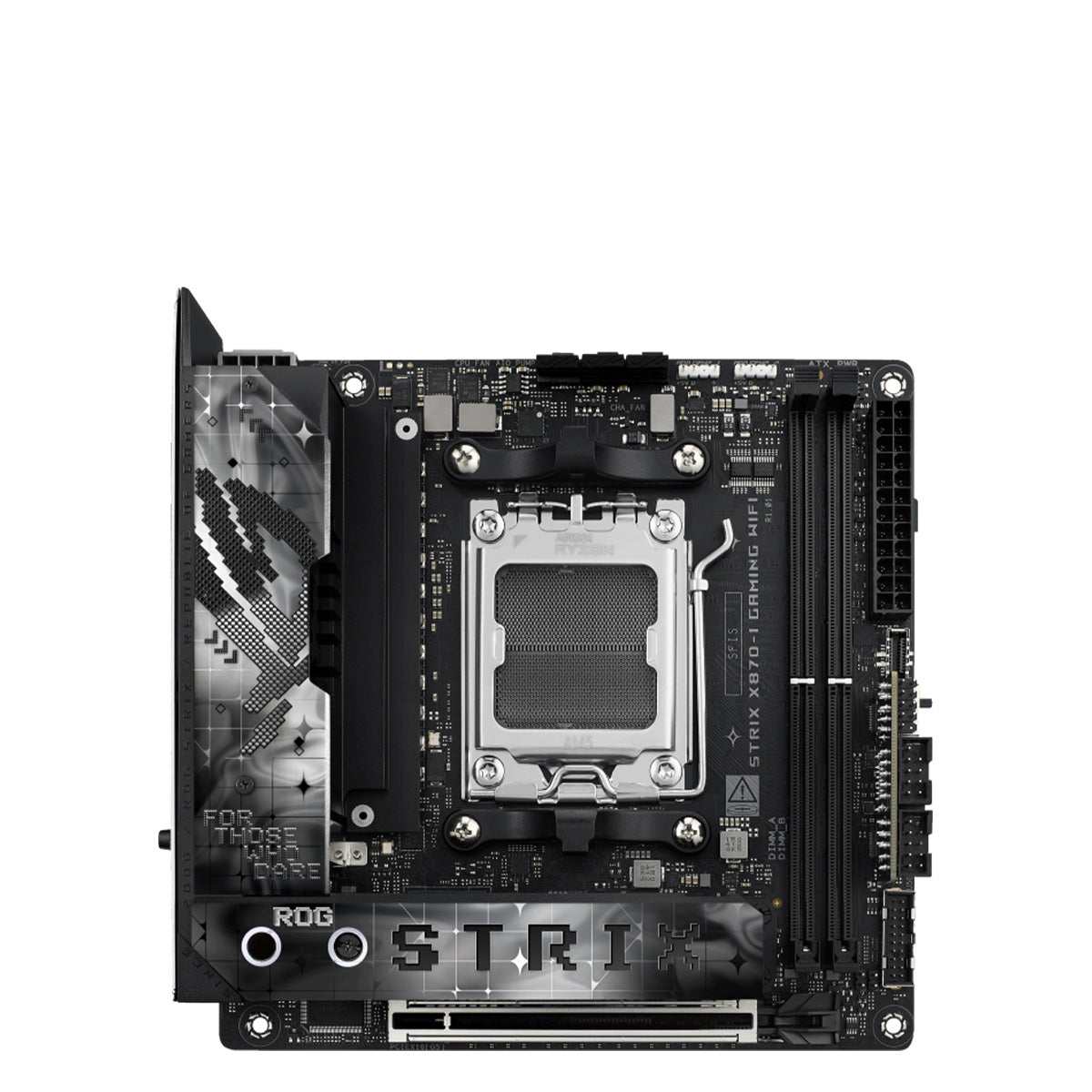

ASUS ROG STRIX X870-I GAMING WIFI Mini-ITX Motherboard

ROG Strix X870-I Gaming WiFi
The ROG Strix X870-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor, enhanced by the ROG Strix Hive II for streamlined control. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots, and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.

ASUS AI
INTELLIGENCE

AI OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.*

Performance
OVERCLOCKING

DYNAMIC OC SWITCHER
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overclock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent system crashes during overclocking.

CORE FLEX
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. Maximize base clock during lighter loads and set breakpoints to reduce CPU core frequency as temperature or current increases. The system supports multiple user-controlled functions that can manipulate power, current, and temperature limits independently for customized CPU performance.

PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) increases CPU current and voltage for performance gains. Aggressively tuned PBO parameters leverage the motherboard’s power solution to enhance performance.


MEMORY
DDR5 DOMINATION
The Strix X870-I is primed for enthusiast-grade kits with support for AMD EXtended Profiles for Overclocking (EXPO).

EMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

POWER SOLUTION
ROG STRIX ULTIMATE
POWER DESIGN
10+2+1 power phase design for improved stability and performance.


COOLING
M.2 AND CHIPSET HEATSINKS
The on-board M.2 slots and heatsinks are stacked over the chipset, with an embedded fan for cooling high-performance drives.

VRM HEATSINK
The VRM heatsink and L-shaped backplate extend over the rear I/O to maximize surface area, providing active cooling for AMD processors and maintaining clearance for large CPU coolers.

HIGH-CONDUCTIVITY THERMAL PADS
High-quality thermal pads improve heat transfer and reduce VRM operating temperatures.

CPU FAN HEADERS
A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.

AIO PUMP FAN HEADER
A dedicated PWM/DC header connects self-contained water-cooling setups.

4-PIN FAN HEADERS
The Strix X870-I features five chassis fan headers, each supporting auto-detection of PWM or DC fans.

LEADING CONNECTIVITY
ROG STRIX HIVE II
The ROG Hive II is an exclusive accessory designed to deliver user-friendly access to hardware and software features.

ROG FPS CARD
The ROG FPS card groups I/O onto a vertically-mounted card, saving valuable motherboard space and improving cable management.

WIFI 7
WiFi 7 is up to 4.8x faster than WiFi 6*, with support for 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) enhances stability and reduces latency for gaming, streaming, and industrial IoT.

Intel 2.5Gb Ethernet
Onboard Intel® 2.5Gb Ethernet provides faster wired connections for gaming, streaming, and data transfers, with speeds 2.5 times faster than standard Ethernet connections.

Feature	Details
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD X870
Memory	2 x DIMM slots, max. 96GB, DDR5 Supports up to 8400+MT/s(OC) with Ryzen™ 9000 Series Processors, 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI™ port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a **** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)* * Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors* M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) AMD X870 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 2 x SATA 6Gb/s ports*** * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1 *** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.
Ethernet	1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate. Bluetooth® v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports) 2 x USB4® (40Gbps) port(s)(2 x USB Type-C®) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 3 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports * USB Type-C® power delivery output: max. 5V/3A ROG STRIX HIVE II(Total 2 ports) 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®) ROG FPS Card (Total 3 ports) 2 x USB 2.0 headers additional 3 USB 2.0 ports
Audio	ROG Strix Hive II Audio Features - ROG Hyper-Grounding Technology - ESS® SABRE9260Q DAC - Silver-plated audio jacks - Dedicated audio PCB layers
Dimensions	Mini-ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm)
Accessories	Cables 1 x Panel cable 1 x ROG USB2.0 splitter cable 2 x SATA 6Gb/s cables ROG FPS Card 1 x ROG FPS Card ROG STRIX HIVE II 1 x ROG STRIX HIVE II 1 x USB Type-C® power connection cable Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package(s) 1 x ROG key chain 1 x ROG Strix stickers 1 x M.2 rubber package(s) Documentation 1 x Quick start guide
Form Factor	Mini-ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm)
