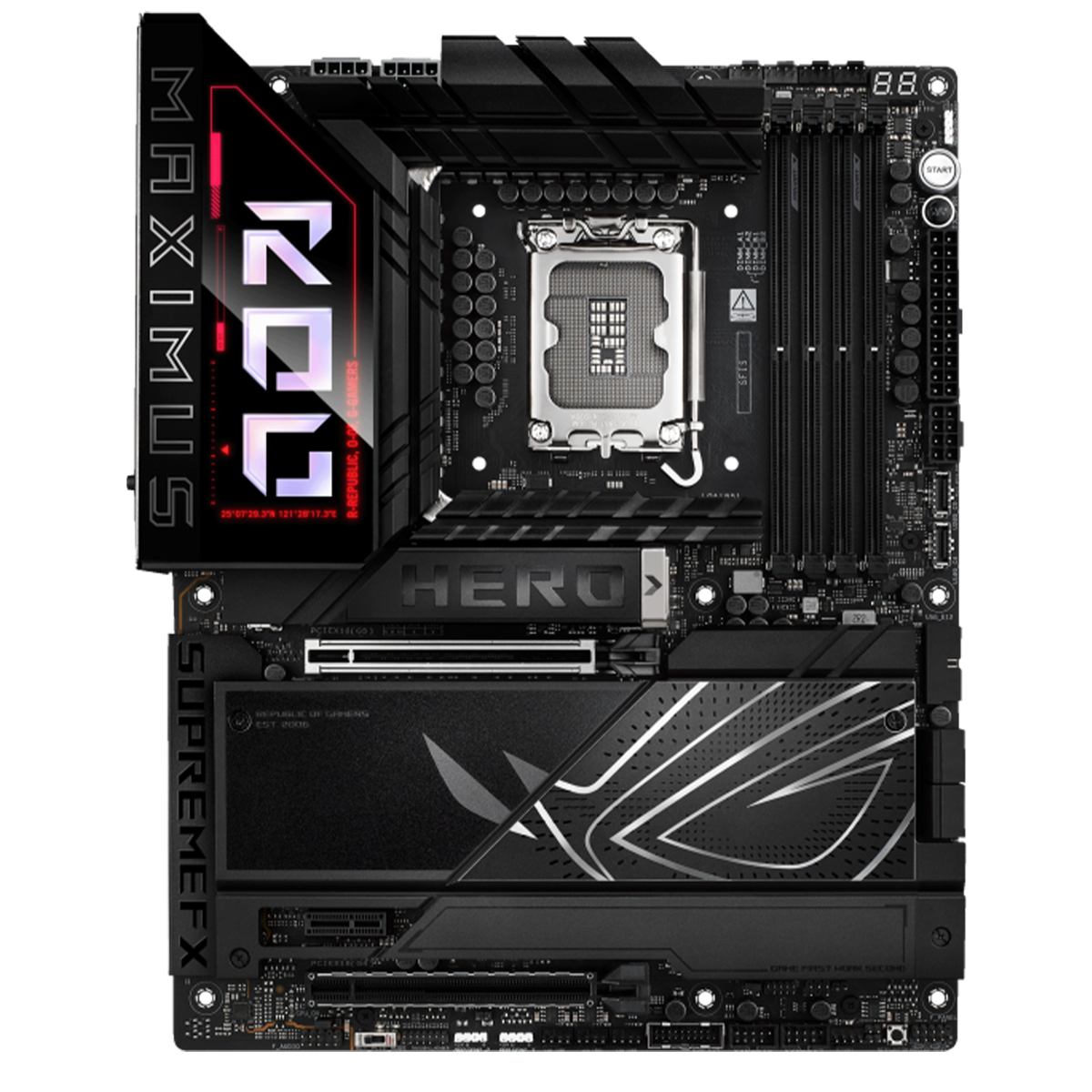

ASUS ROG MAXIMUS Z890 HERO Motherboard

ROG MAXIMUS Z890 HERO

The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots, and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.

ASUS AI INTELLIGENCE

• AI NETWORKING II: AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
• AI OVERCLOCKING: Tuning is now faster and smarter than ever before.
• AI COOLING II: Balance the thermals and acoustics of any build with a single click.

MEMORY

• DDR5 DOMINATION: Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 8 GT/s mark on the ROG Maximus Z890 Hero*.
• NitroPath DRAM Technology: Frequency up to 400 MT/s higher
• Slot retention force enhanced by 57%
• DIMM FIT: DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.
• DIMM FLEX: DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.

ROG Ultimate Power Solution

• 22(110A)+1(90A)+2(90A)+2(80A) Power Stages
• MicroFine alloy chokes: Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
• 10K black metallic capacitors: Input and output filtering is provided by solid-polymer capacitors rated to last thousands of hours at high operating temperatures.
• 8 + 8-pin ProCool II power connectors: Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.

COOLING

• High-conductivity thermal pads: Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
• VRM and aluminum I/O heatsink: A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.
• M.2 heatsinks and backplates: Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and four of six onboard M.2 slots have dedicated backplates for additional heat dissipation.
• Chipset heatsink: A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.

M.2 SLOTS WITH M.2 POWERBOOST

The ROG Maximus Z890 Hero features three PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard, all of which support ROG M.2 PowerBoost to help ensure that every onboard M.2 device can operate simultaneously at optimal performance.

PCIE 5.0 EXPANSION SLOT

The primary PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim fully supports next-gen graphics cards.

WIFI 7

• 2.5Gb ETHERNET
• 5Gb ETHERNET

TWO THUNDERBOLT 4 TYPE-C® PORTS

Each port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. The Thunderbolt Display function supports up to 8K with DSC. Please see specifications for more details.

ONE USB 20Gbps & ONE USB 10Gbps TYPE-C FRONT PANEL CONNECTORS

The USB 20Gbps front-panel connector features Quick Charge 4+ technology that can rapidly charge devices up to 60W.

BIOS Q-DASHBOARD

Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

Glow Your Gaming World with Aura Sync

Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
